Huber HTS 30-H24 Heat Transfer Unit Efficient 0-90C Temp Control
Huber
Details
-
CategoryChiller / Heater
-
Dimension15.75in x 18.9in x 24.41in
-
SerialS407025
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz415V / 50Hz UK
Description

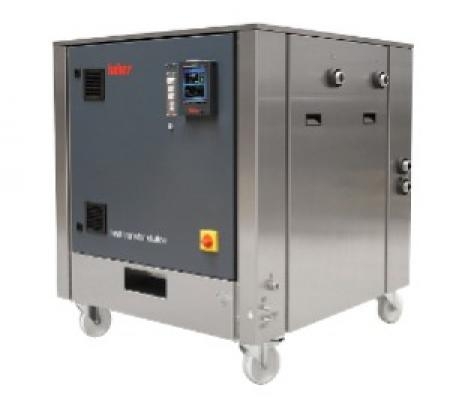

The Huber HTS 30-H24 is a high-performance heat transfer unit designed for precise temperature control in laboratory and industrial settings. Manufactured in Germany, this pre-owned unit remains in excellent working condition and has passed all functional tests. It features a sophisticated Pilot ONE controller with a 5.7-inch touchscreen display, offering advanced control functions, USB and network connectivity. Capable of handling a temperature range between 0°C to 90°C, it utilizes a stainless steel circulation pump and copper soldered plate heat exchanger for efficient thermal exchange. The unit's modular design allows easy upgrades with E-grade options, adding programmable functions and further enhancing its adaptive control capabilities. The robust build includes a Pt100 sensor, adjustable overtemperature protection, and multiple connectivity interfaces, ensuring reliable and versatile operation.
Key Features
- Advanced Pilot ONE controller
- 5.7-inch TFT touchscreen display
- Temperature range: 0°C to 90°C
- Heating power: 22kW / 30kW
- Stainless steel circulation pump
- Copper soldered plate heat exchanger
- Modular E-grade upgrades
- USB and network connectivity
Specifications
- Power supply requirement: 400V, 3 phase, 50Hz
- Maximum current: 5A
- Fuse: 3x10A
- Plug type: 230 507 3P 1N 1E
- Cooling power with water at 20°C: 30 kW
- Temperature stability: 0.1 K
- Internal temperature sensor: Pt100
- Max delivery pressure: 4.7 bar
- Circulation pump: Stainless steel with max 240 l/min delivery
- Max cooling water differential pressure: 4 bar
- Overall dimensions (W×D×H): 940 × 1050 × 1130 mm
- Weight: 270 kg
Weight
Imperial: 1891.56 Pounds
Metric: 858.0 Kilograms
Shipping Dimensions
Imperial: 18.9 lb x 22.68 lb x 29.29 lb
Metric: 48.01 cm x 57.61 cm x 74.4 cm
Harmonized Code
84198180
Harmonized Code Details
84198180: Industrial machinery and equipment for converting chemicals, refrigeration, or other processes. Suitable for Huber HTS 30-H24 due to its function in heat exchange and temperature control.
