Gilson Minipuls 3 Pump Peristaltic Low-Pulse High-Performance 30mL/min Used
Gilson
Details
-
CategoryPump
-
Dimension4.0in x 6.0in x 10.0in
-
Serial611J6541
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Gilson Minipuls 3 is a versatile, high-performance peristaltic pump designed for precise liquid transfer without altering the components within diverse liquids. The pump supports six channel and flow rate configurations, reaching up to 30 mL/min for standard models and 220 mL/min for high-flow models. It features a positive displacement mechanism with stainless steel rollers that ensure smooth, reliable flow. With an adjustable speed stepper motor and quality precision bore tubing, the Minipuls 3 delivers reproducible flow rates suitable for biological and chemical applications. Compact and user-friendly, it offers simple installation, operation, and maintenance using keypad controls and an LCD screen. Operates upright and remote control is possible. Model is used but in good condition, showing signs of cosmetic wear but functional as confirmed by basic tests. The equipment originates from the United States and is powered at 120V 60Hz.
Technician comment

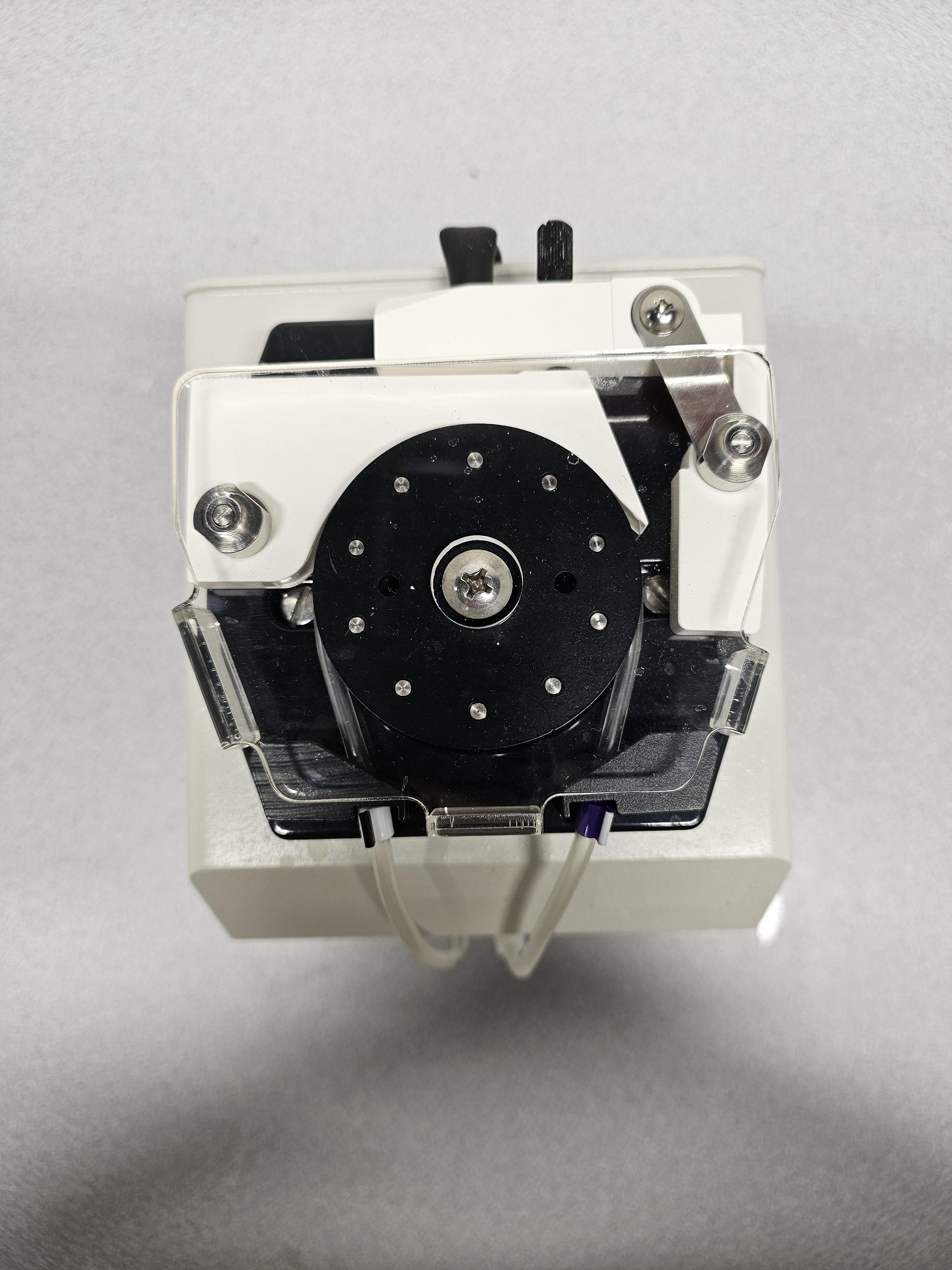

Only includes pictured head.
Key Features
- Versatile six-channel and flow rate configuration
- High flow models achieve up to 220 mL/min
- Positive displacement for smooth liquid transfer
- Compact, easy-to-use design
- Adjustable speed stepper motor with LCD screen
- Stainless steel rollers ensure consistency
Specifications
- Operating Temperature: 4-40C
- Position: Upright only
- Head Speed: 0.01 to 48 rpm
- Motor Speed Stability: 0.5%
- Continuous Speed Adjustment: 0 to 48 rpm
- Max Flow Rate: MP model 30 mL/min, HF model 220 mL/min
- Minimum Flow Rate: 0.3 L/min
- Maximum Back Pressure: MP models 0.5 MPa, HF models 0.3 MPa
- Tubing Diameter: MP models 0.25 to 4 mm, HF models 2 to 8 mm
- Dimensions without Pump Heads: 15.0 x 17.4 x 18.5 cm
Weight
Imperial: 7.2 Pounds
Metric: 3.27 Kilograms
Shipping Dimensions
Imperial: 4.8 lb x 7.2 lb x 12.0 lb
Metric: 12.19 cm x 18.29 cm x 30.48 cm
Harmonized Code
84133020
Harmonized Code Details
The harmonized code 84133020 pertains to fuel, lubricating, or cooling medium pumping systems. This code is used due to the Minipuls 3's function as a precision liquid pump, falling within the designated description for peristaltic pumps used in a variety of settings.
