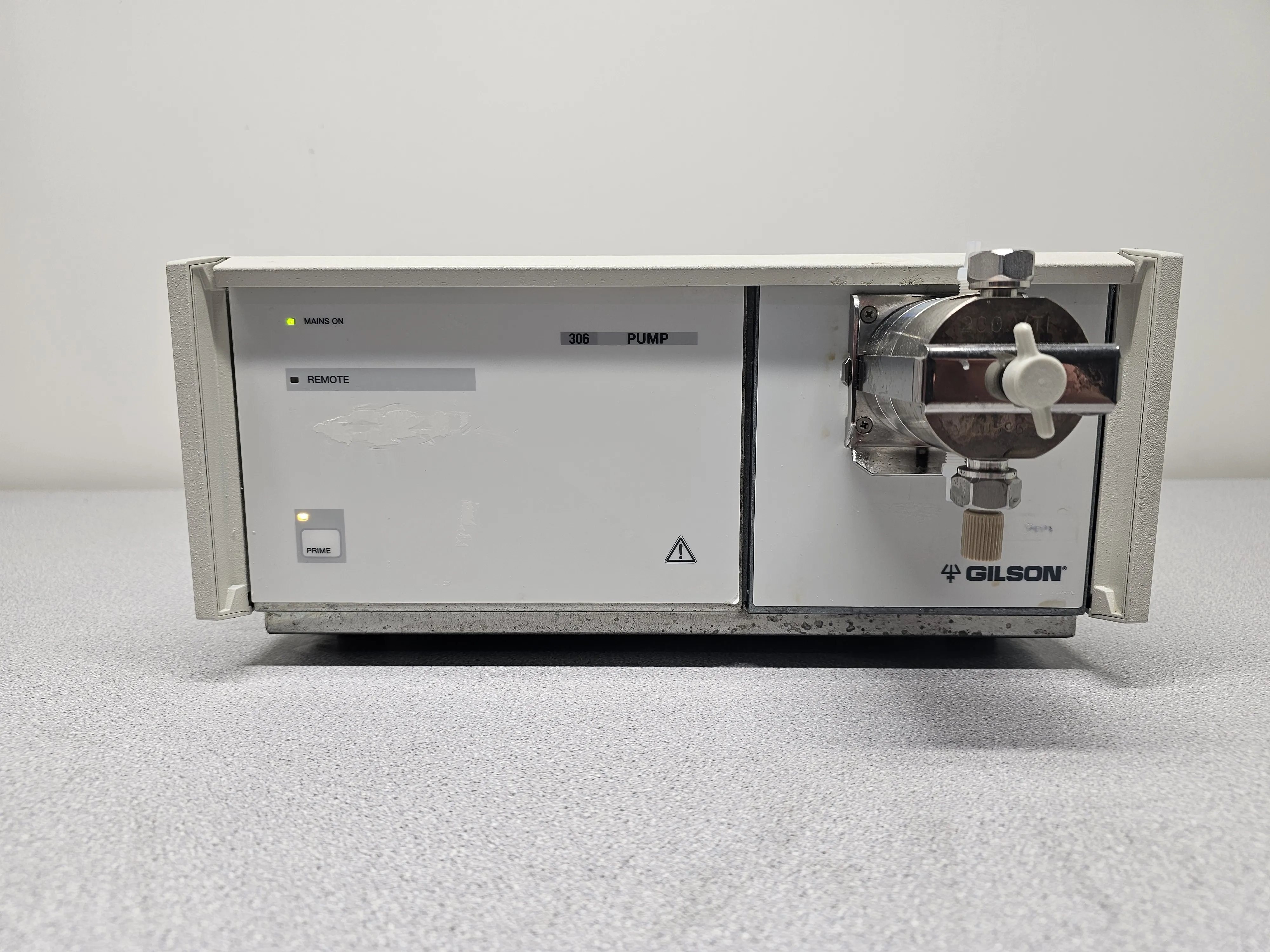

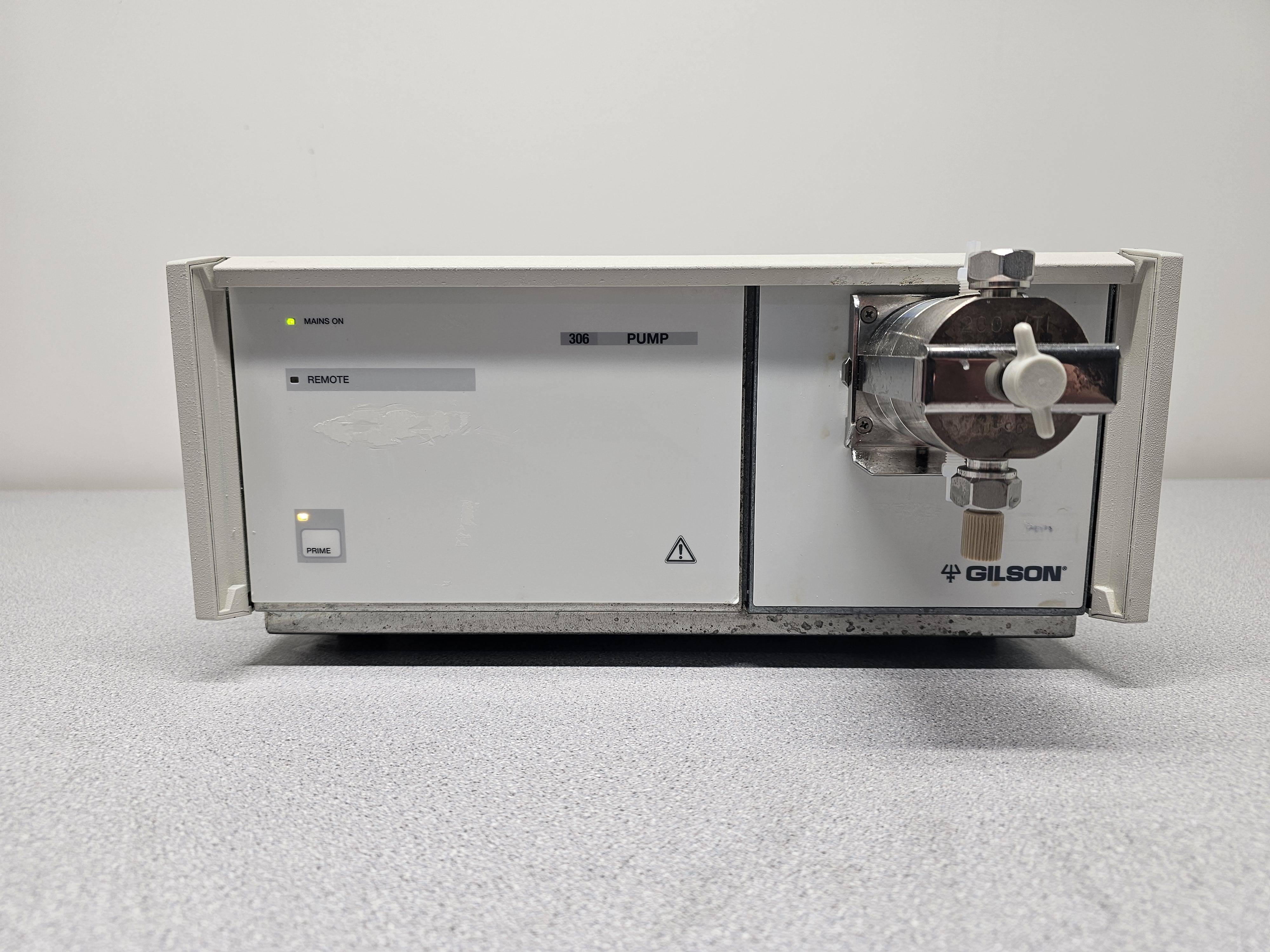

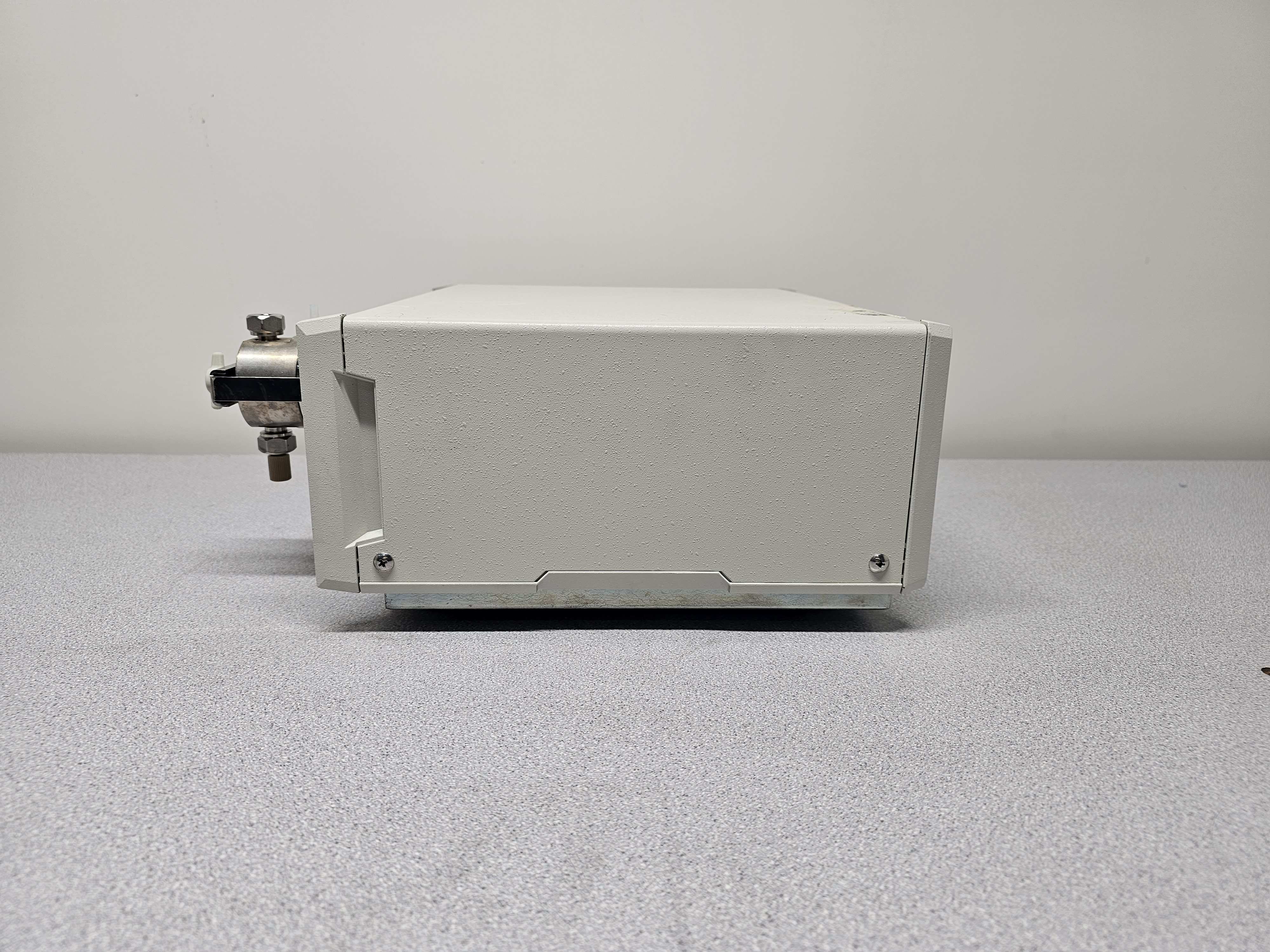

Gilson 306 HPLC Pump Multi-pump Isocratic Binary Tertiary Configurations
Gilson
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension15.0in x 12.0in x 6.0in
-

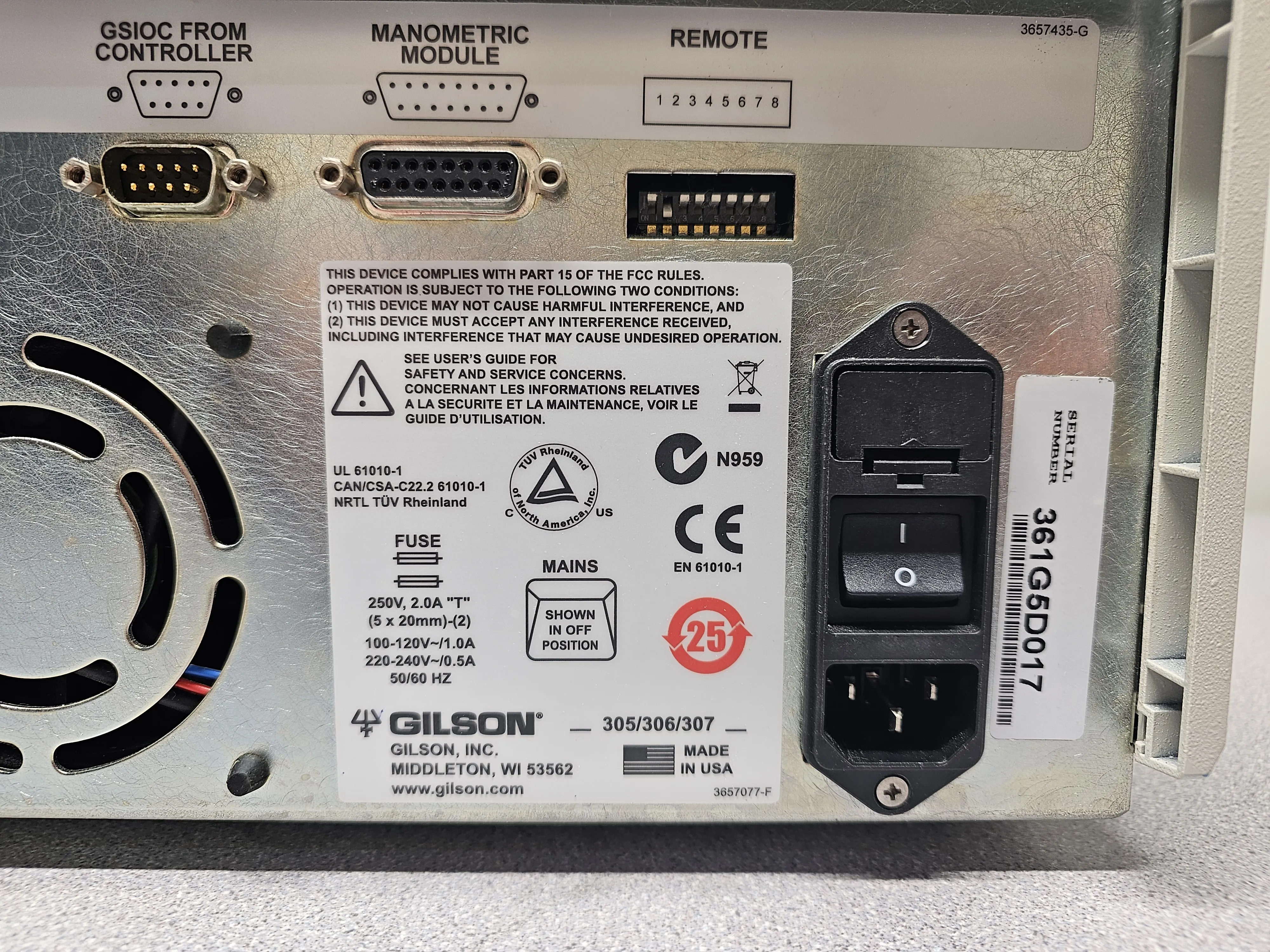

Serial361G5D017
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Gilson 306 HPLC Pump, manufactured in the United States, is a versatile and cost-efficient solution for HPLC applications, from analytical to preparative work. It supports a wide range of flow rates from 10 µL/min to 200 mL/min, accommodating various liquids and viscosities, making it suitable for isocratic or gradient HPLC. Designed for multi-pump applications, the Model 306 functions as a slave pump in Gilson chromatography systems and is operated via computer with Gilson software or a master pump controller. With interchangeable single-piston pump heads and configurations ranging from isocratic, binary, and tertiary, it ensures reliable chromatographic separation. Enhance functionality with accessories like manometric modules for pressure stability, dynamic mixers for efficient phase mixing, and external pulse dampeners for smooth flow operations. The unit is in good used condition and is fully functional.
Key Features
- Flow rate range from 10 µL/min to 200 mL/min
- Options for isocratic, binary, and tertiary configurations
- Controlled by Gilson software or a 305 Master pump
- Interchangeable pump heads for flexibility
- Supports analytical to preparative HPLC
Specifications
- Manufacturer: Gilson
- Model: 306
- Country of Origin: United States
- Condition: Good
- Power Voltage: 110-120V / 220-240V~
- Frequency: 60Hz
- Flow Rate Range: 10 µL/min to 200 mL/min
- Operating Pressure: 0.160 MPa (1-600 bar, 14.5-8700 psi)

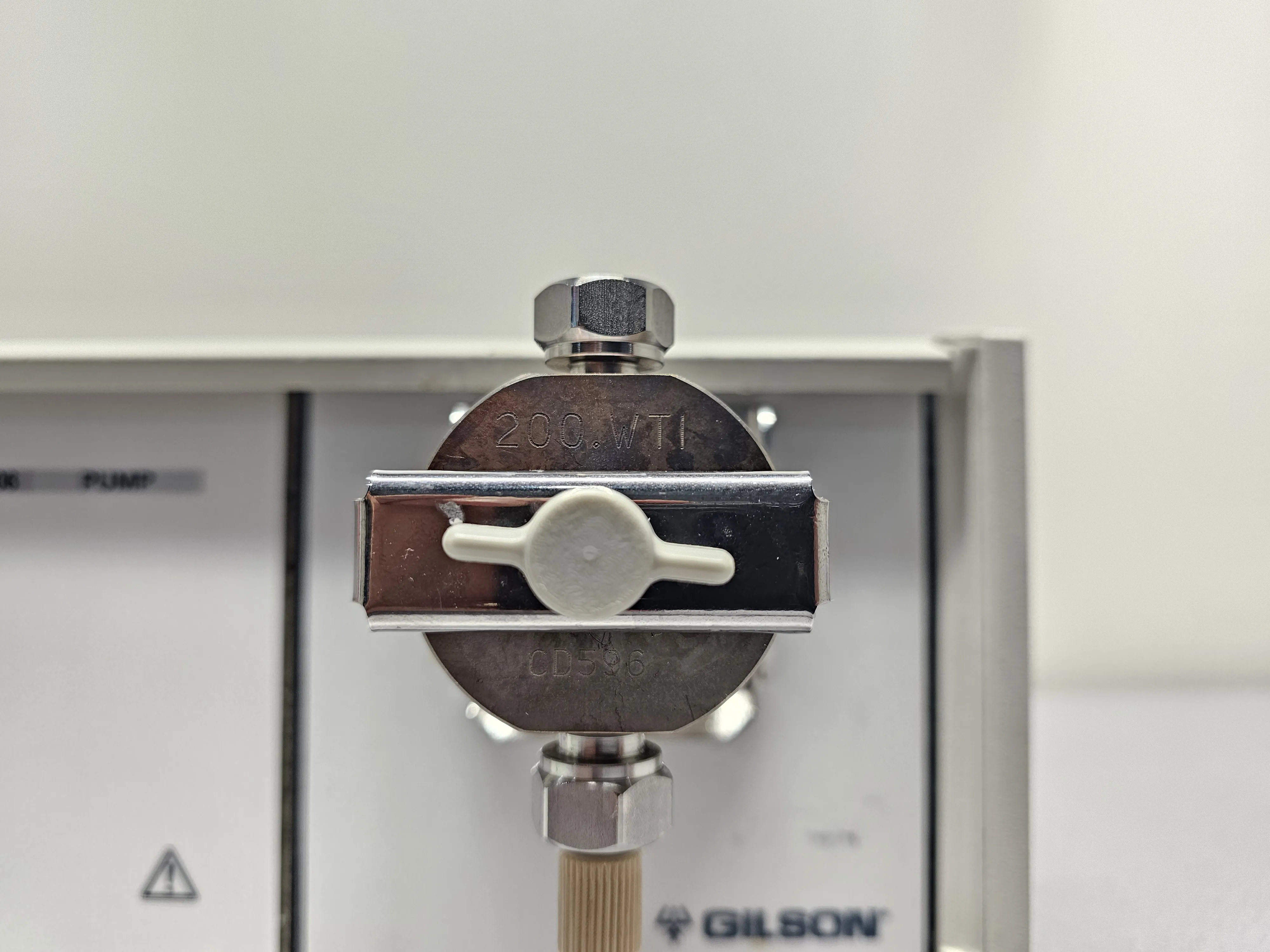

- Hydraulic System: Reciprocating pump with single-piston interchangeable head
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 14.4 lb x 7.2 lb
Metric: 45.72 cm x 36.58 cm x 18.29 cm
Harmonized Code
84133010
Harmonized Code Details
Harmonized code 84133010 refers to fuel, lubricating or cooling medium pumps for internal combustion engines, widely used for industrial models like the Gilson 306 HPLC pump due to its configuration and liquid handling capabilities.
