Gilson 306 HPLC Pump for Analytical & Preparative Chromatography
Gilson
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension15.0in x 10.0in x 4.0in
-
Serial361K6D069
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

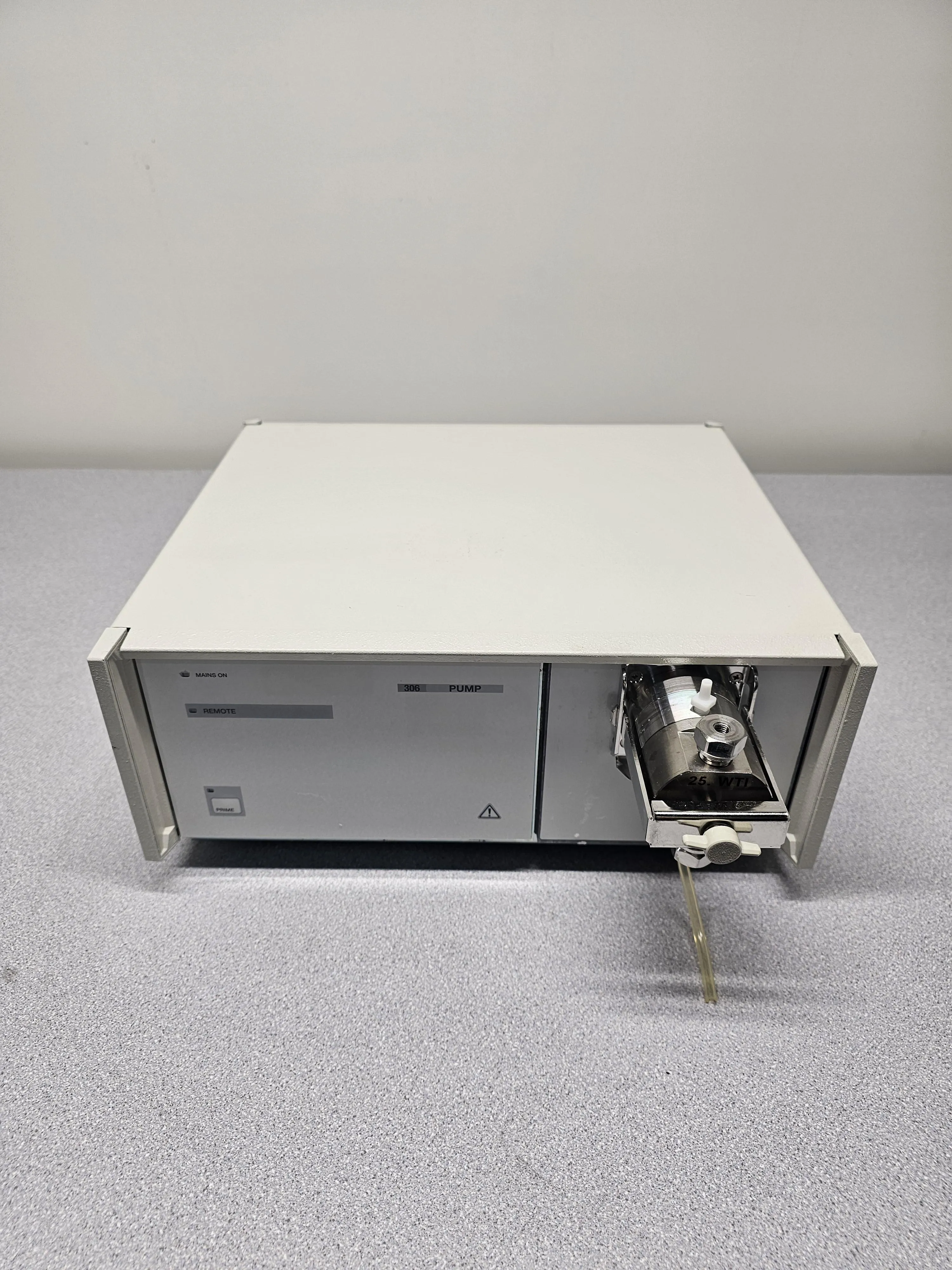

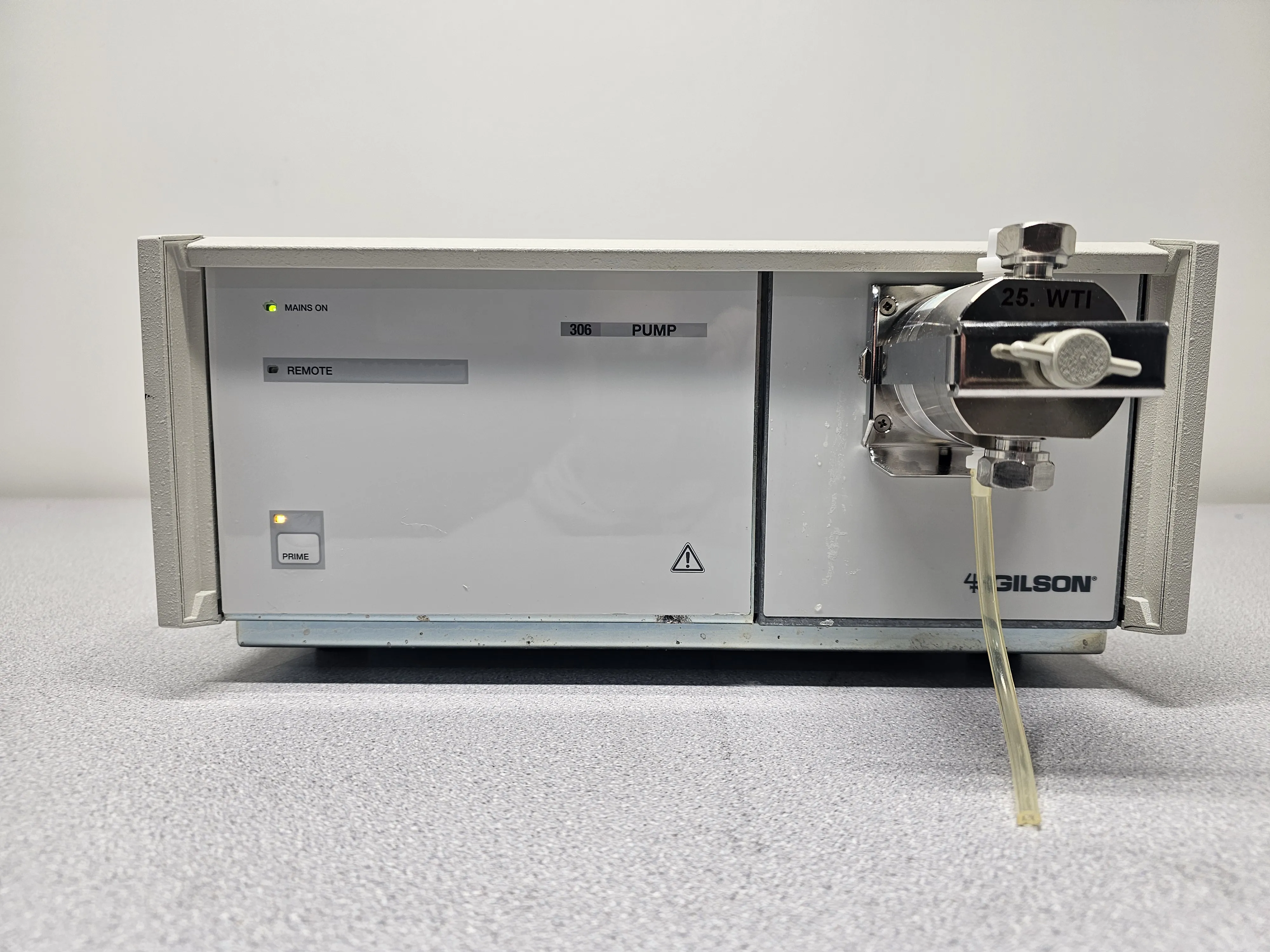

The Gilson 306 HPLC Pump is designed for dependable pumping in analytical to preparative chromatography applications. This model, used in multi-pump setups, functions as a slave pump within Gilson chromatography systems, offering a cost-effective solution for laboratories. With interchangeable pump heads, it accommodates flow rates from 10 L/min to 200 mL/min, making it versatile for different liquid viscosities. The 306 can be controlled by a computer via Gilson software or through a Gilson 305 Master pump. Despite being in used condition, the pump powers on and passes basic tests, appearing to function without known issues. It includes a power cord and operates on 120V/220V power at 50Hz/60Hz.
Key Features
- Interchangeable pump heads
- Flow rate: 10 L/min to 200 mL/min
- Manometric modules and dynamic mixers compatible
- Isocratic, binary, and tertiary configurations
- Computer or master pump controlled
- Operates on 120V/220V power
Specifications
- Flow Rate Range: 10 L/min - 200 mL/min
- Power Voltage: 110-120 / 220-240 V
- Purification Technique: HPLC
- Hydraulic System: Reciprocating pump with single-piston interchangeable head
- Operating Pressure: 0.160 MPa (1-600 bar, 14.5-8700 psi)
- Pump Type: Isocratic, binary, and tertiary configurations
Weight
Imperial: 12.0 Pounds
Metric: 5.44 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 12.0 lb x 4.8 lb
Metric: 45.72 cm x 30.48 cm x 12.19 cm
Harmonized Code
9027.20.00
Harmonized Code Details
9027.20.00 - Chromatographs and electrophoresis instruments; This code is used for instruments and apparatus for physical or chemical analysis, specifically for tools like HPLC which are used in laboratory settings for separation and analysis of mixtures.
