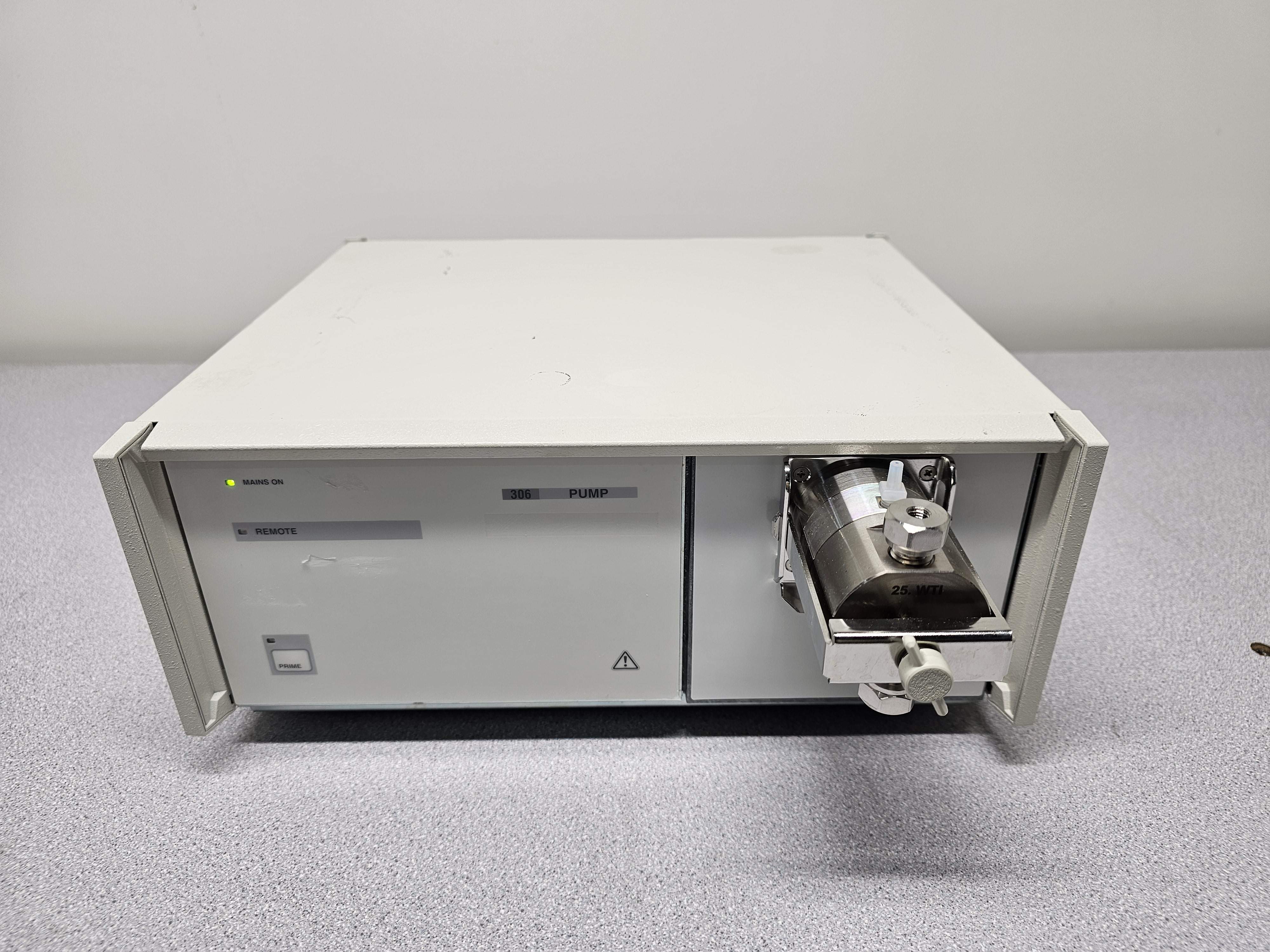

Gilson 306 HPLC Pump Analytical to Preparative Flow Rates Used Powers On
Gilson
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension15.0in x 20.0in x 11.0in
-
Serial361K6D070
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

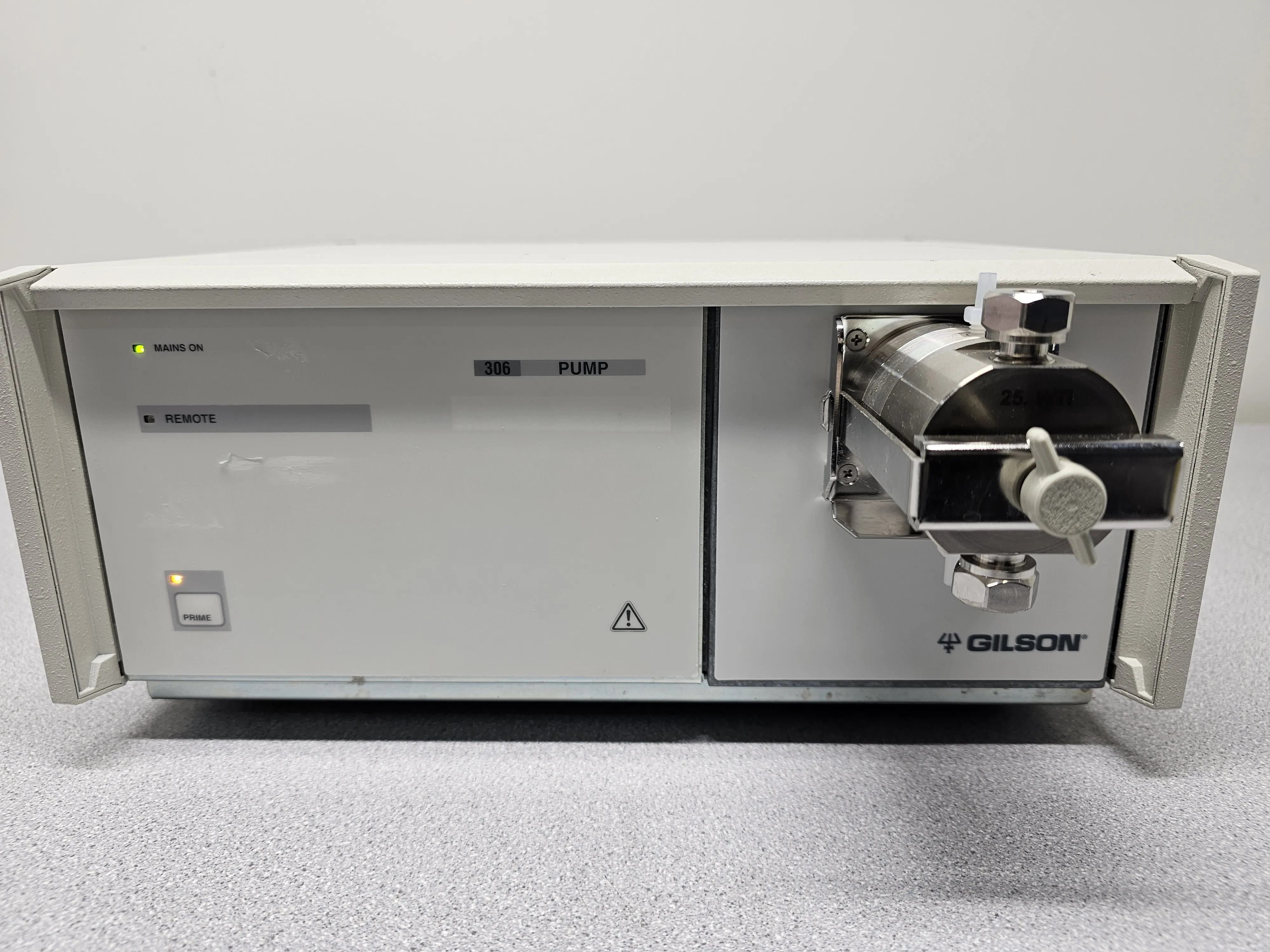

The Gilson 306 HPLC pump, a model from a reputed 2000s series, provides a cost-effective pumping solution for analytical to preparative High Performance Liquid Chromatography (HPLC). Designed for multi-pump applications, it serves as a slave pump within Gilson chromatography systems. The interchangeable pump heads accommodate a wide flow rate from 10 L/min to 200 mL/min, suitable for various liquids with differing viscosities. It includes configurations for isocratic, binary, and tertiary uses, optimizing chromatographic separations. Control is accessible via TRILUTION LC software or standalone keypad, offering versatile operation. Despite its used condition, the unit powers on and passes initial functionality checks. External enhancements like manometric modules and dynamic mixers minimize pressure fluctuations and enhance flow stability. This U.S.-manufactured pump, although with visible wear and cosmetic damage, shows no known functionality issues and includes a power cord but lacks computer and software components.
Key Features

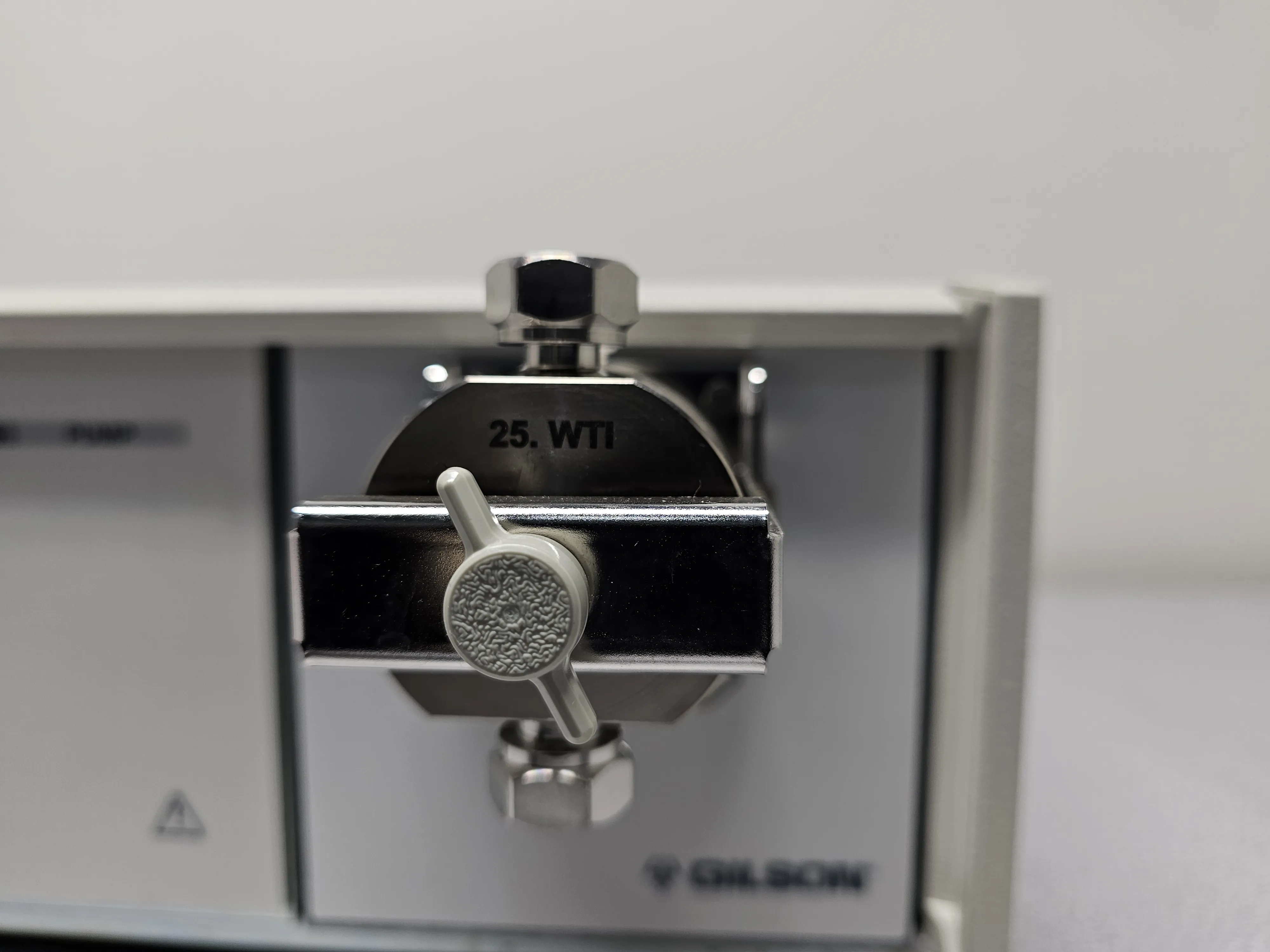

- Interchangeable pump heads for versatile flow rates
- Flow rate range: 10 L/min to 200 mL/min
- Supports isocratic, binary, and tertiary configurations
- Controlled via TRILUTION LC software or standalone keypad
- Enhance performance with manometric modules and dynamic mixers
- Functional in used condition, includes power cord
Specifications
- Front Panel Control: No
- Flow Rate Range: 10 L/min - 200 mL/min

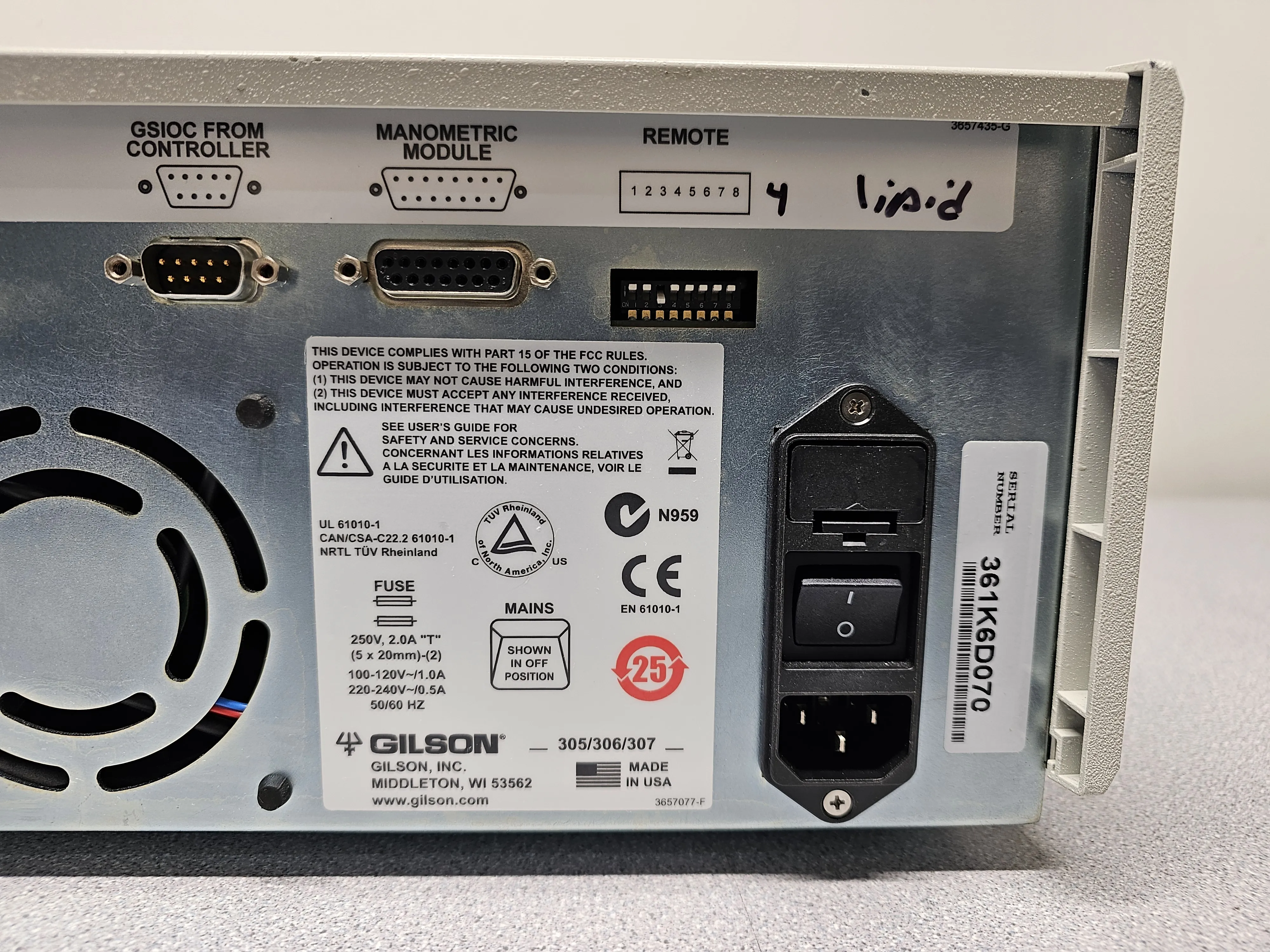

- Power Voltage: 120V, 60Hz US
- Purification Technique: HPLC
- Hydraulic System: Reciprocating pump with single-piston interchangeable head
- Operating Pressure: 0.160 MPa (1-600 bar, 14.5-8700 psi)
Weight
Imperial: 30.0 Pounds
Metric: 13.61 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 24.0 lb x 13.2 lb
Metric: 45.72 cm x 60.96 cm x 33.53 cm
Harmonized Code
84133090
Harmonized Code Details
The harmonized code 84133090 is categorized under pumps for liquids, specifically geared toward equipment not elsewhere specified or included. This code best suits the Gilson 306 HPLC pump due to its specific usage for liquid chromatography processes.
