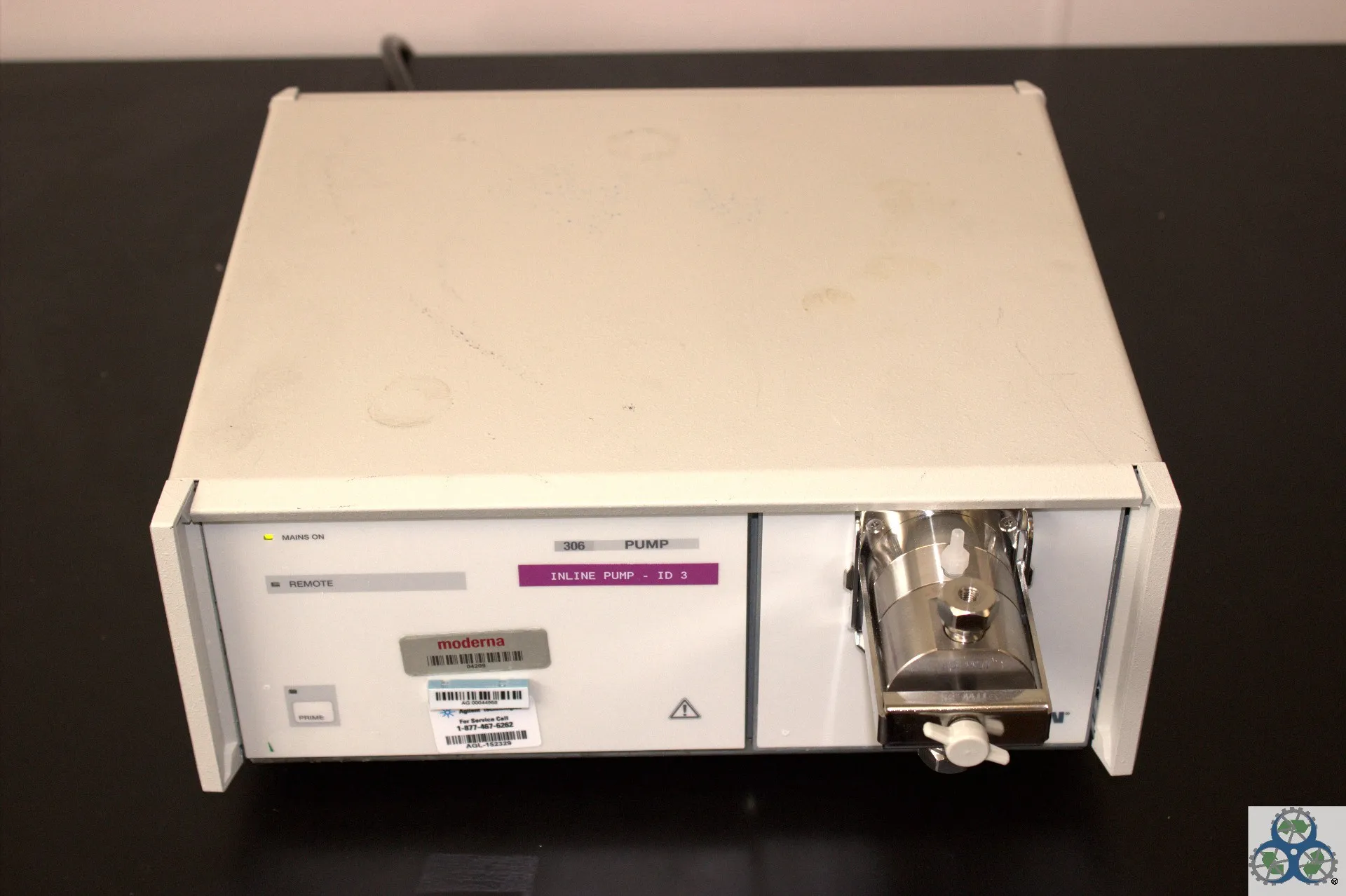

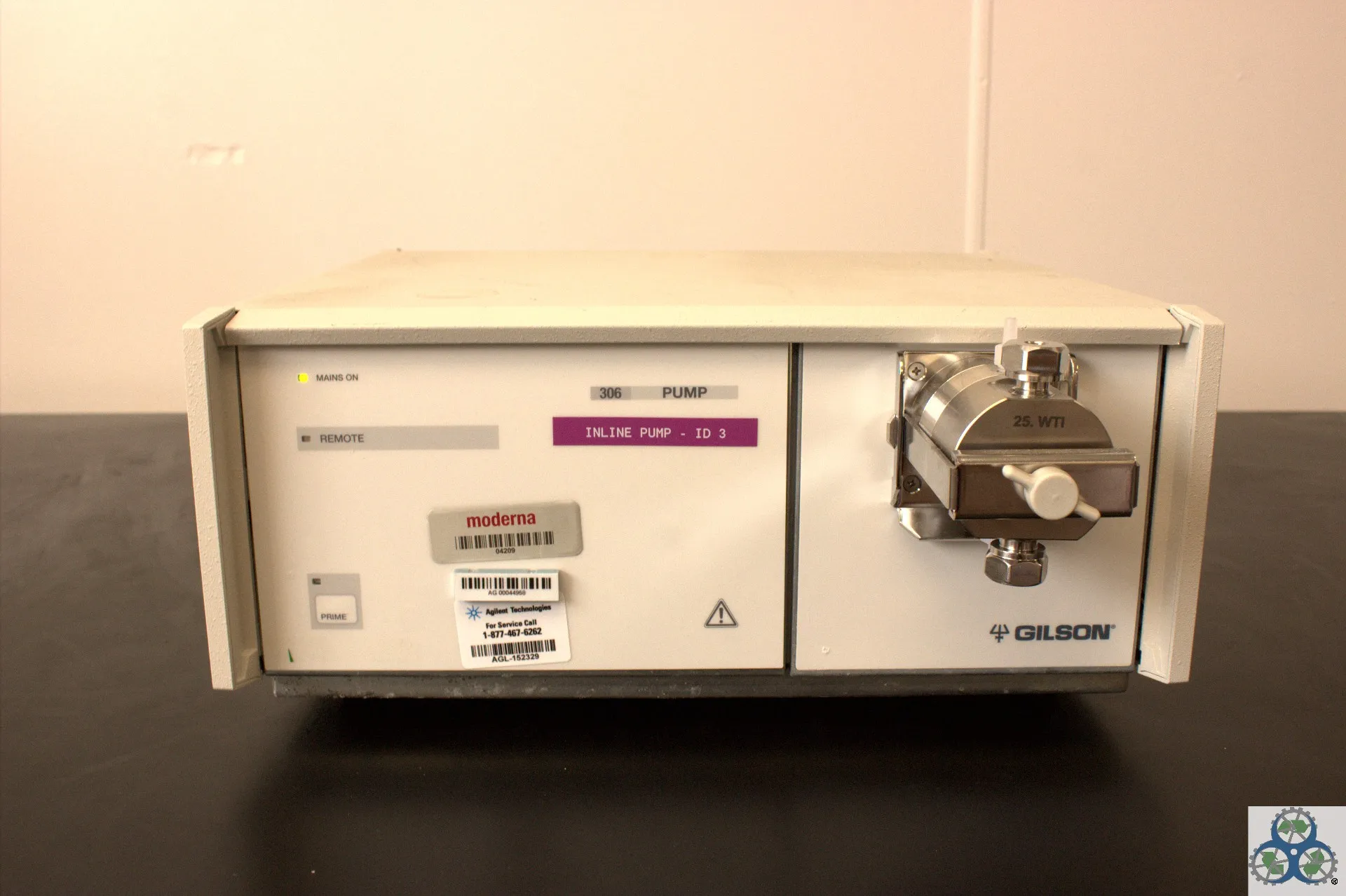

Gilson 306 HPLC Pump

Product Information

Introducing the Gilson 306 HPLC Pump, a reliable and cost-effective solution for analytical to preparative HPLC. Designed for multi-pump applications, it offers a wide range of flow rates from 10 L/min to 200 mL/min, with isocratic, binary, and tertiary configurations. This slave pump in Gilson chromatography systems is controlled by either a computer with Gilson software or the Gilson 305 Master pump, providing simple yet precise chromatographic separation. Its interchangeability and simple control make it an ideal choice for various laboratory settings. This versatile HPLC Pump delivers smooth flows and comes with a 30-day warranty, ensuring 100% parts and labor coverage.

• Cost-effective and reliable pumping solution
• Wide range of flow rates
• Interchangeable pump heads for versatility
• Simple chromatographic separation control
• 30-Day Warranty for 100% parts and labor

• Front Panel Control: No
• Flow Rate Range: 10 L/min - 200 mL/min

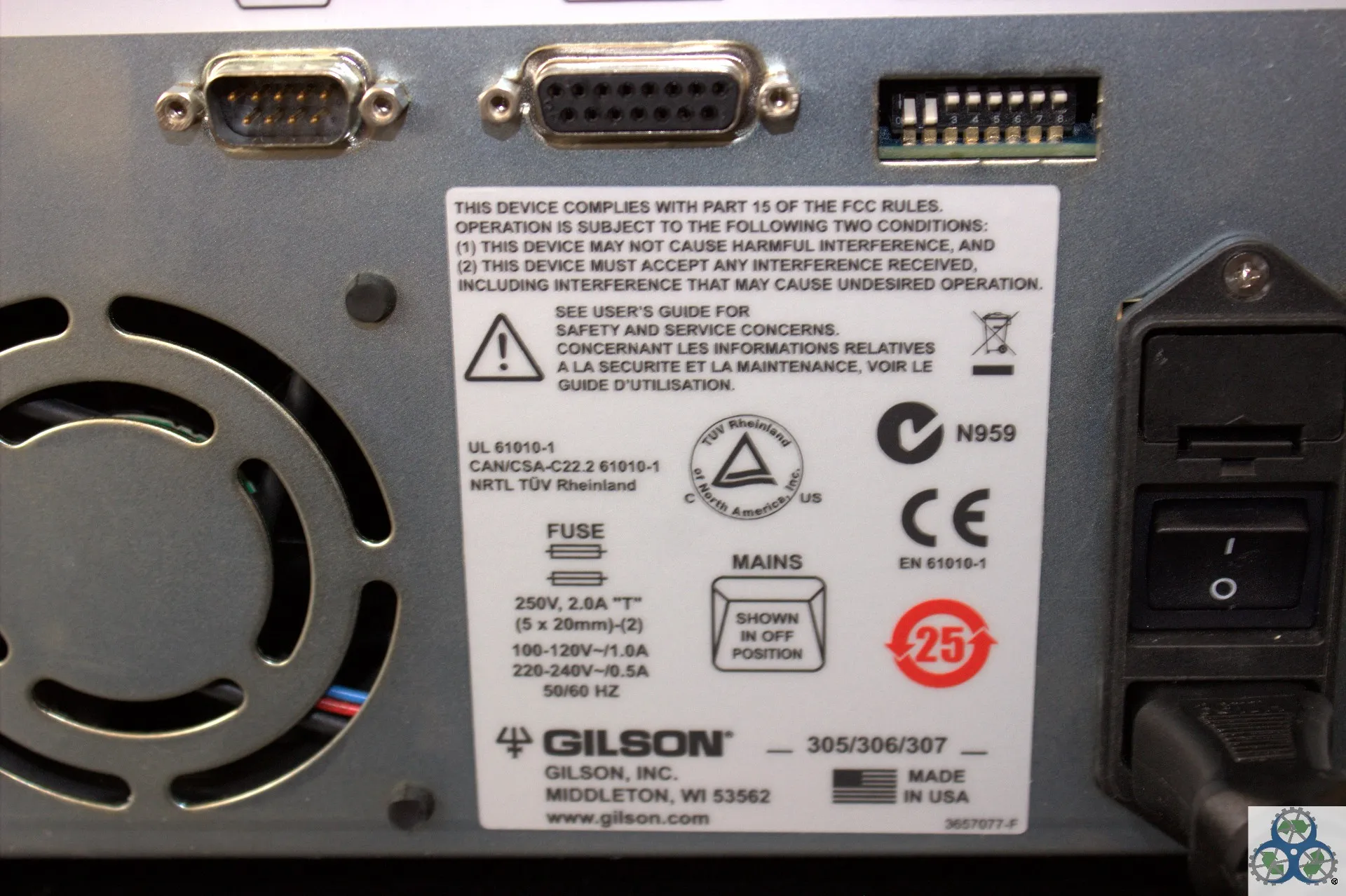

• Power Voltage: 110-120 / 220-240 V~
• Purification Technique: HPLC
• Hydraulic System: Reciprocating pump with single-piston interchangeable head
• Operating Pressure: 0.160 MPa (1-600 bar, 14.5-8700 psi) depending on pump head used
• Pump Type: Isocratic, binary, and tertiary configurations

Metric: 5.90 kg
Imperial: 13.007 lbs

Metric: 15.24 cm x 12.7 cm x 7.62 cm
Imperial: 6 in x 5 in x 3 in

902780

This code is used for chromatographs and electrophoresis instruments, fitting the Gilson 306 HPLC Pump due to its use in separating and analyzing complex mixtures.
