Precision PD8-7000-6H7 Explosion-Proof Temp Meter 6-Digit Display
Precision
Details
-
CategoryMeter
-
Dimension8.0in x 8.0in x 11.0in
-
Serial2006-0338978
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / 50Hz/60Hz
Description

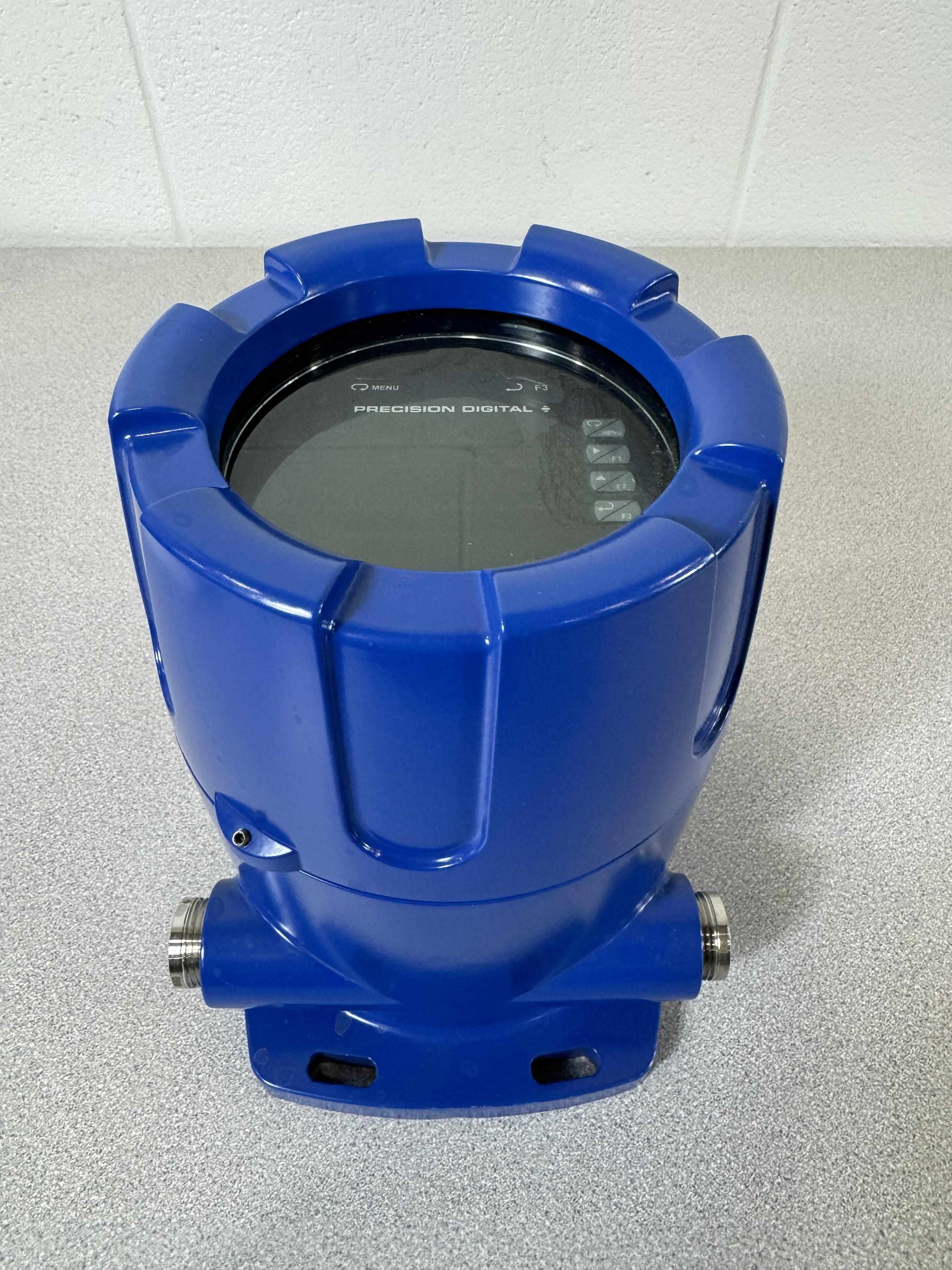

Introducing the Precision PD8-7000-6H7, an advanced explosion-proof temperature meter designed to meet the challenges of hazardous locations. With its rugged construction and explosion-proof housing, this meter is both CSA and ATEX/IECEx certified for dust-ignition and flame-proof operation. Benefiting from a dual-line, 6-digit LED display, this unit provides clear readings even in direct sunlight and can handle various thermocouples and RTD inputs for comprehensive temperature monitoring. Although the device is brand new and appears fully functional, full testing couldn't be completed. Key features include field-selectable inputs with high accuracy, CapTouch through-glass programming, and comprehensive communication capabilities via Modbus RTU. Its robust design and programmability make it ideal for industries handling extreme environments.
Key Features
- Explosion-proof meter with dust/flame-proof certification
- Supports type J, K, T, E, R, S, B, N, and C thermocouples
- Handles 100 or 1000 platinum, 10 copper, and 120 nickel RTD inputs
- Six-digit LED display readable in sunlight
- Isolated 4-20 mA output for temperature transmission
- CapTouch programming in hazardous areas
- SunBright display for outdoor use
- Multi-function programmable keys
- Aluminum or stainless steel housing
Specifications

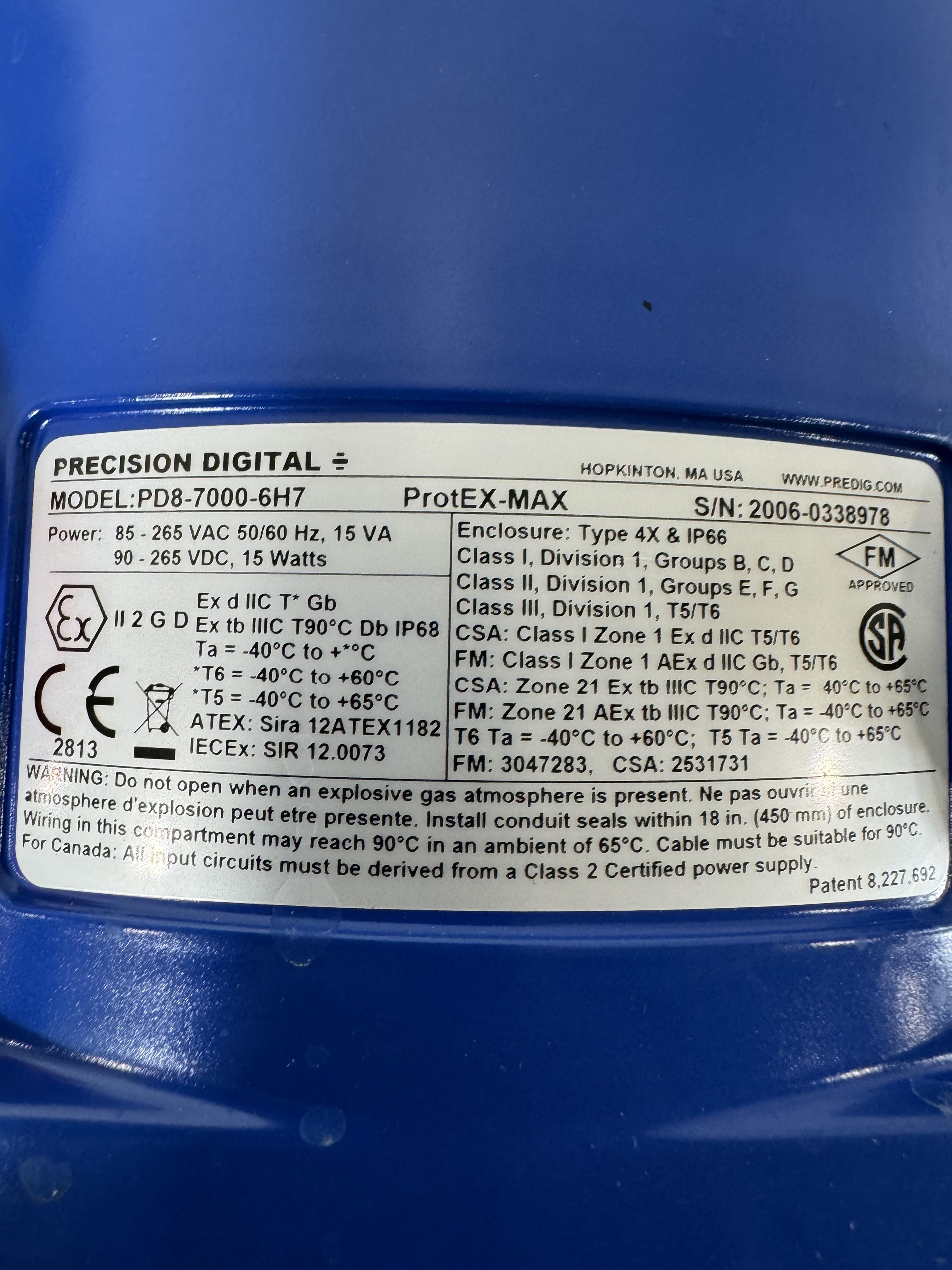

- Explosion-Proof Certifications: CSA, ATEX, IECEx
- Display: Dual-Line, 6-Digit, High-Intensity LEDs
- Programmable Input Types: J, K, T, E, R, S, B, N, C thermocouples, PT100, PT1000, Cu10, Ni120 RTDs
- Input Selectability: 0-20 mA, 4-20 mA, 0-5 V, 1-5 V, 10 V with 0.03% accuracy
- Power Options: 85-265 VAC / 90-265 VDC or 12-24 VDC/AC
- Programmable through CapTouch buttons
- Communication: RS-485 Serial, Modbus RTU
- Housing Material: Aluminum or Stainless Steel (NEMA 4X / IP68)
- Relay: 4 interlocking capability relays
- Conduit Openings: Four 3/4” NPT threaded
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 9.6 lb x 9.6 lb x 13.2 lb
Metric: 24.38 cm x 24.38 cm x 33.53 cm
Harmonized Code
902519
Harmonized Code Details
902519 - Thermometers and pyrometers, not combined with other instruments; The code is appropriate given the product's capability to measure and display temperature data reliably in hazardous environments.
