Keyence IM-6025 IM-8001 Image Dimension Measurement Faster Precise Used
Keyence
Details
-
CategoryMicroscope / Imager
-
Dimension19.0in x 17.0in x 22.0in
-

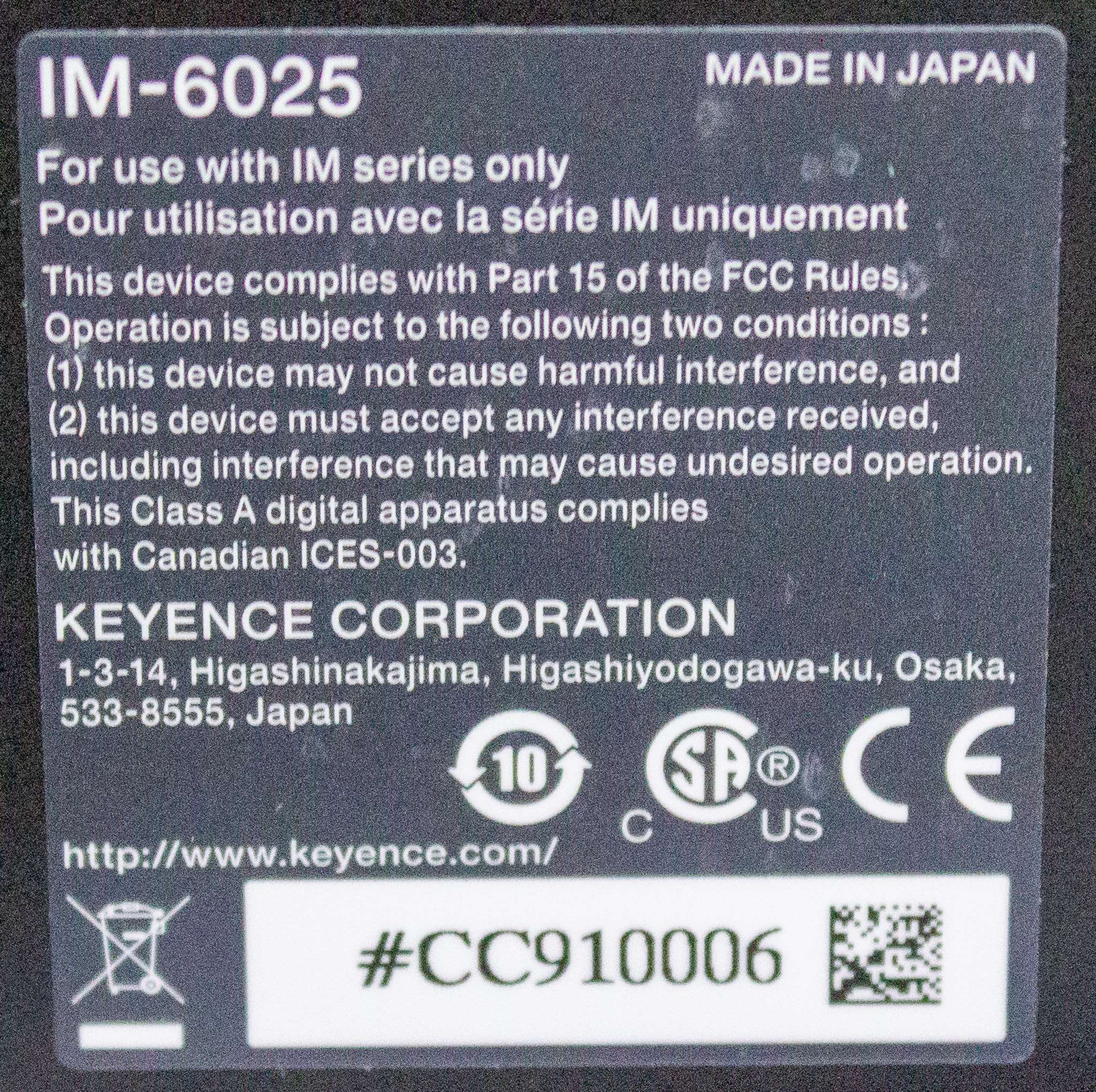

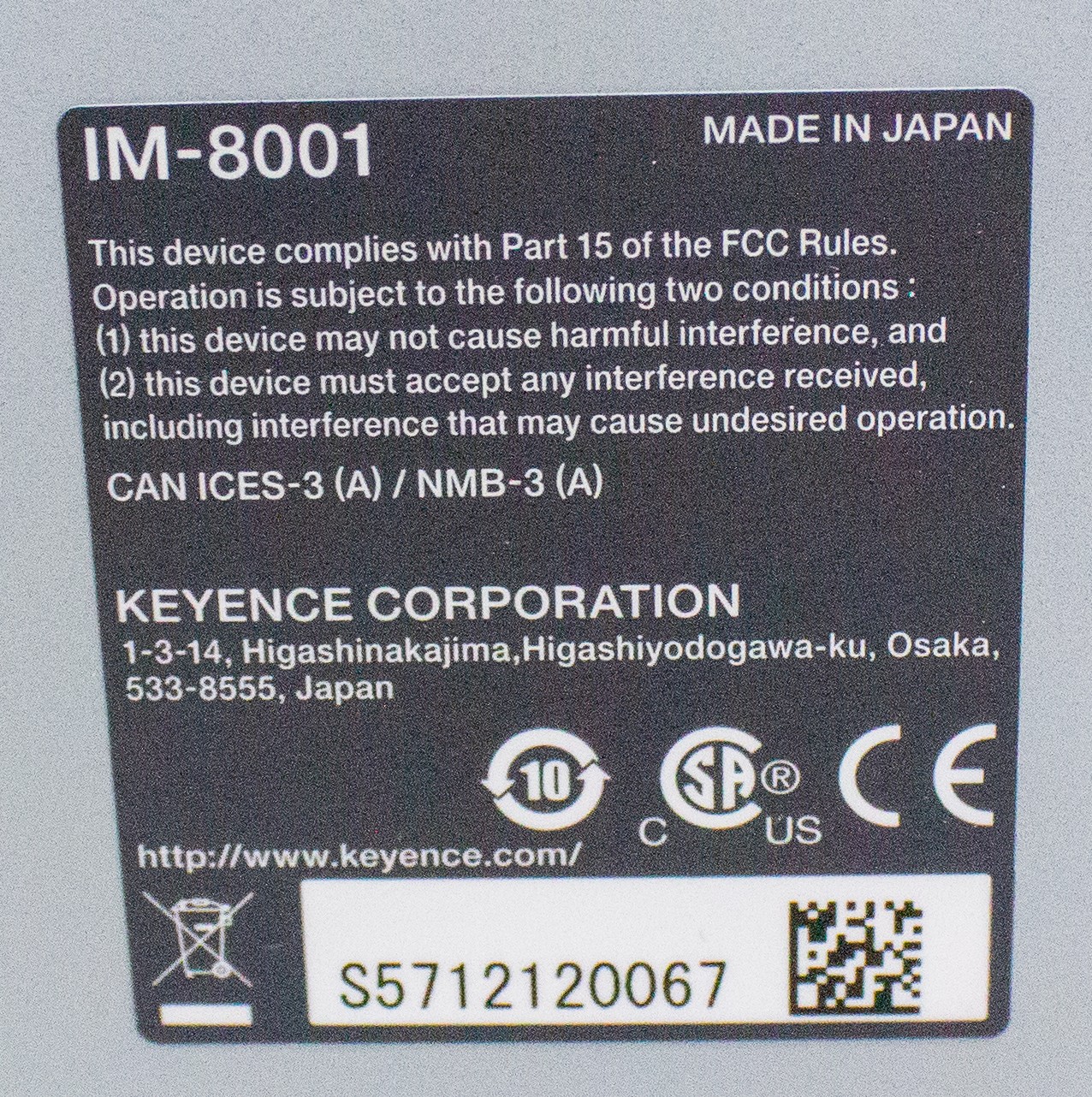

SerialS5712120067 & CC910006
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Keyence IM Series Image Dimension Measurement System, featuring the IM-6025 Measurement Head and IM-8001 Controller, redefines optical measurement by capturing entire target images for precise dimensional analysis. Ideal for inspection roles, this system significantly reduces measurement time by eliminating the conventional need for stage adjustments. In excellent condition, this unit offers high-precision, simultaneous measurements, making it suitable for small three-dimensional parts. Equipped with a 10.4" LCD and a 1" 6.6-megapixel CMOS sensor, its intuitive interface simplifies user operations. The system supports LAN and USB connectivity and features transparent telecentric illumination. Manufactured in the United States, this is an opportunity for streamlined, accurate measurement solutions.
Key Features
- High precision image dimension measurement system
- IM-6025 Measurement Head with 1" 6.6 megapixel CMOS sensor
- IM-8001 Controller with a 20-megapixel monochrome CMOS sensor
- 10.4" LCD monitor and LAN/USB connectivity
- Simultaneous measurements for small three-dimensional parts
- Telecentric illumination for enhanced clarity and precision
- Automatic stage movement and focus adjustment
Specifications

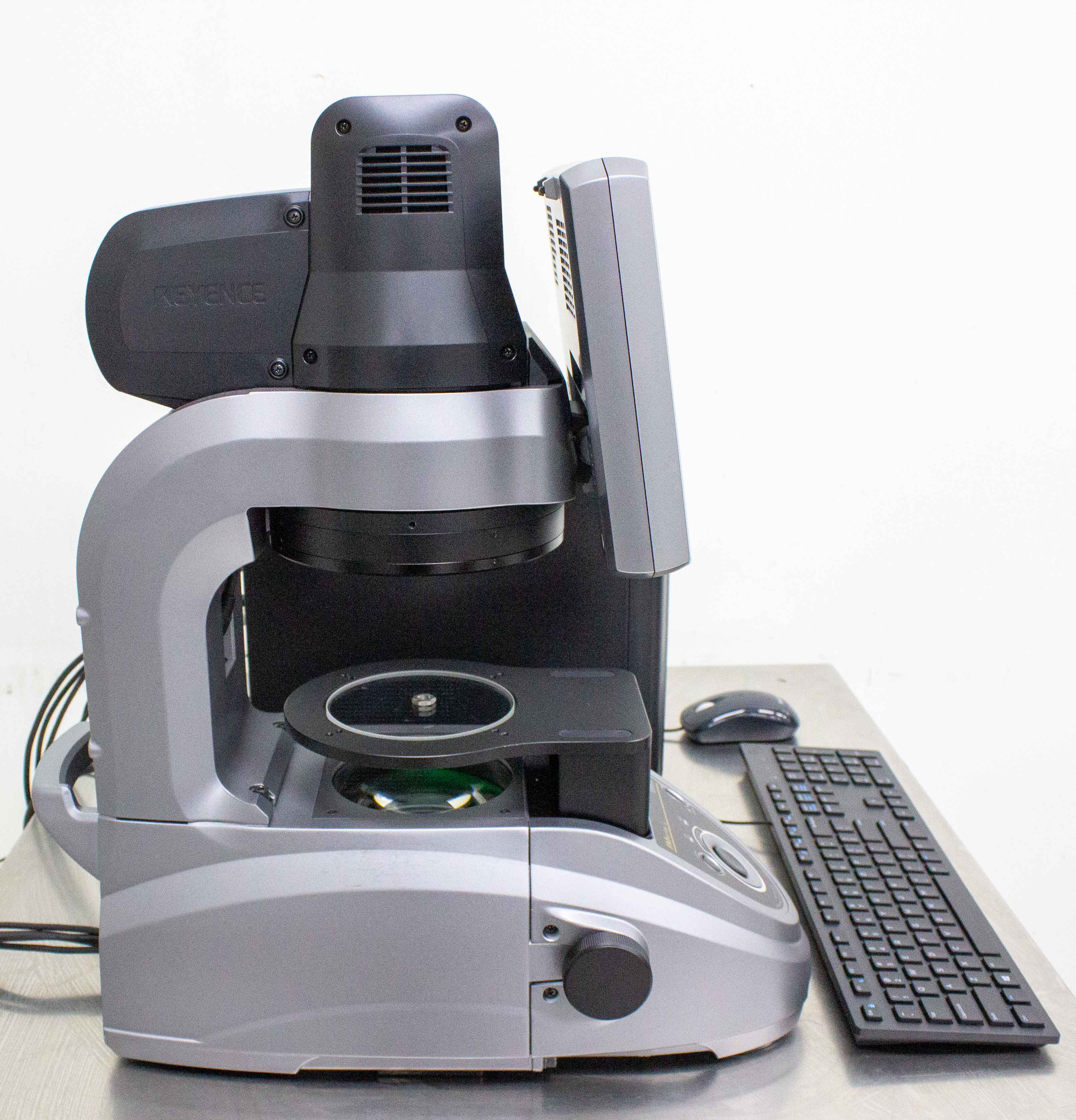

- Measurement head: IM-6025 with double telecentric lens
- Display: 10.4" LCD monitor with XGA resolution
- Field of view: Wide field - 100 mm, High precision - 25 mm
- Measurement accuracy: Wide field - 5µm, High precision - 2µm
- Controller: IM-8001 with RJ-45 (LAN) and USB connectivity
- Hard disk drive: 250 GB on measurement head, 500 GB on controller
- Weight: Approx. 25 kg for IM-6025, Approx. 8 kg for IM-8001
Weight
Imperial: 87.6 Pounds
Metric: 39.73 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 20.4 lb x 26.4 lb
Metric: 57.91 cm x 51.82 cm x 67.06 cm
Harmonized Code
9027.50.8090
Harmonized Code Details
9027.50.8090: Laboratory equipment; Instruments and apparatus for physical or chemical analysis. This category suits the Keyence IM Series as it is an image dimension measurement system used for inspection and analysis.
