APM Sealer TCBSDM 3/8-6X3 Tabletop Band Sealer 450F Variable Speeds 35 FPM
APM (All Packaging Machinery)
Details
-
CategoryProduction / Manufacturing
-
Dimension19.0in x 36.0in x 32.0in
-
SerialN/A
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description

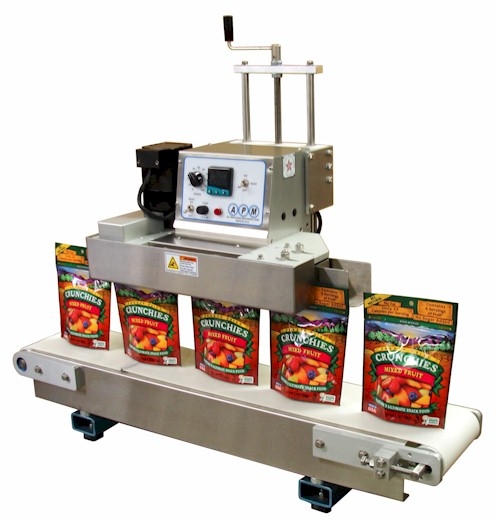

The APM (All Packaging Machinery) Sealer TCBSDM 3/8 - 6X3 is an advanced tabletop conveyor band sealer specifically designed for sealing stand-up pouches with precision. This robust system achieves high-quality, hermetic seals up to 3/8” width using heavy-duty, wear-resistant laminated Teflon bands and can accommodate an upgrade to a 7/8” wide seal. It features a 5” heating and cooling zone, supporting materials such as Polyethylene, Polypropylene, Laminates, Nylon, and Foil with efficient synchronization of the lower support conveyor. Powered by a synchronous motor, it operates at variable speeds of up to 35 feet per minute, with digital temperature control maintaining heat up to 450°F, ideal for various industrial packaging needs. Built with stainless steel and chrome, this system assures durability, requires no compressed air, and adapts with a crank handle height adjustment for easy loading. It's a stand-alone piece with little cosmetic use, in excellent condition.
Key Features
- Advanced tabletop band sealing system
- Supports versatile materials like PE, PP, Nylon, Foil
- Digital temperature control up to 450°F
- 3/8” wide seal, upgradeable to 7/8”
- Variable speeds up to 35 feet per minute
- Synchronized lower support conveyor
- Chrome and nickel-plated sections for durability
- Crank handle height adjustment
- Synchronous motor drive
Specifications
- Digital temperature control with PID Autotune
- Heating zone: 5 inches, Cooling zone: 5 inches
- Material compatibility: Polyethylene, Polypropylene, Laminates, Nylon, PET/Polyester, Foil
- Sealing speed: Up to 35 feet per minute
- Heat capacity: Up to 450 degrees Fahrenheit
- Electrical: 120V, 60Hz, 1 phase
- Dimensions: Seal height from 2 to 12 inches off the conveyor
- Construction: Stainless steel with chrome and nickel plating
Weight
Imperial: 116.4 Pounds
Metric: 52.8 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 43.2 lb x 38.4 lb
Metric: 57.91 cm x 109.73 cm x 97.54 cm
Harmonized Code
842240
Harmonized Code Details
842240 - Packing or wrapping machinery (including heat shrink wrapping machines), other; This harmonized code is used based on the machine's function of sealing pouches, relevant to the production and manufacturing of packaged goods.
