QVI Starlite 200 Measuring System Includes Computer and Software
QVI/ShapeGrabber
Details
-
CategoryTesting Equipment
-
Dimension25.0in x 50.0in x 34.0in
-
SerialROS2001242
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description

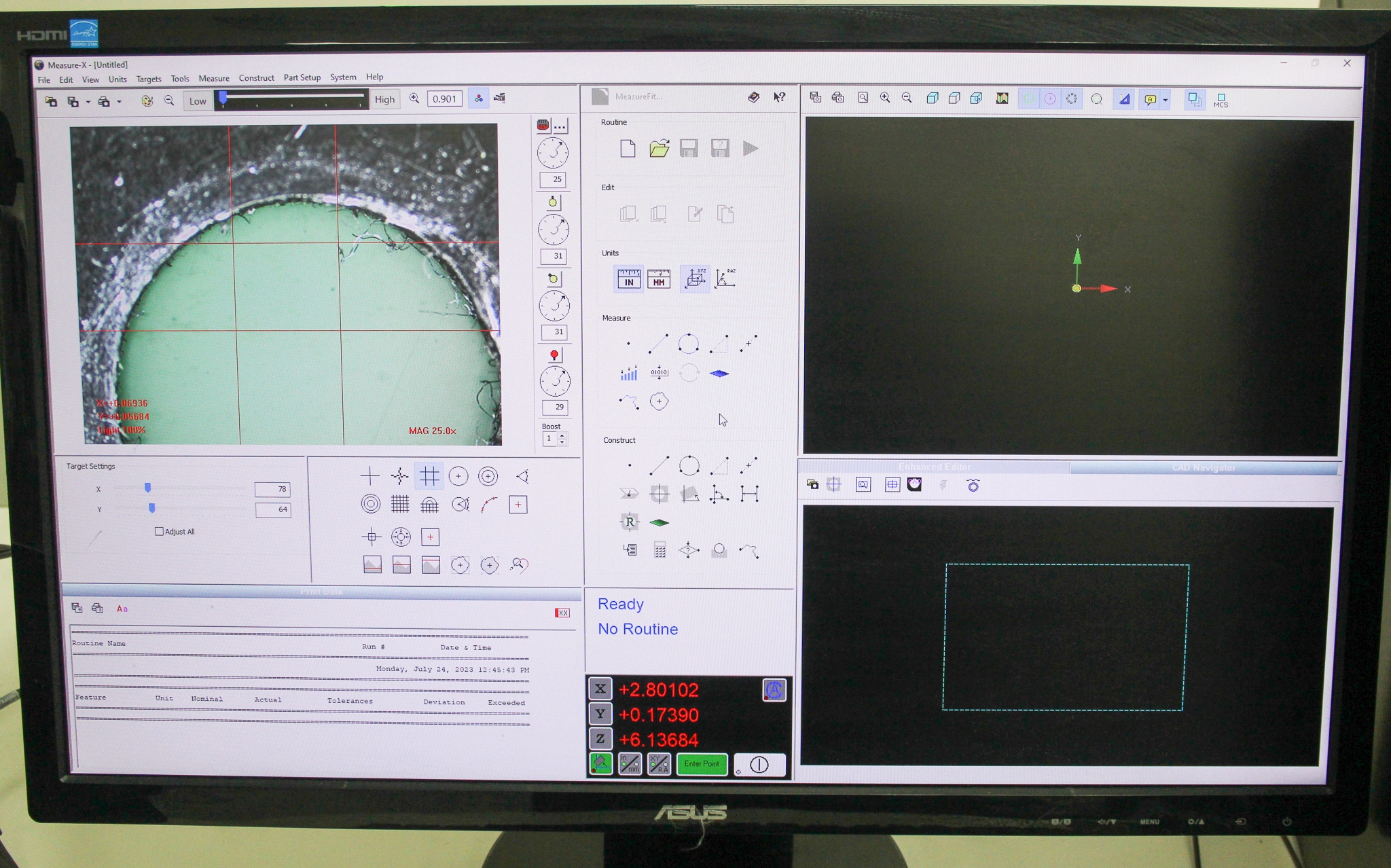

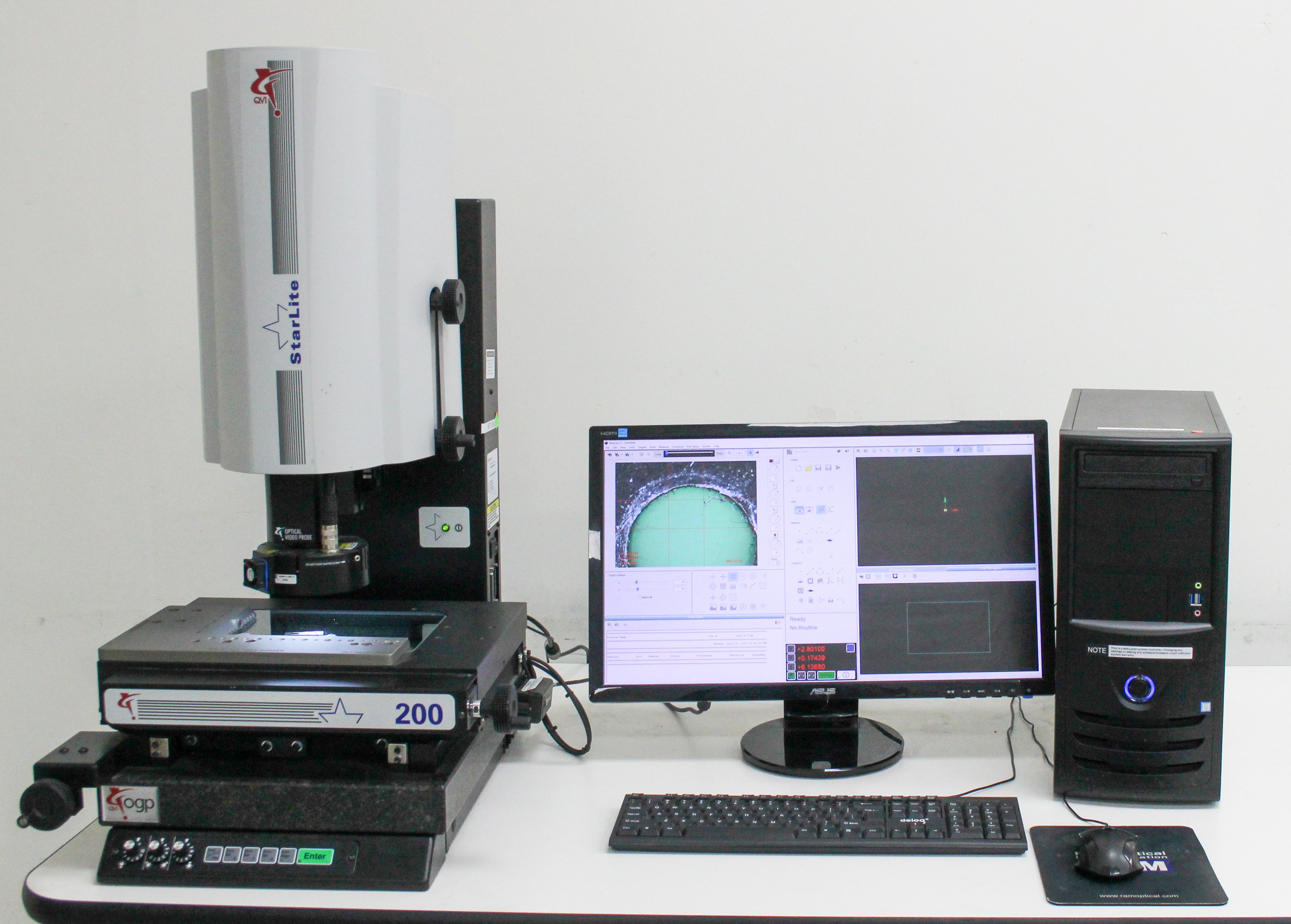

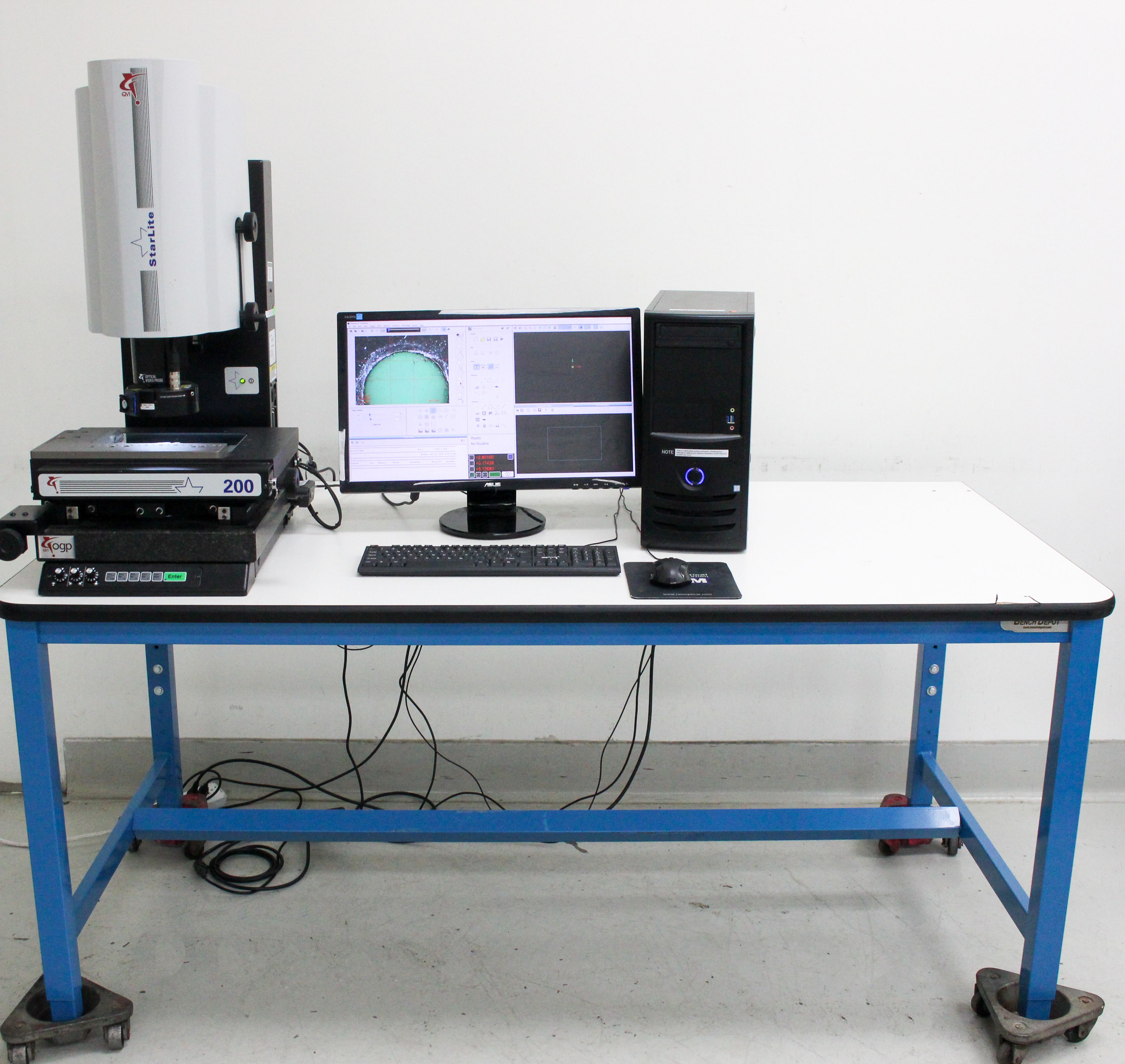

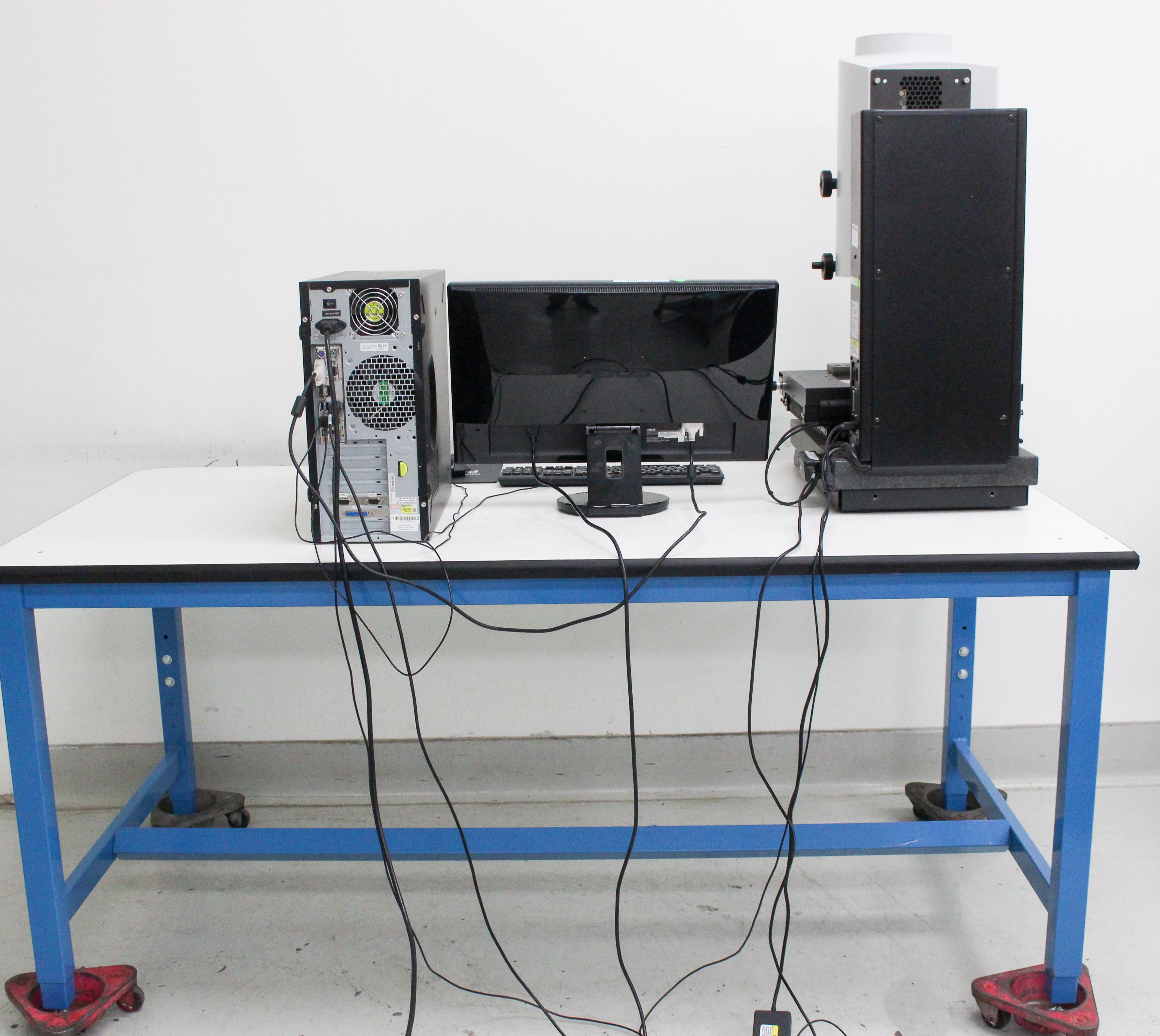

The QVI Starlite 200, crafted by ShapeGrabber, represents a cutting-edge benchtop measurement system ideal for various industrial applications. This unit is in good condition and powers on. It is equipped with a computer that runs on an Intel Core i3 processor featuring 4GB RAM and Windows 10 Pro, along with QVI's Measure-X software for enhanced metrology precision. The Starlite 200 specializes in manual measurement, complemented by its robust stage and motorized zoom optics for thorough inspection functions. Integral to inspection and measurement applications in the plastics, automotive, aerospace, and electronics industries, its benchtop compactness provides reliable accuracy with digital megapixel camera quality. Although the control panel displays a minor connectivity issue, it has no known impact on functionality. The set includes an Asus VE248 LCD Monitor and a sizeable worktable, making it a comprehensive choice for precision measurement tasks. Please examine the photos for minor cosmetic details.
Key Features
- Easy-to-use manual measurement system
- Fully automatic Measure-X software

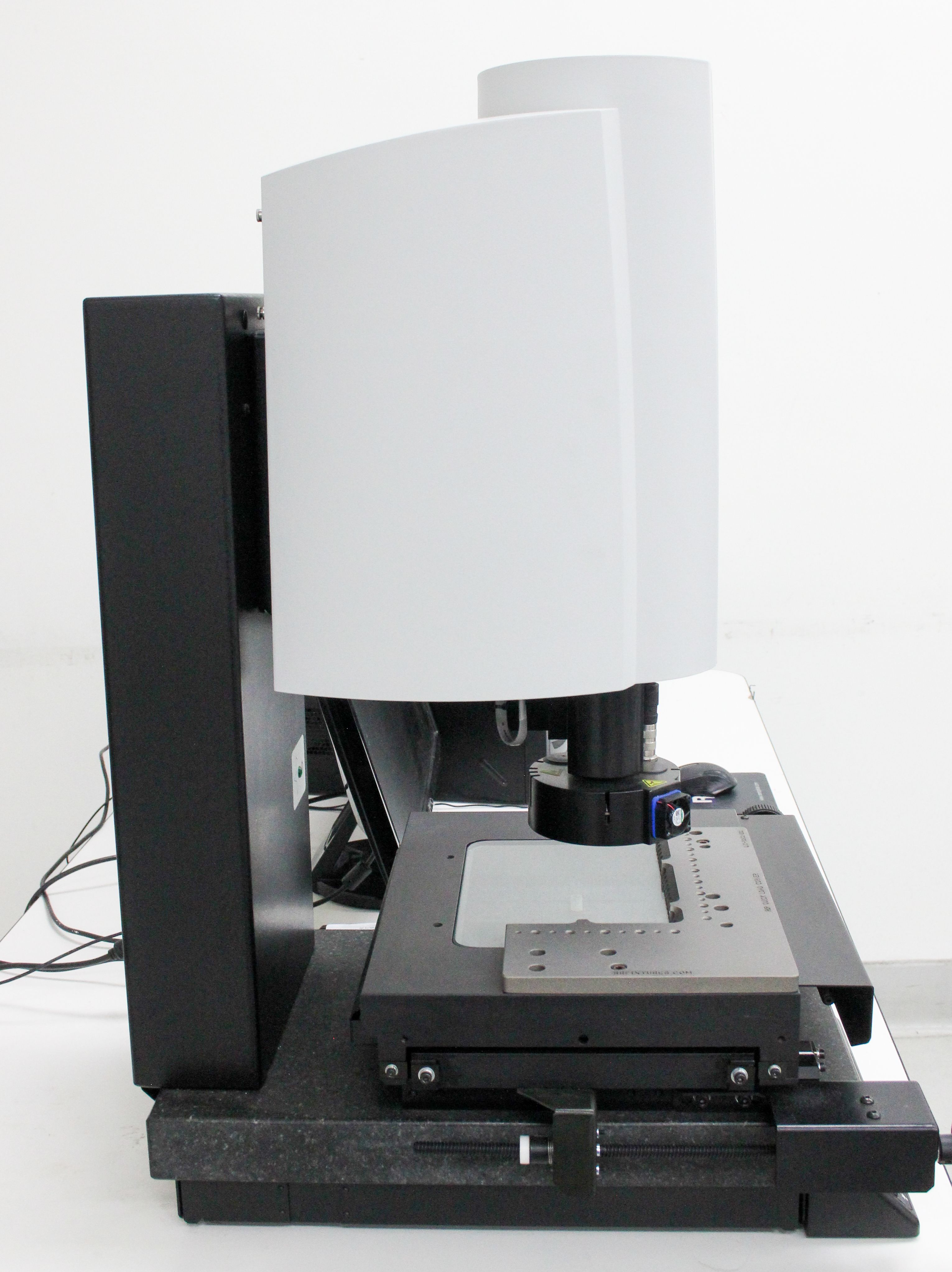

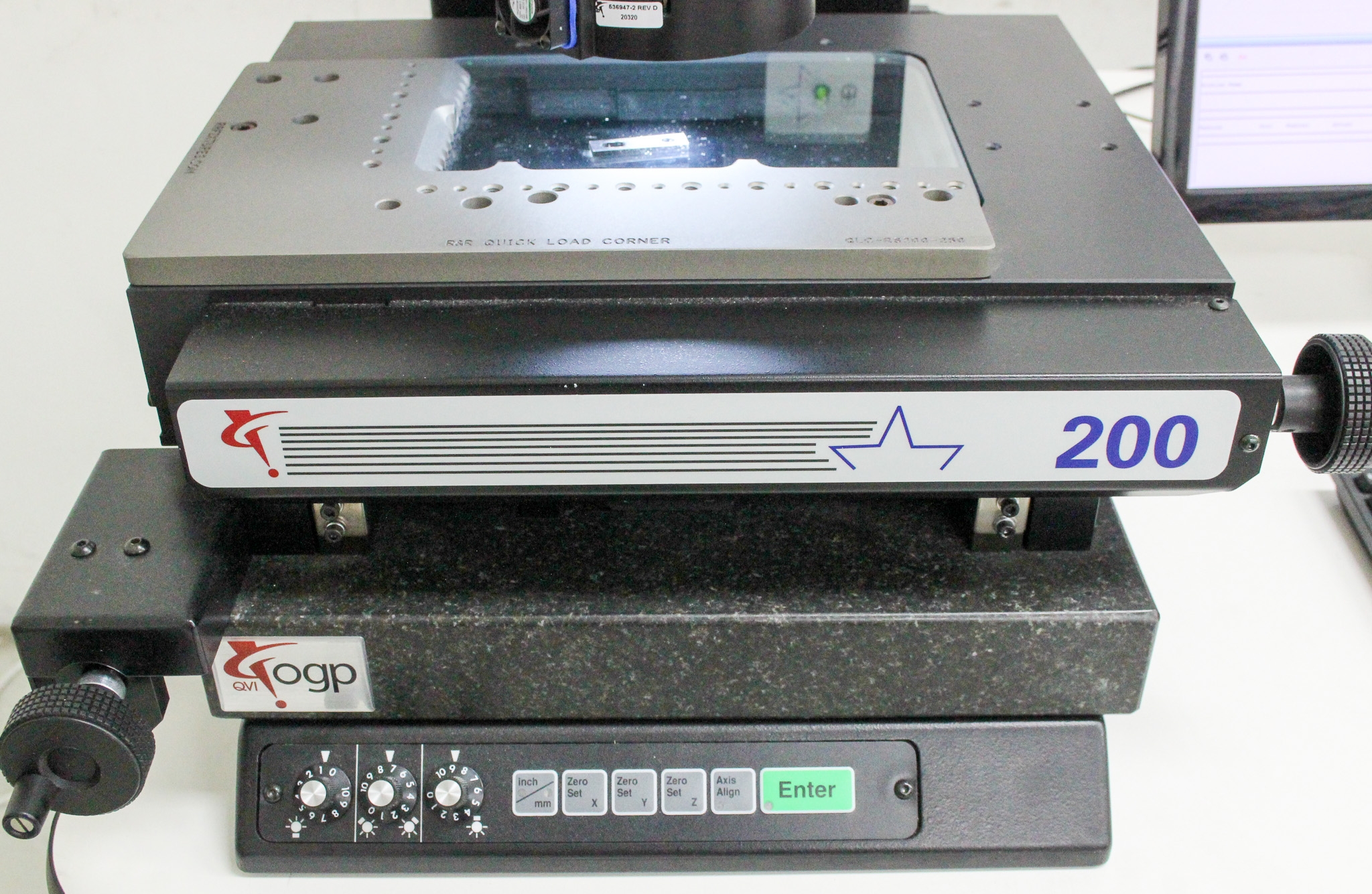

- Robust stage with motorized zoom optics
- High-resolution digital color camera
- X, Y, Z measurement capability with 1.0 micron scales
- Digital megapixel camera with motorized zoom lens

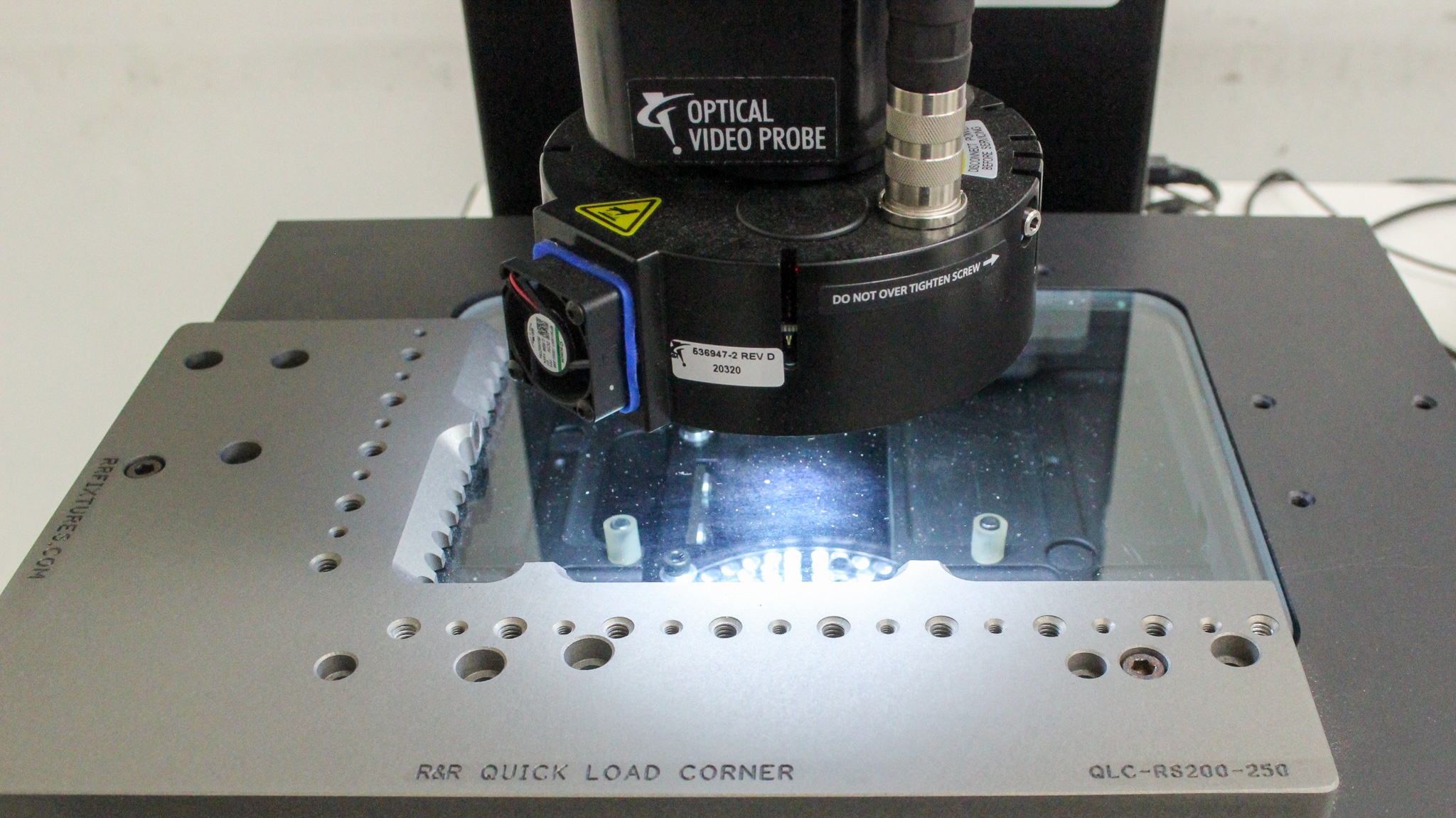

- Comprehensive LED backlight and ring light
- Large measurement area 300 x 150 x 150 mm
Specifications
- Manufacturer: QVI/ShapeGrabber
- Model: QVI Starlite 200
- Country of Origin: United States
- Voltage: 120V, 50Hz/60Hz
- Condition: Used
- X, Y, Z Travel: 300 x 150 x 150 mm (12 x 6 x 6 in)
- Resolution: 1.0 micron
- Max Recommended Stage Load: 23 kg (50 lb)
- Imaging Optics: 6.5:1, 10 position motorized zoom lens
- Magnification: 24x to 370x on-screen
- Includes Computer: QVI170M Intel Core i3, 4GB RAM

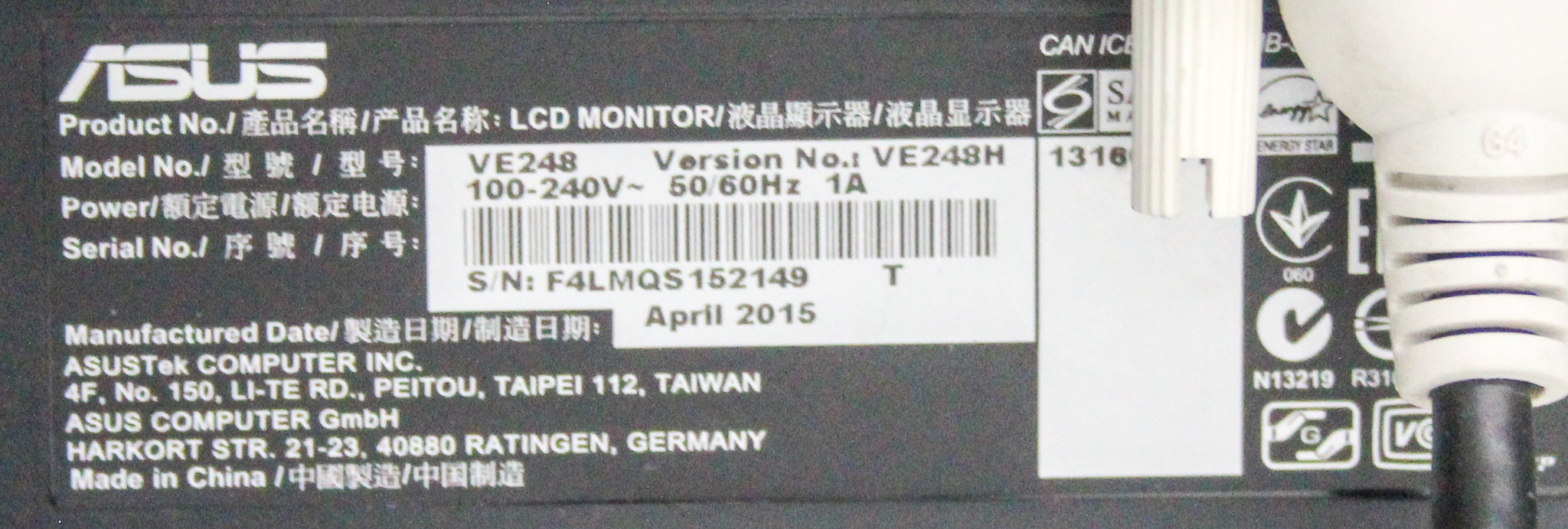

- Monitor: Asus VE248 LCD Monitor

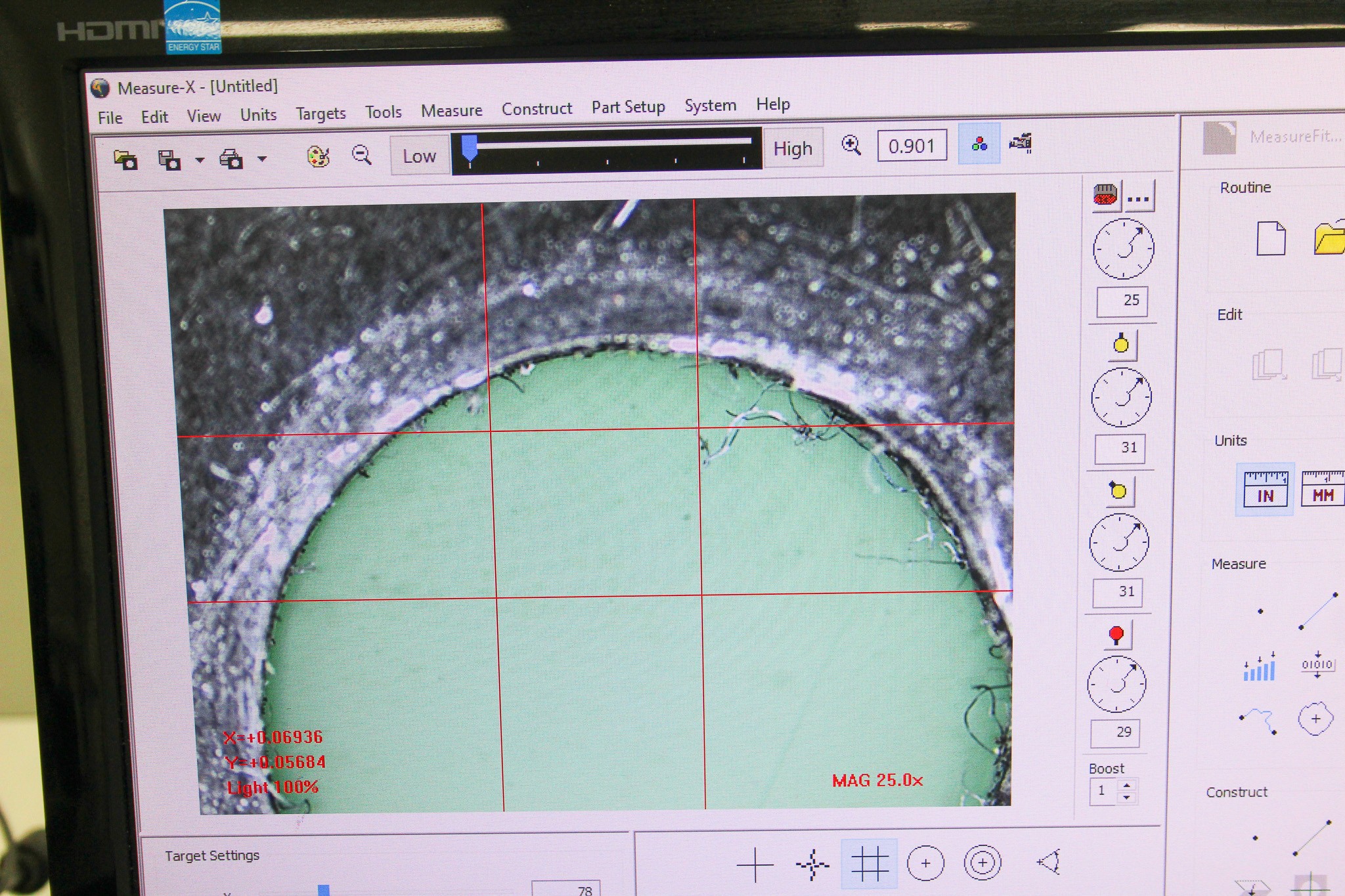

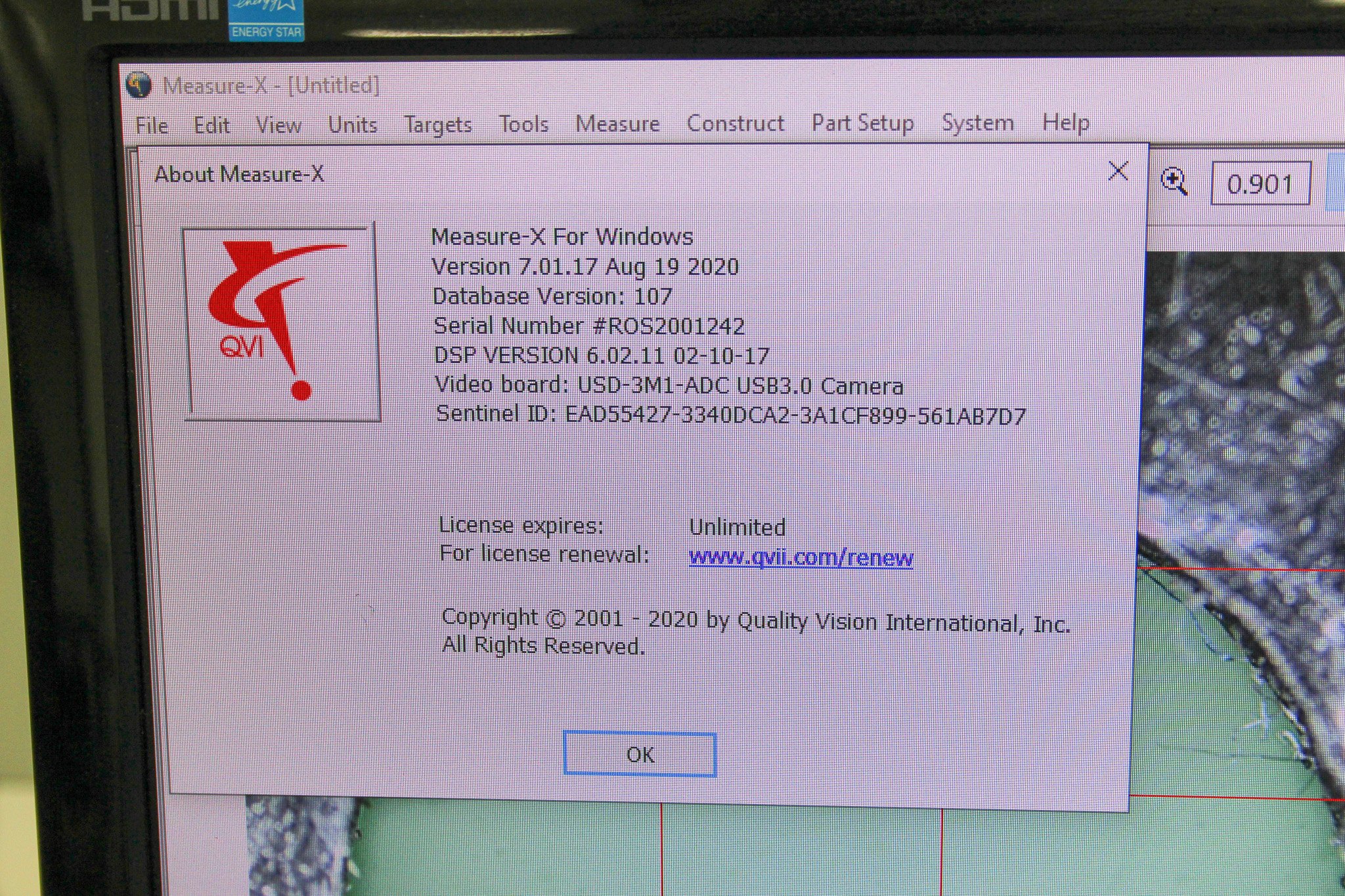

- Software: Measure-X
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 60.0 lb x 40.8 lb
Metric: 76.2 cm x 152.4 cm x 103.63 cm
Harmonized Code
9031.80.80
Harmonized Code Details
9031.80.80 - Other instruments and apparatus for measuring or checking. This code is suitable as it pertains to devices used for precision measurement in industrial applications.
