Agilent G1315A DAD Detector HPLC Diode Array 1100 Series 190-950nm Wavelength
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension18.0in x 14.0in x 6.0in
-
SerialDE90605121
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

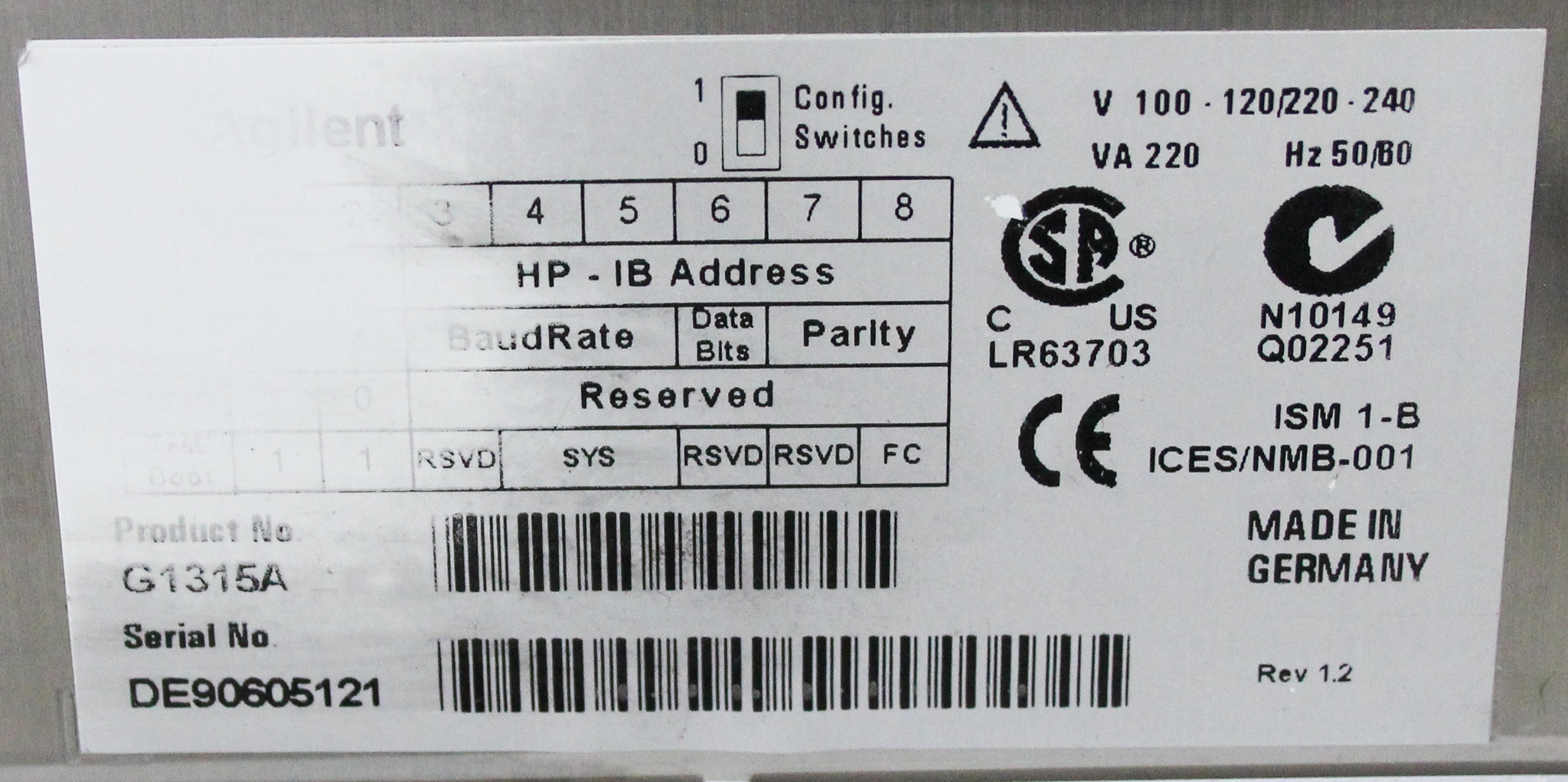

Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent 1100 Series G1315A Diode Array Detector offers cutting-edge spectral acquisition for HPLC analyses. Manufactured in the United States, this unit is part of the prestigious Agilent 1100 Series, renowned for its superior performance in analytical quantification. Even though this unit is used, it is functional, powers on, and appears to be fully operational, despite minor cosmetic wear. This detector offers features such as long-life deuterium and tungsten lamps, ensuring high sensitivity and low detection limits across a wavelength range of 190-950 nm. It supports the simultaneous measurement of up to five wavelengths without loss of sensitivity. The programmable slit from 1-16 nm optimizes sensitivity, linearity, and spectral resolution. Utilizing a built-in holmium oxide filter, it provides rapid wavelength accuracy verification. This model includes a micro flow cell with a 2 L volume, a 3 mm path, and a maximum pressure of 120 bar, suitable for multi-wavelength detection applications.
Key Features
- Long-life deuterium and tungsten lamps
- Wavelength range: 190-950 nm
- Simultaneous detection of up to five wavelengths
- Programmable slit: 1-16 nm
- Built-in holmium oxide filter

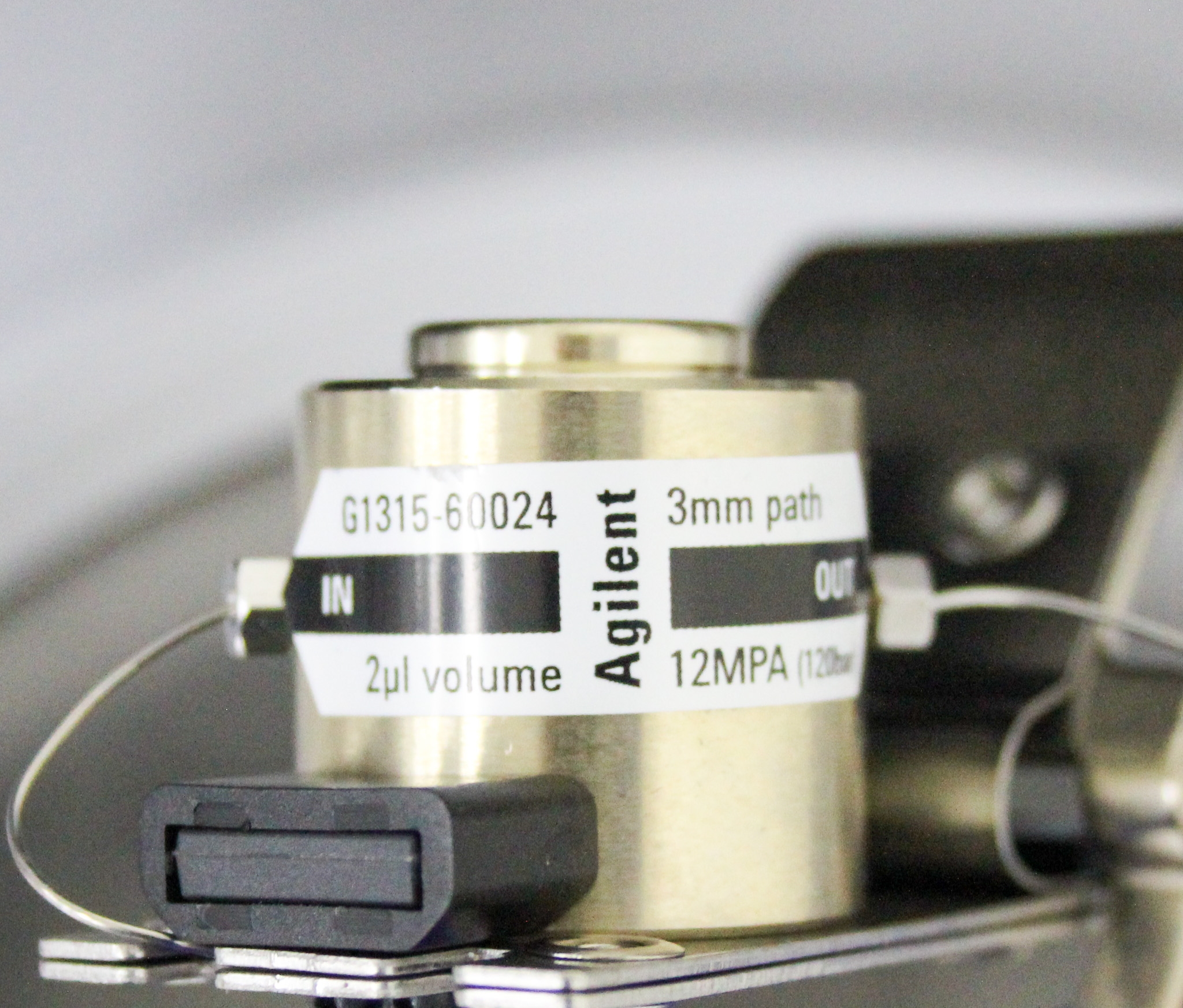

- Micro flow cell: 2 L volume, 3 mm path
Specifications
- Wavelength Range: 190-950 nm
- Sensitivity: No loss for simultaneous multi-wavelength
- Slit Width: Programmable from 1-16 nm
- Flow Cell Volume: 2 L
- Flow Cell Path Length: 3 mm
- Max Pressure: 120 bar
Weight
Imperial: 1.2 Pounds
Metric: 0.54 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 7.2 lb
Metric: 54.86 cm x 42.67 cm x 18.29 cm
Harmonized Code
902790
Harmonized Code Details
902790 - Microtomes, parts and accessories. It is the best fit due to the equipment's use in analytical and laboratory applications related to analysis and detectors such as HPLC systems.
