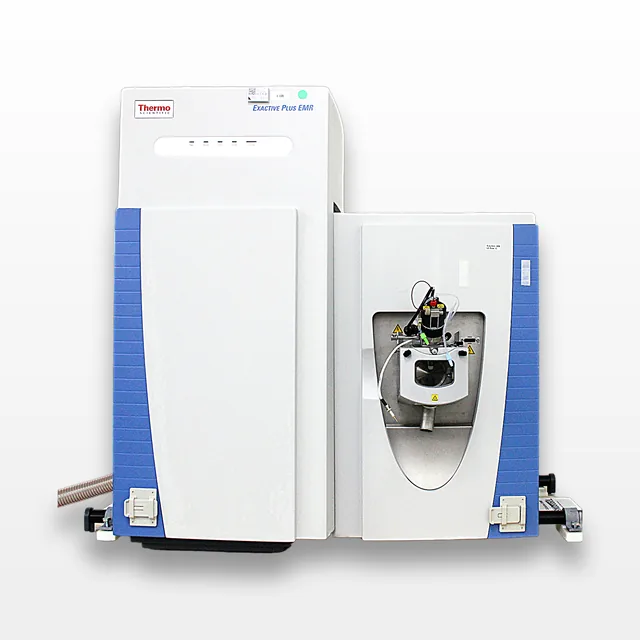

Thermo Exactive Plus EMR Mass Spectrometer LC-MS High Resolution 12 Hz Data
Thermo Scientific
Details
-
CategoryMass Spectrometry
-
Dimension25.0in x 36.0in x 38.0in
-

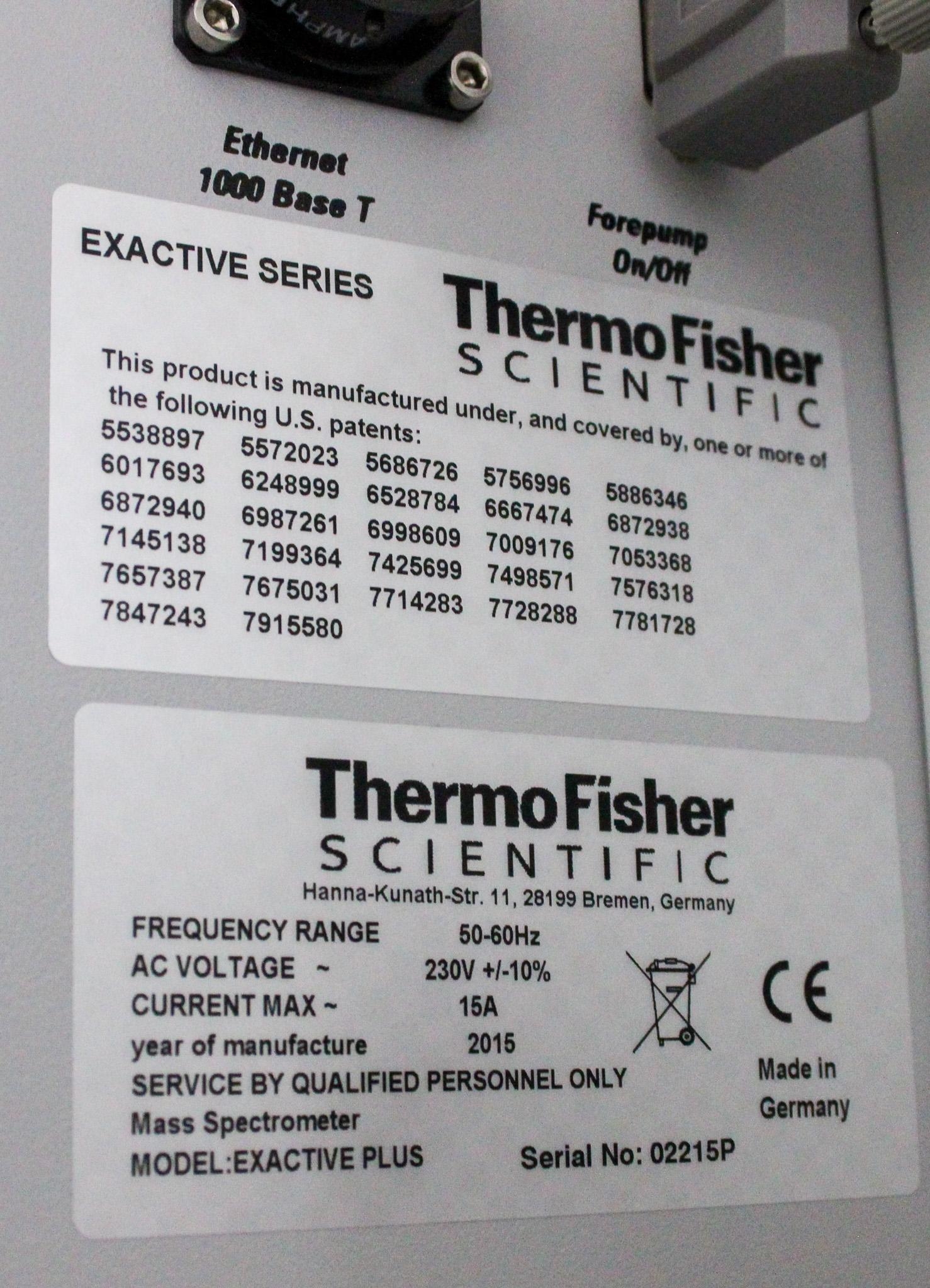

Serial02215P
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description

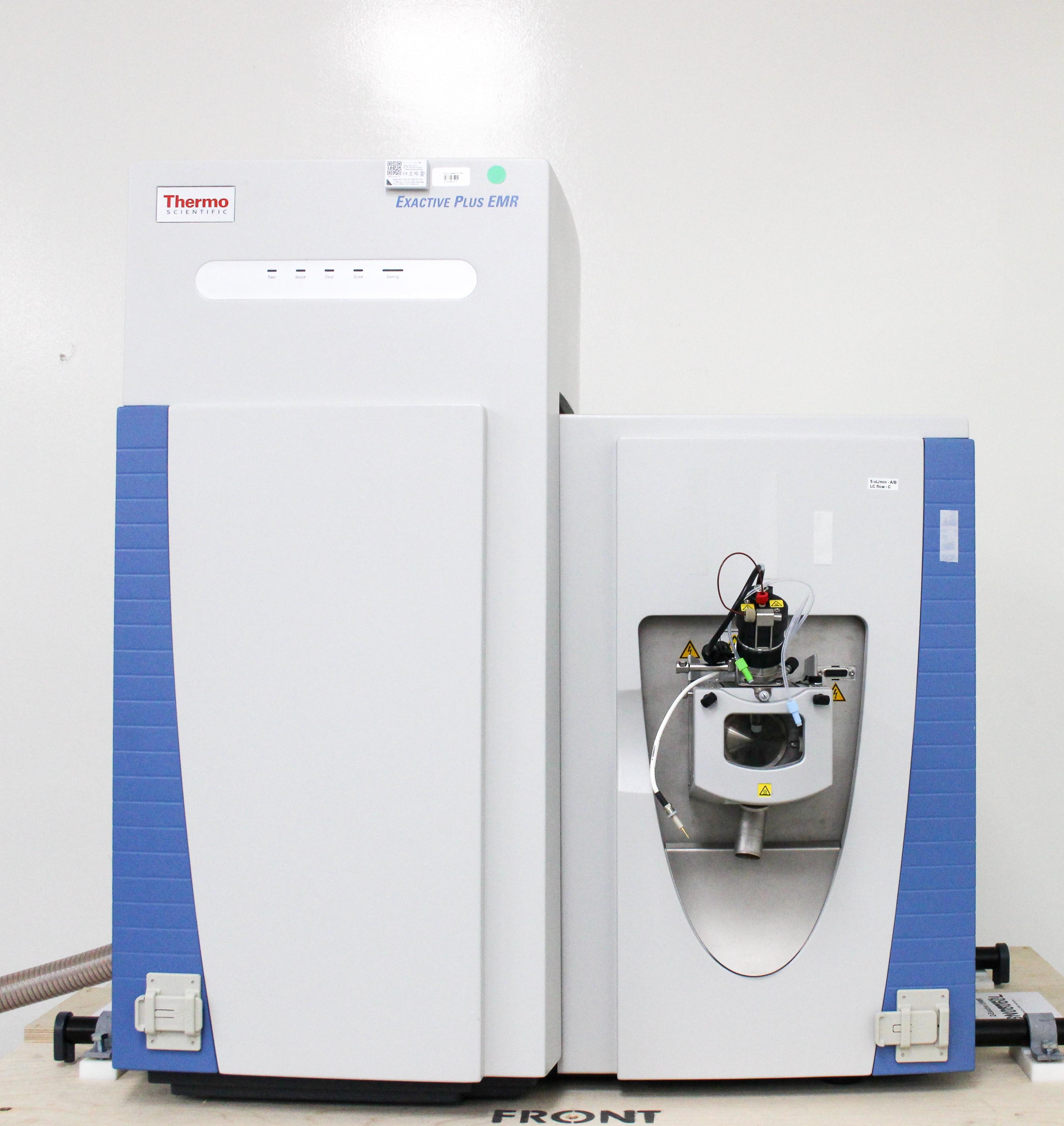

The Thermo Scientific Exactive Plus EMR mass spectrometer is a sophisticated instrument designed for high-resolution, accurate-mass screening and quantitative analyses. Using Orbitrap technology, this benchtop LC-MS system offers superior mass resolution of up to 140,000 (FWHM) at m/z 200, facilitating the precise distinction of target compounds in complex matrices. It supports fast scan speeds of up to 12 Hz, suitable for applications like food safety, environmental analysis, and forensic toxicology. The optional HCD collision cell adds all-ion fragmentation capability for compound confirmation. Although the unit powers on and performs basic tests, full functionality was not evaluated due to the absence of control software. The instrument is in good condition but requires repairs for optimal operation.
Technician comment

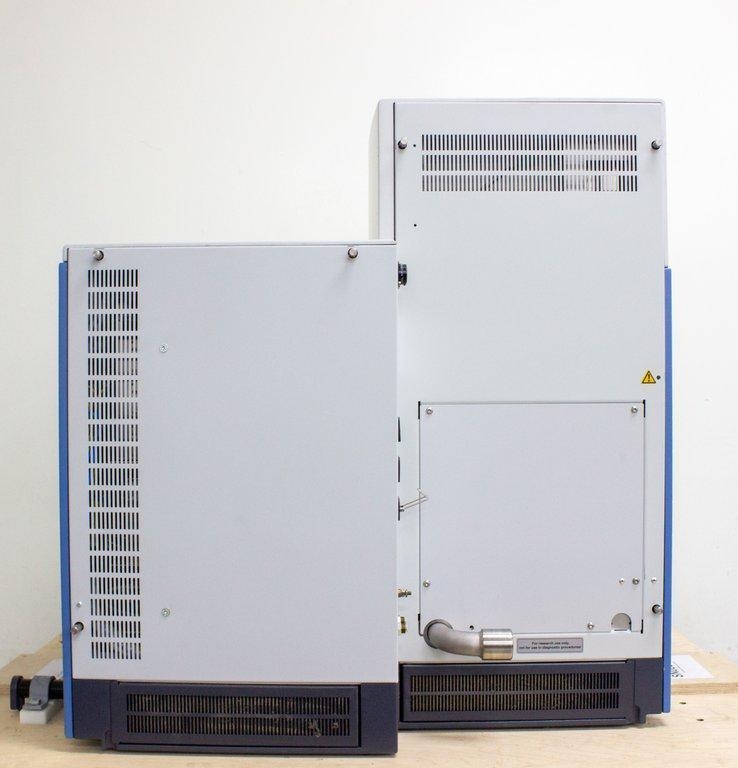

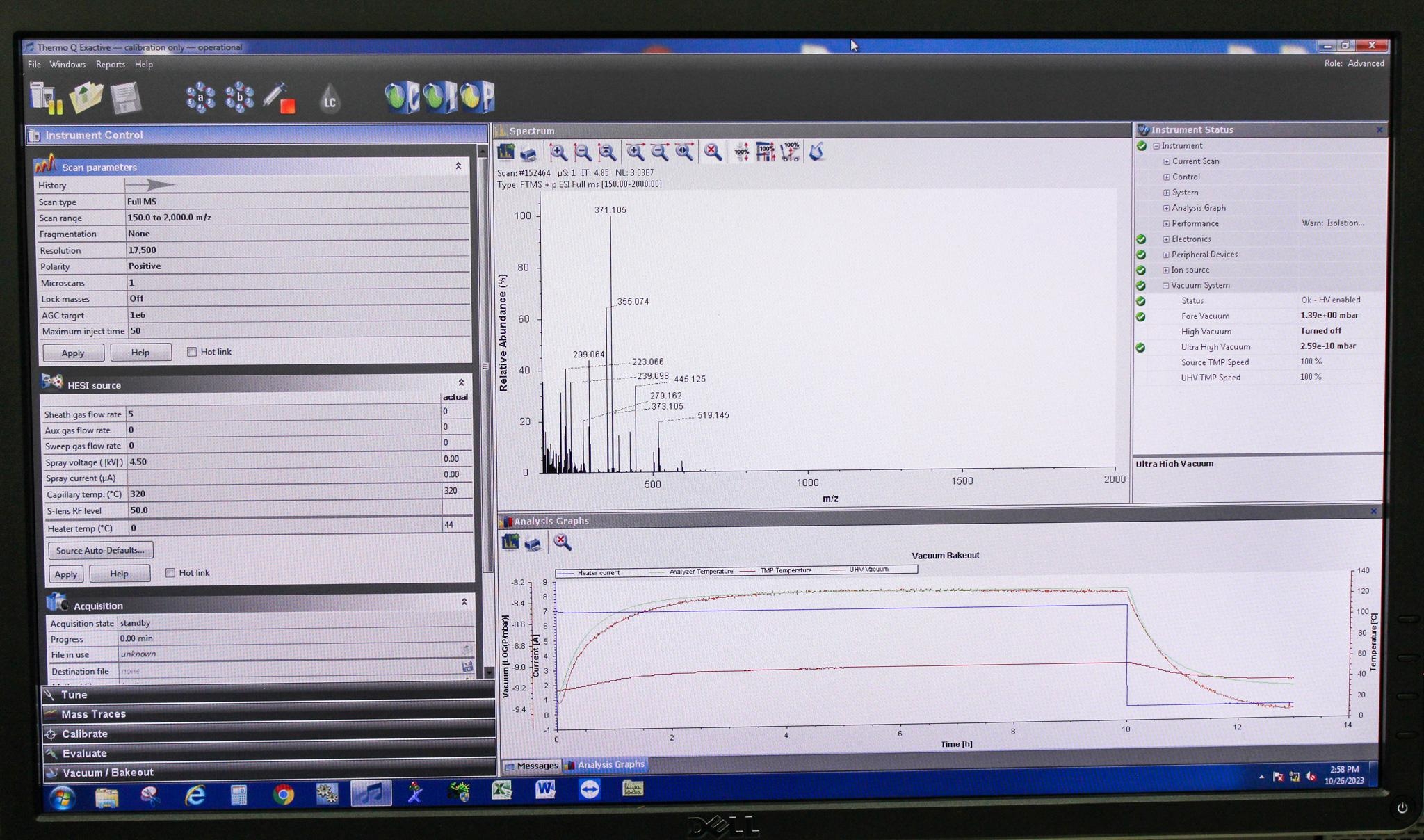

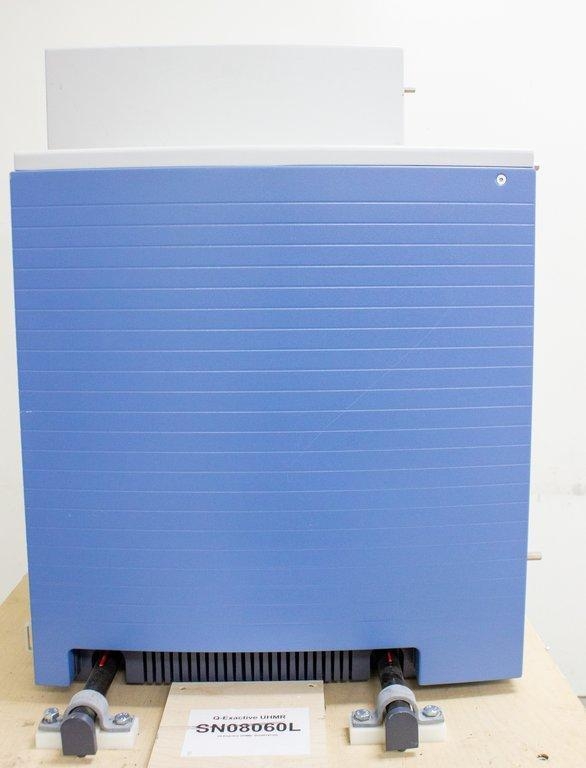

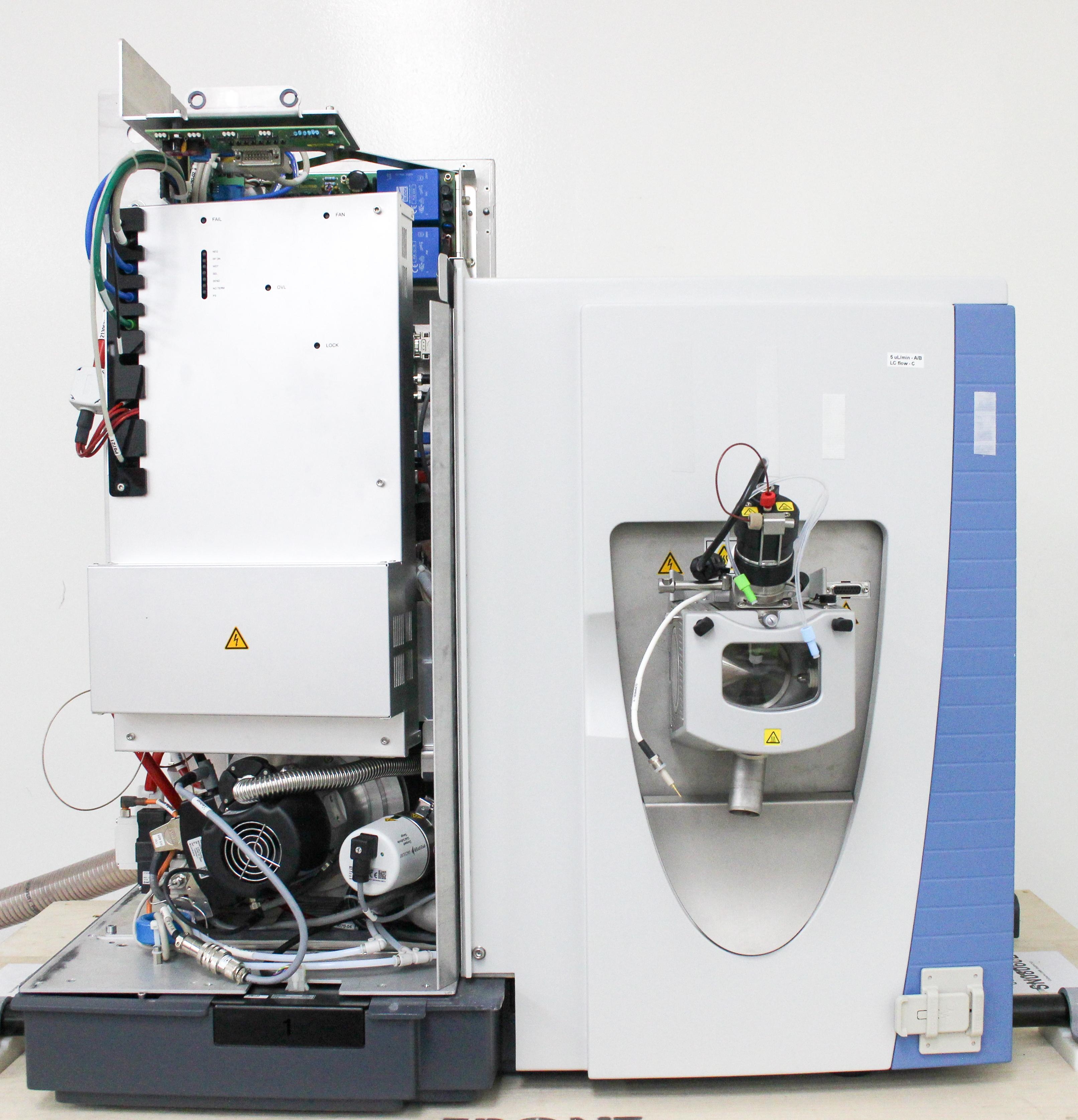

Unit powers on and completes initial startup. Full functional testing could not be performed due to required control software not being available at time of evaluation. Instrument is pre-owned and was removed from a laboratory environment. Overall physical condition appears good with minimal wear consistent with previous use. Inquire about validation and calibration services if available for an additional cost. See photos for details.
Key Features
- High-resolution mass analysis with Orbitrap technology
- Scan speeds up to 12 Hz for efficient data collection
- Mass resolution up to 140,000 (FWHM) at m/z 200
- Wide mass range of 50 to 6,000 m/z (standard) or 350 to 20,000 m/z (EMR mode)
- All-ion fragmentation with optional HCD collision cell
- User-friendly operation with automated calibration
Specifications
- Mass range: 50 to 6,000 m/z (standard) or 350 to 20,000 m/z (EMR mode)
- Resolution: Up to 140,000 (FWHM) at m/z 200
- Scan speed: Up to 12 Hz

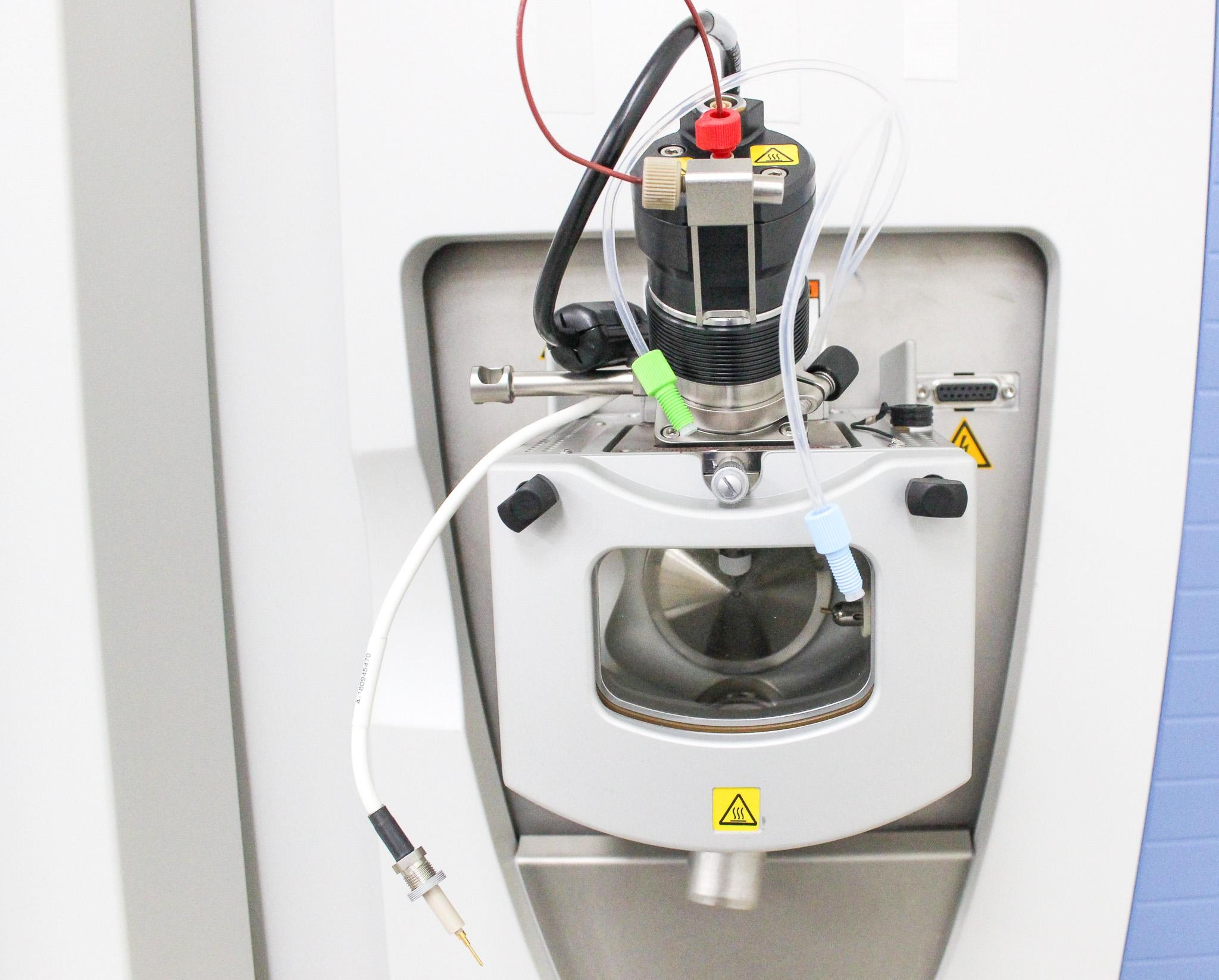

- Ion source: Thermo Scientific Ion Max API Source
- Power requirements: 2 x 230 VAC ±10% single phase, 15 Ampere, 50/60 Hz
- Advanced ion optics with S-Lens for increased sensitivity

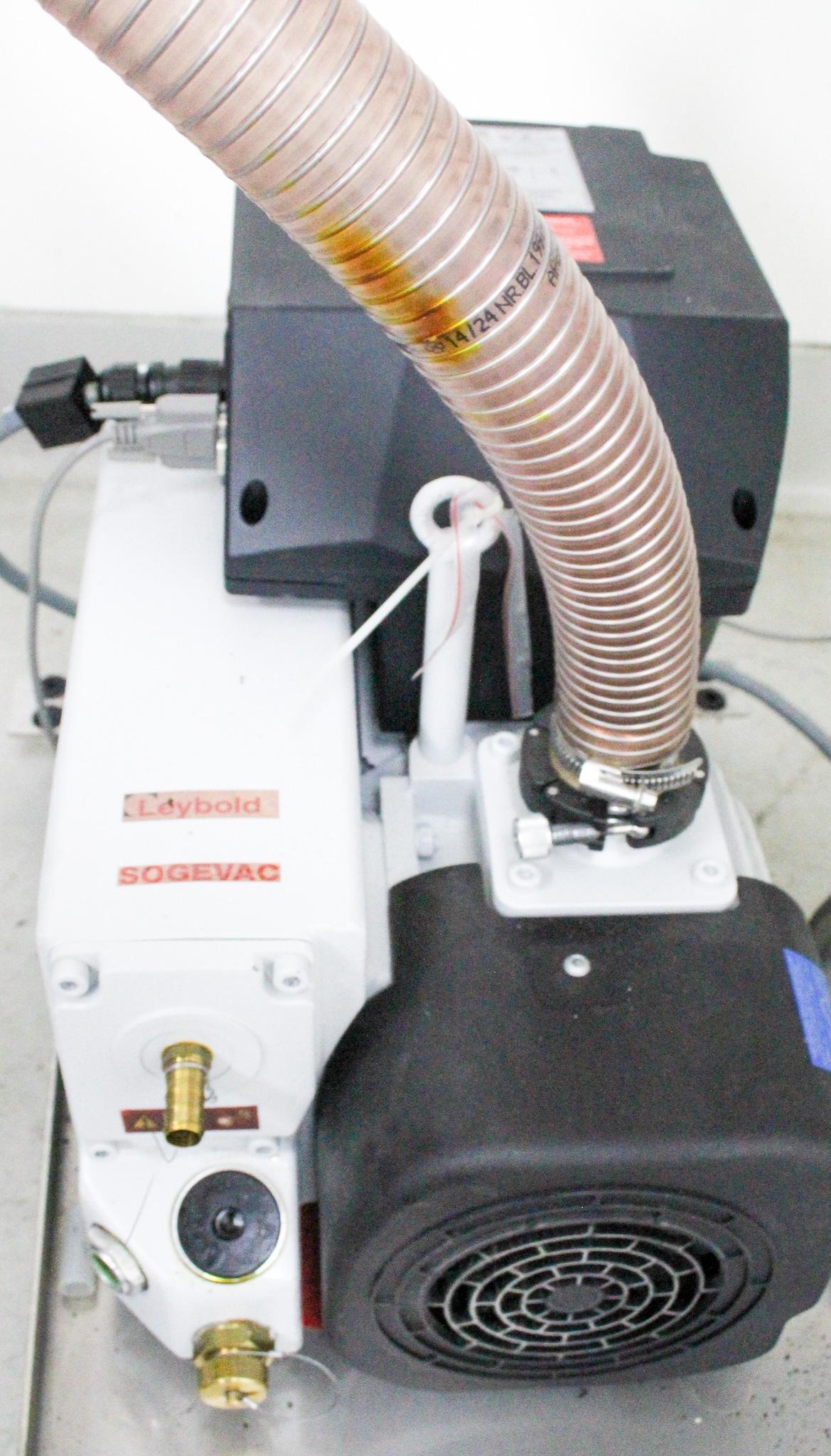

- Differentially pumped vacuum system with seven regions
Weight
Imperial: 462.0 Pounds
Metric: 209.56 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 43.2 lb x 45.6 lb
Metric: 76.2 cm x 109.73 cm x 115.82 cm
Harmonized Code
9027.20.40
Harmonized Code Details
The harmonized code 9027.20.40 corresponds to chromatographs, electrophoresis instruments. The choice was made based on the Thermo Exactive Plus being an LC-MS device, which performs liquid chromatography and mass spectrometry for advanced analytical use.
