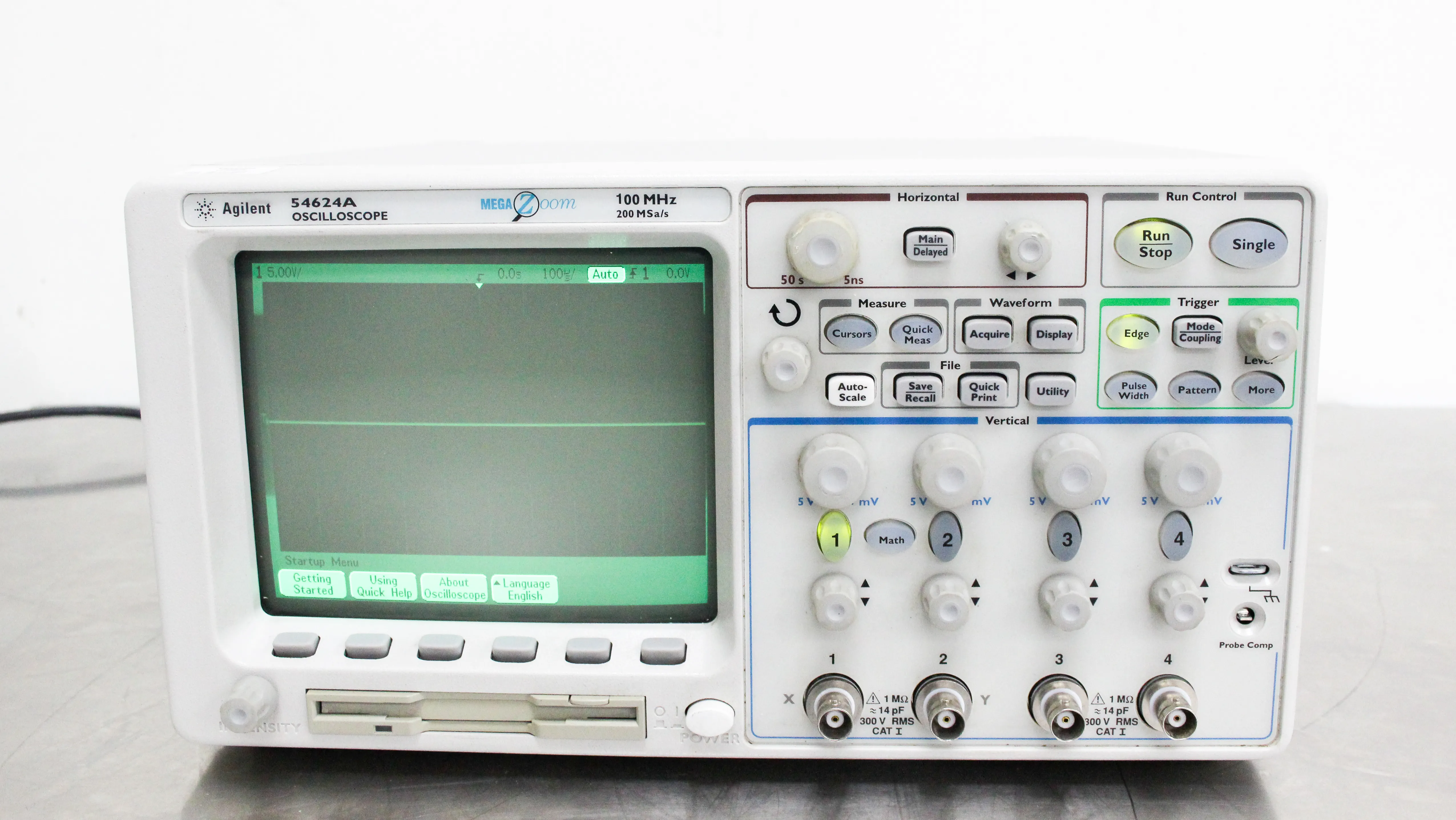

Agilent 4CH 100 MHZ Oscilloscope 54624A

Product Information

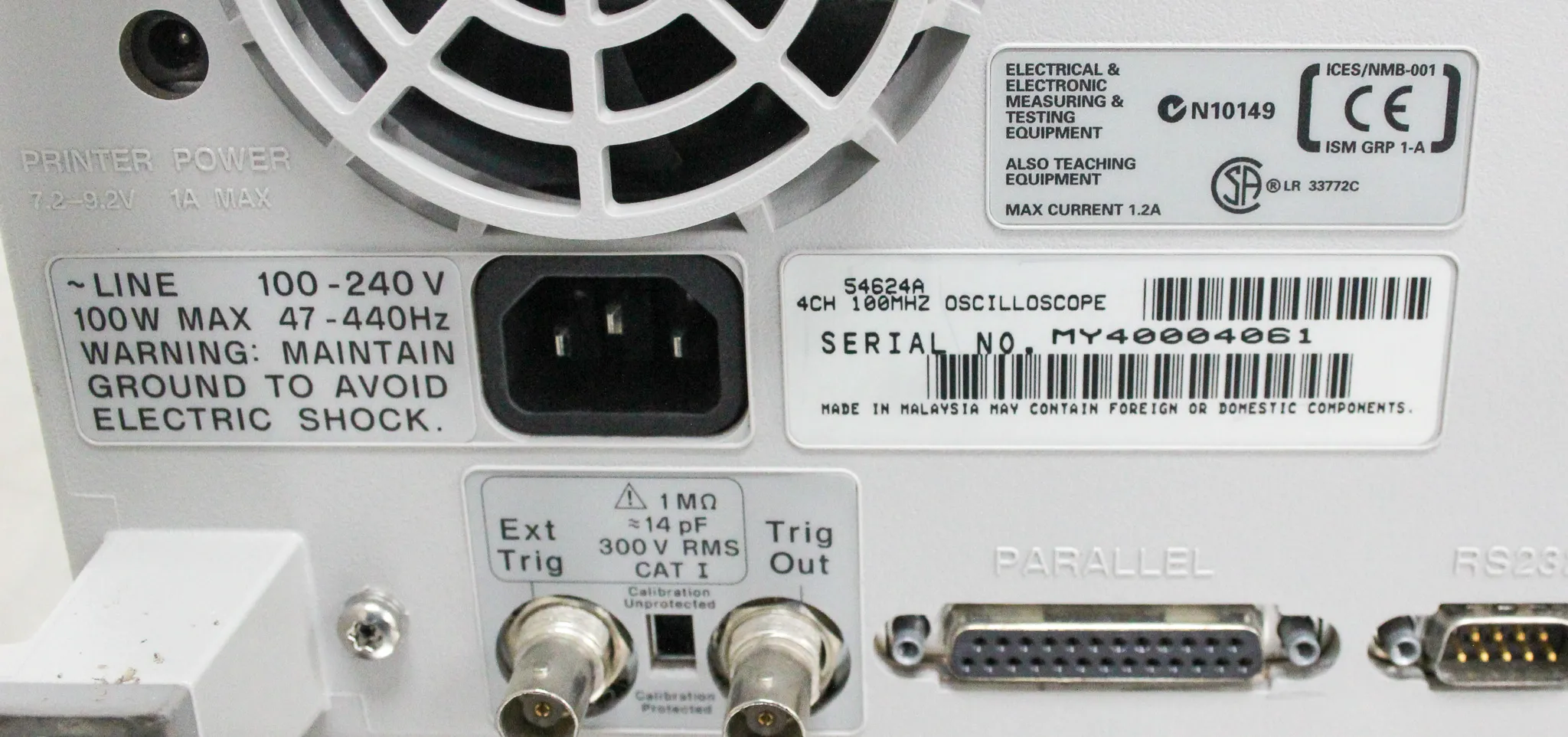

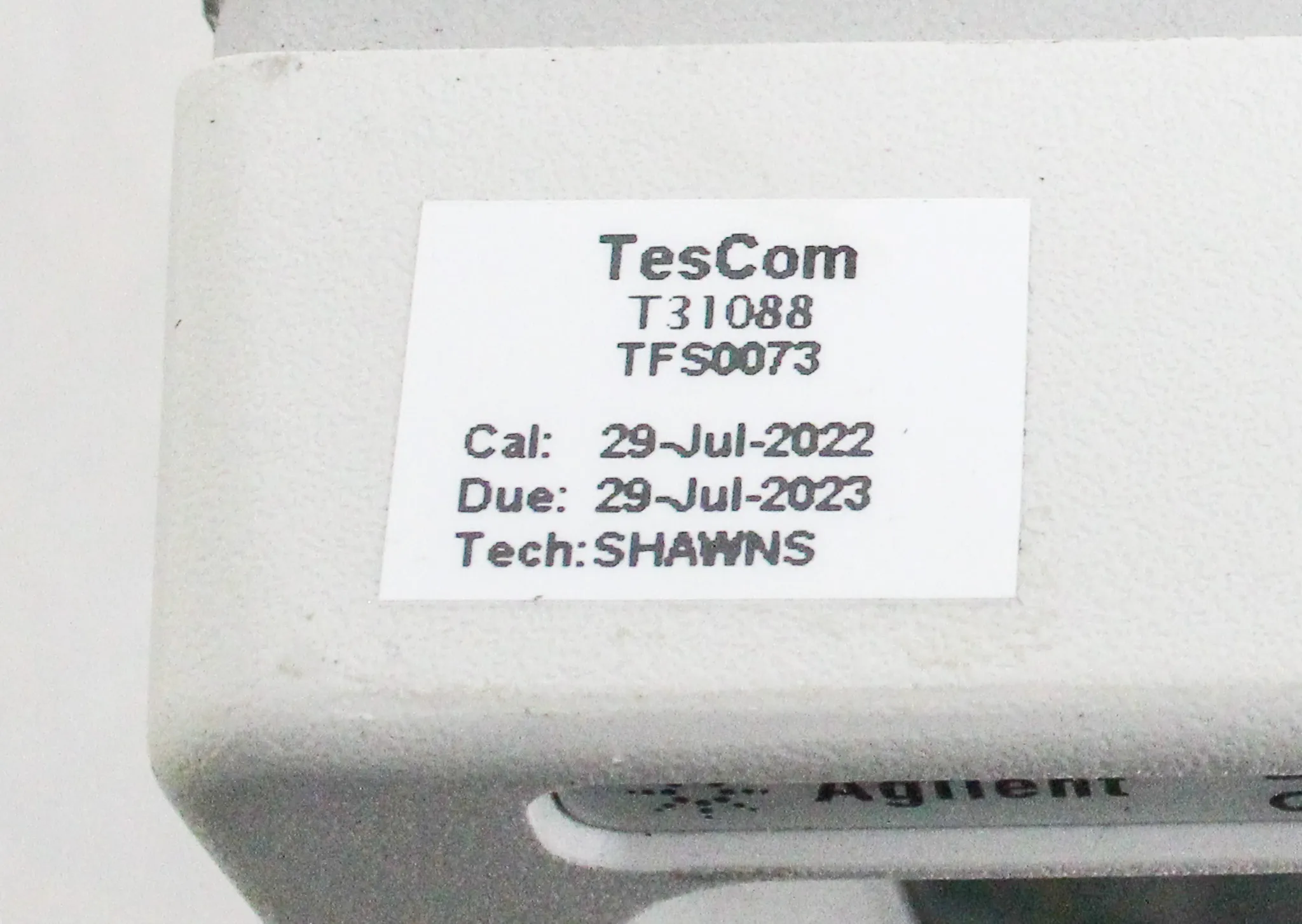

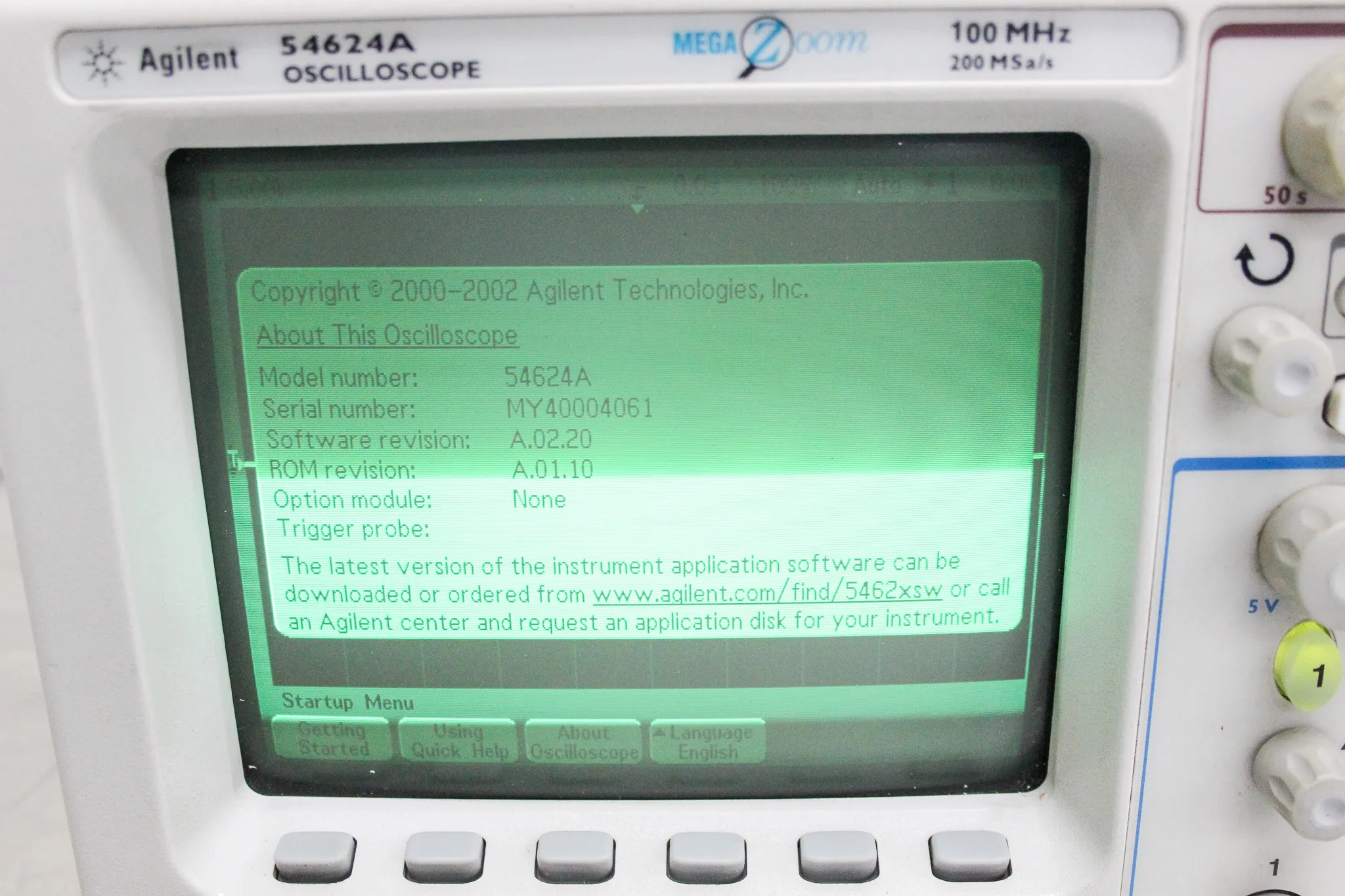

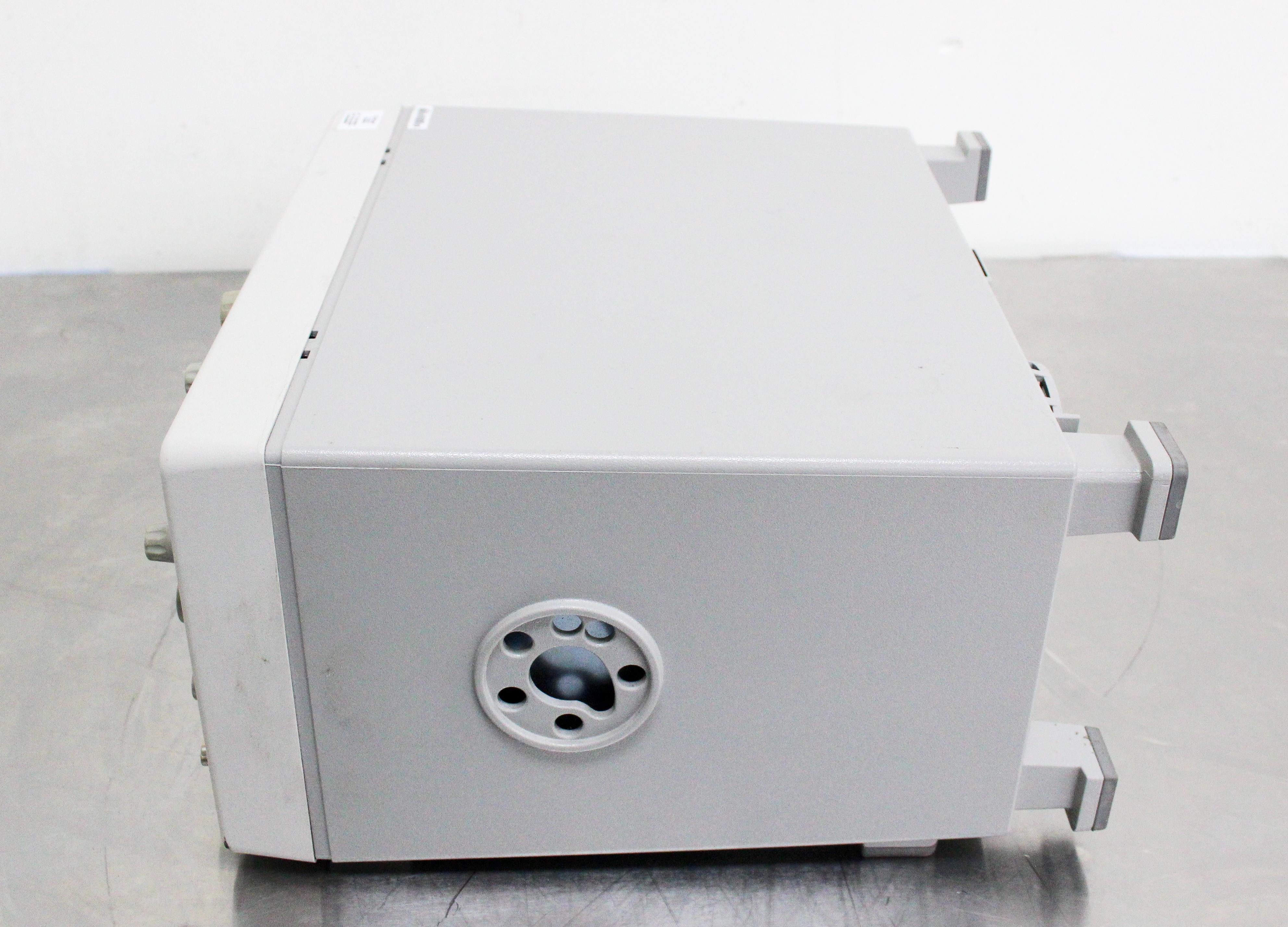

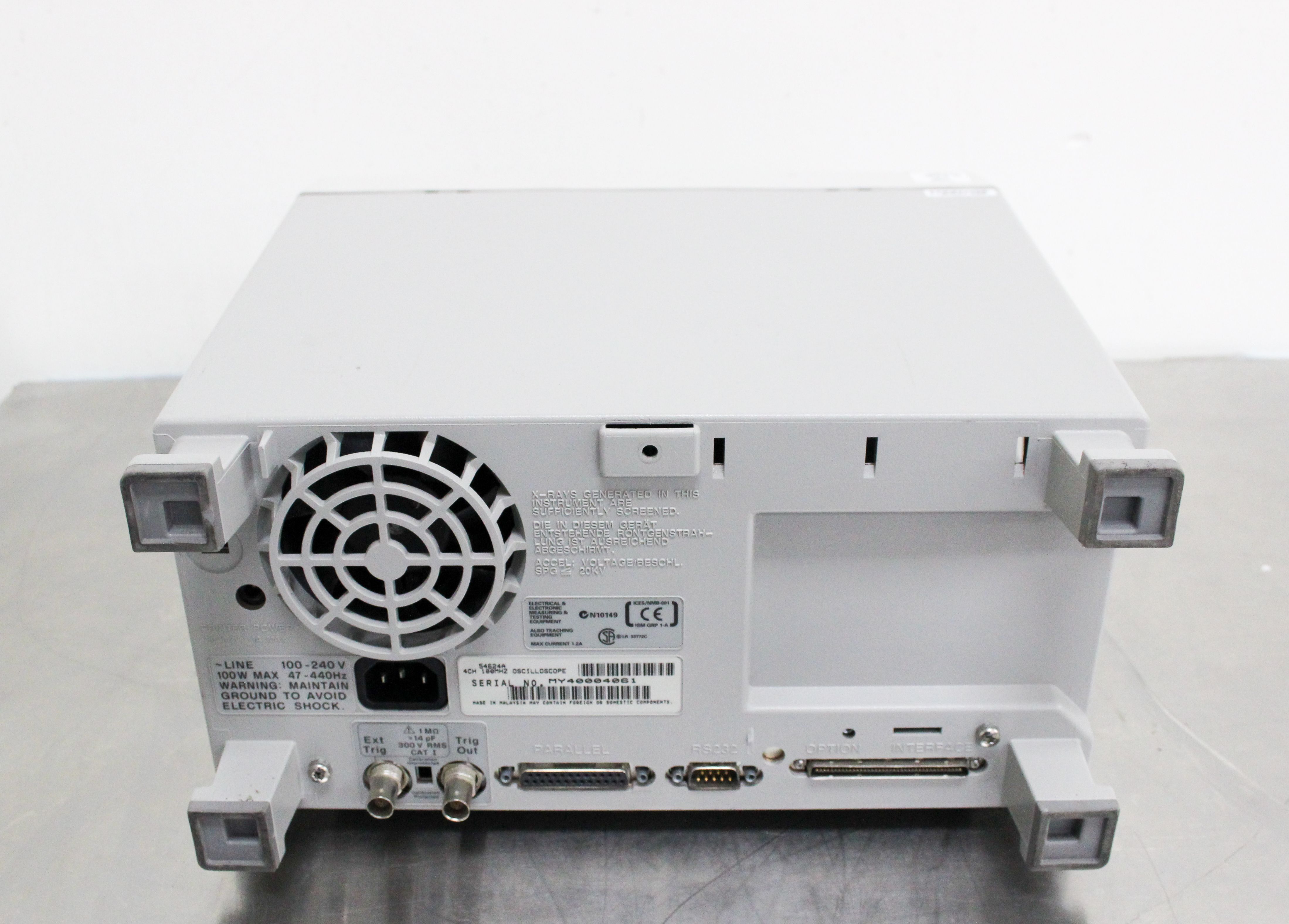

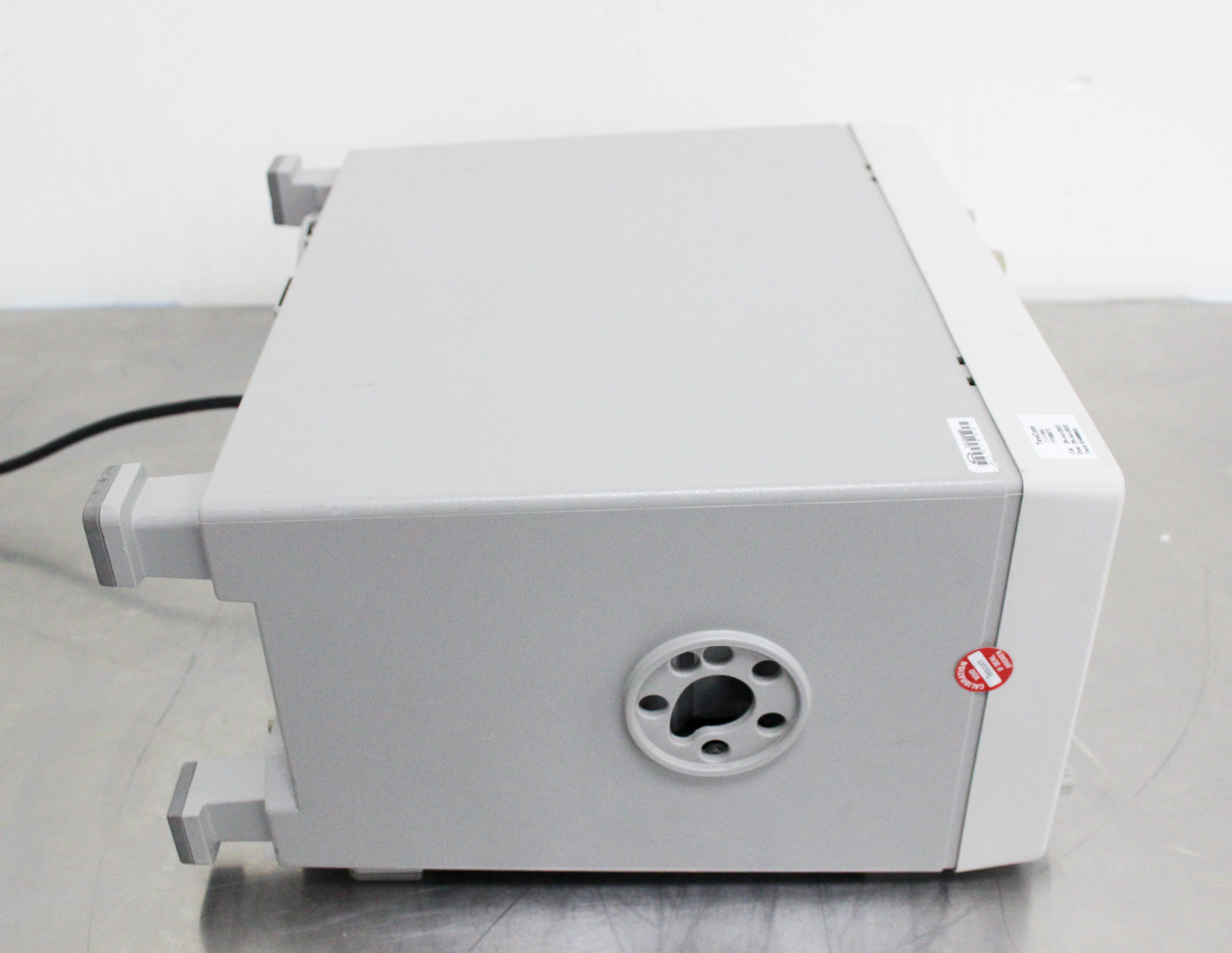

Agilent 4CH 100 MHZ Oscilloscope 54624A ***Unit was tested to specifications. 54624A is preowned with slight wear from normal use. 30-day warranty included with purchase. See photos for further details. If you work with both analog and digital components, Agilent Technologies 54600-Series oscilloscopes can help you easily see more of what's going on in your designs. The unique 2 + 16-channel mixed signal oscilloscope (MSO) models and the traditional 2- and 4-channel models are optimized with just the capabilities you need for verifying and debugging designs that include A/Ds, D/As, DSPs, and embedded 8- or 16-bit microcontrollers. These scopes give you the tools you need to solve your mixed analog and digital engineering challenges more easily. If your designs include heavy analog content, the 100-MHz 54624A will give you the channel count and measurement power you need, including MegaZoom deep memory, high-definition display, and flexible triggering. Whether you’re testing designs with four inputs, such as anti-lock brakes, or monitoring multiple outputs of a power supply, the 4-channel model helps you get your debug and verification done with ease. Ideal for mixed analog and digital analysis Ideal for analyzing designs with both analog and digital components, the 54600-Series scopes combine three critical features: Up to 8 MB of MegaZoom deep memory on some models comes standard so you can capture long, non-repeating signals, maintain high sample rate, and quickly zoom in on areas of interest A revolutionary ultra-responsive, high-definition display that lets you see more signal detail than ever before Flexible triggering that lets you easily isolate and analyze the complex signals and fault conditions common in mixed analog and digital designs. I2C, CAN, LIN, USB, and SPI triggering come standard. N2758A CAN trigger module option is also available. This combination of capabilities is tailored to give you the measurement power you need to get your mixed analog and digital job done faster. MegaZoom deep memory With 4 MB to 8 MB of MegaZoom deep memory, 54600-Series scopes give you deep-memory capture without the sluggish response and complex operation you’ve had to tolerate with other deep-memory scopes. And unlike the alternatives, MegaZoom deep memory is not a special mode. That means it’s always available to help you find details buried in complex signals, discover anomalies, correlate high-speed digital control signals with slower analog signals, and capture infrequent events.

• Mixed analog and digital engineering challenges
• Deep-memory capture without sluggish response
• Ultrareactive high-definition display

• Channels: 4
• Frequency: 100 MHz
• Record Length: 8 MPts
• Sampling Rate: 200 MS/s

Metric: 8.16 kg
Imperial: 18 lb

Metric: 33.02 cm x 33.02 cm x 17.78 cm
Imperial: 13 in x 13 in x 7 in

9030208080

9030208080 - Instruments and apparatus for measuring or checking voltage, current, resistance or power, without a recording device
