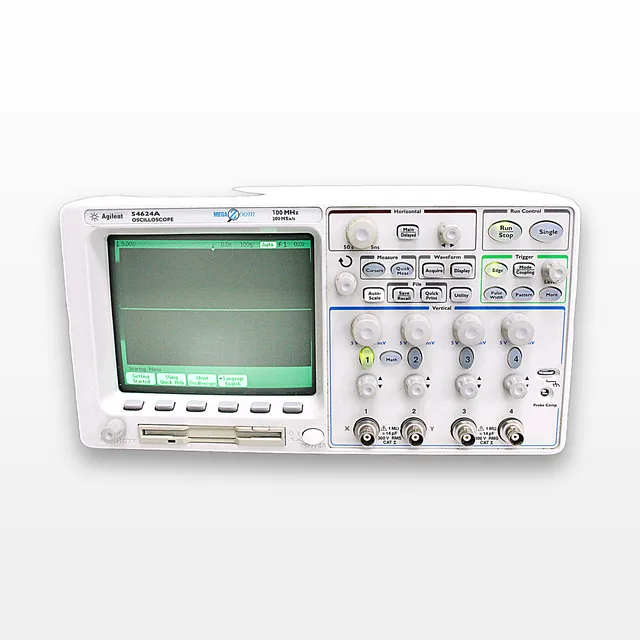

Agilent 54624A Oscilloscope 4CH 100MHz Mixed Signal Analysis Unit
Agilent
Details
-
CategoryTesting Equipment
-
Dimension13.0in x 13.0in x 7.0in
-
SerialMY40004061
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent 54624A is a versatile 4-channel 100 MHz oscilloscope, ideal for engineers dealing with both analog and digital signal analyses. Utilized in the design verification and debugging processes, this unit from Agilent's 54600-Series provides sufficient channel counts and measurement power for various mixed analog and digital components. The oscilloscope includes MegaZoom deep memory and a high-definition display, allowing you to capture non-repeating signals efficiently. It features flexible triggering options suitable for I2C, CAN, LIN, USB, and SPI protocols, making it a reliable tool for complex signal analysis. With parallel and RS-232 interfaces, data transfer to PCs is straightforward. The integrated floppy drive ensures easy storage of waveform data and screen images. This used unit is in good condition, implying no known functionality issues despite minor cosmetic wear.
Key Features
- 4 channels
- 100 MHz frequency
- MegaZoom deep memory up to 8 MB
- High-definition display
- Flexible triggering for I2C, CAN, LIN, USB, and SPI
- Parallel and RS-232 interfaces for data transfer
- 1.44 MB built-in floppy drive for data storage
Specifications
- Channels: 4
- Frequency: 100 MHz
- Record Length: 8 MegaPoints
- Sampling Rate: 200 MS/s
- MegaZoom deep memory ensures capture of long, non-repeating signals with high sample rate
- Built-in 1.44 MB floppy drive for storing waveform data and images
- Revolutionary high-definition display with up to 25 million vector updates per second
- Various language support for built-in help system
Weight
Imperial: 16.8 Pounds
Metric: 7.62 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 15.6 lb x 8.4 lb
Metric: 39.62 cm x 39.62 cm x 21.34 cm
Harmonized Code
9030.20.20
Harmonized Code Details
Harmonized code 9030.20.20 falls under oscilloscopes and oscillographs category, capturing functions and application areas relevant to electronic testing and instrumentation.
