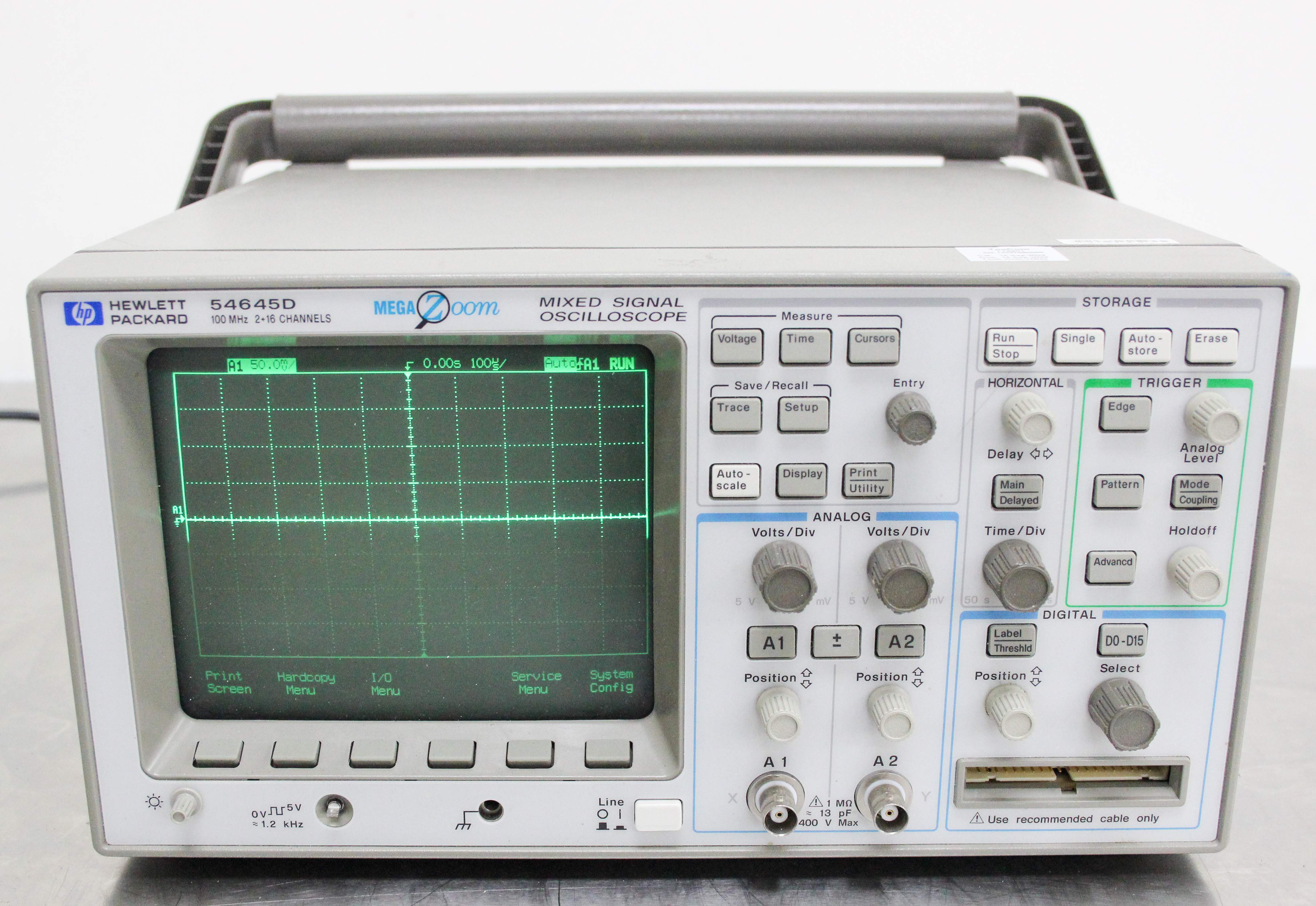

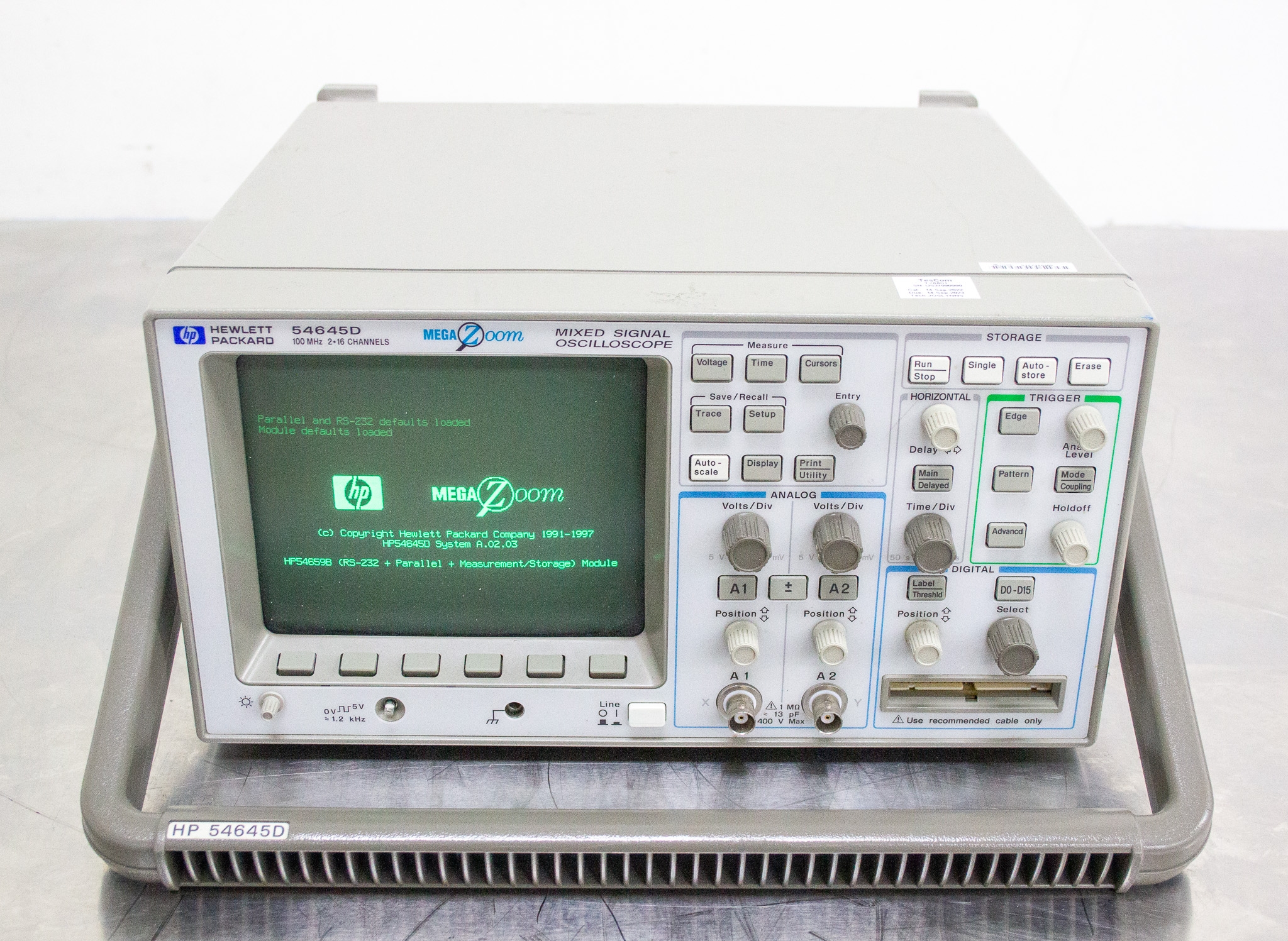

HP 54645D Oscilloscope Mixed Signal Digital Analysis Agilent Module
Hewlett Packard
Details
-
CategoryTesting Equipment
-
Dimension13.0in x 14.0in x 8.0in
-
SerialUS37090980
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Hewlett Packard 54645D Mixed Signal Oscilloscope, paired with the 54659B Storage Module, offers seamless integration of logic channels into an oscilloscope for enhanced measurement capabilities. Designed for professionals working with combined analog and digital systems, this 100-MHz bandwidth instrument features 200 MSa/s, 2 scope, and 16 digital channels for extensive signal analysis. Utilize up to 1 MB of memory per scope channel or 2 MB per logic channel for deep analysis, enabled by Agilent MegaZoom technology. Effective for isolating cause and effect in complex circuits, the oscilloscope's intuitive controls and powerful triggering functions enhance user experience. The 54659B module adds RS-232 and parallel printer port capabilities, in addition to programming capabilities and non-volatile memory conversion. Ideal for tasks requiring FFT analysis, GPIB and remote programming, and waveform monitoring.
Key Features
- 100-MHz bandwidth for mixed signal analysis
- 2 analog scope channels and 16 digital channels
- 200 MSa/s sampling rate
- Agilent MegaZoom technology for deep memory capture
- RS-232 and parallel printer port with 54659B module
- 1 MB memory per scope channel and 2 MB per logic channel
Specifications
- Bandwidth: 100-MHz
- Sampling Rate: 200 MSa/s
- Analog Channels: 2 scope channels
- Digital Channels: 16 channels
- Memory: 1 MB per scope channel, 2 MB per logic channel
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Deep Memory Capture: Agilent MegaZoom technology
Weight
Imperial: 18.0 Pounds
Metric: 8.16 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 16.8 lb x 9.6 lb
Metric: 39.62 cm x 42.67 cm x 24.38 cm
Harmonized Code
9030.39
Harmonized Code Details
Harmonized Code 9030.39: This category pertains to measuring or checking instruments, appliances, and machines, not specified or included elsewhere in Chapter 90. It fits the HP 54645D Oscilloscope as it's primarily used for measuring and testing electronic signals.
