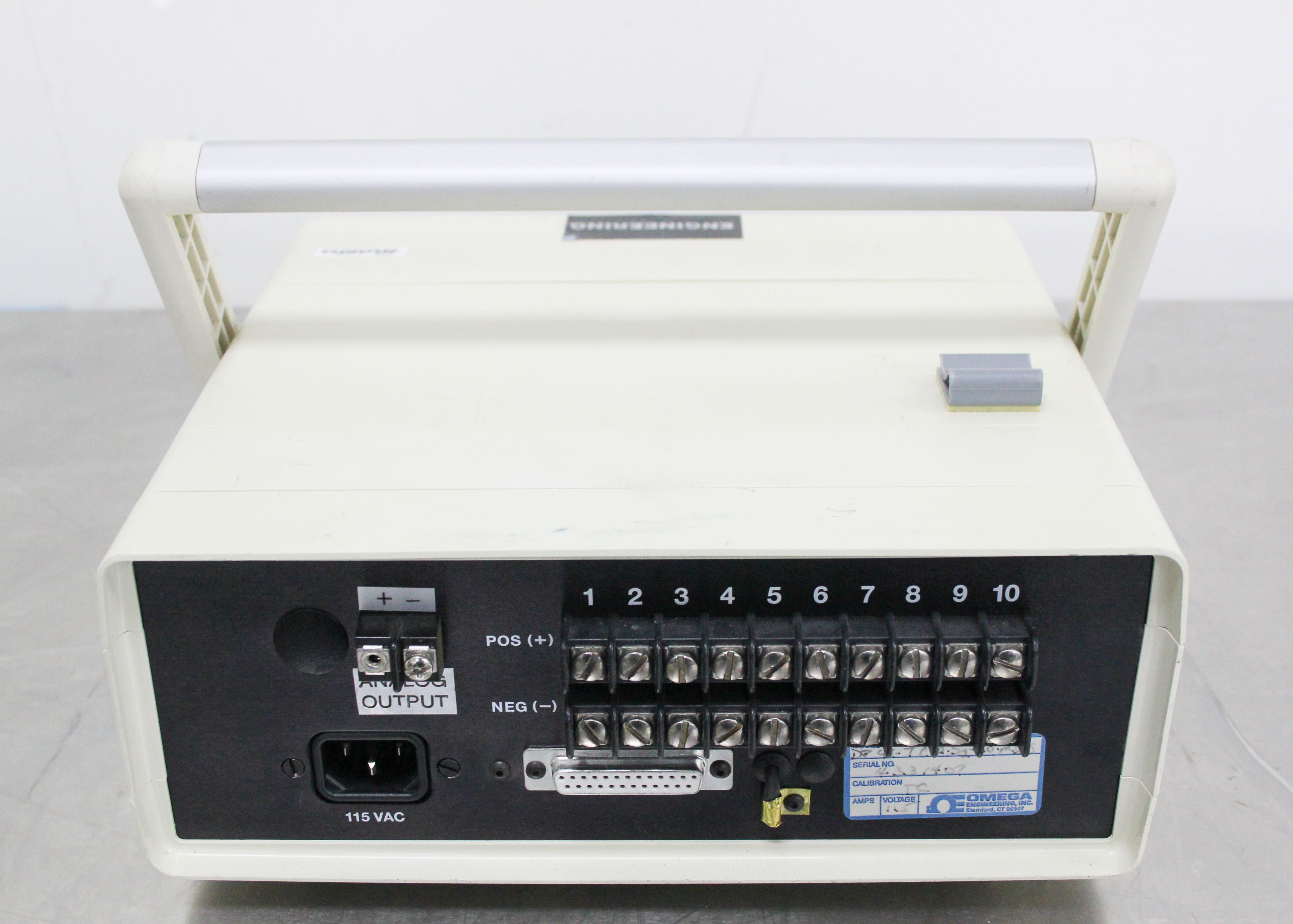

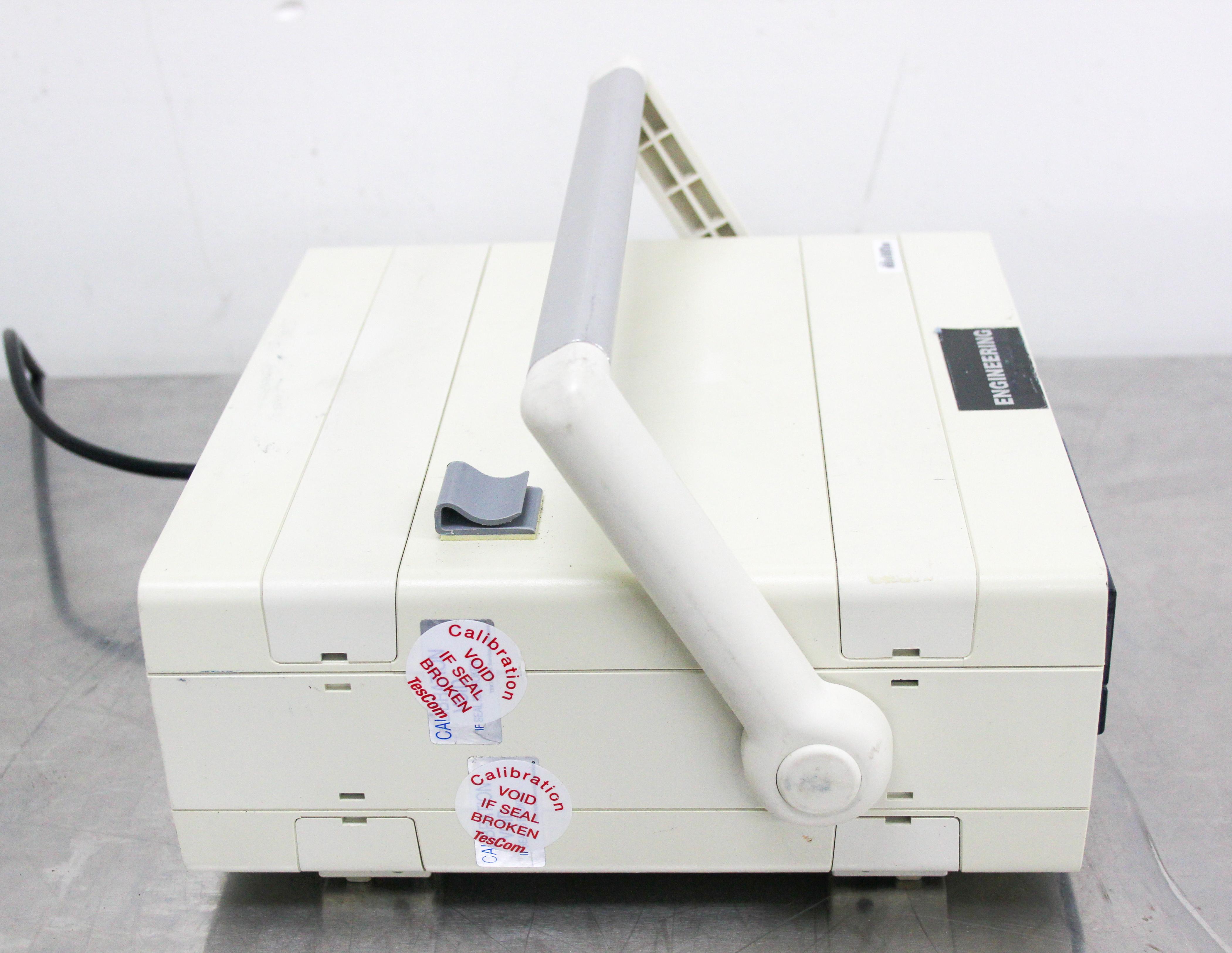

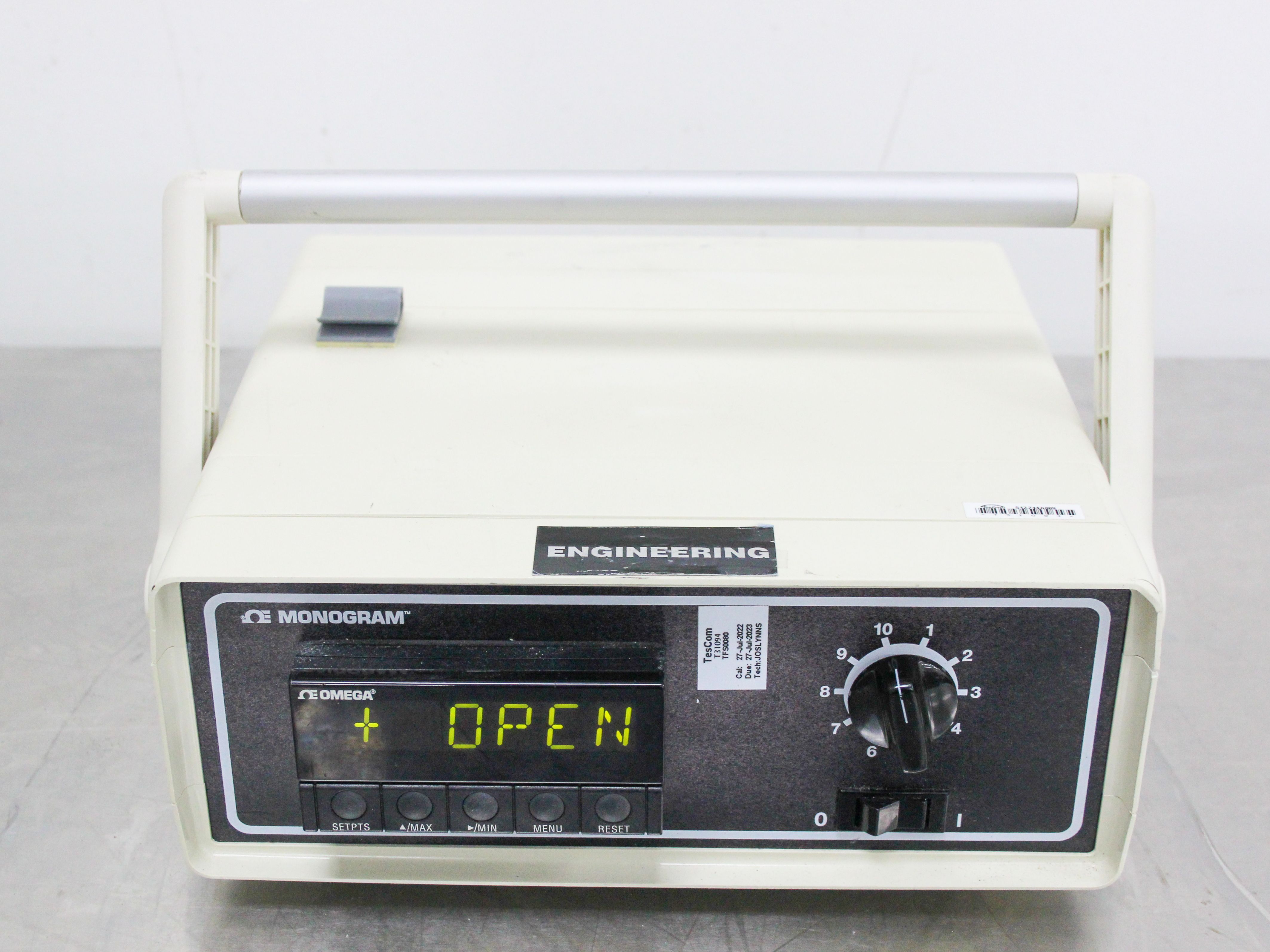

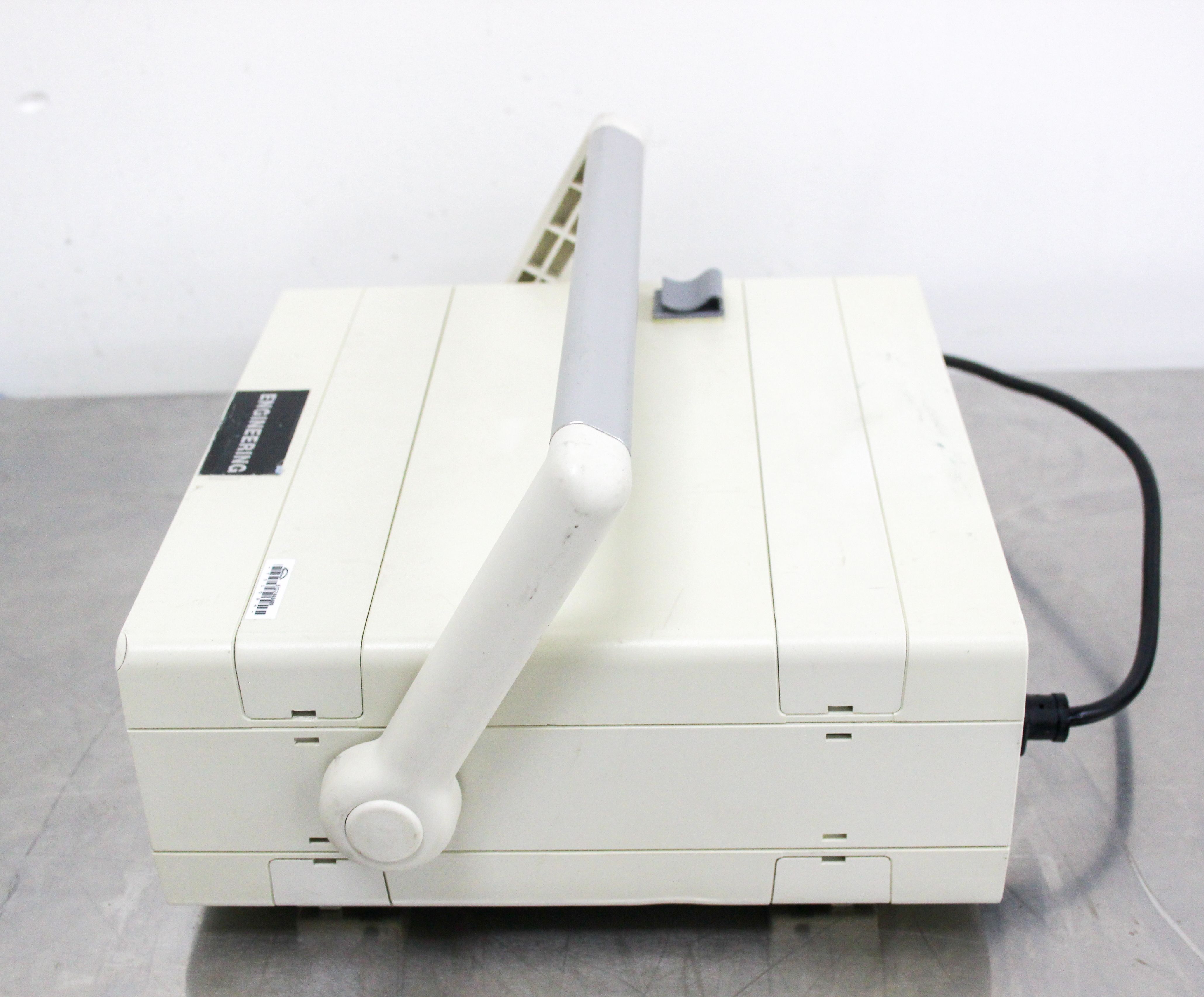

Omega DP41-TC-MDSS Meter Universal Digital Industrial Meter
Omega
Details
-
CategoryMeter
-
Dimension10.0in x 12.0in x 6.0in
-
Serial4331407
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
The Omega DP41-TC-MDSS is a versatile portable benchtop meter built to handle a broad range of industrial applications, with its capacity to measure various DC voltage and current ranges and inputs from nine thermocouple types, RTDs, pressure transducers, load cells, strain gages, and potentiometers. Featuring a six-digit display and four open-collector outputs, this model provides precision and control in your measurements. This preowned unit is in good condition and powers on without errors, although it shows signs of wear from previous use. Complete with a 120V power input, this device will aid in your analytical and industrial instrumentation requirements, providing customizable alarm and control functionalities through its four setpoints. Its RS232/485 serial communications options facilitate remote monitoring of parameters, ensuring efficient data management. Ideal for settings requiring accurate and repeatable measurements.
Key Features
- Measures DC voltage and current ranges
- Compatible with thermocouples and RTDs
- Four open-collector outputs
- RS232/485 serial communication options
Specifications
- Accuracy: 0.005% of range +/- 5 counts
- Span Temperature Coefficient: 20 ppm
- Step Response: 1s to 99.9%
- Warm-Up to Rated Accuracy: 50 min
- Operating Temperature: 0 to 50C (32 to 122F)
- Power: 115 or 230 Vac, 49 to 400 Hz: 10 to 32 Vdc
- Resolution: 17-bit
- Red or green 6-digit display
- Voltage Input Ranges: 0 to 100 mV, up to 100 V
- Current Input Ranges: 0 to 20 mA, 4 to 20 mA
- RS232 Interface for remote monitoring
- Sensor Excitation: 10V at 30 mA, 24V at 25 mA
Weight
Imperial: 6.0 Pounds
Metric: 2.72 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 14.4 lb x 7.2 lb
Metric: 30.48 cm x 36.58 cm x 18.29 cm
Harmonized Code
90278080
Harmonized Code Details
90278080 - Instruments and apparatus for physical or chemical analysis, measuring or checking viscosity, porosity, expansion, surface tension or the like, of liquids or gases. This harmonized code suits the Omega DP41-TC-MDSS due to its multifunctional measurement capabilities.
