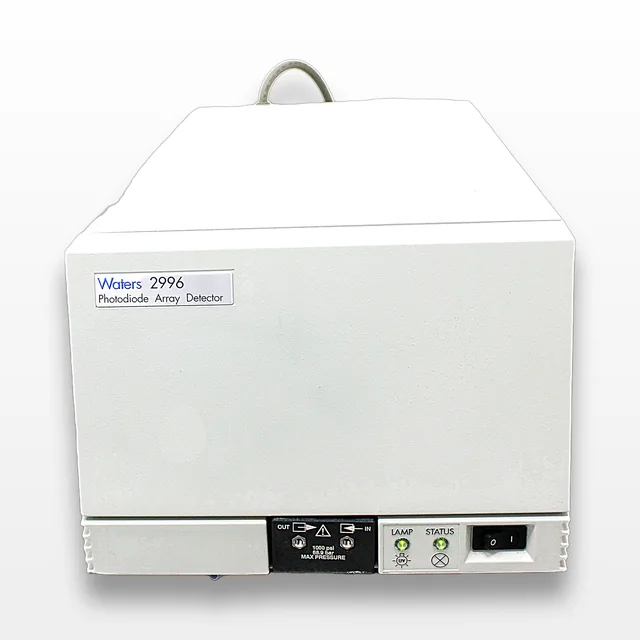

Waters 2996 PDA Detector Chromatographic Sensitivity, 190-800nm Range
Waters
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension23.0in x 12.0in x 8.0in
-

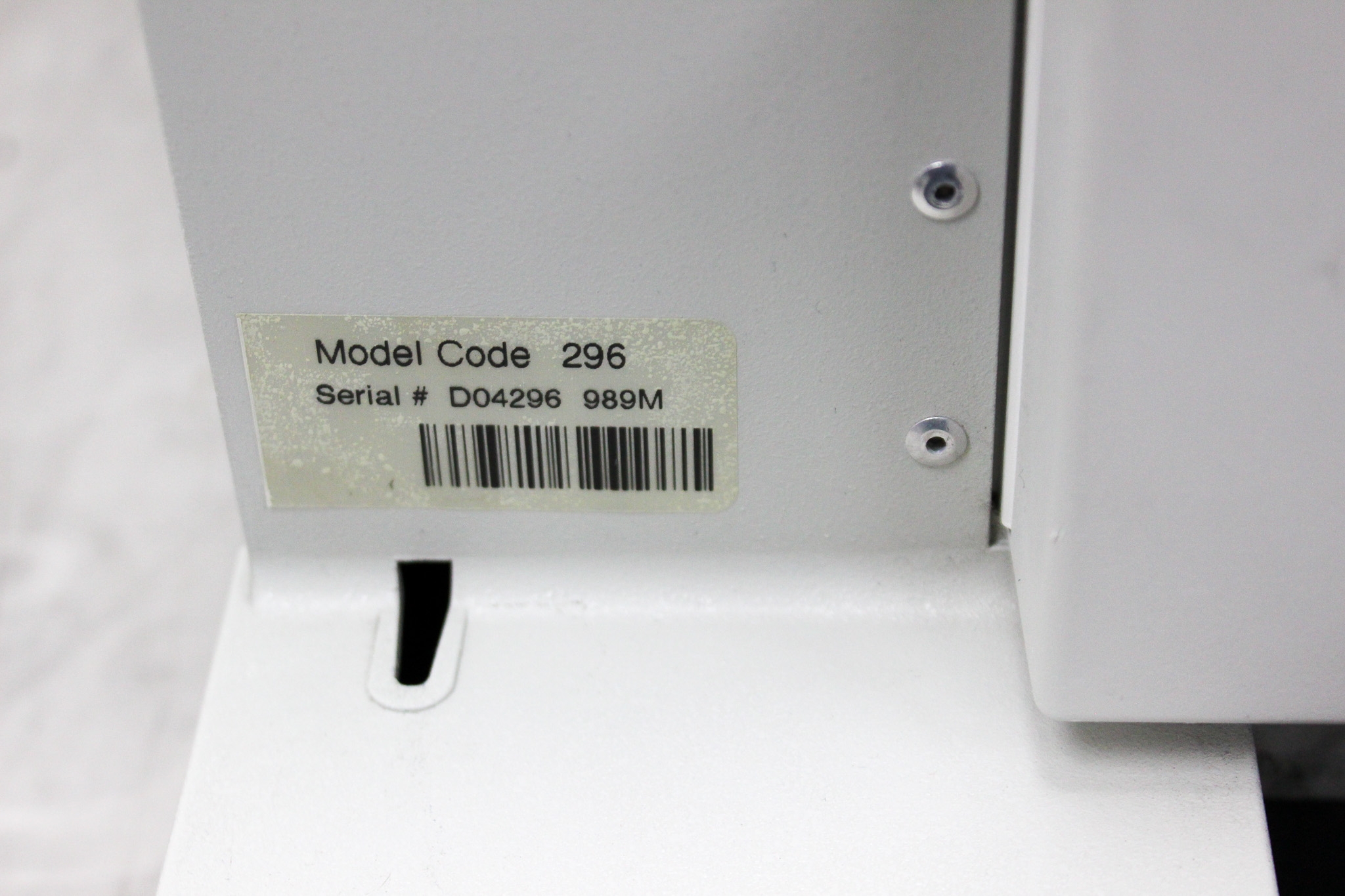

SerialD04296
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Waters 2996 Photodiode Array (PDA) Detector embodies a seamless blend of integrated optics and software, facilitating no-compromise chromatographic and spectral sensitivity. Built for analytical and preparative separations, it offers unprecedented trace impurity detection and quantitative analysis. With features like optimized spectral sensitivity, powerful Waters purity algorithms, a superior linearity range, and simplified maintenance, it assures reliable performances. Experience fast and straightforward method development, enhanced component recognition, and homogeneity assessments. It is also ready for FDA compliance. Equipped for a wavelength range of 190 to 800 nm, the 2996 detector ensures reliable operation in varied laboratory conditions. This unit powers on and completes initial diagnostics without error but remains untested further, reflecting its 'Good' condition status from normal use.
Key Features
- Maximum chromatographic sensitivity
- Trace impurity detection
- Spectral sensitivity with Waters purity algorithms
- 1.2 nm spectral resolution per photodiode
- Wavelength range: 190 to 800 nm

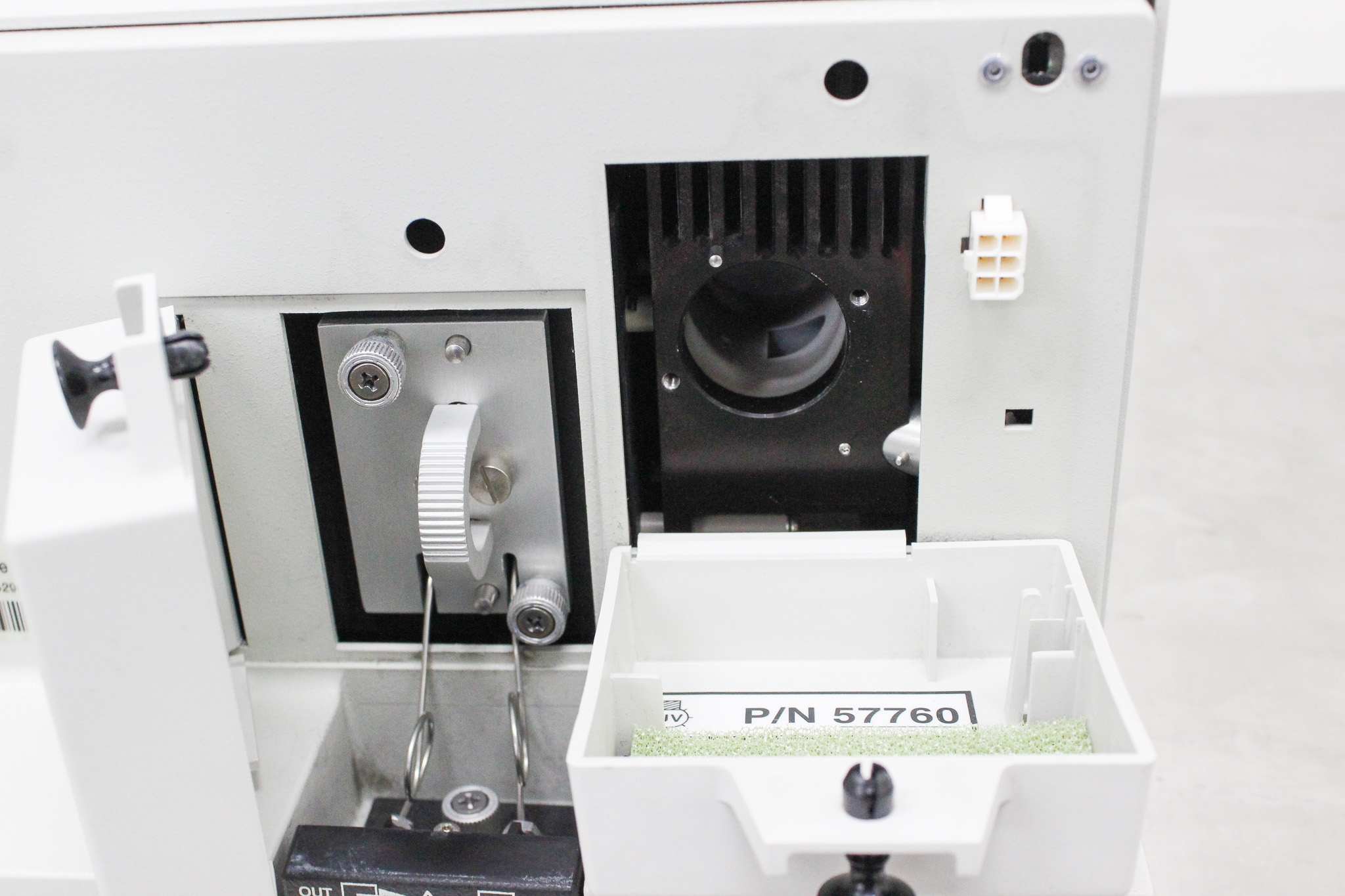

- Simplified optic maintenance
- Reliability for analytical and preparative separations
- FDA compliance-ready
Specifications
- Linearity range: 5% over -0.1 to 2.0 AU
- Spectral resolution: 1.2 nm per photodiode
- Baseline noise: 5 x 10 -5 AU peak-to-peak
- Drift: 1 x 10 -3 AU/hour at 254 nm (after warm-up)
- Operating temperature: 4 to 40°C
- Operating humidity: 20 to 80% non-condensing
- Wavelength accuracy: ±1 nm
- Flow cell path lengths: Standard 10 mm, Semi-preparative 3 mm, Microbore 6 mm, Inert 10 mm
- Voltage: 120V/220V, Hertz: 50Hz/60Hz
Weight
Imperial: 34.8 Pounds
Metric: 15.79 Kilograms
Shipping Dimensions
Imperial: 27.6 lb x 14.4 lb x 9.6 lb
Metric: 70.1 cm x 36.58 cm x 24.38 cm
Harmonized Code
902730
Harmonized Code Details
Harmonized Code 902730 covers spectrometers and instruments for measuring or checking quantities of heat, sound or light (not elsewhere specified), suitable for the Waters 2996 PDA Detector known for optical measurement functions.
