sku: 3374224
1 In Stock

SPT Labtech

Dragonfly Discovery
US • REUZEit West Coast US - R
30-Day Warranty On Part
$54,099.00
$60,000.00
-10% OFF
Apply For Finance Make Offer Enquiry Here
Add to cart Download flyer

Details

  • Category
    Robotic / Automation
  • Dimension
    35.0in x 50.0in x 66.0in

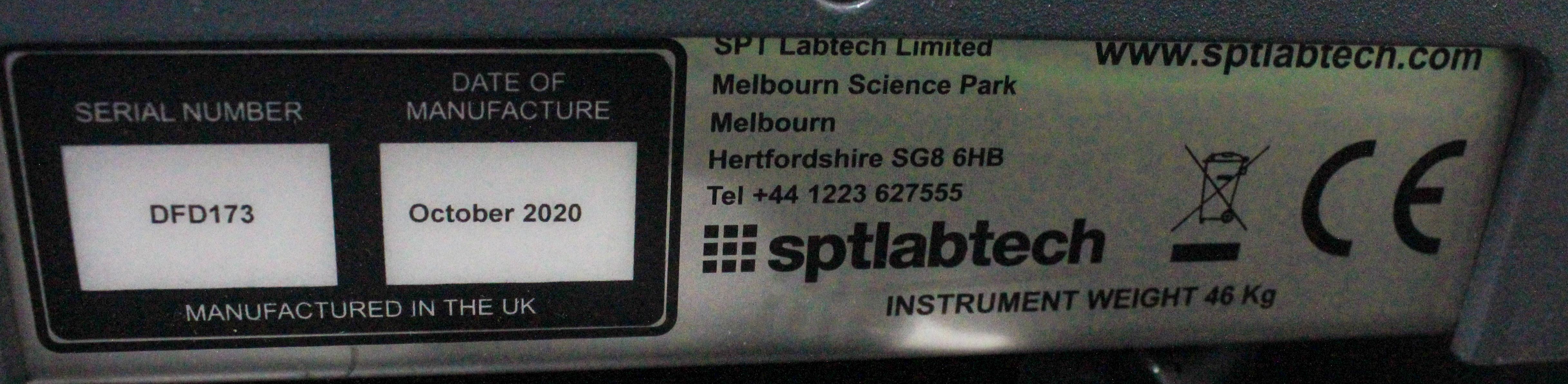

  • Serial
    DFD173
  • Shipping Type
    Freight
  • Manufacturing
    Does Not Apply
  • Voltage / Hertz
    120V/220V / 50Hz/60Hz

Description

Product Information

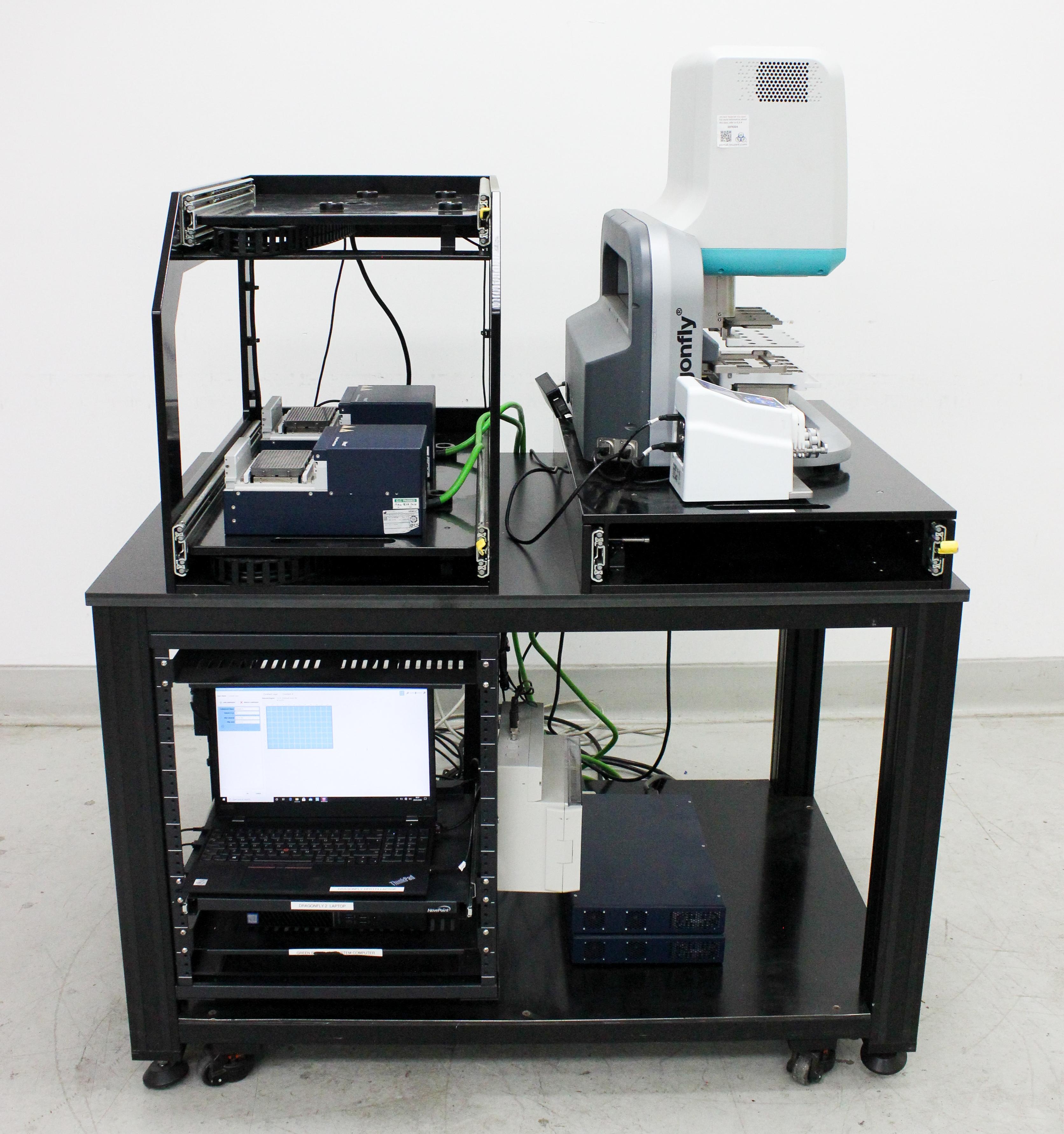

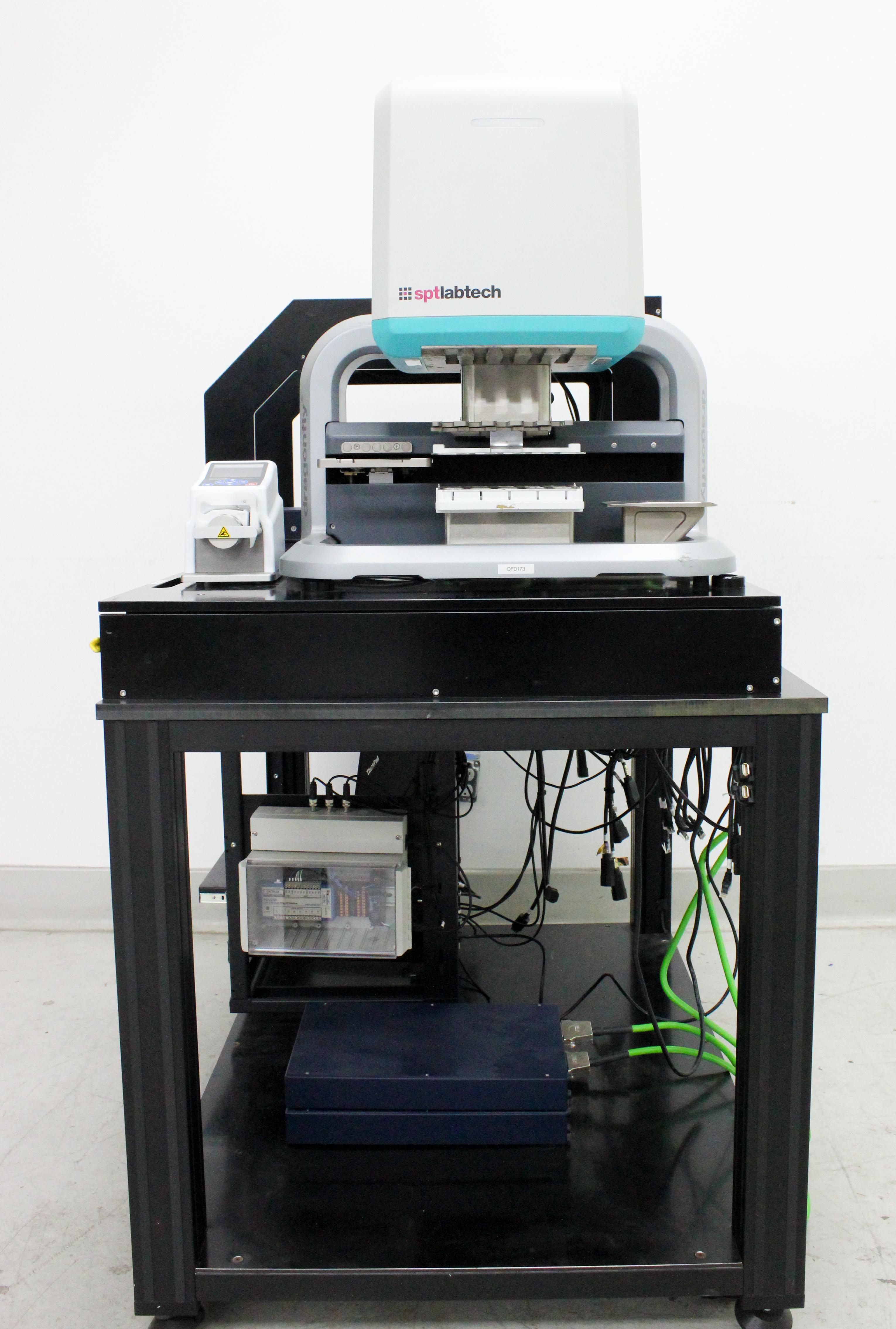

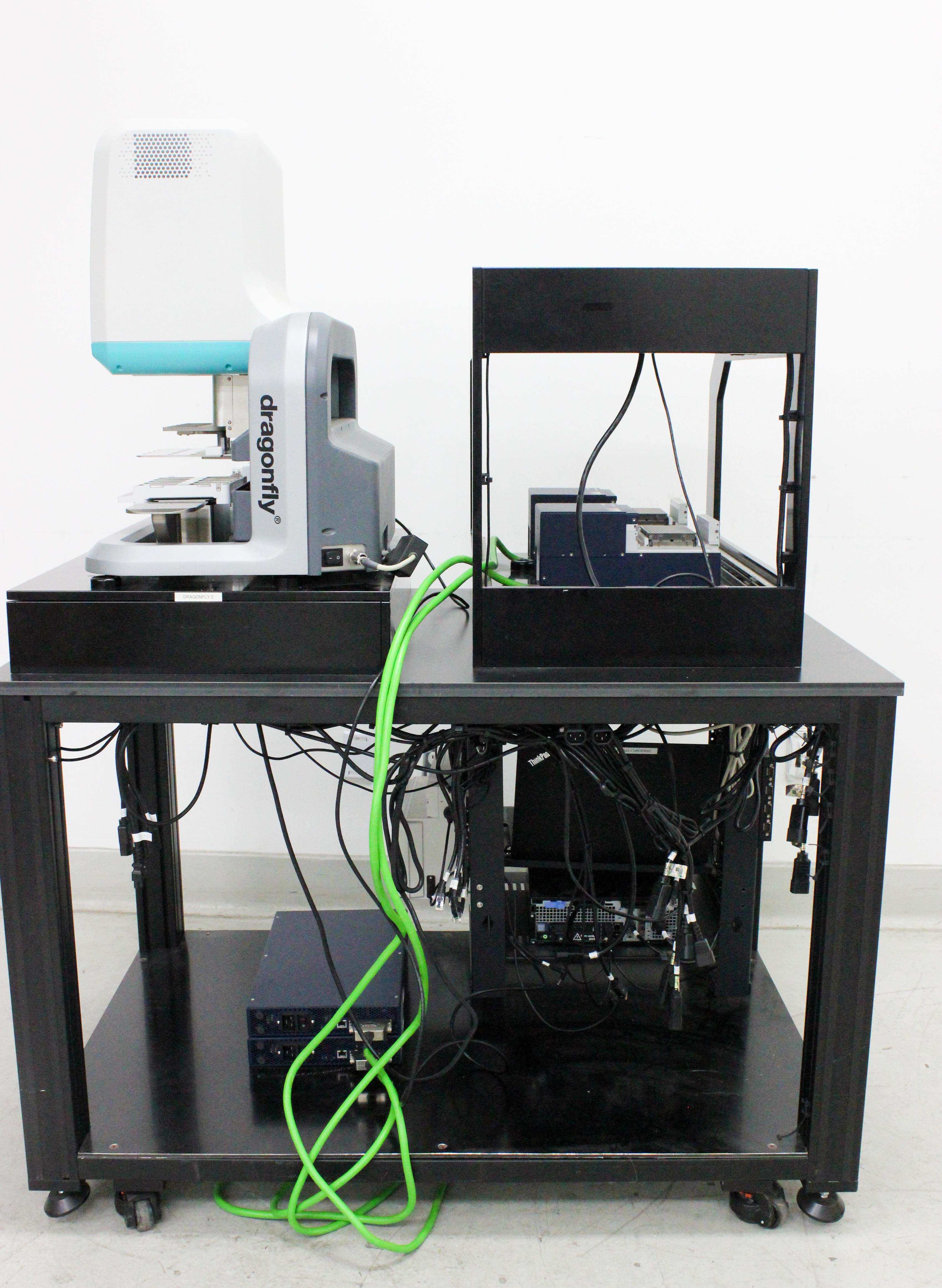

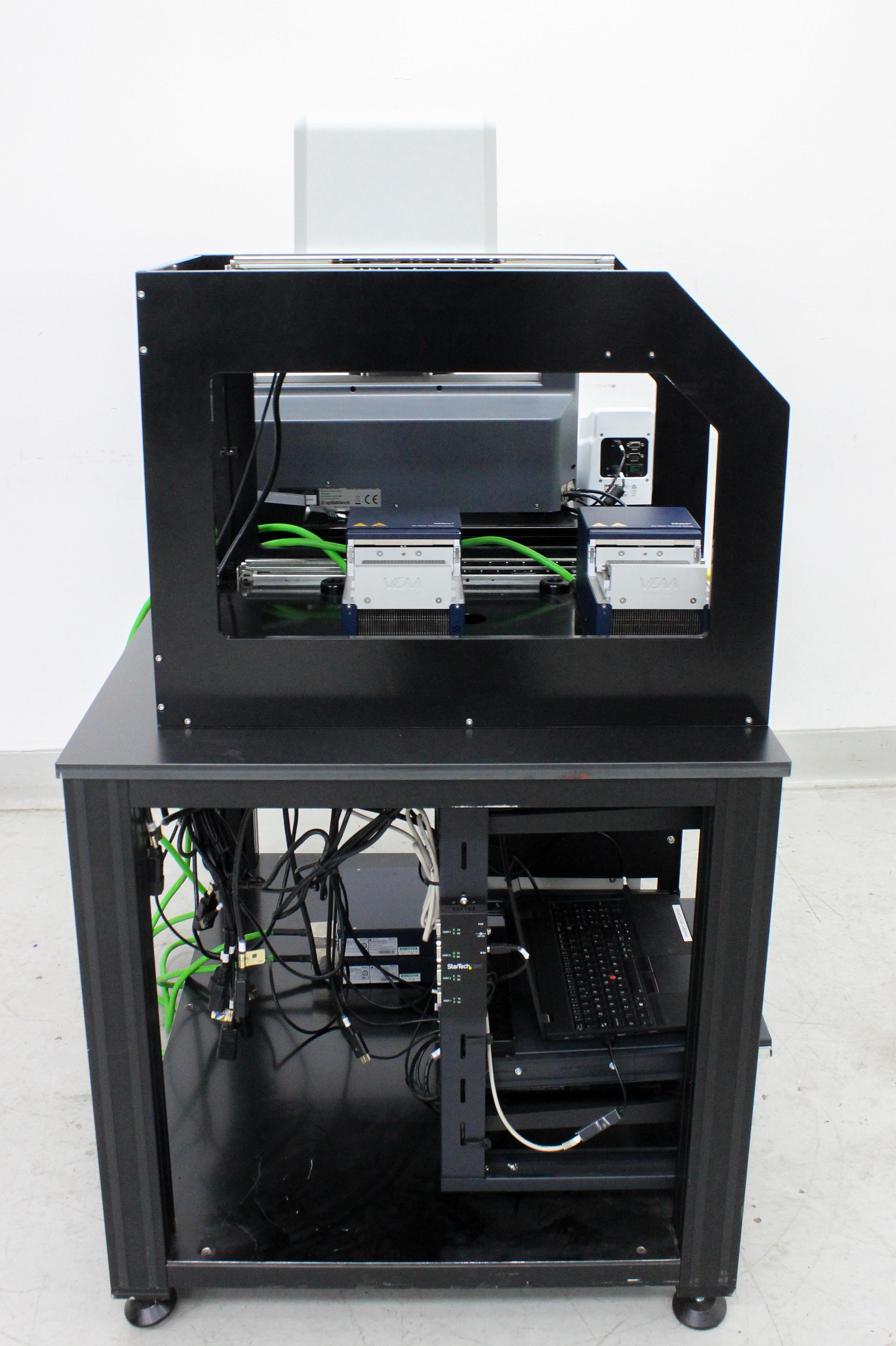

The SPT Labtech Dragonfly Discovery Low Volume Liquid Handler System is equipped with advanced positive displacement technology for precise, repeatable liquid dispensing. This system, including a custom cart, Inheco thermal cycler, Ismatec Reglo ICC pump, and Lenovo laptop with software, is ideal for applications in molecular biology, genomics, and biochemical assays. Featuring fast setup, minimal maintenance, and flexible configuration, it enhances throughput and reagent efficiency. Accurate from nanoliter to milliliter volumes, it's perfect for high precision lab environments.


Technician comment

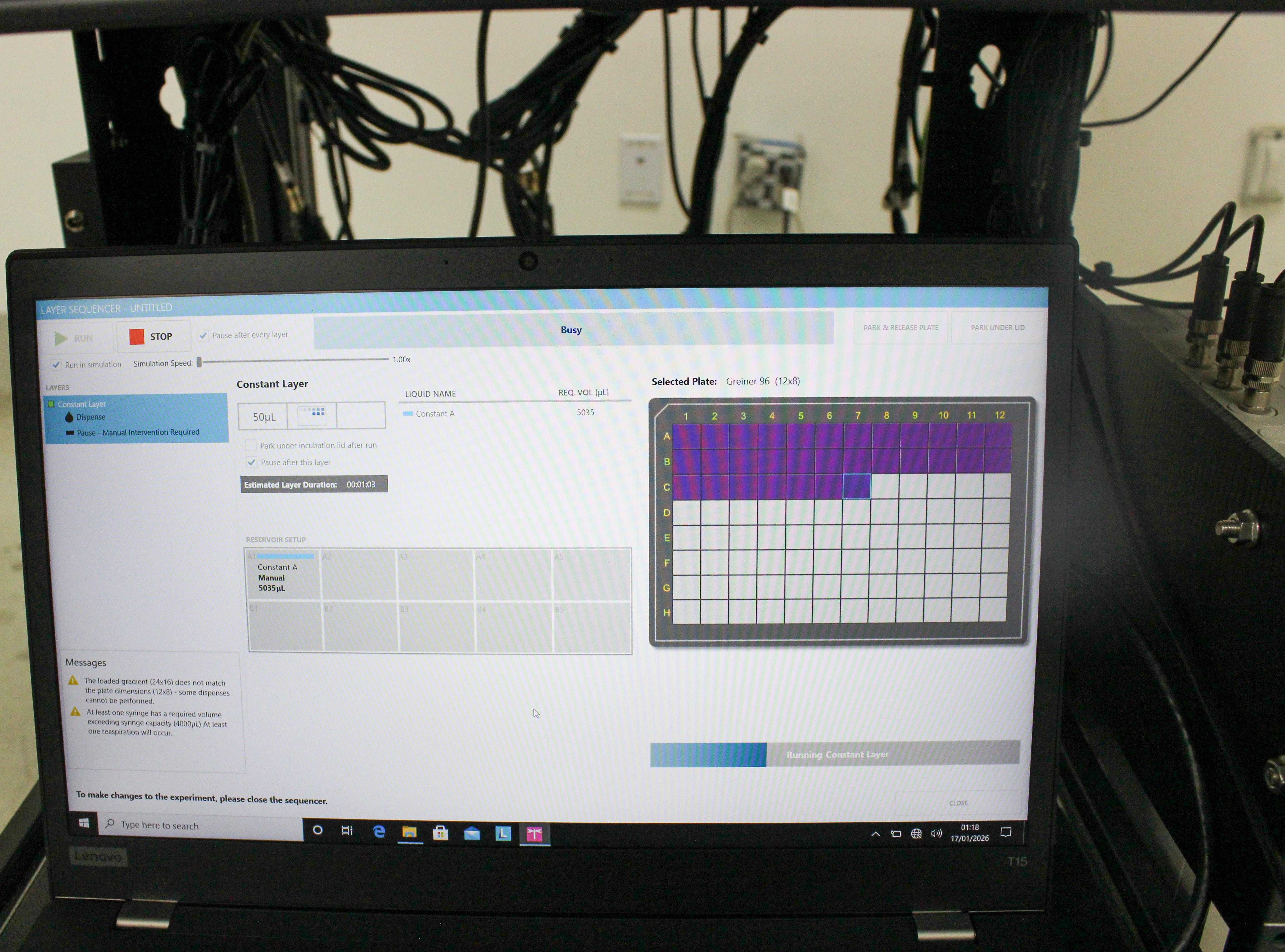

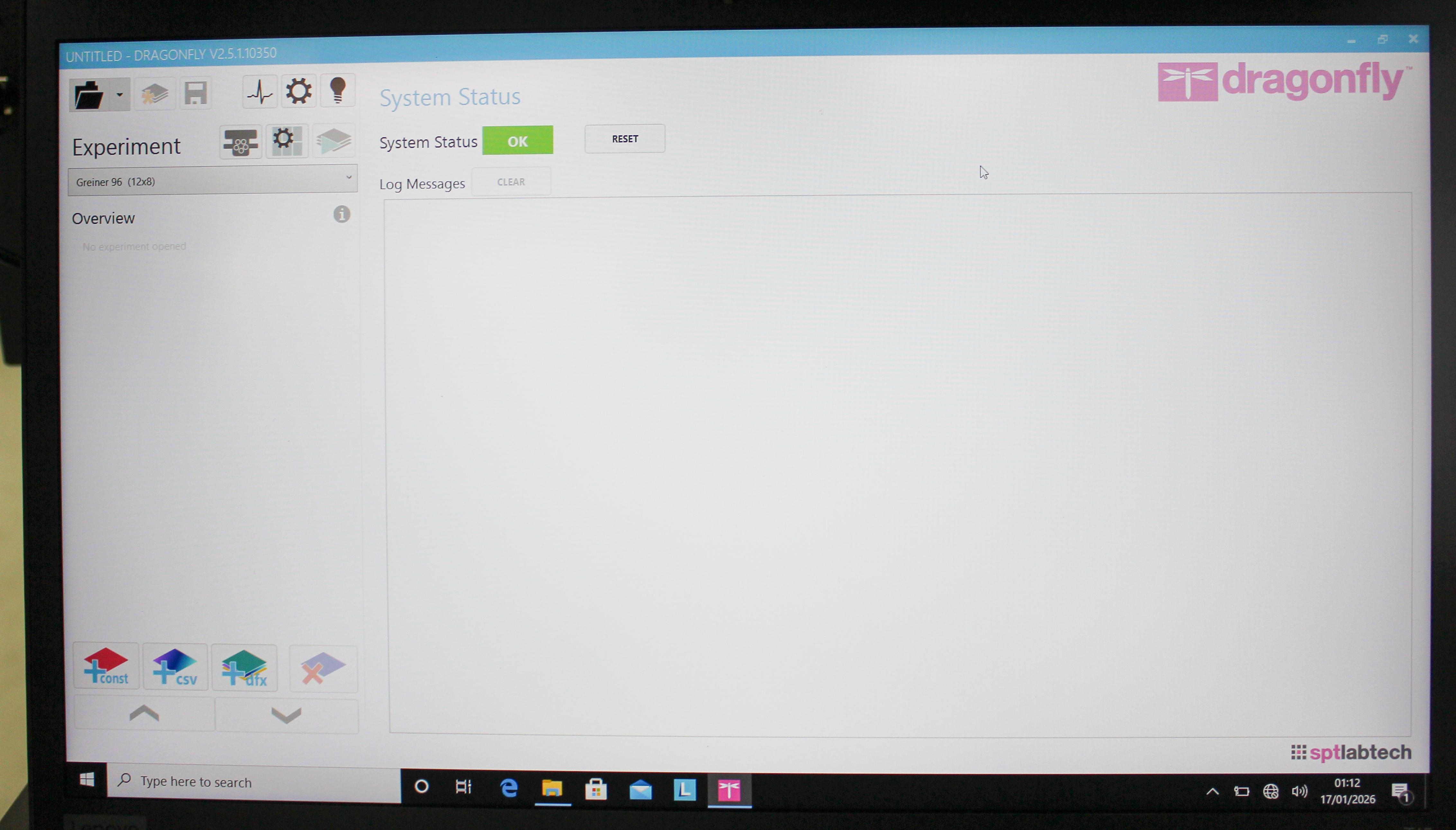

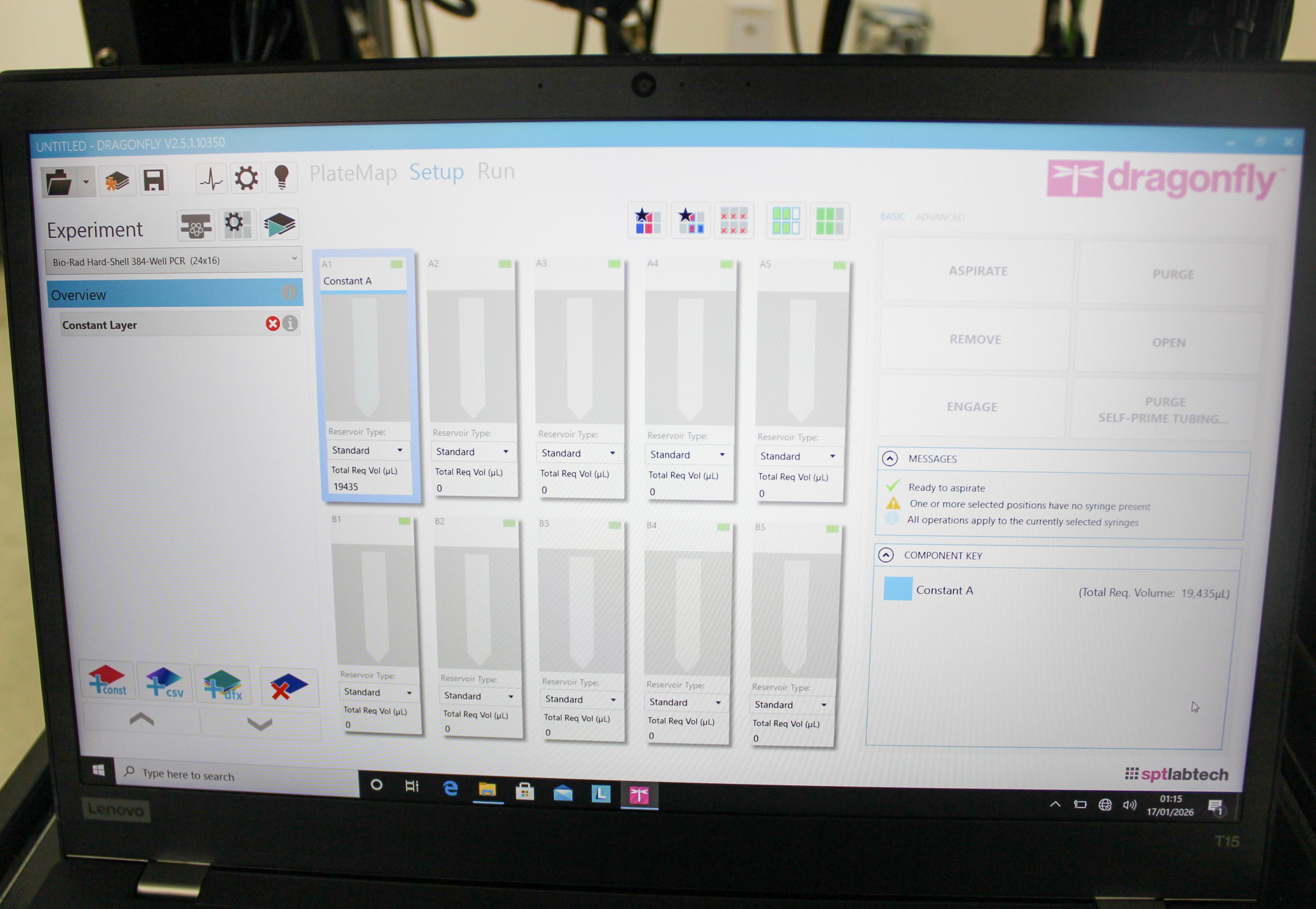

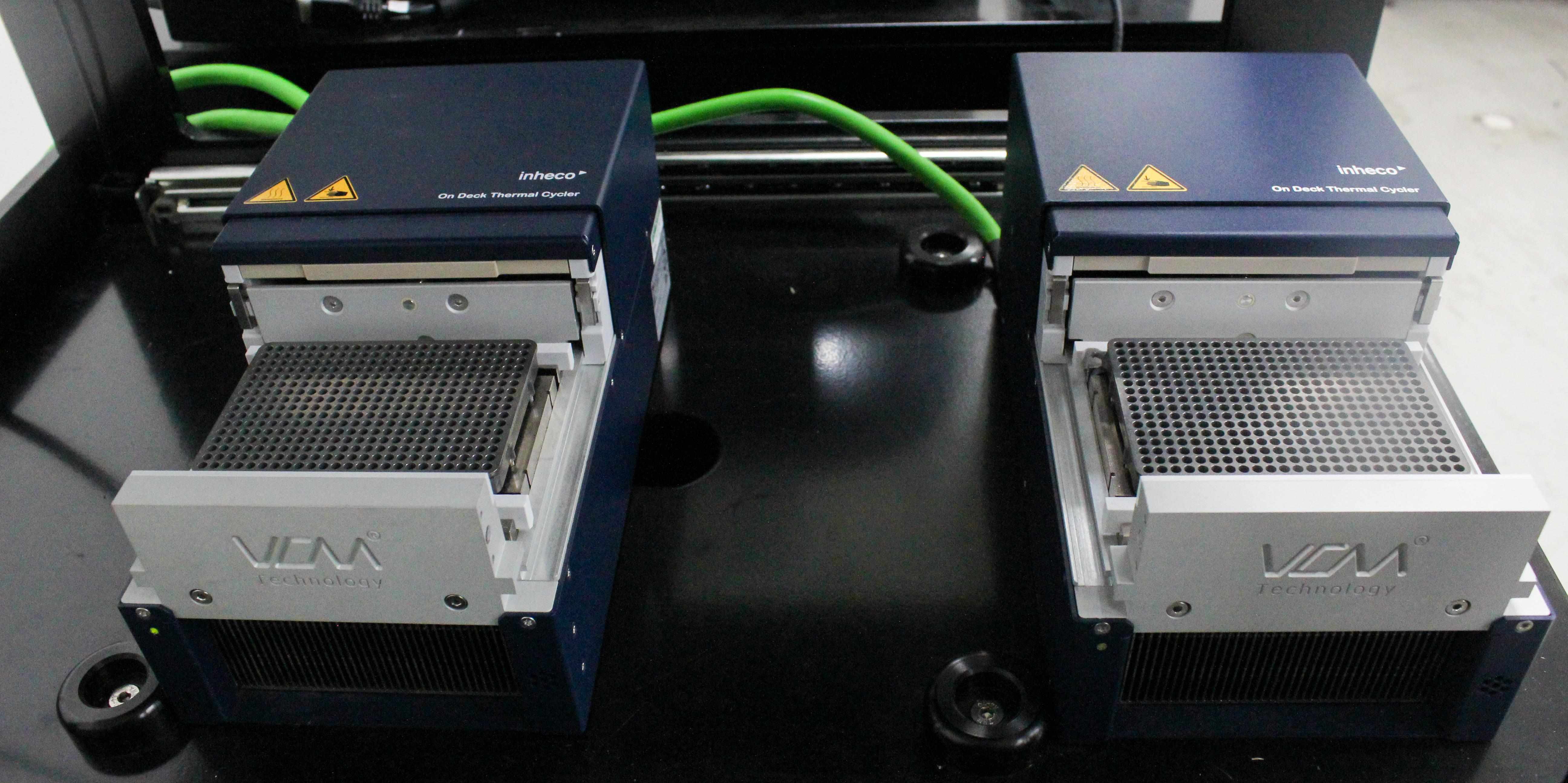

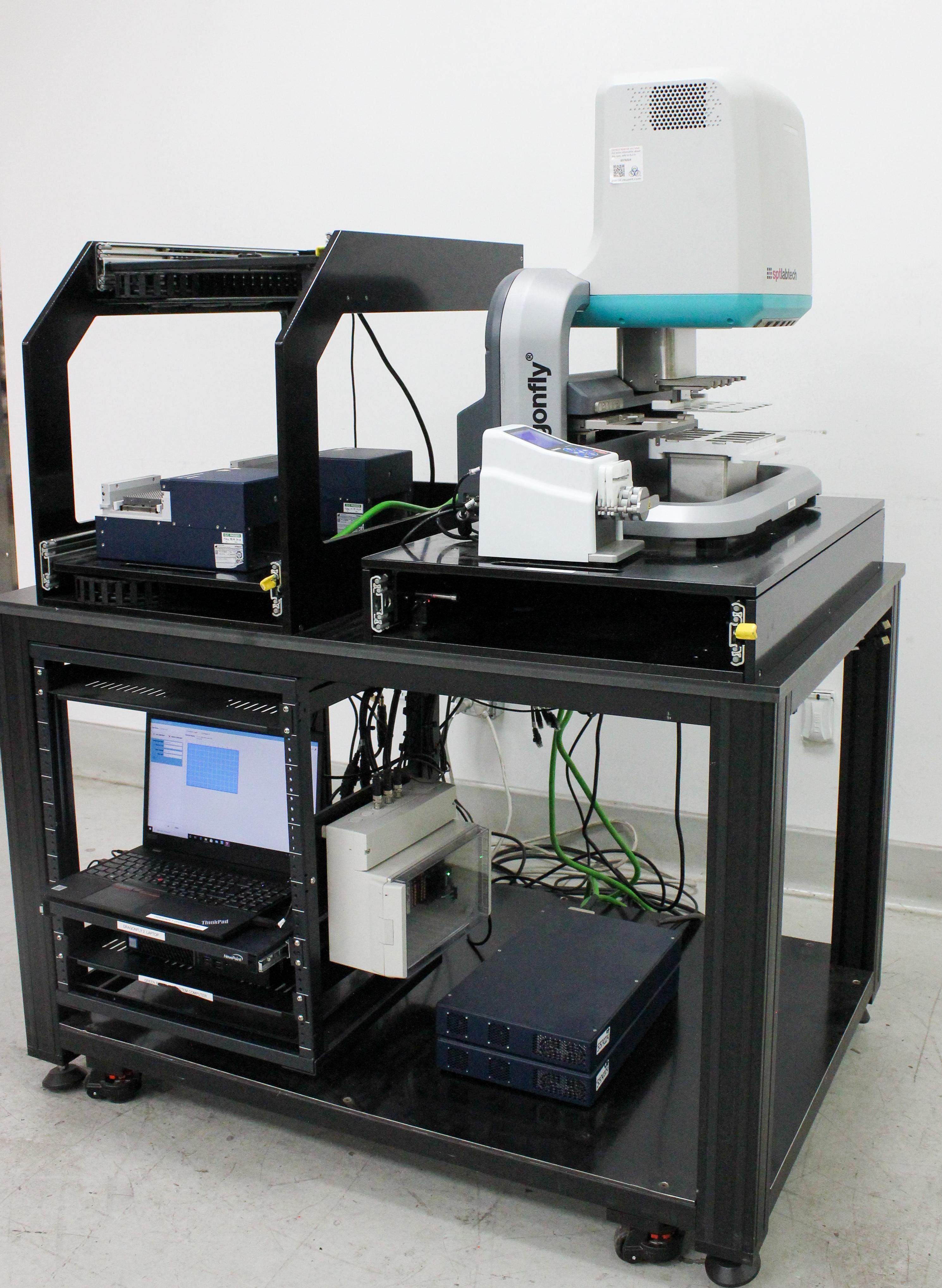

The SPT Labtech Dragonfly instrument on a custom cart, was tested for connectivity and successfully communicated with the control software. No further functional testing was performed. The unit includes all items shown in the listing Overall, the system is in good physical condition and was verified for software communication. Includes: SPT Labtech Dragonfly Instrument inheco On Deck Thermal Cycler with ODTC Power & Control Unit (Qty: 2) Ismatec Reglo ICC Pump P/N ISM4408 Lenovo Laptop w/ Windows 10 Pro & Dragonfly


Key Features
  • Multi-channel non-contact dispensing
  • Positive displacement technology
  • Compatible with 96, 384, 1536 well plates
  • Flexible configuration with up to 10 dispense heads
  • Minimal maintenance requirements
  • Precise nanoliter to milliliter dispensing
  • Unlimited viscosity adaptability

Specifications
  • Dispense volume range: 200 nL to 4 mL
  • Dead volume: 75 or 240 µL
  • Compatible plate formats: 96, 384, 1,536-well
  • Max plate height: 44 mm
  • Power supply: 120V/220V, 50Hz/60Hz
  • Dimension (W x D x H): 600 x 433 x 635.5 mm
  • Includes Thermal Cycler, ICC Pump, and Laptop with software
  • Weight: Approximately 350 lbs

Weight

Imperial: 420.0 Pounds

Metric: 190.51 Kilograms


Shipping Dimensions

Imperial: 42.0 lb x 60.0 lb x 79.2 lb

Metric: 106.68 cm x 152.4 cm x 201.17 cm


Harmonized Code

903180


Harmonized Code Details

903180 - Other measuring and checking instruments, appliances and machines, not specified or included elsewhere; other. Appropriate for the Dragonfly Discovery as it is an instrument for highly precise liquid handling.
