Qiagen QIAcube Connect Purification System DNA RNA High Throughput 650VA
Qiagen
Details
-
CategoryMolecular Biology
-
Dimension25.0in x 26.0in x 58.0in
-
Serial03057
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

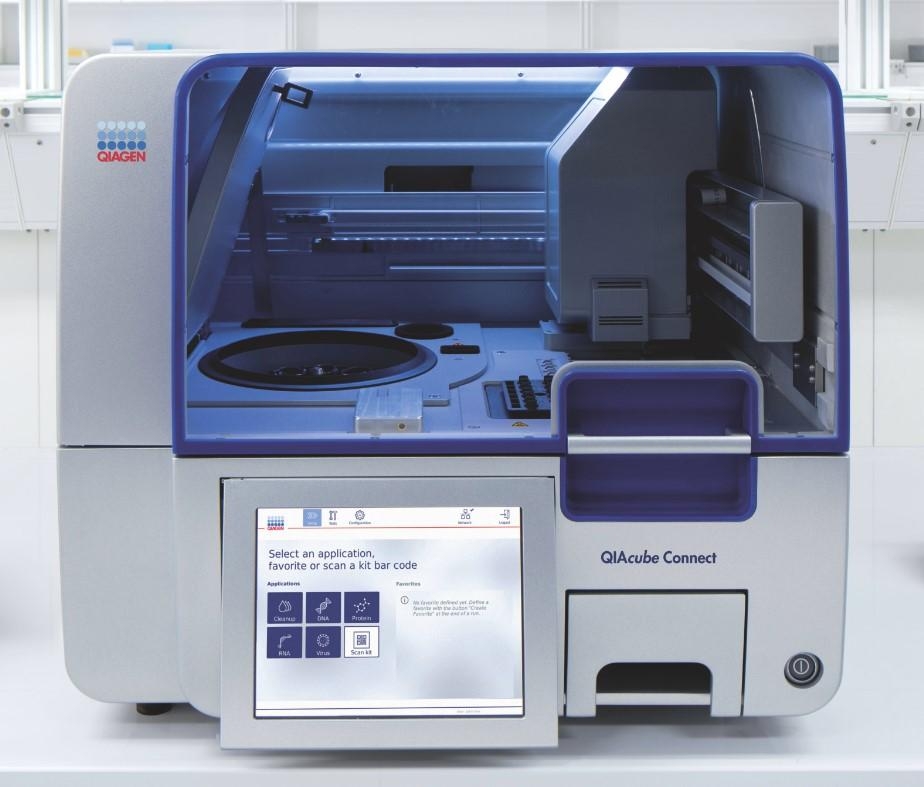

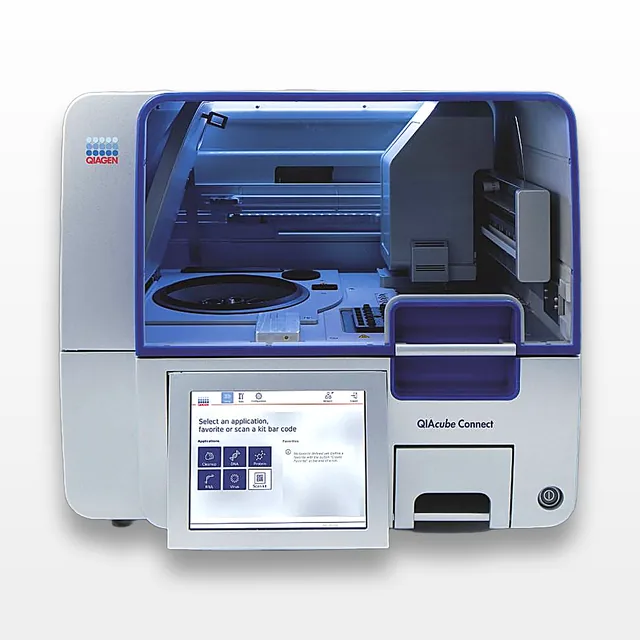

The Qiagen QIAcube Connect Device DNA/RNA/Protein Purification System (Model 9002864) is an advanced automated processing unit capable of handling up to 12 samples per run for DNA, RNA, and protein purification. It integrates key features like a centrifuge, heated shaker, pipetting system, UV LED for decontamination, and a robotic gripper. This system automates over 140 standard protocols, allows for optional protocol customization, and is designed for molecular biology applications in academic and industrial laboratories. Key functionalities are controlled via a user-friendly touchscreen interface, making the system ideal for research in sequencing, gene expression analysis, and proteomics. Remaining within safety and operational standards, the QIAcube Connect provides high precision and reproducibility, enhancing laboratory productivity.
Key Features
- Automates over 80 QIAGEN kits with 140+ protocols
- Protocol customization available, expanding use to 3000+ protocols
- High reproducibility with reduced hands-on time
- Remote monitoring via QIAsphere App
- Integrated components: centrifuge, heated shaker, pipetting system, UV LED, robotic gripper
- User-friendly touchscreen interface
Specifications
- Power: 100-240 V AC, 50/60 Hz, 650 VA (up to 1000 VA during centrifuge acceleration)
- Operating temperature: 18 to 28°C
- Humidity: 15-75% non-condensing
- Includes barcode scanner and illuminated worktable
- Maximum centrifuge speed: 10,640 rpm
- Shaker speed range: 100-2,000 rpm
- UV lamp wavelength: 278 nm
- Touchscreen: 10.4 TFT, 800x600 SVGA
Weight
Imperial: 204.0 Pounds
Metric: 92.53 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 31.2 lb x 69.6 lb
Metric: 76.2 cm x 79.25 cm x 176.78 cm
Harmonized Code
9027.90.54
Harmonized Code Details
9027.90.54: Instruments and apparatus for physical or chemical analysis - The QIAcube Connect is classified under instruments used for chemical analysis due to its function in DNA/RNA/protein purification.
