EMD Millipore Guava easyCyte HT Flow Cytometer High-Throughput Includes Software
EMD Millipore
Details
-
CategoryCell Counting / Sorting
-
Dimension25.0in x 31.0in x 11.0in
-
Serial8470050219
-
Shipping TypeFedEx Ground
-
Manufacturing2017-05-01
-

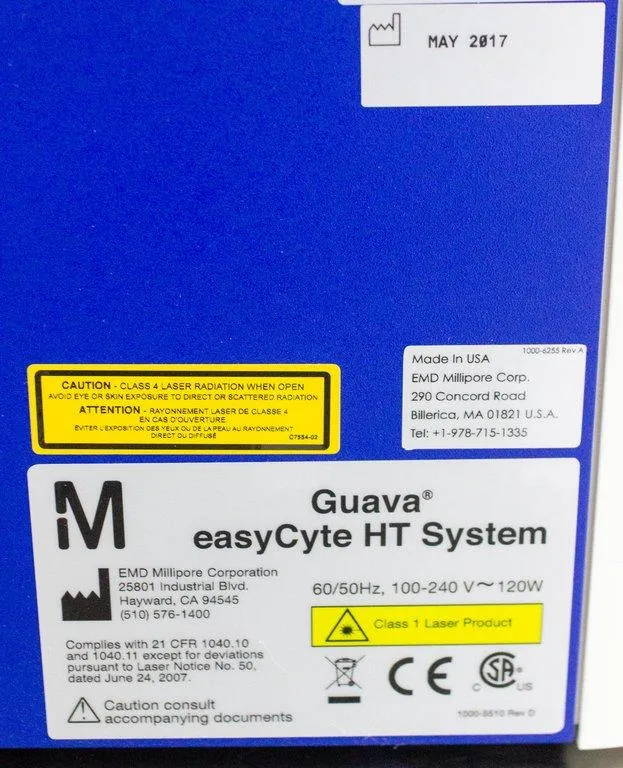

Voltage / Hertz100V-240V / 50Hz/60Hz
Description

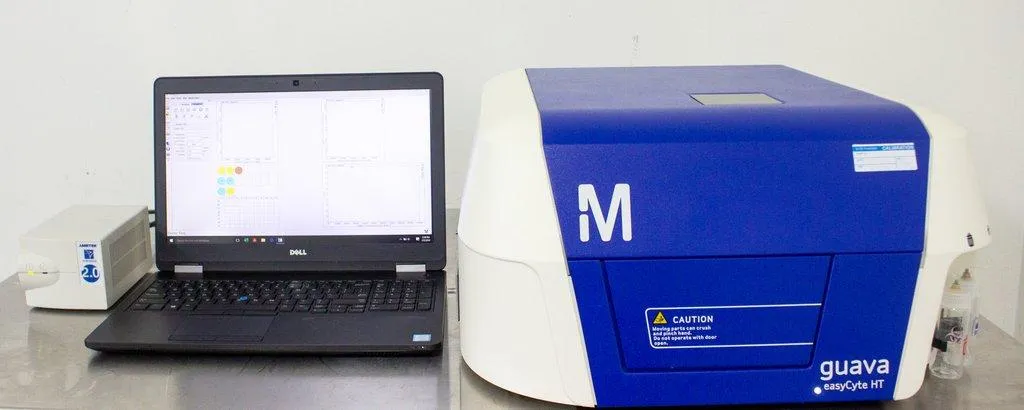

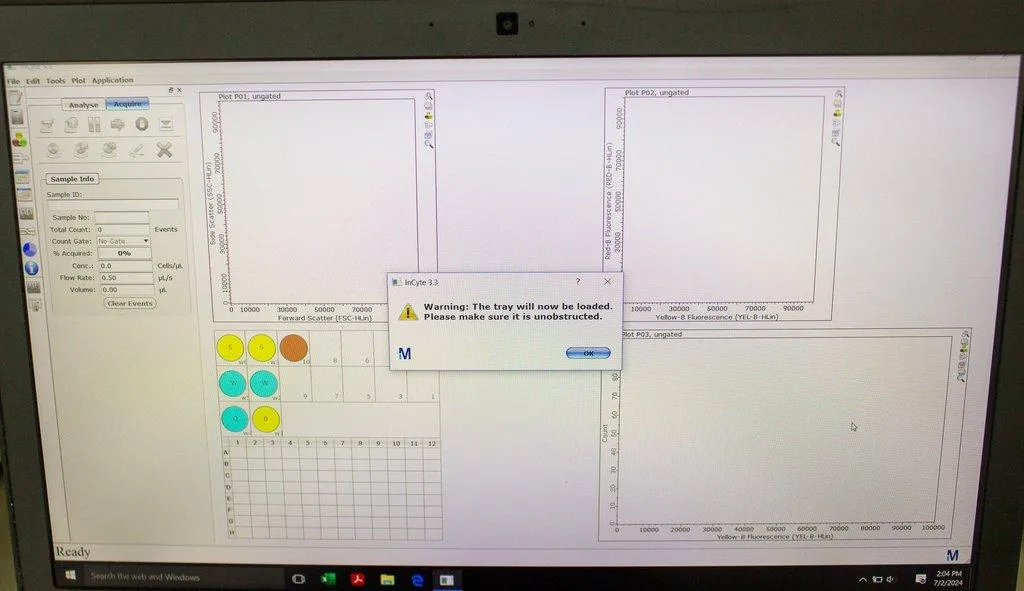

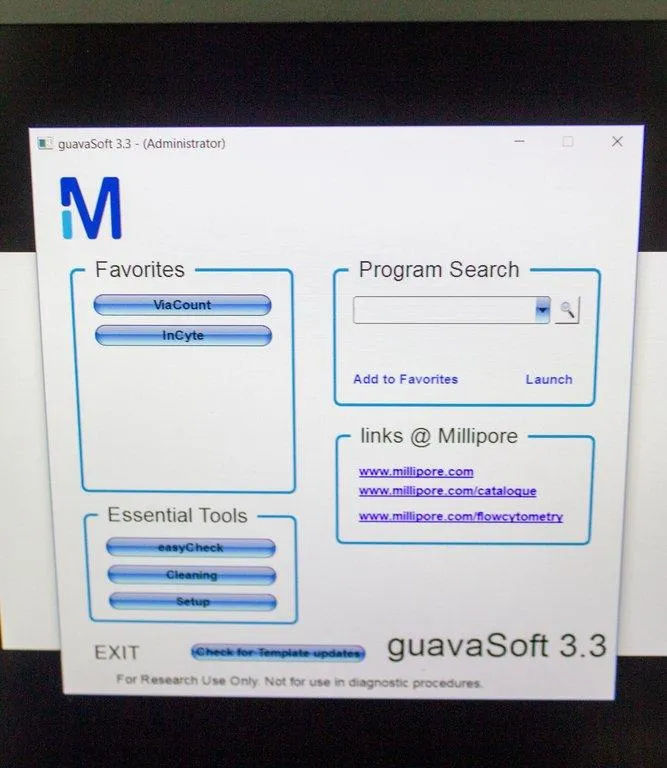

The EMD Millipore Guava easyCyte HT Flow Cytometer, manufactured in 2017, is a compact and reliable high-throughput benchtop system ideal for a variety of multi-color cellular and bead assays. This flow cytometer accommodates 96-well plates and up to 10 tubes without the need for sheathing fluid, enabling absolute quantification. Featuring a rotating, variable speed mixing paddle with an auto cleaner, it enhances mixing efficiency beyond that of traditional shaking plates. The unit includes a computer with Windows operating system and GuavaSoft software version 3.3, facilitating seamless data communication and assay processing. Although untested fully, the existing indicators show functionality; cosmetic wear is present, but no operational issues are known. Suitable for laboratories requiring dependable data acquisition, it operates efficiently within temperatures of 16-35°C and 10-90% relative humidity, with a power range of 100-240V at 50/60 Hz.
Key Features
- High-throughput benchtop system
- Dependable data for multi-color cellular and bead assays

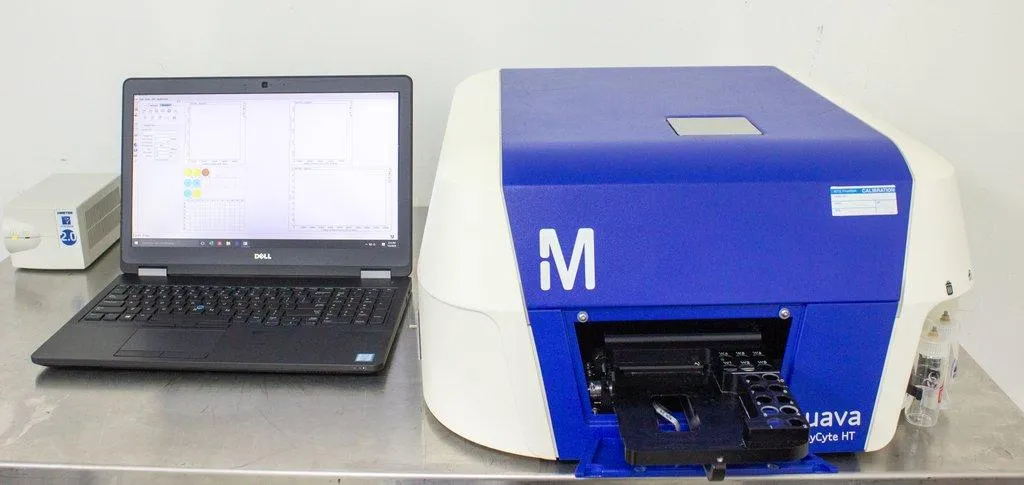

- Accommodates 96-well plates and up to 10 tubes
- No sheathing fluid requirement for absolute quantification

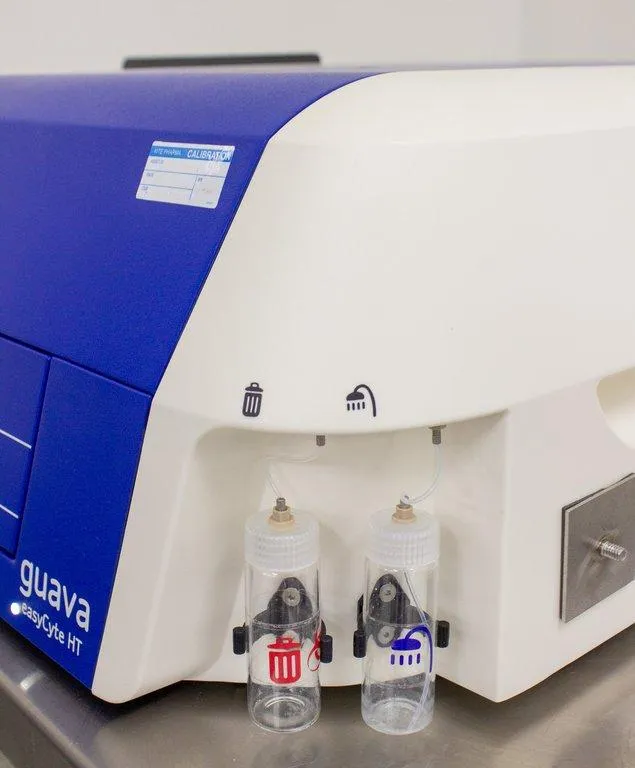

- Rotating, variable speed mixing paddle with auto cleaner

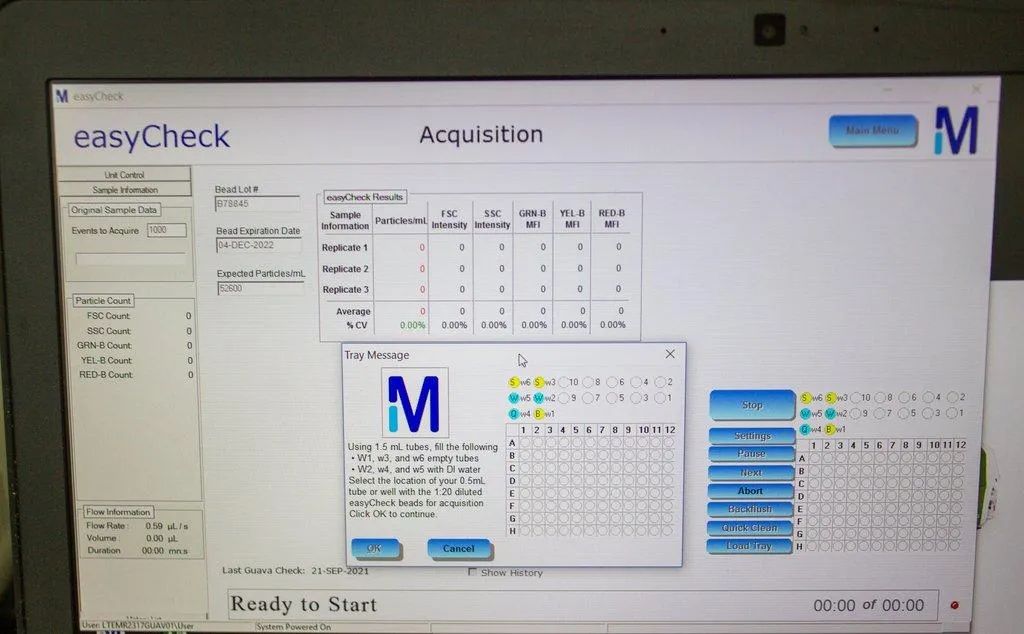

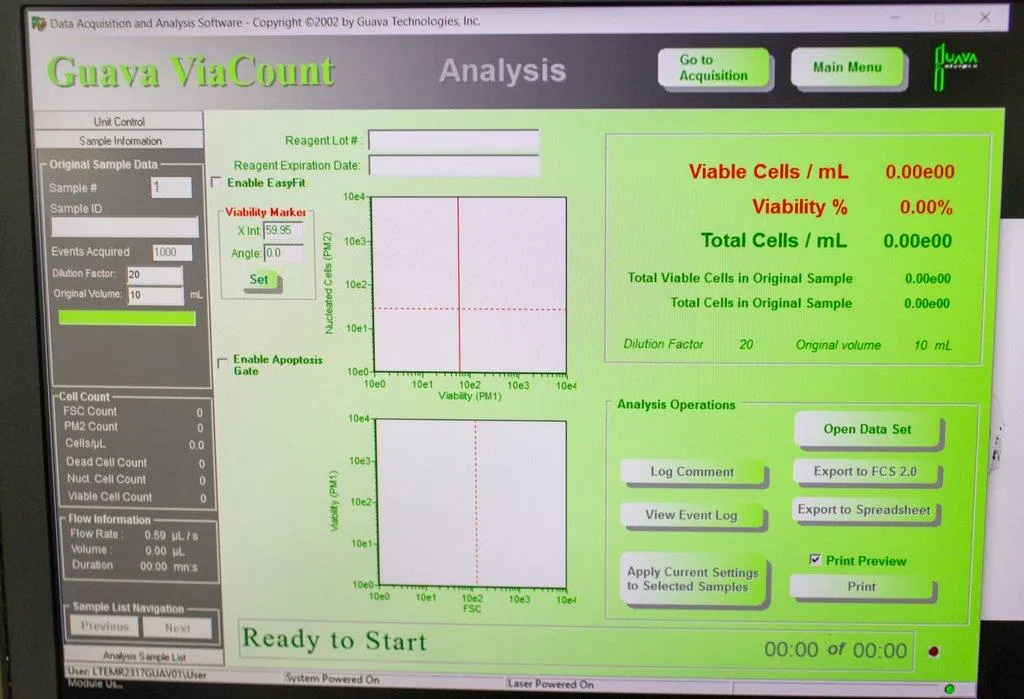

- Includes computer with GuavaSoft software
Specifications
- Operating temperature: 16-35°C
- Operating humidity: 10-90% relative humidity
- Power requirements: 110-240 VAC, 50/60 Hz; 120W
- Detection: 5 colors including forward scatter
- Laser: 1, blue 488 nm (50 mW)
- Flow cell dimension: standard square capillary with ID of 100 um
- Pump: 7-36 L/min
- Sample flow rate: positive displacement
- Waste and cleaning vials: 30 mL glass vial with screw cap
- Dead volume: 50 µL for 96 well plates; 75 µL for 0.5 mL microfuge tubes
- Sample concentration: 10^4 to 5x10^5 particles/mL
- Sample requirement: Up to 2.5 x 10^6 beads/mL for RapidQuant assay; as few as 2,000 cells/test
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 37.2 lb x 13.2 lb
Metric: 76.2 cm x 94.49 cm x 33.53 cm
Harmonized Code
9027.50
Harmonized Code Details
9027.50 - Instruments and apparatus for physical or chemical analysis, for testing the composition of liquid. This was selected as it encompasses analytical equipment similar to the flow cytometer used for testing and analyzing biological samples.
