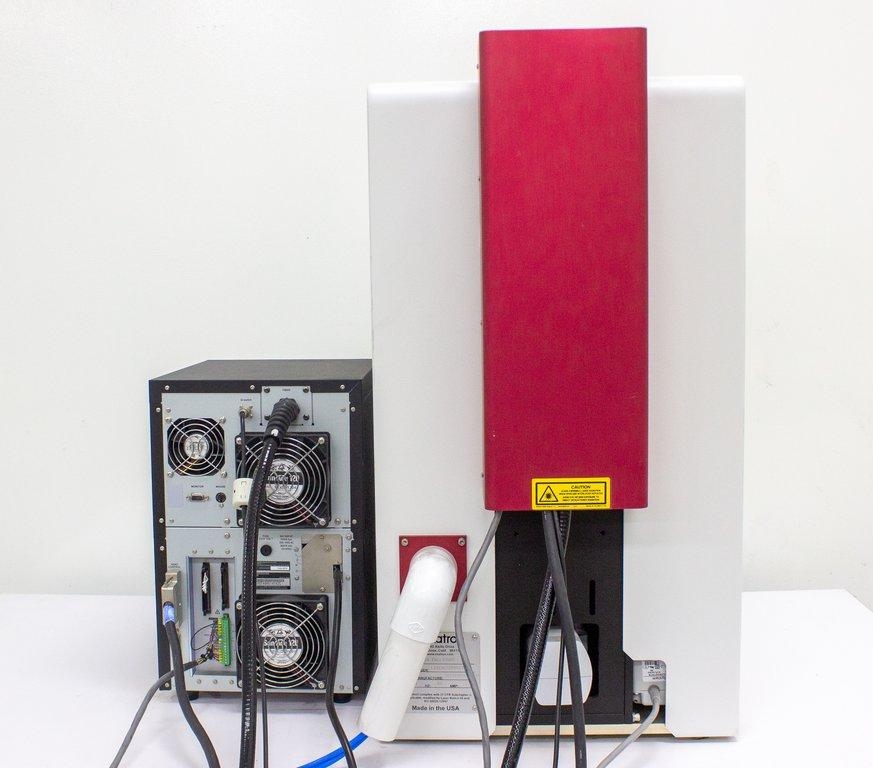

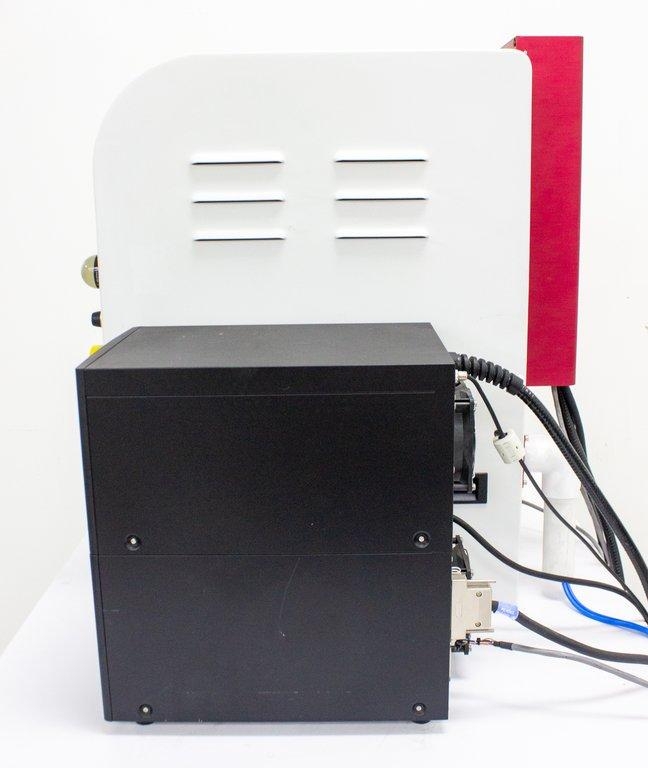

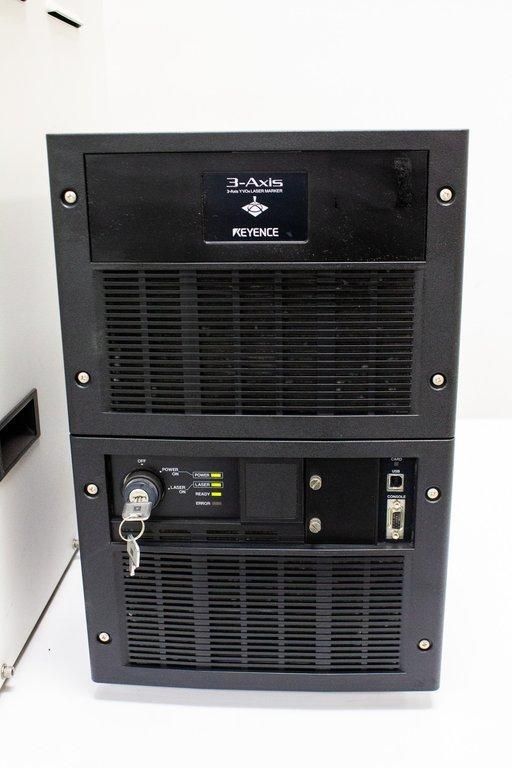

Keyence MD-V9920FA Laser Engraving High-Speed 3-Axis YVO4 Marking System
Keyence/Exatron
Details
-
CategoryLaser
-
Dimension36.0in x 60.0in x 70.0in
-

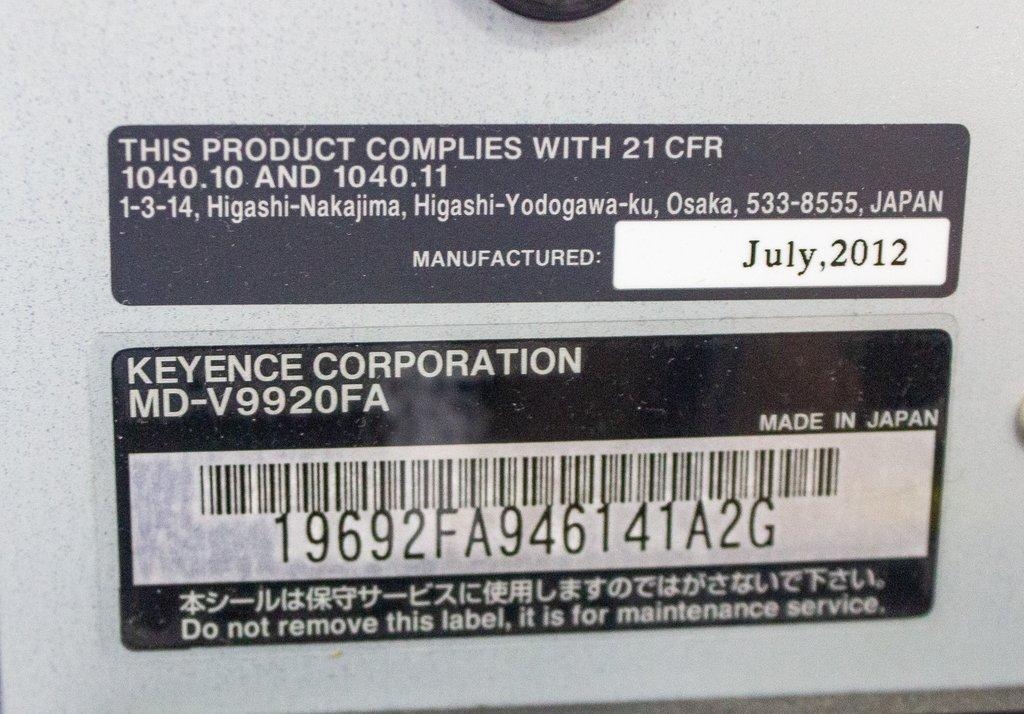

Serial19692FA946141A2G
-
Shipping TypeFreight
-
Manufacturing2012-07-20
-
Voltage / Hertz120V / 60Hz US
Description

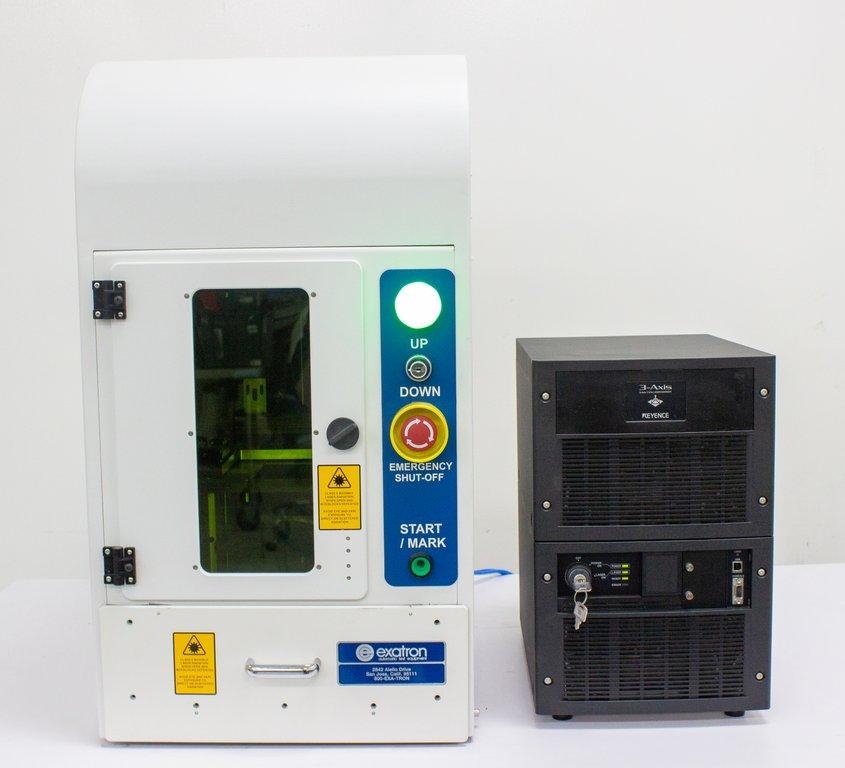

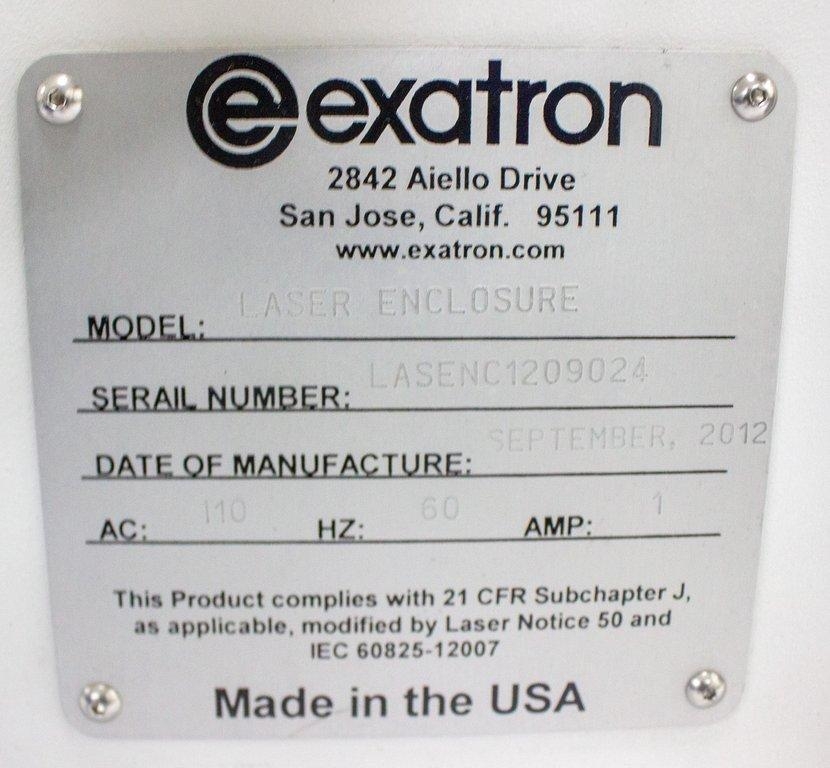

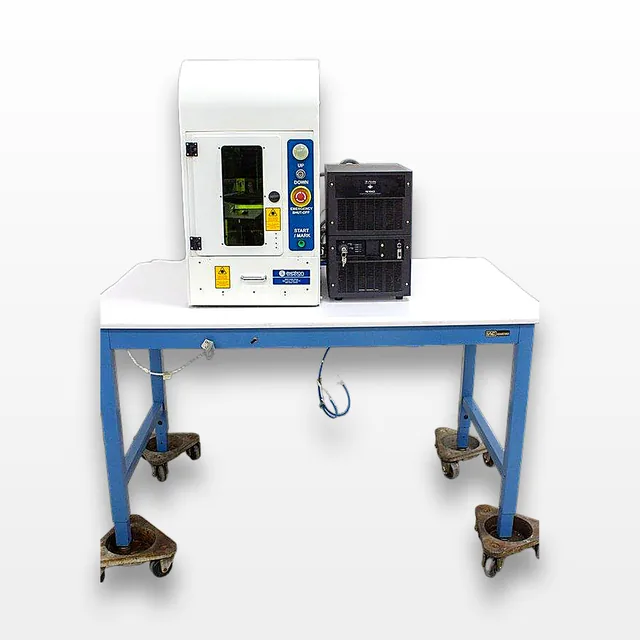

The Keyence MD-V9920FA Laser Marker, manufactured in 2012, is a pre-owned, high-speed YVO4 laser marking system from the MD-V9900 series. It offers precise imaging capabilities on uneven surfaces such as inclines, cylinders, or cones, achieving speeds up to 12,000mm/second. This system features a 3-axis motion enabling marking in X, Y, and Z directions, with a 42-mm variable focal length and distortion-free 300x300mm marking area. Equipped with Dual-End Pumping Cavity (DEPC) technology, it enhances optical exchange efficiency, reduces energy consumption, and extends diode life. It powers on without errors and includes a lab table. Note: The laser enclosure is missing a key, and we lack the software for comprehensive testing.
Key Features
- High-speed YVO4 laser marking system

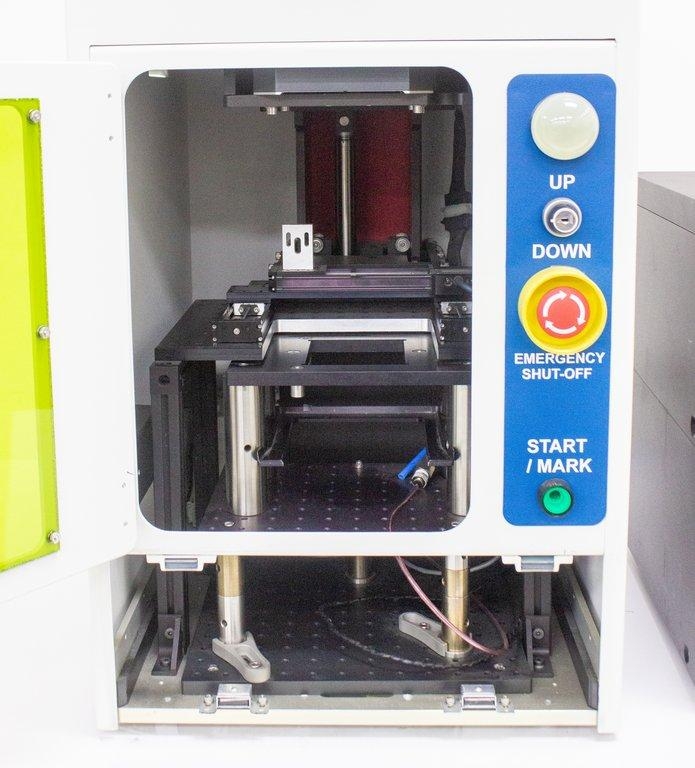

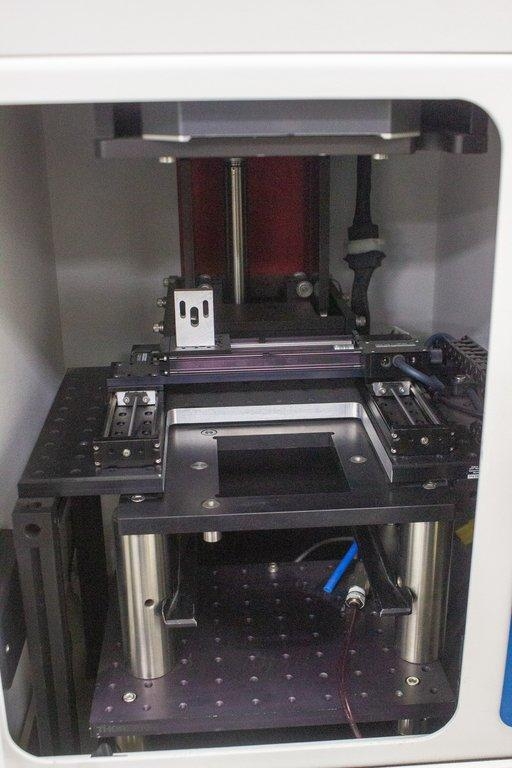

- 3-axis motion for versatile marking
- Precise imaging on inclines and curved surfaces
- Variable focal length with a 42-mm range
- Distortion-free 300x300mm marking area
- Dual-End Pumping Cavity (DEPC) technology
- Improved optical exchange efficiency
Specifications
- Manufacture Date: July 20, 2012
- Country of Origin: United States
- Model: MD-V9920FA
- Sub-Model: MD-V9900 Series
- Voltage: 120V
- Frequency: 60Hz US
- Weight: 136 kg (300 lb)
- Dimensions: 91.4 x 152.4 x 177.8 cm (36 x 60 x 70 in)
- Max Speed: 12,000mm/second
- Focal Length: 42 mm
- Marking Area: 300 x 300 mm
Weight
Imperial: 360.0 Pounds
Metric: 163.29 Kilograms
Shipping Dimensions
Imperial: 43.2 lb x 72.0 lb x 84.0 lb
Metric: 109.73 cm x 182.88 cm x 213.36 cm
Harmonized Code
8456.90.2000
Harmonized Code Details
This code falls under 'Machine tools for working any material by laser.' The MD-V9920FA is a laser marking system which aligns with this category.
