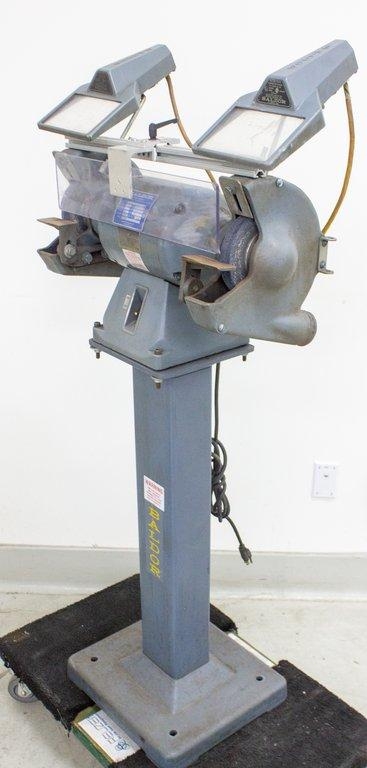

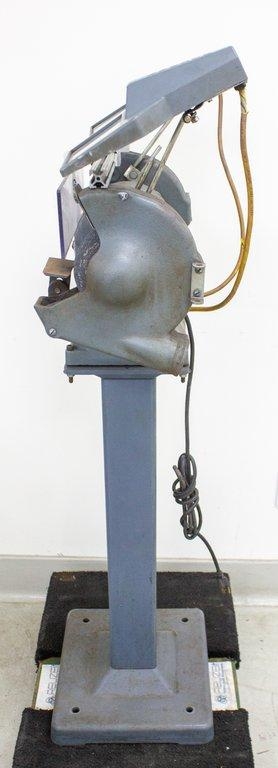

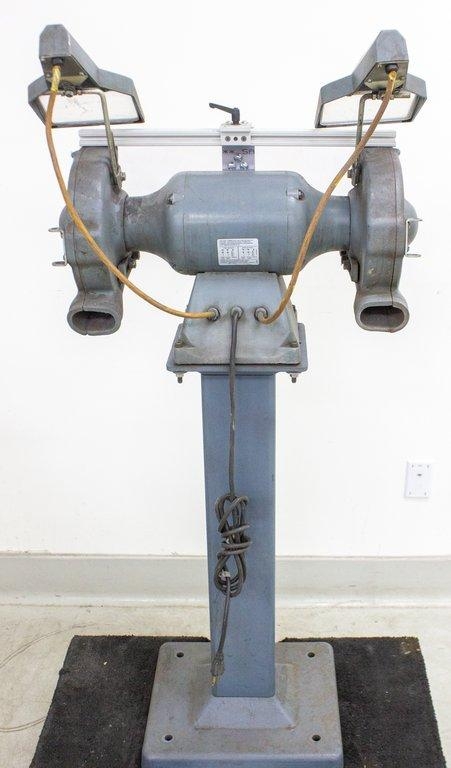

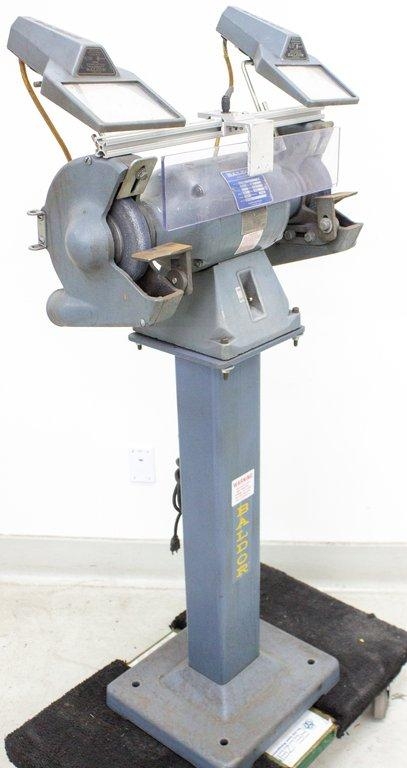

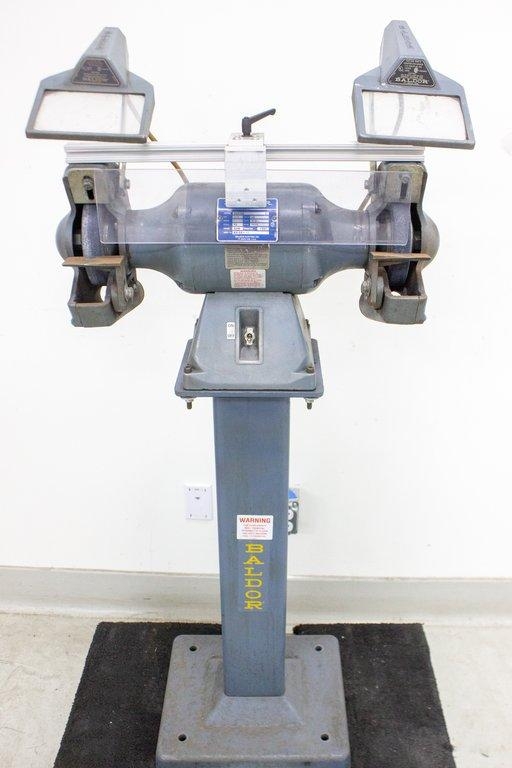

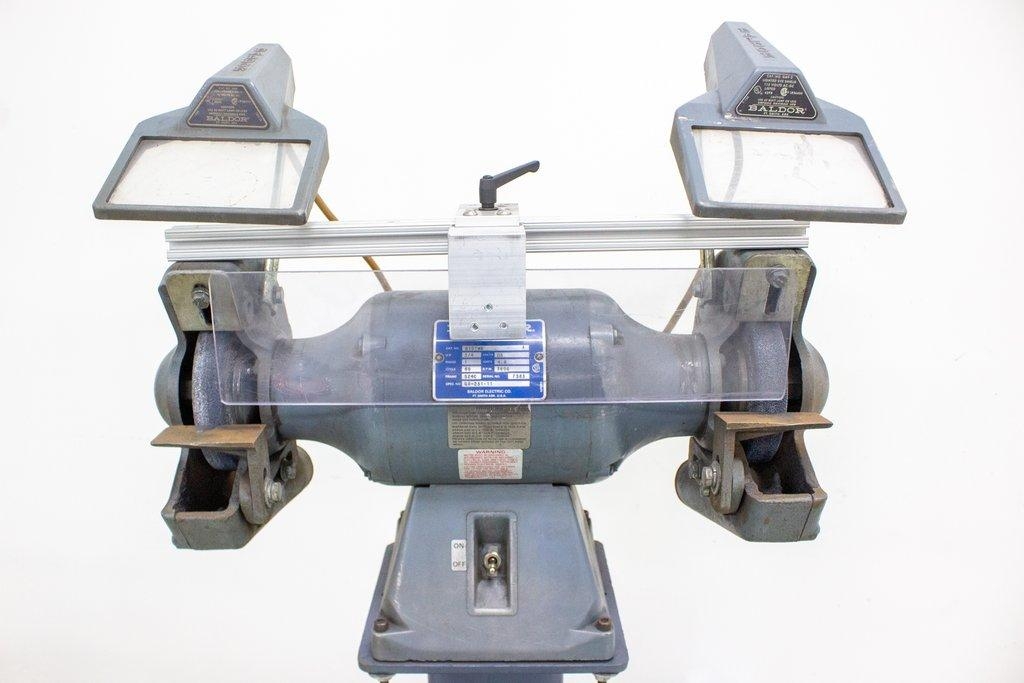

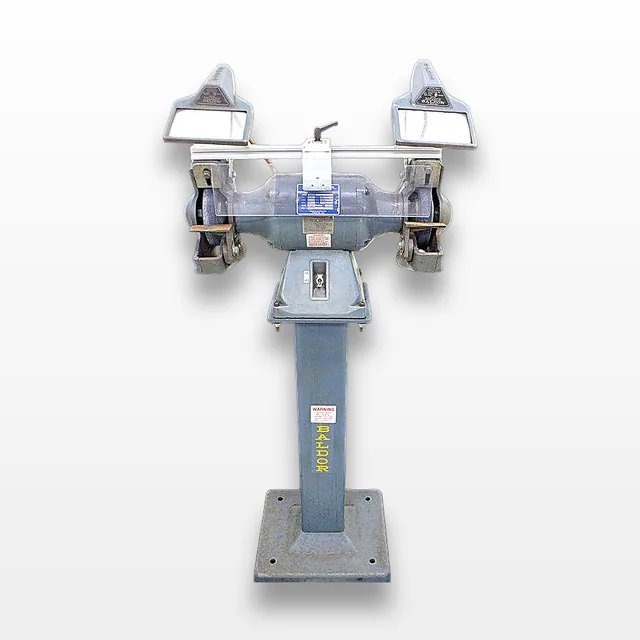

Baldor 8107WD 3/4HP Industrial Grinder 3600 RPM Heavy Grinding
Baldor
Details
-
CategoryFacility
-
Dimension14.0in x 24.0in x 54.0in
-
SerialF583
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 60Hz US
Description
The Baldor 8107WD Grinder, manufactured in the United States, is a robust industrial 3/4 HP grinder with an output RPM of 3600, designed for general-purpose grinding, shaping objects by removing material, and tool sharpening. Even in fair condition with some cosmetic blemishes or minor issues, it remains suitable for heavy-duty grinding tasks. Included are two 8" wheels, exhaust-type cast iron wheel guards, and an 8-foot power cord. This unit offers features such as a base-mounted on/off switch, lighted eye shields, cast iron tool rests, and rubber feet to minimize vibration. The deluxe model also comes with a water pot and tool tray. Factory-designed for 115 volts to comply with OSHA standards, it includes a light fixture and supports connection to a shop vacuum. The Baldor 8107WD model is UL-listed and well-regarded for its durability and precision in industrial and workshop settings.
Key Features
- 3/4 HP suitability for heavy grinding
- 3600 RPM operational speed
- Factory connected for 115 volts; UL-listed
- Includes two 8" x 1" x 3/4" 36 grit wheels
- Cast iron exhaust wheel guards for vacuum connection
- Base-mounted on/off switch and 8-foot power cord
- Rubber feet to minimize vibration
- Lighted eye shields and cast iron tool rests
- Deluxe model includes water pot and tool tray

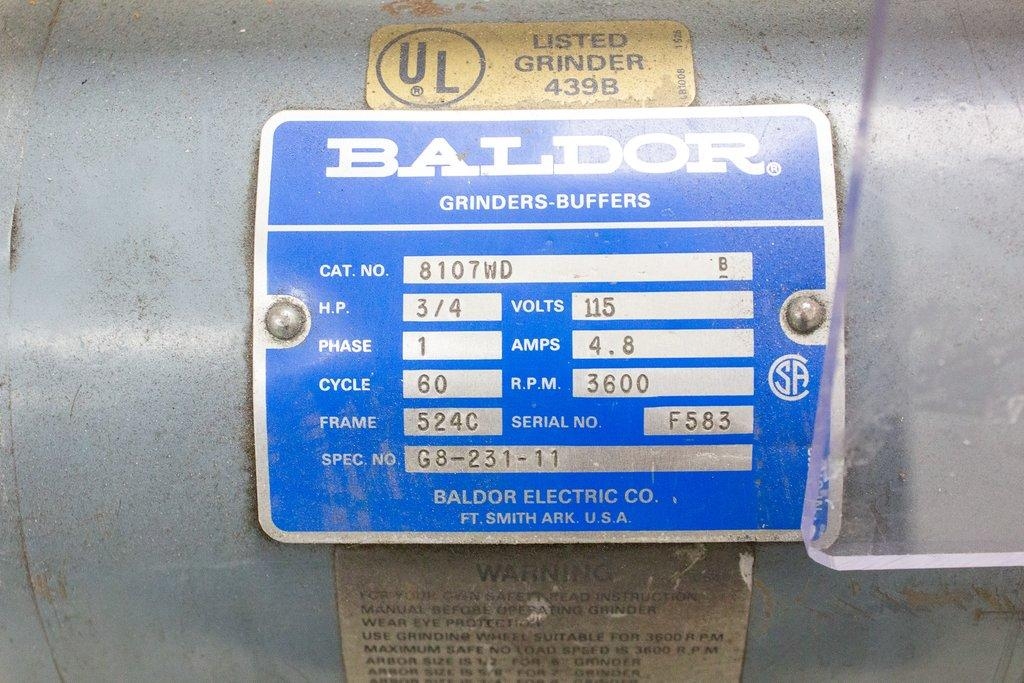

Specifications
- - Horsepower: 3/4 HP
- - Output RPM: 3600
- - Voltage: 115/230V
- - Phase: Single Phase
- - Wheel Size: 8 inches
- - Amperage: 4.8/2.4 amps
- - Bearings: 6206
- - Factory connected for 115 volts
- - UL Listed and OSHA compliant
- - Mechanical Spec Number: G8LY0231
- - Electrical Spec Number: G8WG0011
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 28.8 lb x 64.8 lb
Metric: 42.67 cm x 73.15 cm x 164.59 cm
Harmonized Code
8460.21.0090
Harmonized Code Details
Harmonized code 8460.21.0090 refers to grinders with an internal electric motor, used for metalworking, offering precision and durability in industrial applications. Suitable for the Baldor 8107WD Grinder given its high-strength and electric-powered technical setup.
