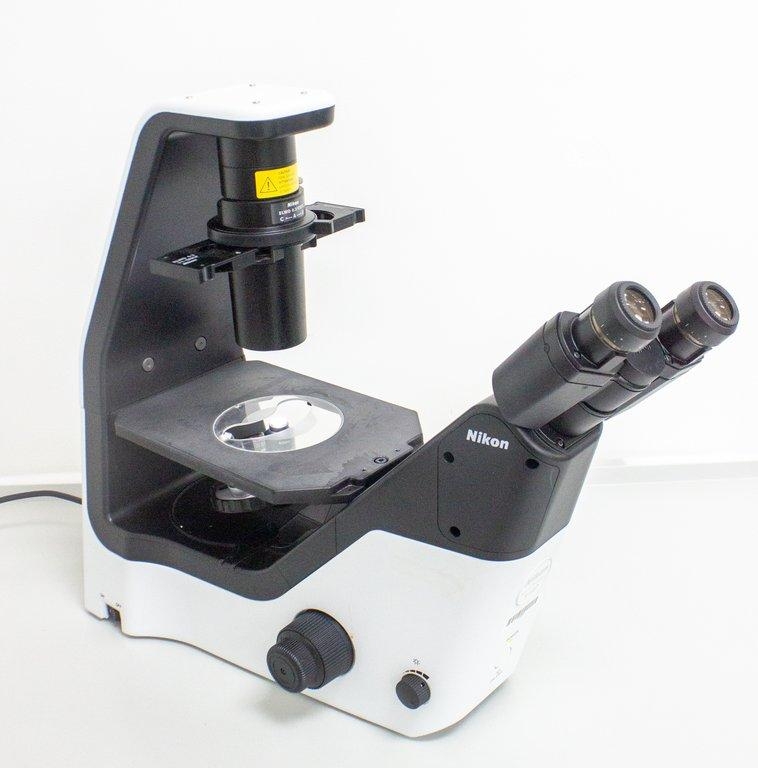

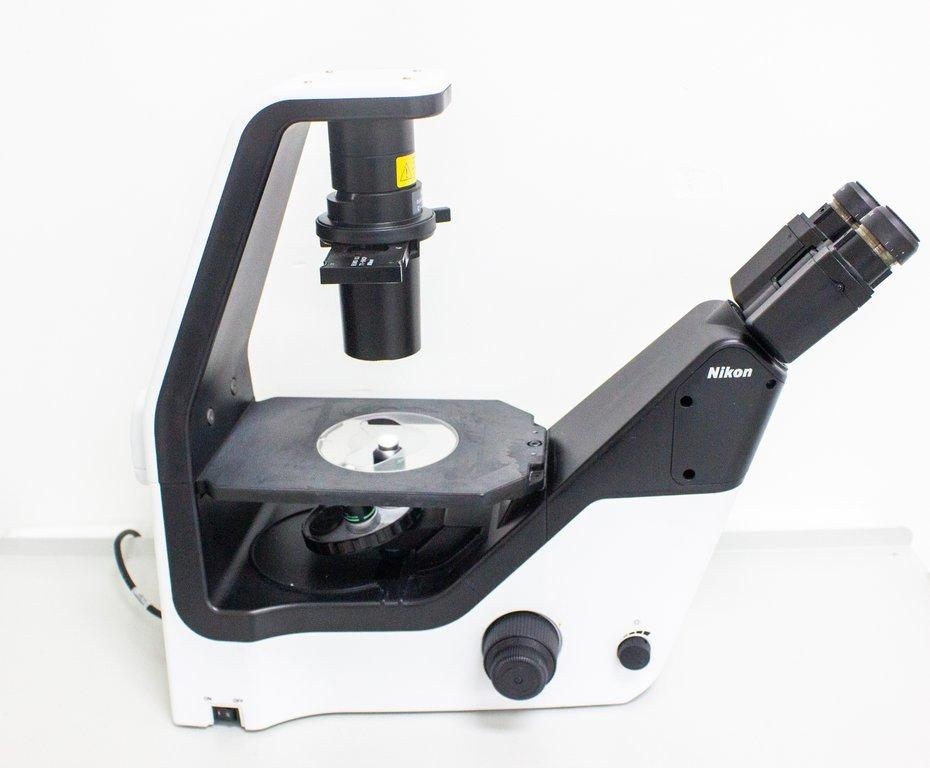

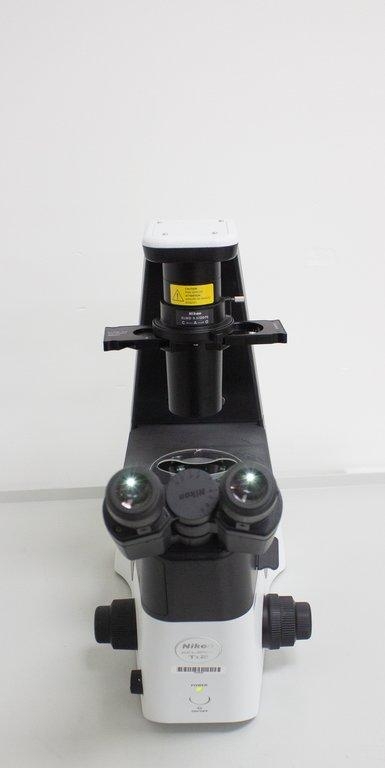

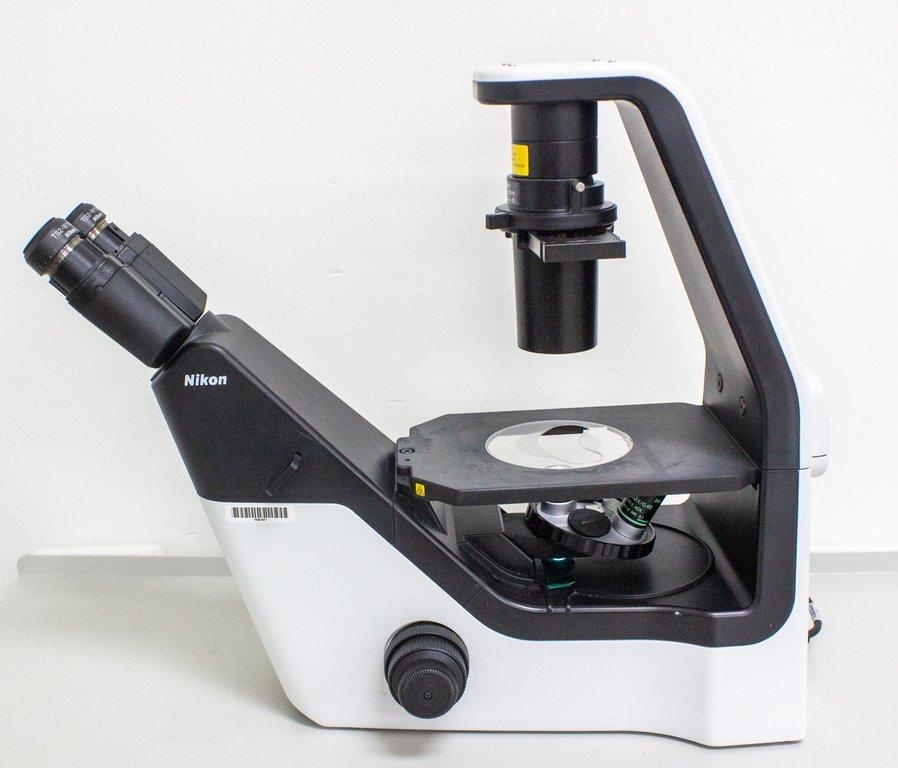

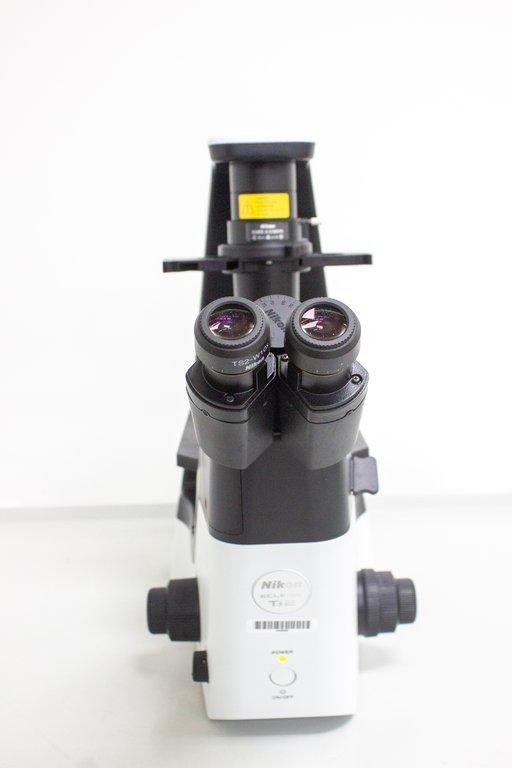

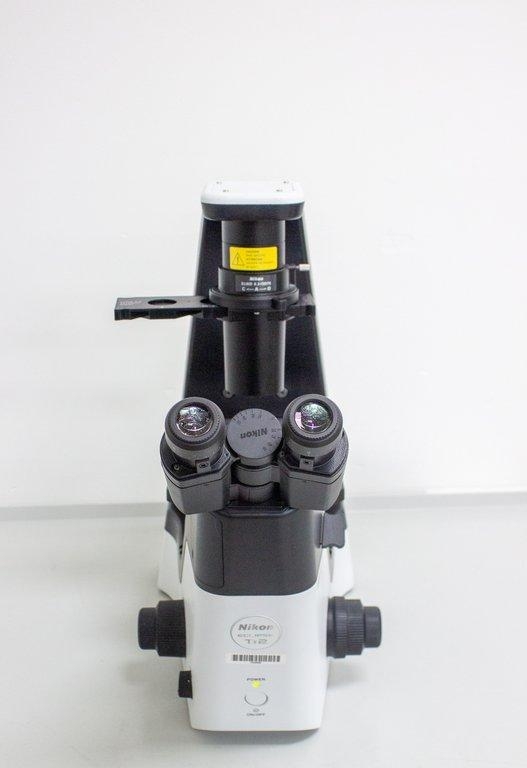

Nikon Eclipse TS2 Inverted Routine Microscope

Product Information

The Nikon Eclipse TS2 Inverted Routine Microscope with the industry-leading CFI60 optical system and LED illumination offers clear images for more efficient cell culture observation and documentation. It features a new contrast observation method and improved operability for routine laboratory work. With LED light sources, streamlined operation, and easy-to-use mechanical stage, this microscope ensures comfortable observation and efficient workflow. The compact and highly stable body, along with unimpeded viewing of the stage even when placed inside a culture hood, makes it an ideal fit in any laboratory. It is used for cell culture, fluorescence observation, and routine laboratory work. Software not included.

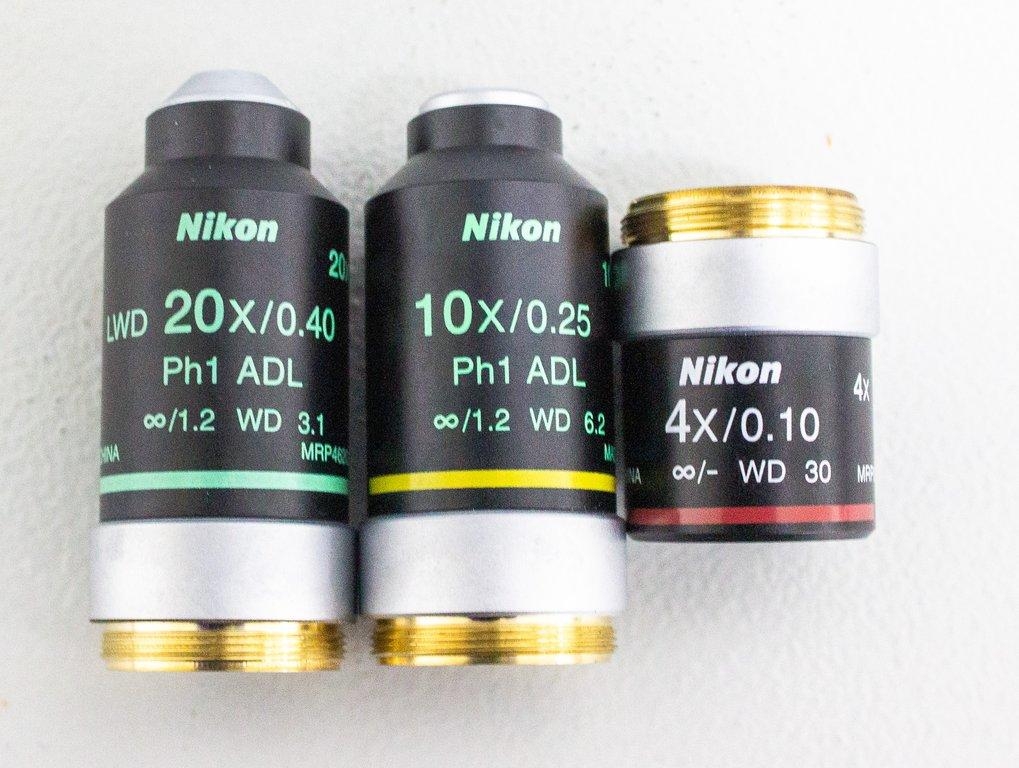

Objectives: LWD 20x/0.40 Ph1 ADL 10x/0.25 Ph1 ADL 4x/0.10

• Industry-leading CFI60 optical system
• LED illumination for clear and efficient imaging
• Streamlined operation with intuitive controls for easy reach
• Easy-to-use mechanical stage for versatile sample accommodation

• Optical System: CFI60 Infinity Optical System
• Observation method: Brightfield, Apodized Phase Contrast, Phase Contrast, Emboss Contrast

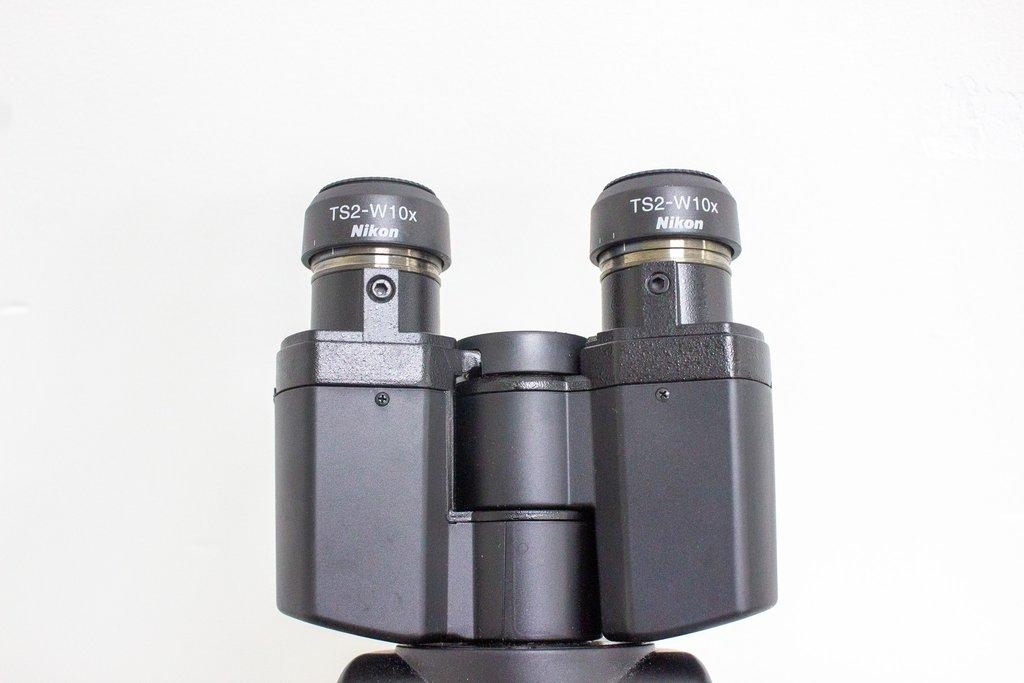

• Tube: Inclination 45 degrees, Pupillary distance 50-75 mm, Siedentopf type, Attachable camera port, Eyepiece/Port:100/0:0/100
• Focusing: Via nosepiece up/down movement, Stroke (manual): Up 7 mm down 1.5 mm, Coarse stroke 37.7 mm per rotation, Fine stroke 0.2 mm per rotation, Coarse motion torque adjustable
• Weight: 13 kg

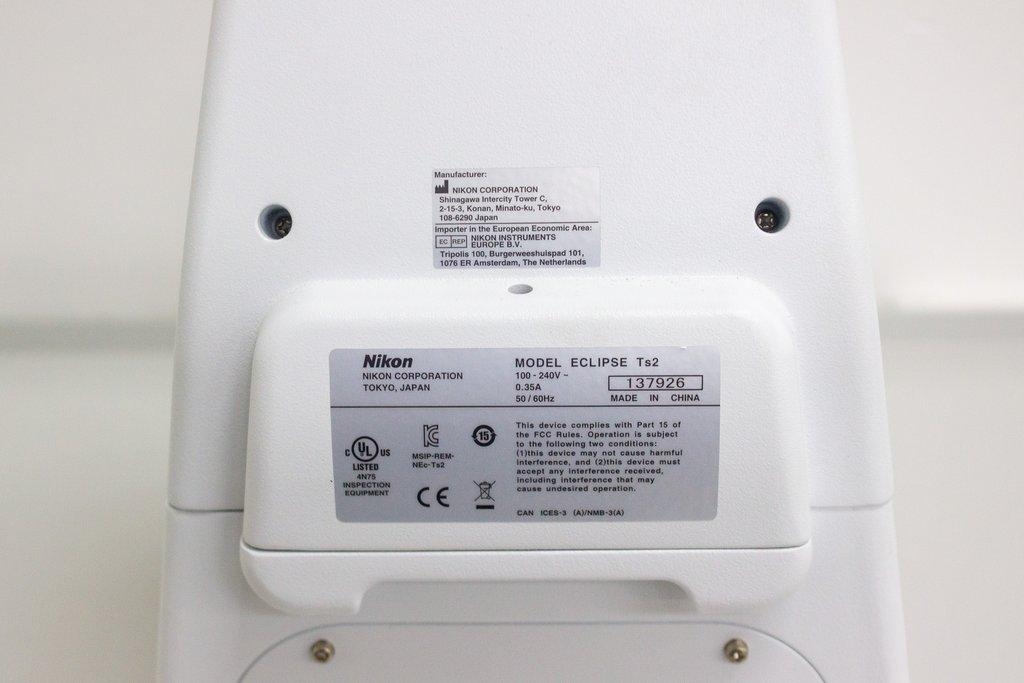

• Rated Voltage/Electric Current: 100V-240VAC±10％, 50/60Hz, 0.35A

Metric: 13 kg

Imperial: 28.66 lb

Metric: 236 cm x 548 cm x 471 cm
Imperial: 92.91 in x 215.75 in x 185.43 in

9011807000

Microscopes for photomicrography, cinephotomicrography or microprojection
