NuAire NU-S543-800 Class II Type A2 Bio Safety Cabinet
- Make NuAire
- Hertz 60Hz US
- Model NU-S543-800
- Serial 192269061119
- Weight 1200.0 Lb
- Voltage 0af43ea9fd
- Includes Power cord included |
- Warranty 30-Day Warranty On Part
- Dimensions 38.0in x 120.0in x 106.0in
- Shipping Type Freight
- Item Condition Excellent
- Manufacturing Date 2019-01-01
Product Information
The NuAire NU-S543-800 Class II Type A2 Bio Safety Cabinet is a spacious 8 ft model in excellent cosmetic condition. It features a DC ECM motor to economize energy, distributing laminar airflow through a flexible plenum. The cabinet is designed to meet the containment needs of most clinical and research applications, meeting the NSF/ANSI 49 standard. The interior workable dimensions are 21" x 92" x 28". This safety cabinet is commonly used for biological research, cell culture, and pharmaceutical production. It provides a controlled environment for handling pathogens and other potentially hazardous materials. The DC ECM motor enhances energy efficiency while maintaining a sterile environment. The cabinet's dimensions and laminar airflow make it suitable for large-scale cell culture and pharmaceutical processing.
Technician comment
Unit was tested to specifications. Lights & blower are working. UV bulb will need to be replaced. See photos for details.
Key Features
- DC ECM motor for energy-efficient laminar airflow
- Stainless steel construction for enhanced containment and easy cleanability
- Fluorescent lighting and dished work tray for procedure illumination and liquid spill containment

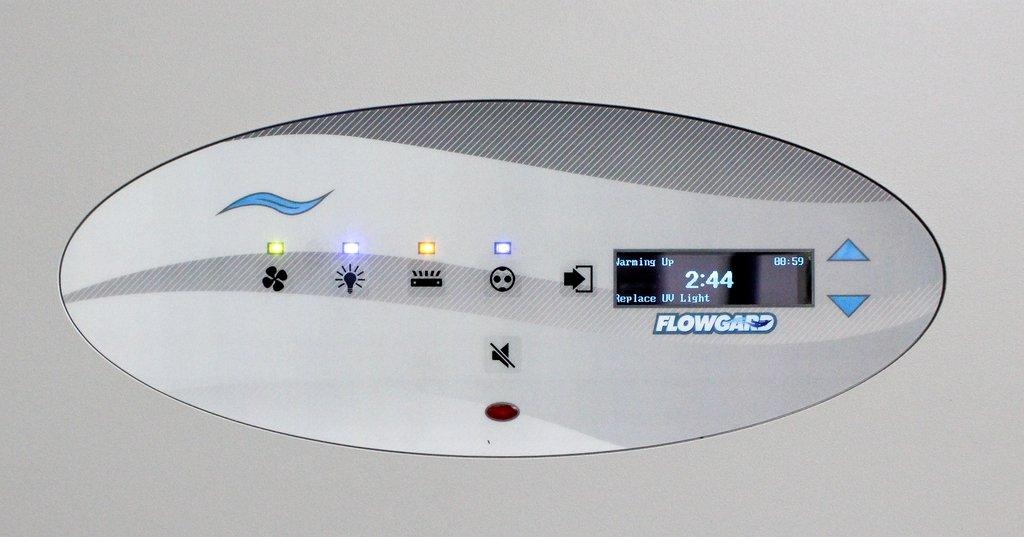

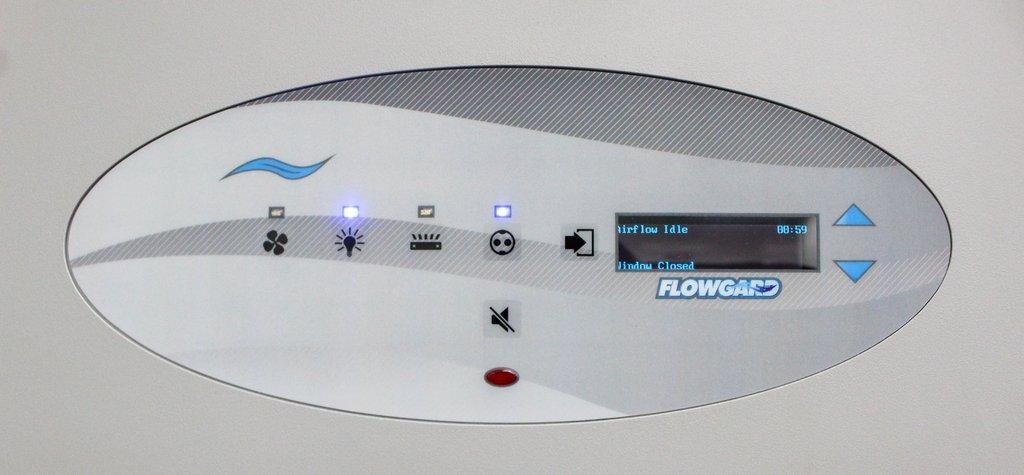

- Aeromax™ control system for monitoring cabinet performance

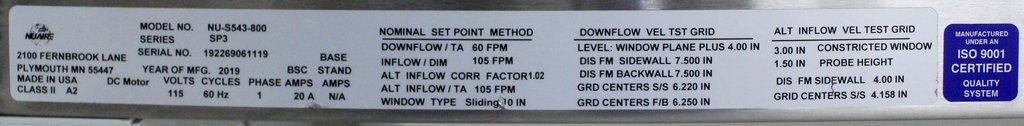

Specifications
- Downflow/TA: 60 FPM
- Inflow/Dim: 105 FPM
- Alt inflow corr factor: 1.02
- Alt inflow/TA: 105 FPM
- Window type: Sliding 10 in
- Downflow Vel TST Grid
- Level: window plane plus 4.00 in
- DIS FM Sidewall: 7.500 in
- DIS FM Backwall: 7.500 in
- GRD Centers S/S: 6.220 in
- GRD Center F/B: 6.250
Weight
Metric: 544.3 kg
Imperial: 1200 lb
Dimensions
Metric: 32.0 cm x 100.0 cm x 88.0 cm
Imperial: 12.6 in x 39.4 in x 34.6 in
Harmonized Code
841989
Harmonized Code Details
This code applies to air conditioning machines, comprising a motor-driven fan and elements for changing the temperature and humidity, including those machines in which the humidity cannot be separately regulated.
