Welch 2052B-01 Diaphragm Pump Chemical Duty PTFE Oil-Free 115V for Labs 2.3 cfm
Welch
Details
-
CategoryPump
-
Dimension10.0in x 16.0in x 7.0in
-

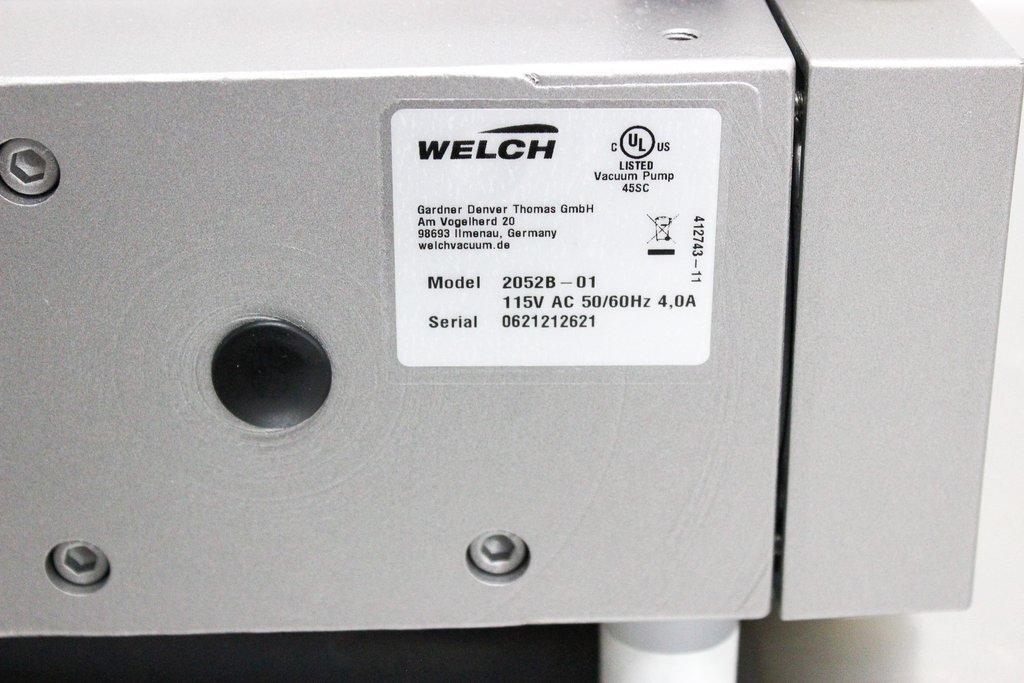

Serial0621212621
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz115V / 50Hz/60Hz
Description
The Welch 2052B-01 Chemical Duty Diaphragm Pump is a high-performance, oil-free pump ideal for laboratory and industrial applications. Manufactured in the United States and in excellent condition, this model has seen very little use and exhibits minor to no cosmetic damage. Designed for low-maintenance operation, it features a solid PTFE head and PTFE membranes, offering exceptional chemical durability. With a free air displacement of 2.3 cfm (@60Hz) and ultimate pressure of 1.5 Torr, this pump is particularly suited for evaporating solvents like DMF and pentachloroethane in rotary evaporator volumes of up to 20L at 160°C. Its clean, maintenance-free pumping action makes it a versatile choice for a range of applications. Operating on a standard 115V power supply, the Welch 2052B-01 accommodates peak flow rates up to 65 L/min, proving itself a reliable asset for scale-up operations. While it does not come with additional software or computers, this pump includes a power cord and maintains a high standard of reliability.
Key Features
- Oil-free, low maintenance operation
- Solid PTFE head and PTFE membranes
- Chemical durability
- Free air displacement: 2.3 cfm (65 L/min)
- Ultimate pressure: 1.5 Torr (2 mbar)
- 115V, 50/60Hz operation
- Ideal for 20L rotary evaporator operations at 160°C
Specifications
- Model: 2052B-01
- Chemical Duty Diaphragm Pump
- Free Air Displacement: 2.3 cfm (65 L/min) @60Hz
- Ultimate Pressure: 1.5 Torr (2 mbar)
- Voltage: 115V
- Frequency: 50Hz/60Hz
- Construction: PTFE Membranes and Head
- Country of Origin: United States
- Condition: Excellent
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 12.0 lb x 19.2 lb x 8.4 lb
Metric: 30.48 cm x 48.77 cm x 21.34 cm
Harmonized Code
841410
Harmonized Code Details
841410 - Vacuum pumps; this code is selected due to its applicability to pumps specifically designed for vacuum applications, aligning with the Welch 2052B-01's use in vacuum settings for lab or industrial scales.
