APC SYPM4KP Power Module High-Density Scalable 4KVA 208V Input Output
APC
Details
-
CategoryComputer / IT
-
Dimension12.0in x 35.0in x 17.0in
-
SerialAD2215210499
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz208V / Does Not Apply
Description

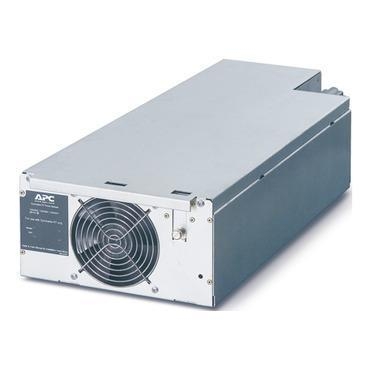

The APC SYPM4KP Symmetra LX 4kVA Power Module offers high-density, double-conversion on-line power protection tailored for environments where space is limited. With 3200W (4000VA) capacity, this modular, redundant architecture ensures scalable power and runtime as demand grows or enhanced availability is required. The Symmetra LX features a flexible design with field-swappable components for swift upgrades and maintenance. It supports a main and other input/output voltage configuration of 200V/208V and 240V, respectively. Engineered for maximum business continuity, it operates quietly at 62 dBA, within a temperature range of 32 to 104 °F and up to 10000 ft altitude. Certified under CSA and standards UL 1778 and FCC Part 15 class A, this power module is suitable for a wide array of industrial and laboratory applications where reliable power supply is critical.
Key Features
- High-density, double-conversion online power module
- Scalable runtime and power capacity up to 3200W/4000VA
- Modular, redundant architecture for enhanced availability
- Field-swappable components for quick maintenance
- Supports input/output voltage configurations of 200V/208V and 240V
Specifications
- Input Frequency: 45-65 Hz auto-sensing
- Efficiency at full load: 155-276 V
- Output Frequency: 47-63 Hz sync to mains
- Crest factor: Up to 5:1
- Topology: Double Conversion Online
- Wave type: Sine wave
- Ambient operation temperature: 32-104 °F
Weight
Imperial: 48.0 Pounds
Metric: 21.77 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 42.0 lb x 20.4 lb
Metric: 36.58 cm x 106.68 cm x 51.82 cm
Harmonized Code
85044040
Harmonized Code Details
85044040 - Static converters. This code is used because the product functions as a static converter in a UPS system, managing power supply to prevent interruption.
