Agilent G1311A Quaternary Pump for Precise Low-Pressure Mixing 0.001-10mL/min
Agilent
Details
-
CategoryHPLC / FPLC / GC / CE
-
Dimension18.0in x 14.0in x 6.0in
-
SerialUS64401201
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Agilent G1311A, part of the 1100 Series Quat Pump, is recognized for its robust dual plunger hydraulic system and in-series pump configuration. Designed for precise low-pressure quaternary mixing, it supports flow rates from 0.001 to 10 mL/min with adjustments in 0.001 mL/min increments. Capable of handling up to 400 bar for flow rates of up to 5 mL/min, and 200 bar for flow rates up to 10 mL/min, it offers versatility across a range of laboratory applications. This pump features user-selectable compressibility compensation, leak detection, and Early Maintenance Feedback (EMF) for reliable operation. Seamlessly integrating with CAN, GPIB, RS232C, and APG Remote interfaces, it ensures compatibility with various lab setups. Though unable to be fully tested, it powers on and appears to function with no known issues, making it suitable for continued research use.
Key Features

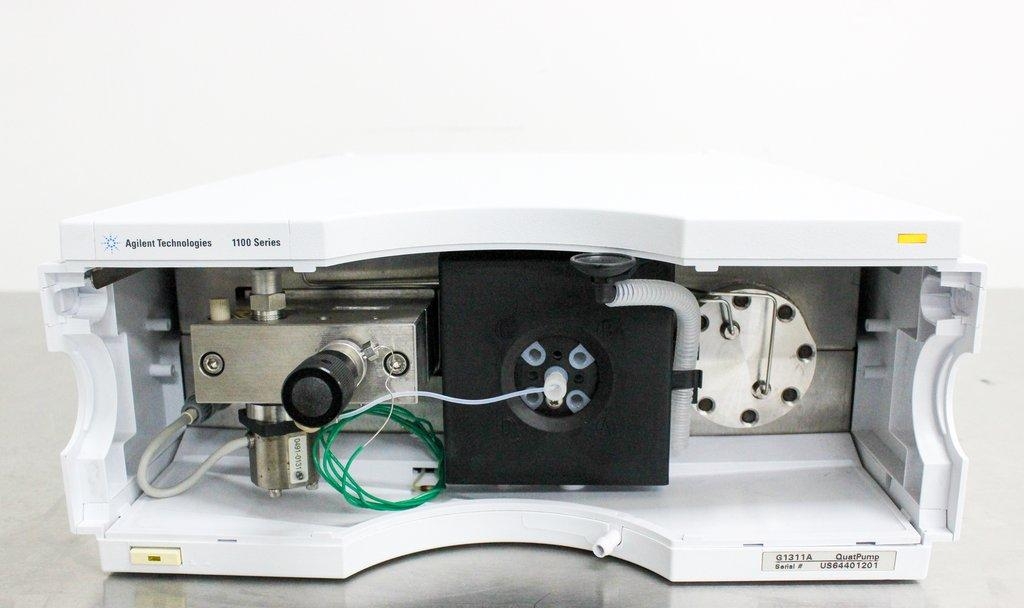

- Dual plunger hydraulic system
- In-series pump configuration
- Low-pressure quaternary mixing capability
- Flow range of 0.001 to 10 mL/min
- Pressure range up to 400 bar
- User-selectable compressibility compensation
- Early Maintenance Feedback (EMF)
- Leak detection and safe handling

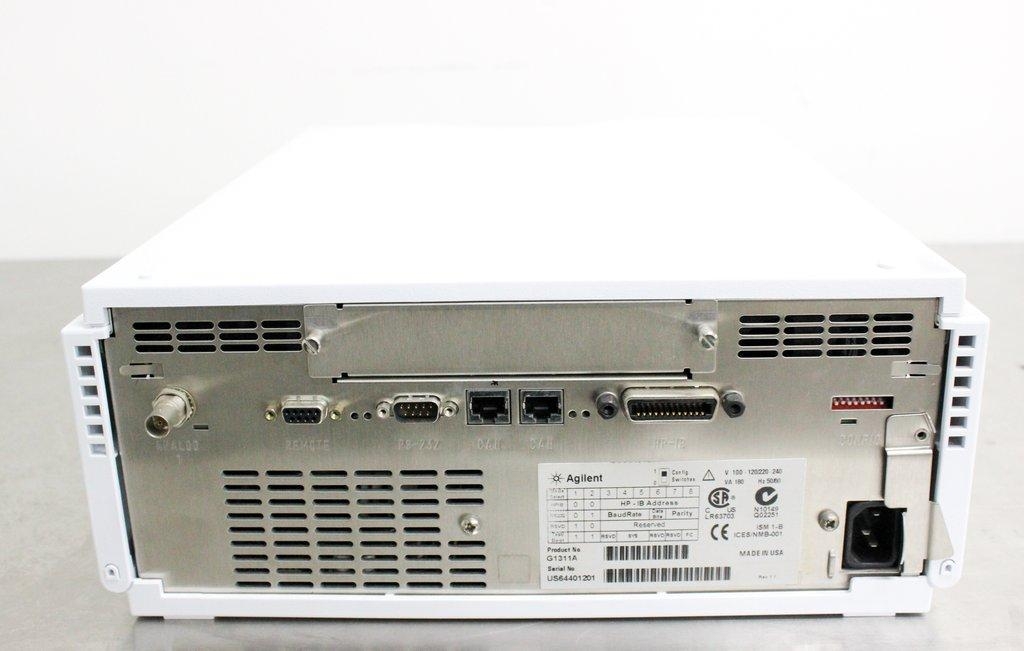

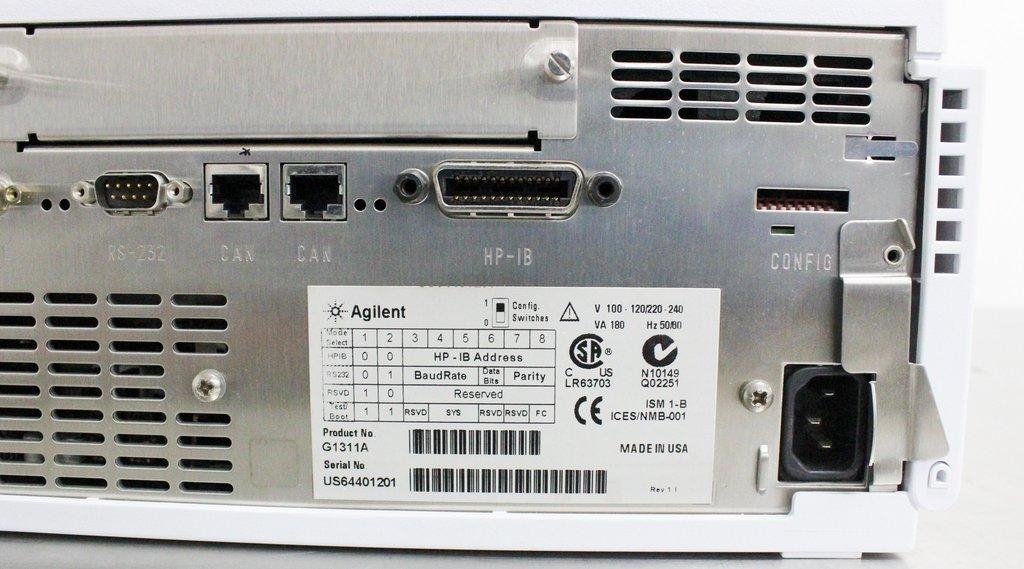

- Compatible with CAN, GPIB, RS232C, APG Remote
Specifications
- Flow rate range: 0.001 to 10 mL/min
- Pressure limit: 0 to 400 bar for <5 mL/min, 0 to 200 bar for >5 mL/min
- Recommended pH range: 1.0 to 12.5
- Voltage: 120V/220V, Frequency: 50Hz/60Hz
- Communication interfaces: CAN, GPIB, RS232C, APG Remote
Weight
Imperial: 32.4 Pounds
Metric: 14.7 Kilograms
Shipping Dimensions
Imperial: 21.6 lb x 16.8 lb x 7.2 lb
Metric: 54.86 cm x 42.67 cm x 18.29 cm
Harmonized Code
8413.60.0040
Harmonized Code Details
The code 8413.60.0040 corresponds to 'Other rotary positive displacement pumps'. This choice reflects the Agilent G1311A's design as a quaternary pump suitable for precision liquid handling applications in the laboratory environment.
