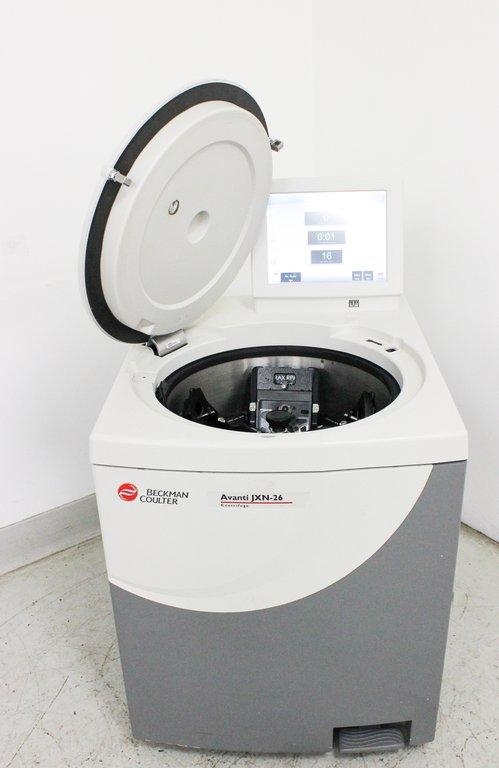

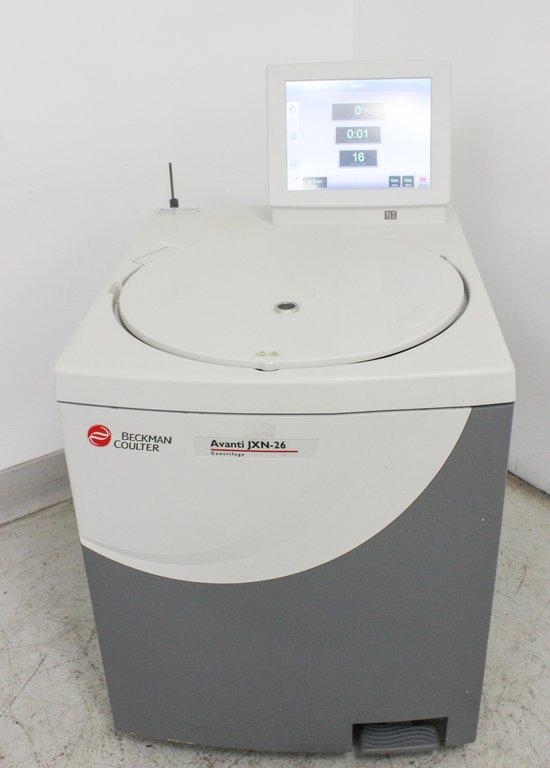

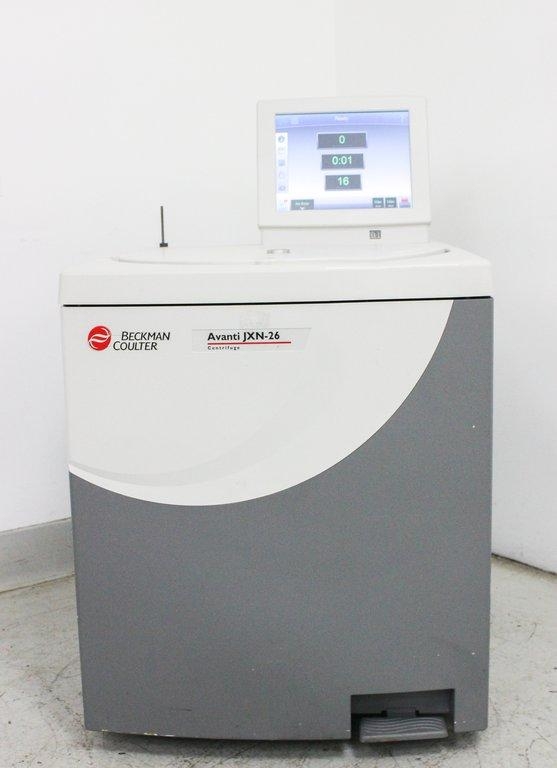

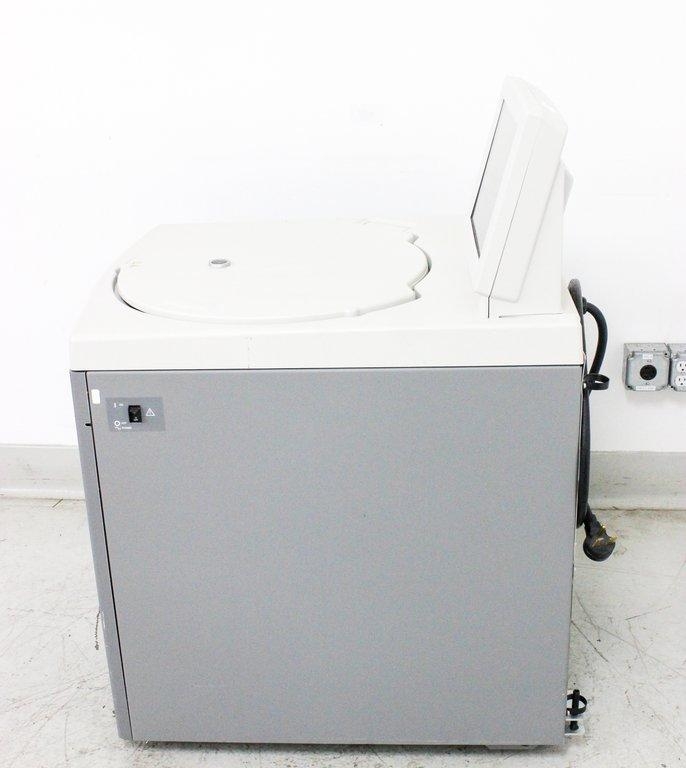

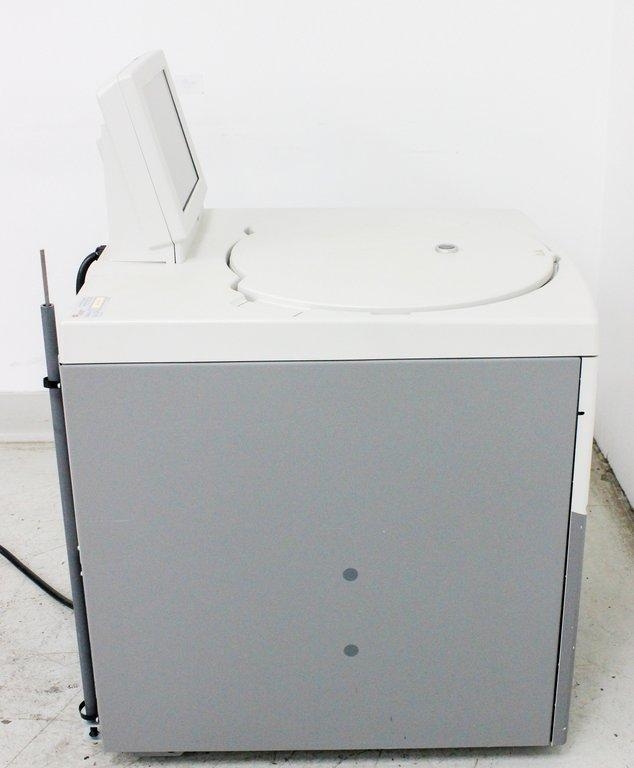

Beckman Avanti JXN-26 Centrifuge 6L Capacity 26,000 RPM BioSafe Software
Beckman Coulter
Details
-
CategoryCentrifugation
-
Dimension35.0in x 28.0in x 48.0in
-

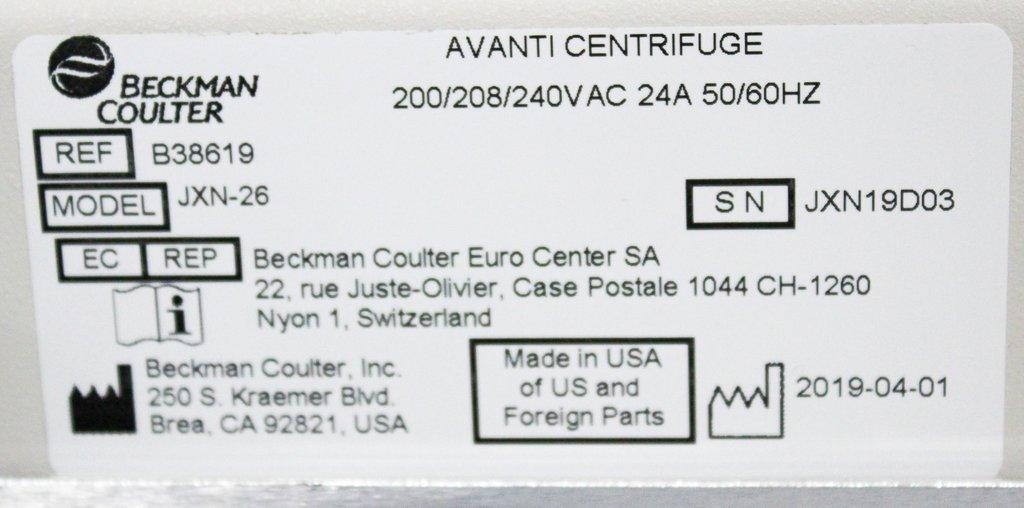

SerialJXN19D03
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz220V / 50Hz/60Hz
Description
The Beckman Coulter Avanti JXN-26 Centrifuge, model B38619, is engineered for high-throughput sample processing, suitable for shared labs, GMP environments, and has a maximum capacity of 6L and an RPM of 26,000 (82,000 x g). It features a high-torque, Switched Reluctance (SR) drive, reducing cycle times while enhancing performance. It is equipped with the Friction Reduction System (FRS) for quieter operation and lower heat output. The device incorporates data management tools like MobileFuge for serious workflow versatility and offers up to 1000 user-defined programs. The Avanti JXN-26 is BioSafe, environmentally sustainable, and features adaptive temperature control, optimizing sample safety. Compatible with various rotor types, it permits extensive centrifuge application adaptability across its −10°C to +40°C temperature range. Key safety improves include Dynamic Rotor Inertia Check (DRIC) and rotor recognition, safeguarding operational safety by assuring rotors run within rated speed limits.
Technician comment

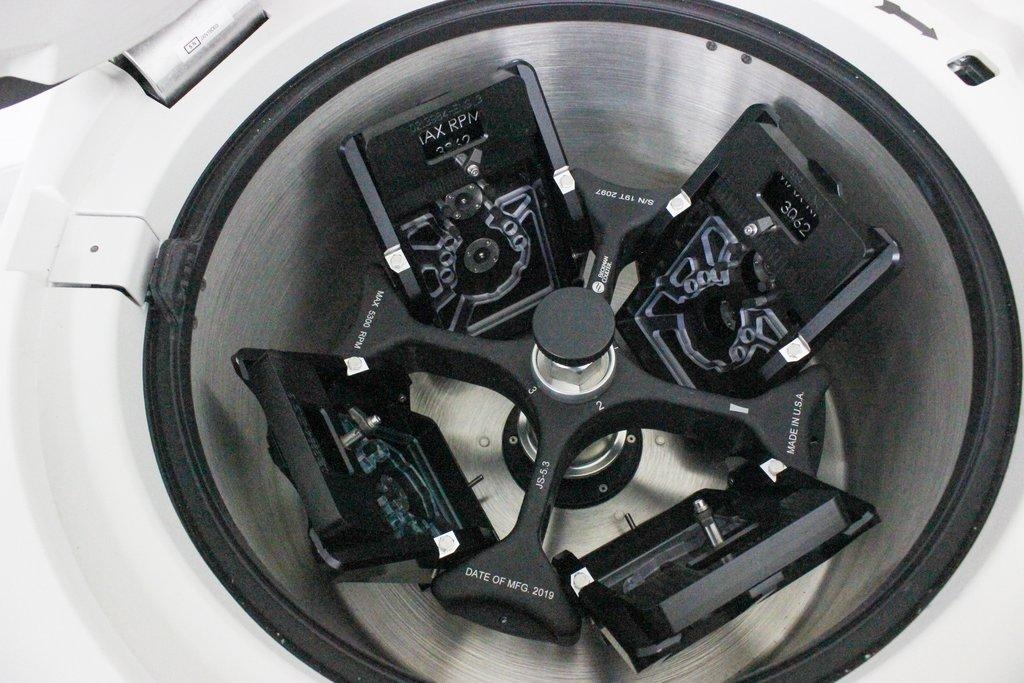

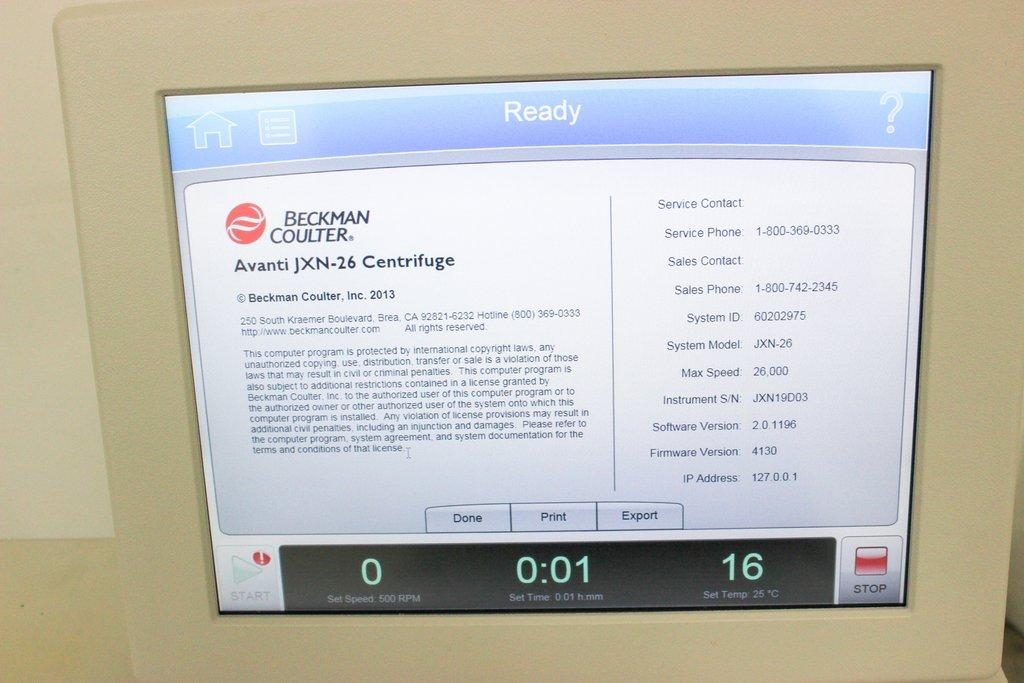

Need user name/password to log onto unit to fully test. Includes: JS-5.3 Rotor
Key Features
- Maximum capacity of 6L
- 26,000 RPM with 82,000 x g force
- BioSafe system
- Switched Reluctance (SR) drive for high torque
- Friction Reduction System (FRS) for quieter operation
- MobileFuge data management
- Compatible with fixed-angle & swinging bucket rotors

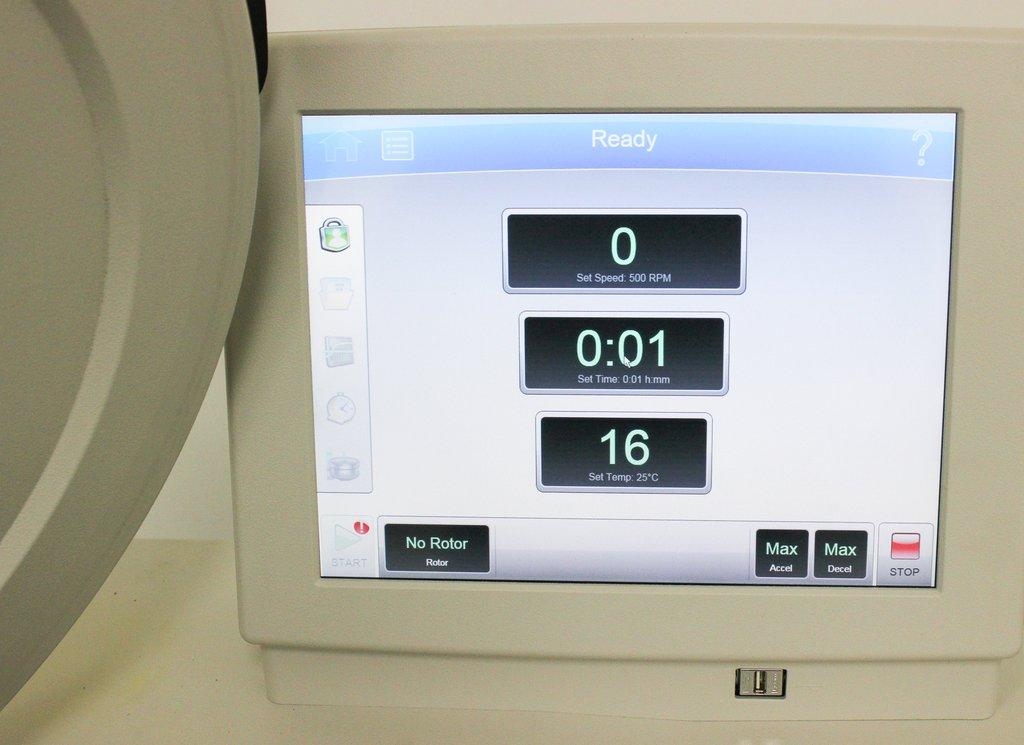

- Ergonomic and intuitive interface
Specifications
- Platform: Avanti
- Maximum Speed: 26,000 rpm
- Maximum g-Force: 81,770 x g
- BioSafe: Yes
- Acceleration Profiles: 11
- Deceleration Profiles: 12
- Timed Run: Up to 99 hrs, 59 mins
- Max Capacity Volume Range: 1 - 6 L
- Refrigeration System: Non-CFC, non-ozone depleting refrigerant
- Temperature Range: -10°C to +40°C in 1° increments
- Rotor ID: Automatic
- Environmental Conditions: -10°C to 40°C in 1° increments
- Software: VNC, MobileFuge app for iOS & Android
- Material: Steel, Plastic
- Finish: Powder Coat Paint
- Dimensions: 71 cm x 86 cm x 86 cm (including clearance)
Weight
Imperial: 766.8 Pounds
Metric: 347.81 Kilograms
Shipping Dimensions
Imperial: 42.0 lb x 33.6 lb x 57.6 lb
Metric: 106.68 cm x 85.34 cm x 146.3 cm
Harmonized Code
842119
Harmonized Code Details
842119: Centrifuges, including centrifugal dryers; parts thereof: Centrifuges, including centrifugal dryers. Chosen due to its specific application for laboratory centrifuge equipment widely used in scientific research and industrial processes.
