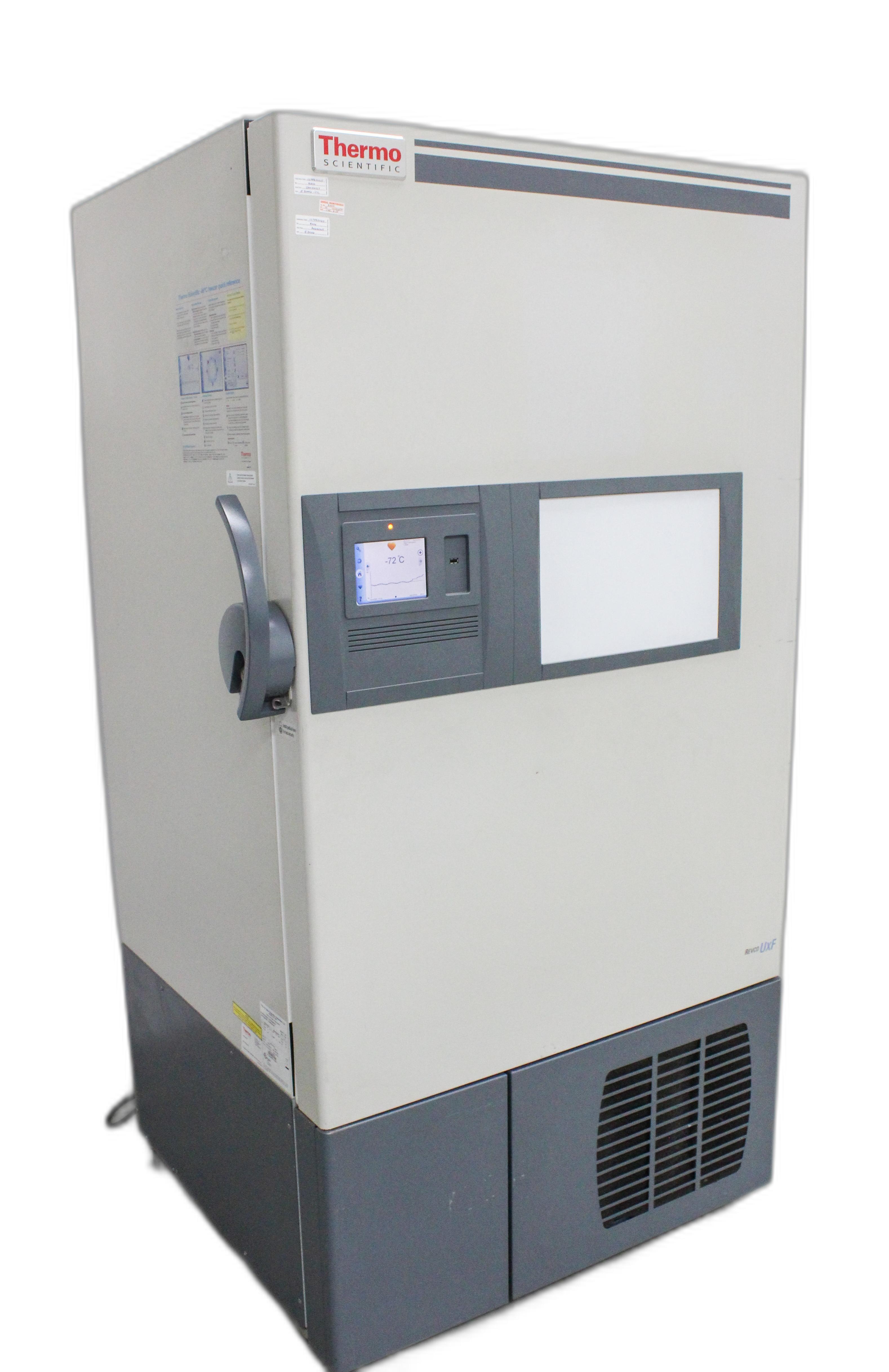

Thermo Scientific UXF60086A Ultra Low Freezer -86C Lab Storage System
Thermo Scientific
Details
-
CategoryCold Storage
-
Dimension37.0in x 44.0in x 78.0in
-
Serial0124494901120917
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz115V / 60Hz US
Description

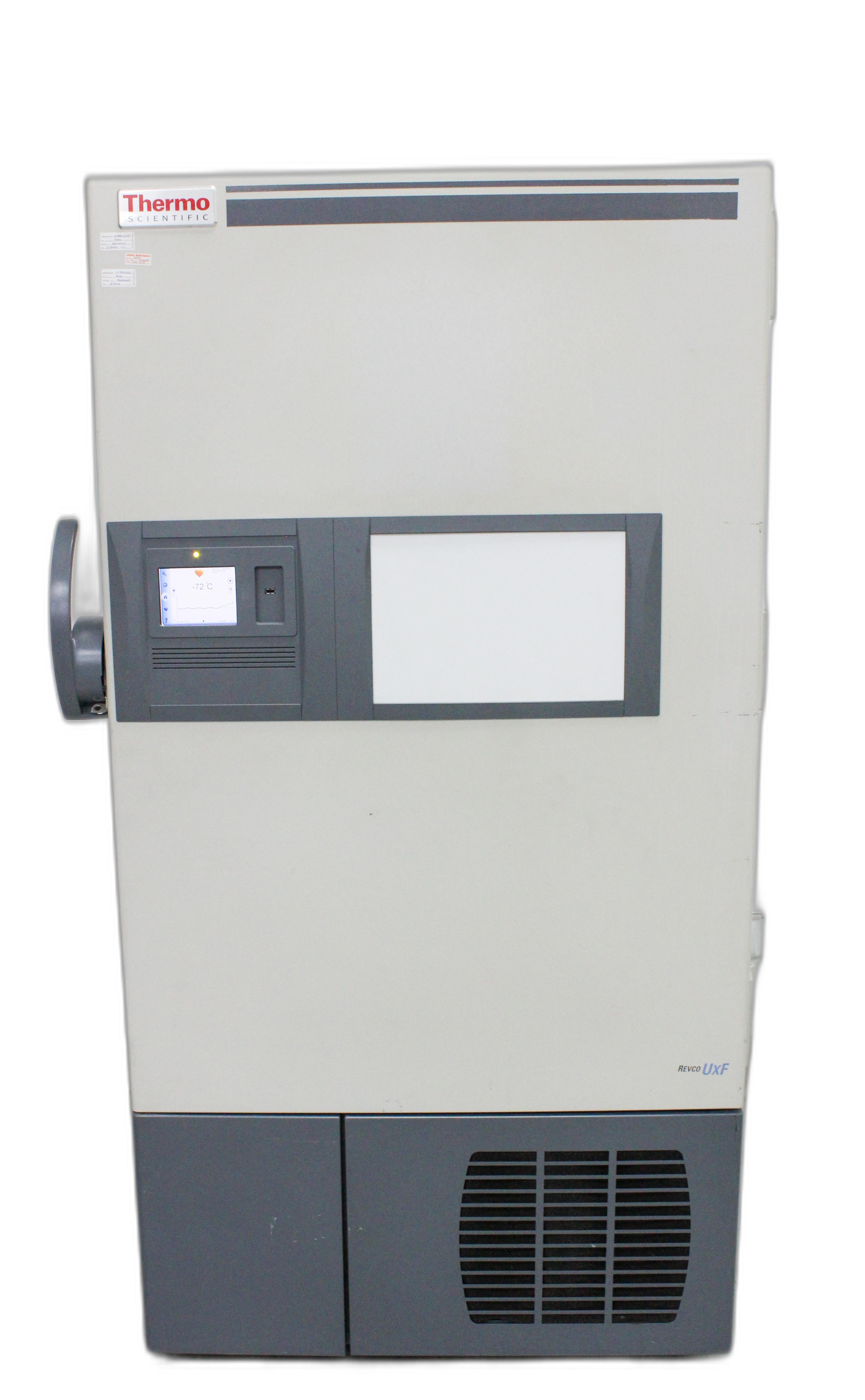

The Thermo Scientific Revco UXF60086A Ultra-Low Temperature Freezer is engineered to provide optimum capacity and safety for storing critical samples at temperatures as low as -86°C. This upright freezer, in very good condition, ensures precise temperature uniformity and minimizes energy consumption, ideal for laboratory environments. It includes features like a user-friendly touch-screen display, high-efficiency compressors, and a robust cabinet with vacuum insulation technology to maximize internal storage capacity. The freezer supports optional CO2 and LN2 backup systems and provides on-board data storage with easy data transfer through a USB port. Notably, it accommodates up to 600 boxes with a total volumetric capacity of 28.8 cu. ft., making it an essential piece in cold storage solutions.
Technician comment
Revco UxF60086A upright ultra-low temperature freezer was tested and performs to specifications. The unit achieved and maintained a steady setpoint near –80°C, with normal fluctuation of approximately ±5°C, consistent with the model’s performance tolerance. All operational functions, including display, alarms, and compressor cycling, were verified to be working correctly.
Key Features
- Upright Ultra-Low Temperature Freezer
- -86°C cooling capacity
- 28.8 cu. ft. storage volume

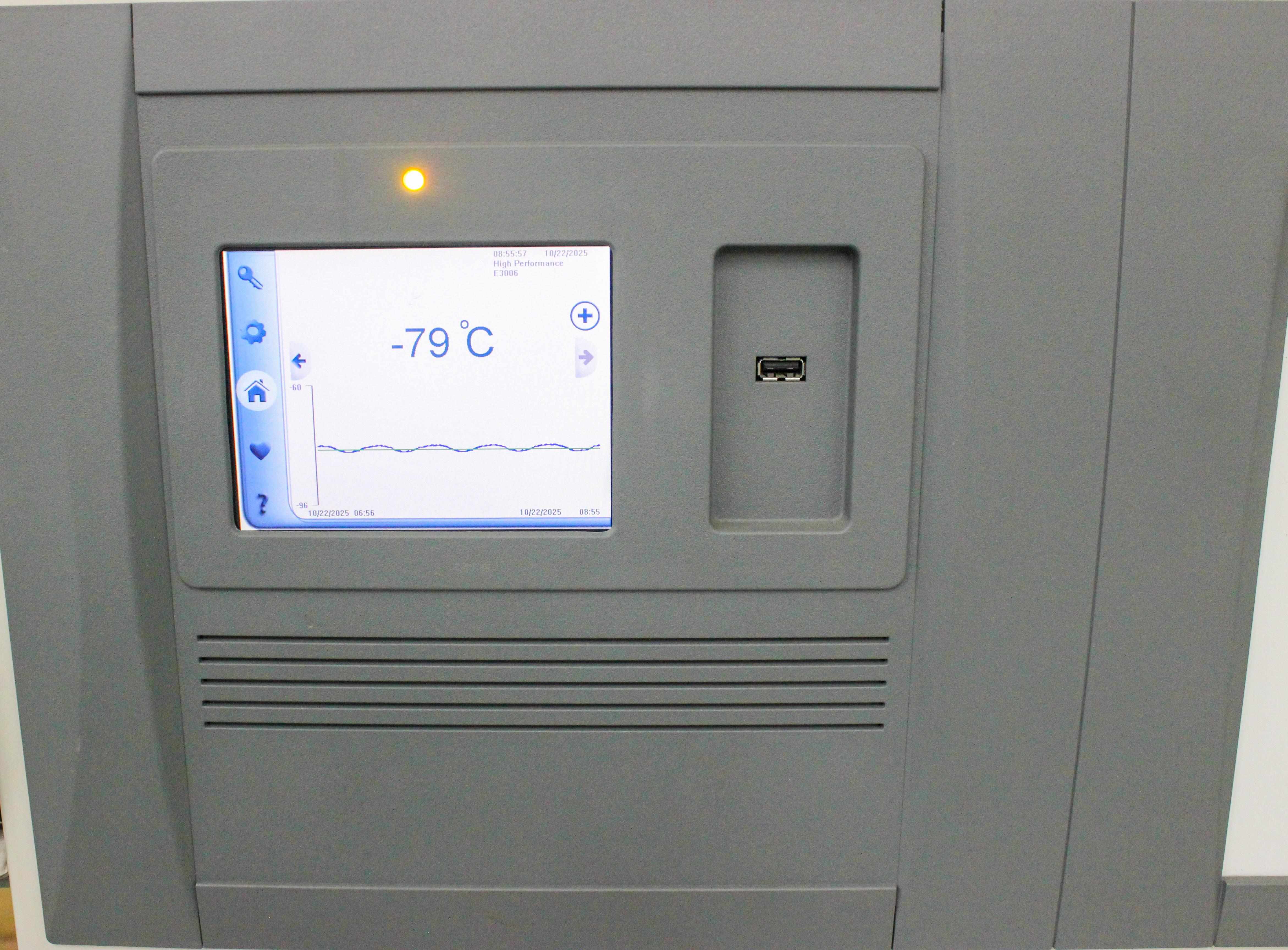

- Touch-screen LCD display
- High-efficiency compressors
- CO2 and LN2 backup system support
- USB data logging and export
- Vacuum insulation for max capacity
Specifications
- Brand/Manufacturer: Thermo Scientific
- Model: UXF60086A
- Temperature Range: -50°C to -86°C
- Capacity: 28.8 cu. ft. (815L), Holds 600 boxes
- Voltage: 115V, Hertz: 60Hz
- Power Cord Included
- Interior: Painted Steel (Standard), Stainless Steel (Optional)
- Certifications/Compliance: CE, Cullus, UL
- Data Outputs: RS-485, 4-20mA, dry contacts
- Protection: 4x7 heated gasket, 5 insulated inner doors

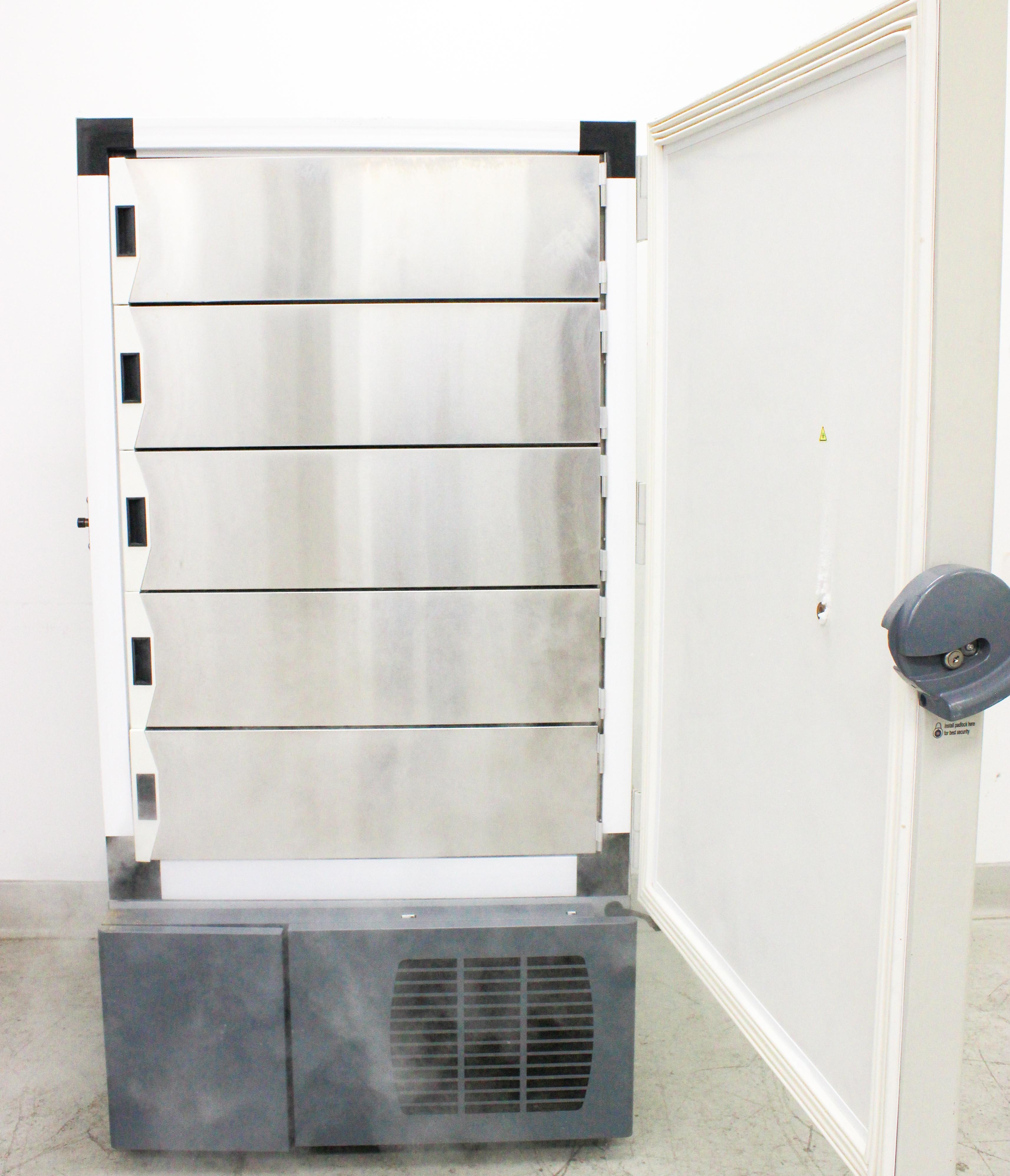

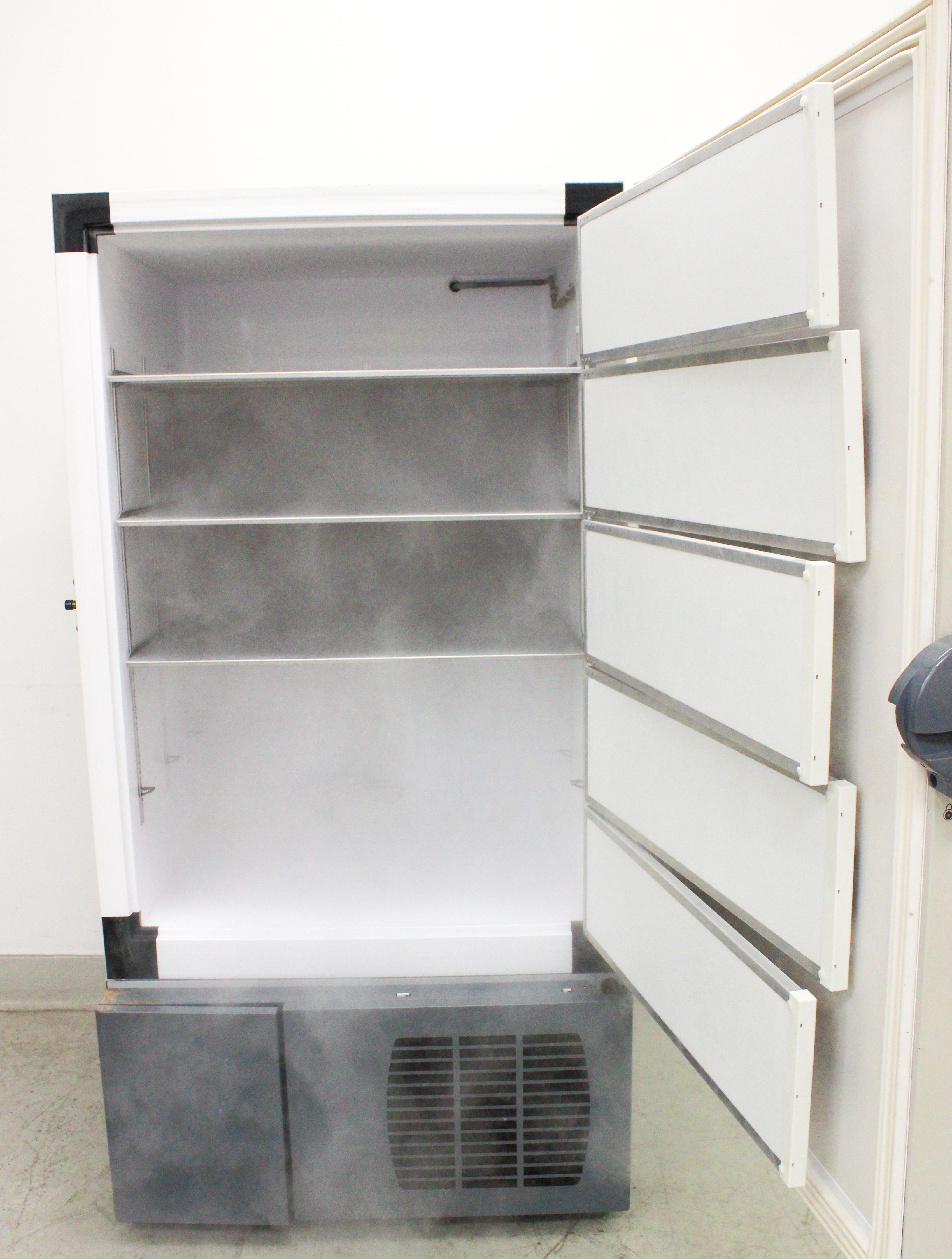

- Maintenance: Easy-to-remove washable filter
Weight
Imperial: 960.0 Pounds
Metric: 435.45 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 52.8 lb x 93.6 lb
Metric: 112.78 cm x 134.11 cm x 237.74 cm
Harmonized Code
8418302000
Harmonized Code Details
8418302000 - Refrigerators, freezers and other refrigerating or freezing equipment, electric or other; freezers of the upright type, not exceeding 900 liters in capacity. This code is justified as it closely matches the description of the item being an upright, laboratory-grade freezer used for low-temperature sample storage.
