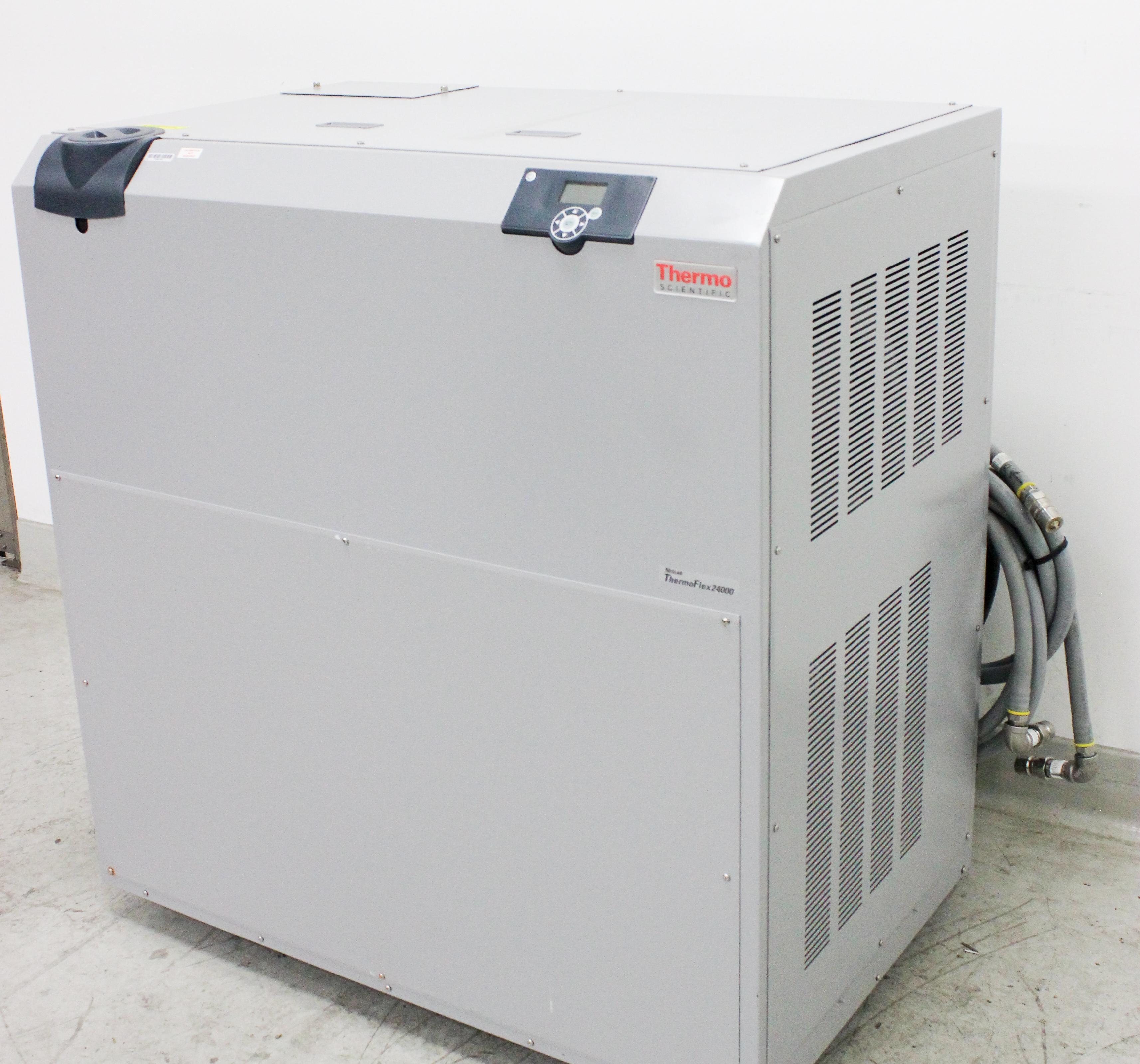

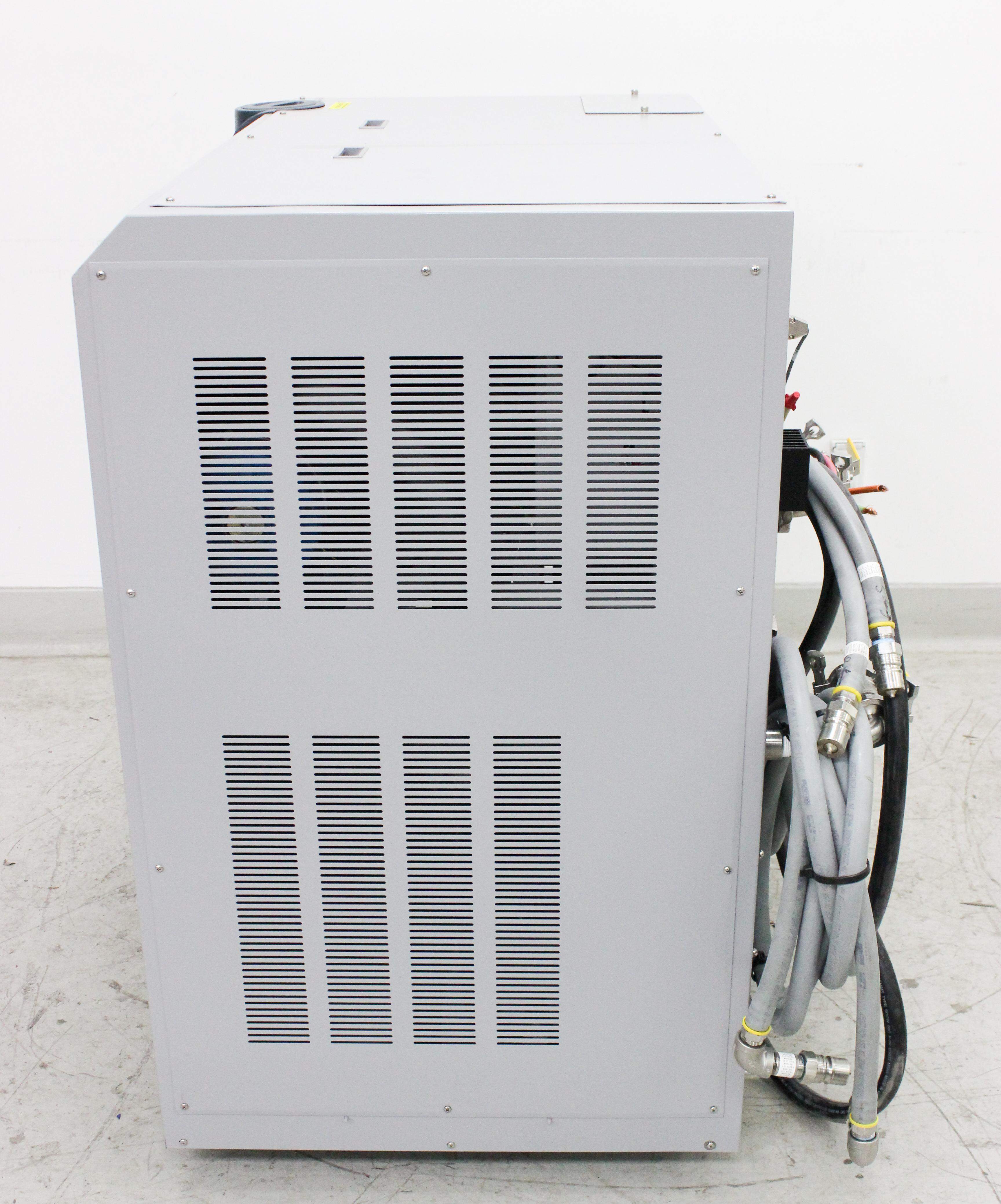

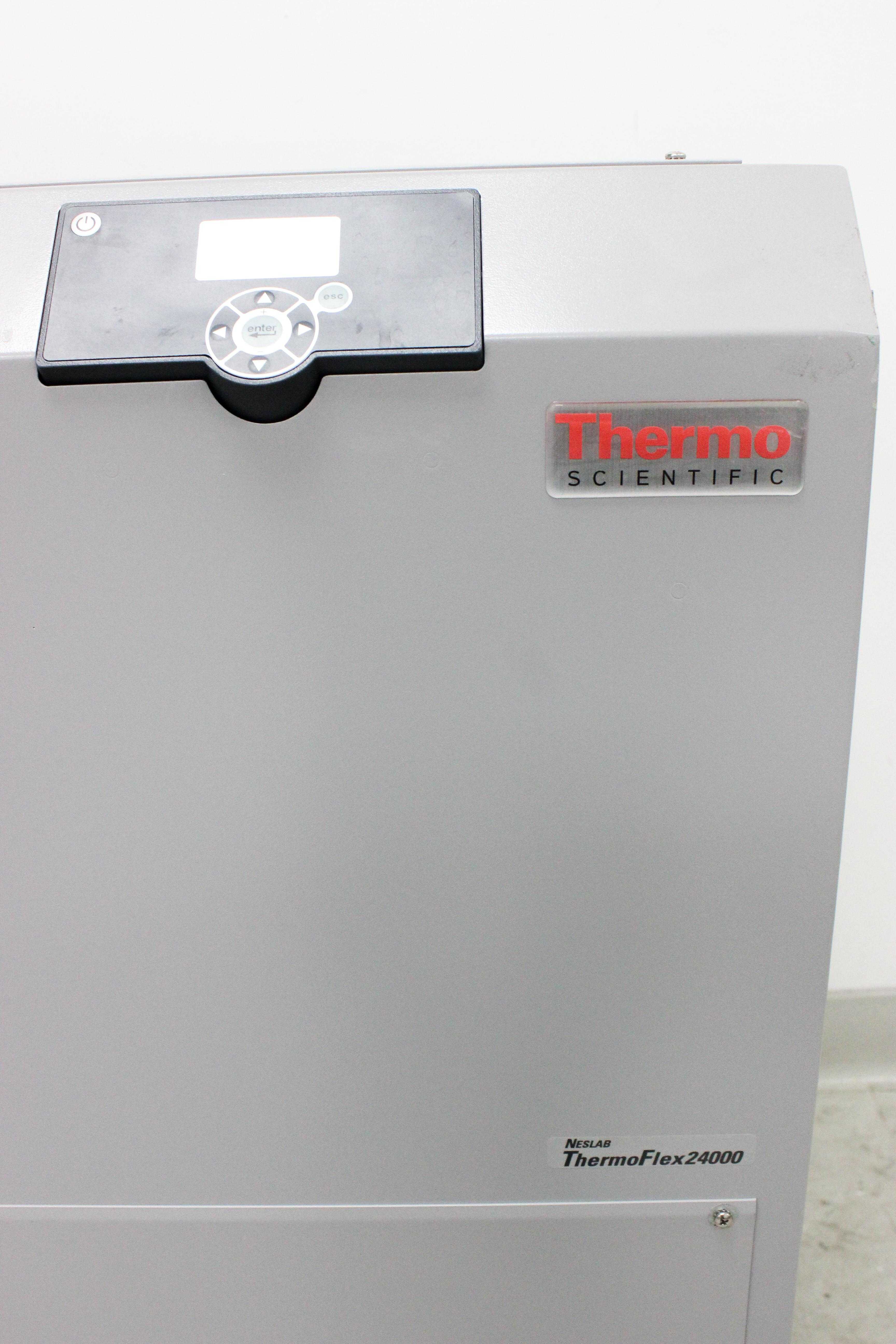

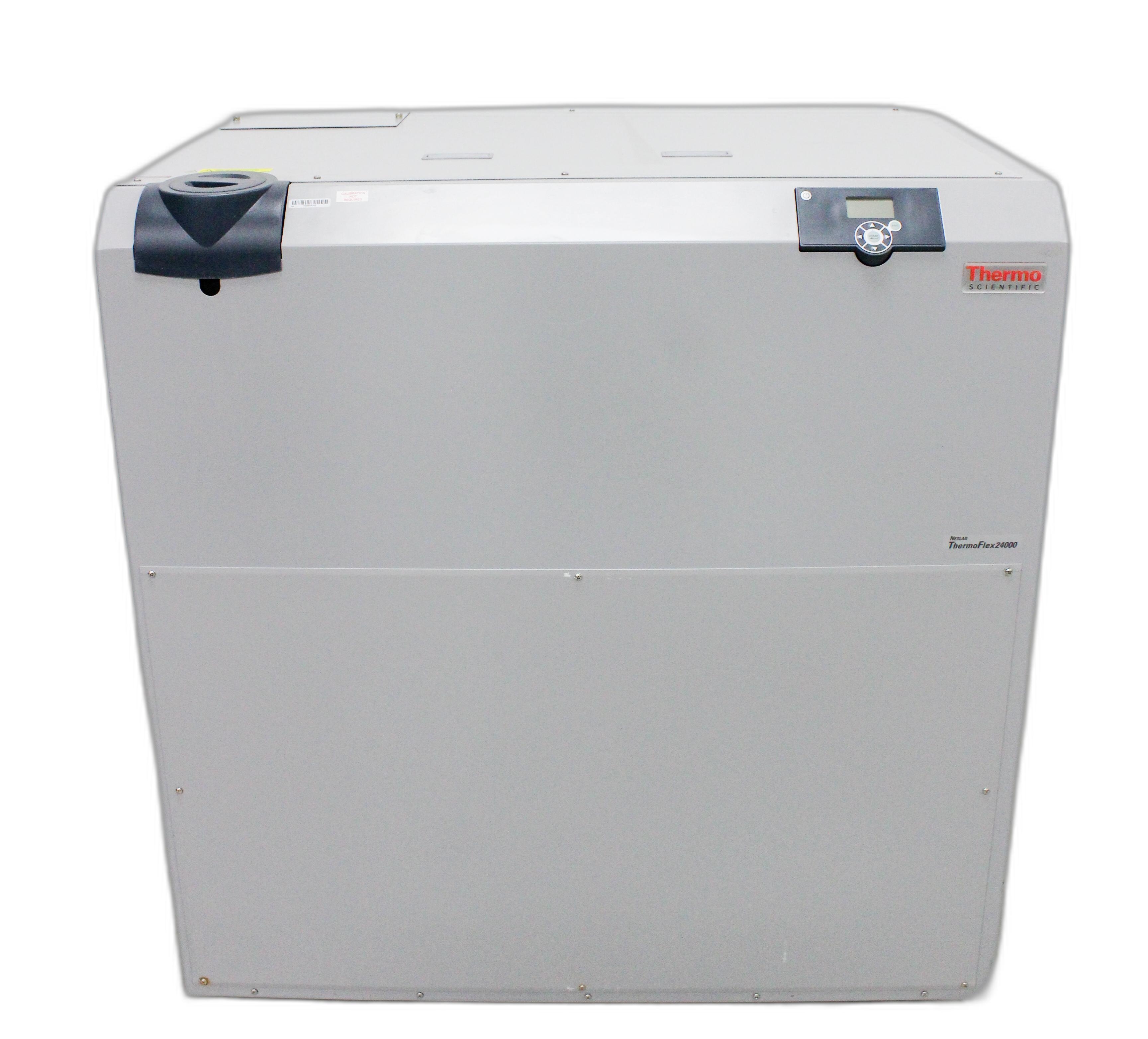

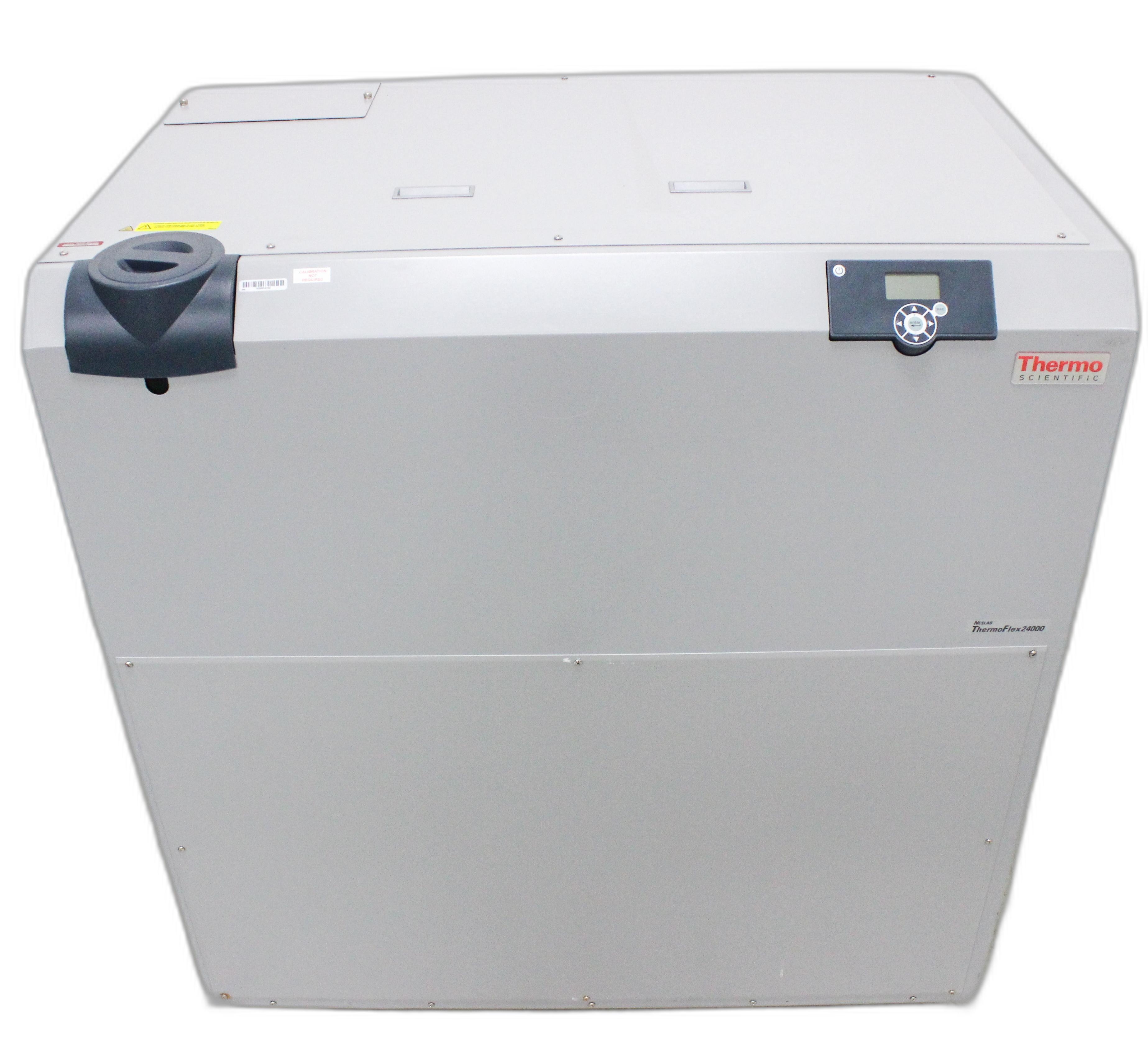

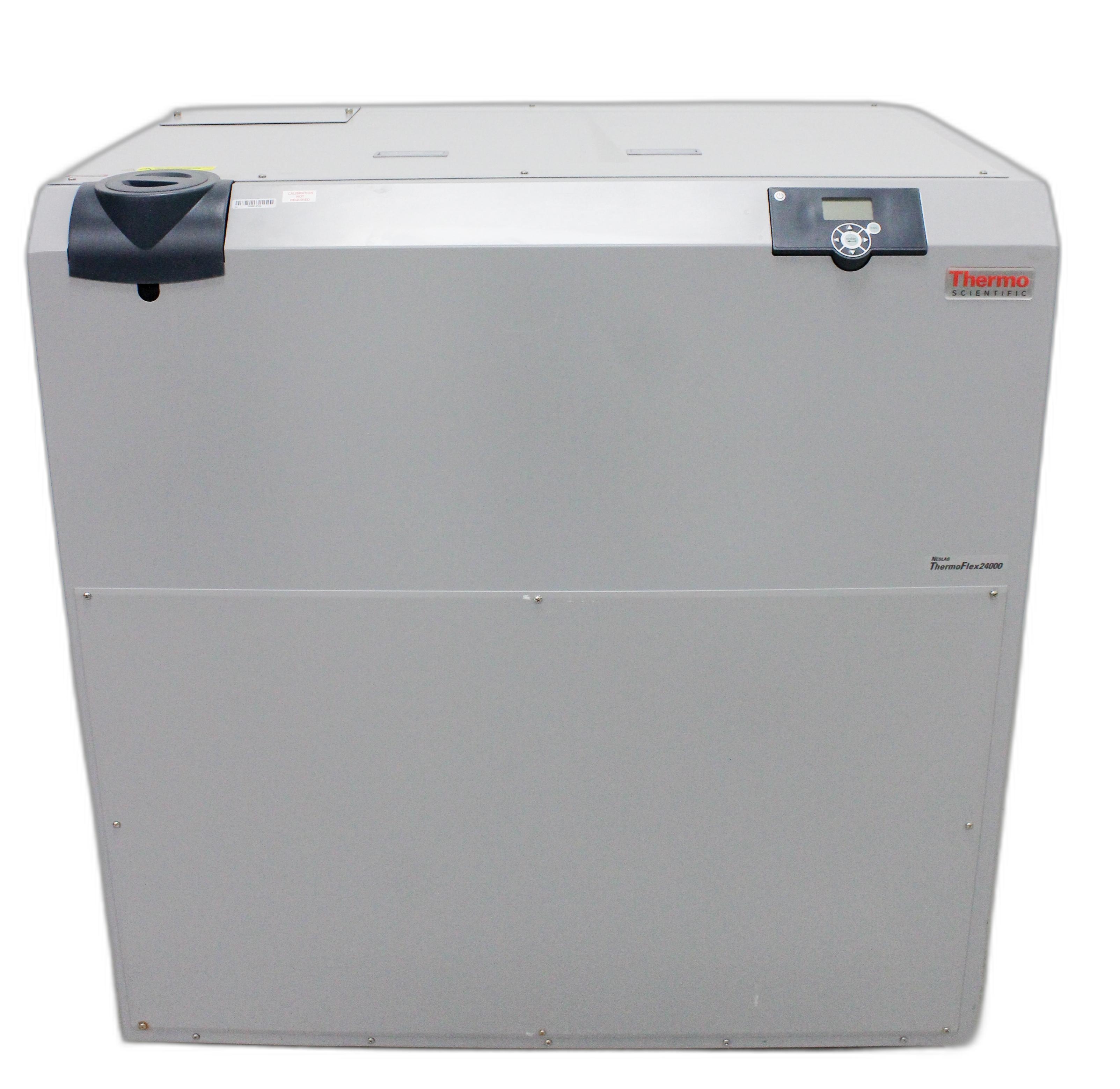

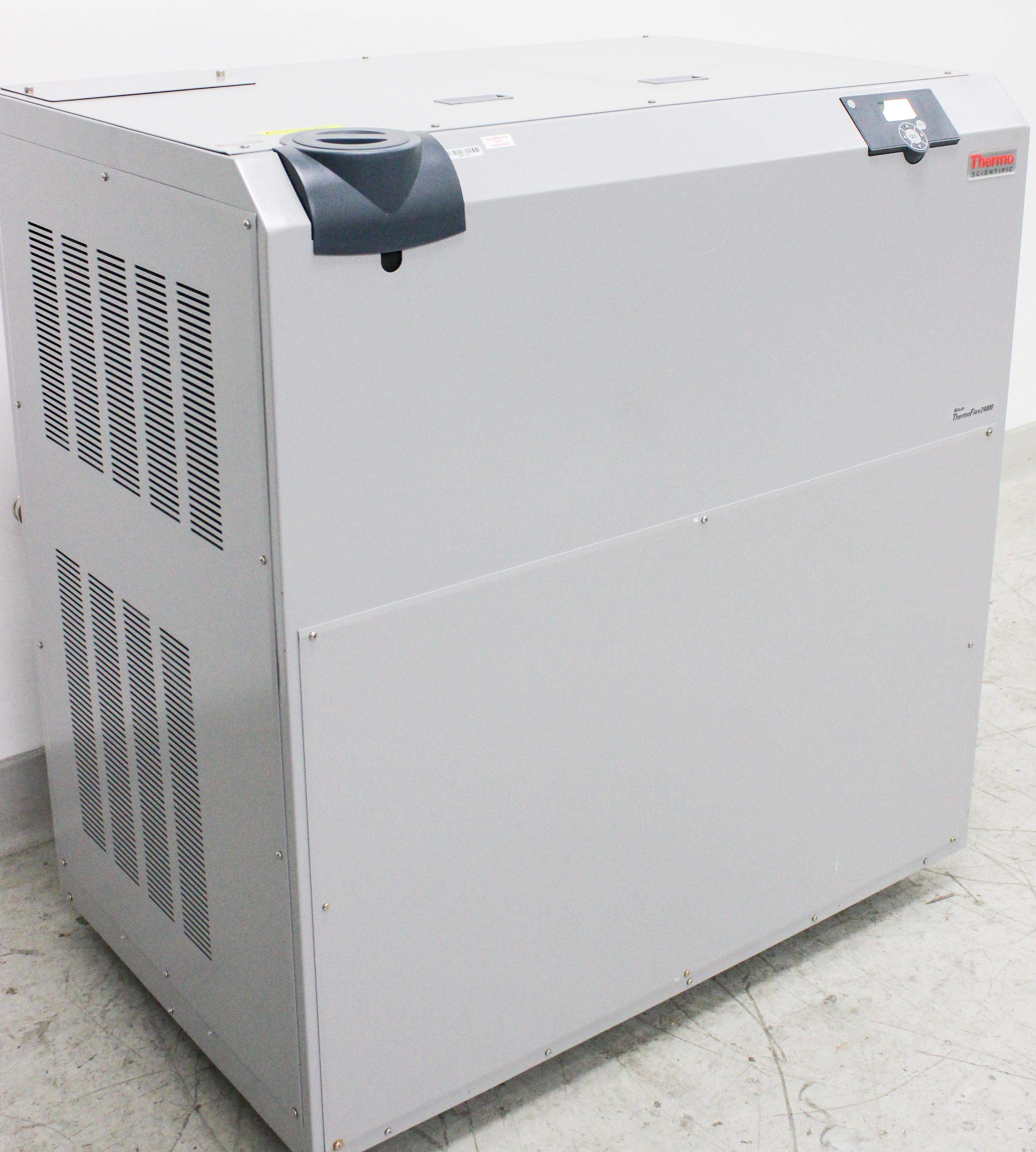

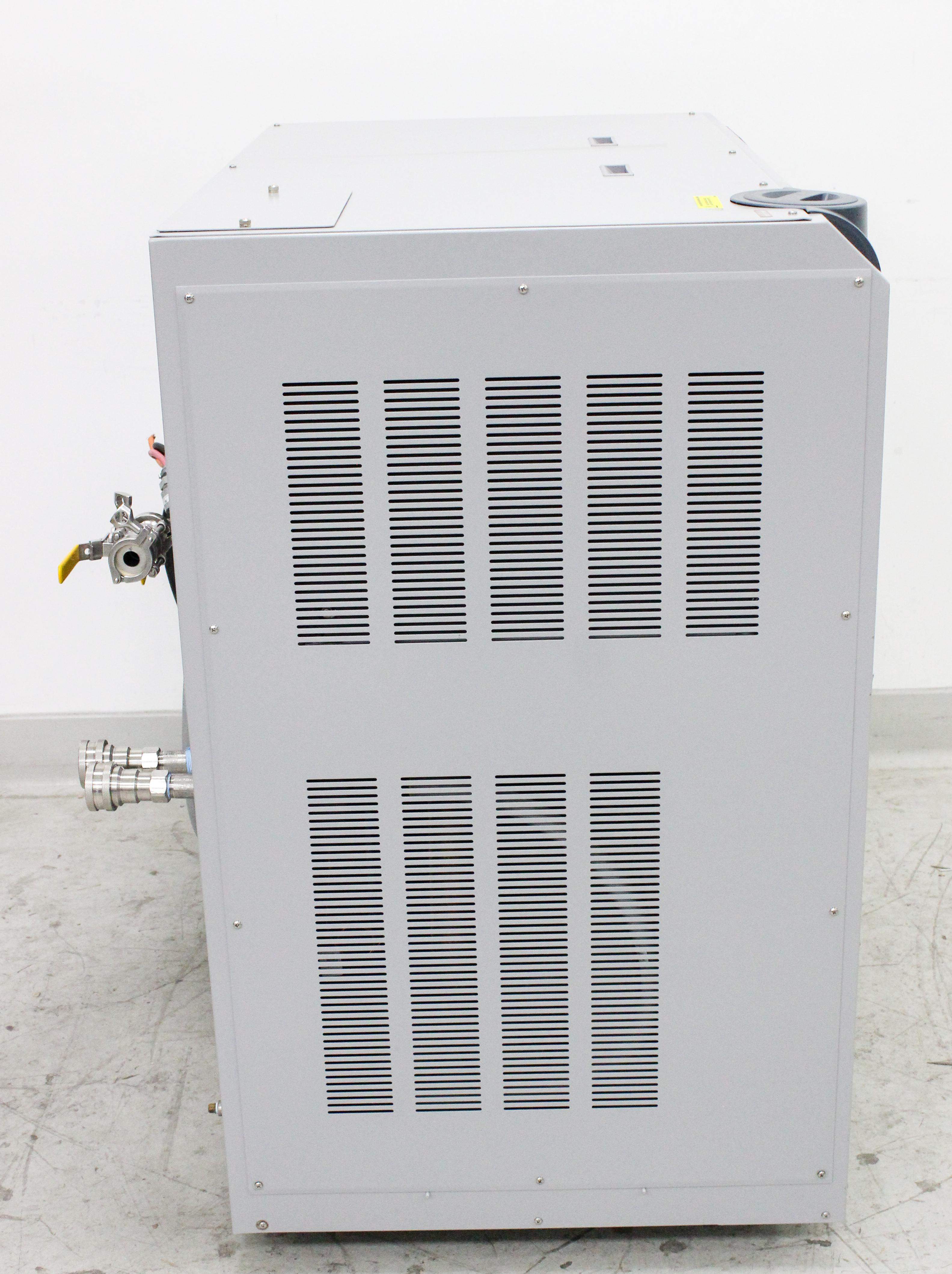

Thermo Neslab Thermoflex 24000 Chiller Recirculating System -5C to 50C
Thermo Scientific
Details
-
CategoryChiller / Heater
-
Dimension37.0in x 47.0in x 50.0in
-

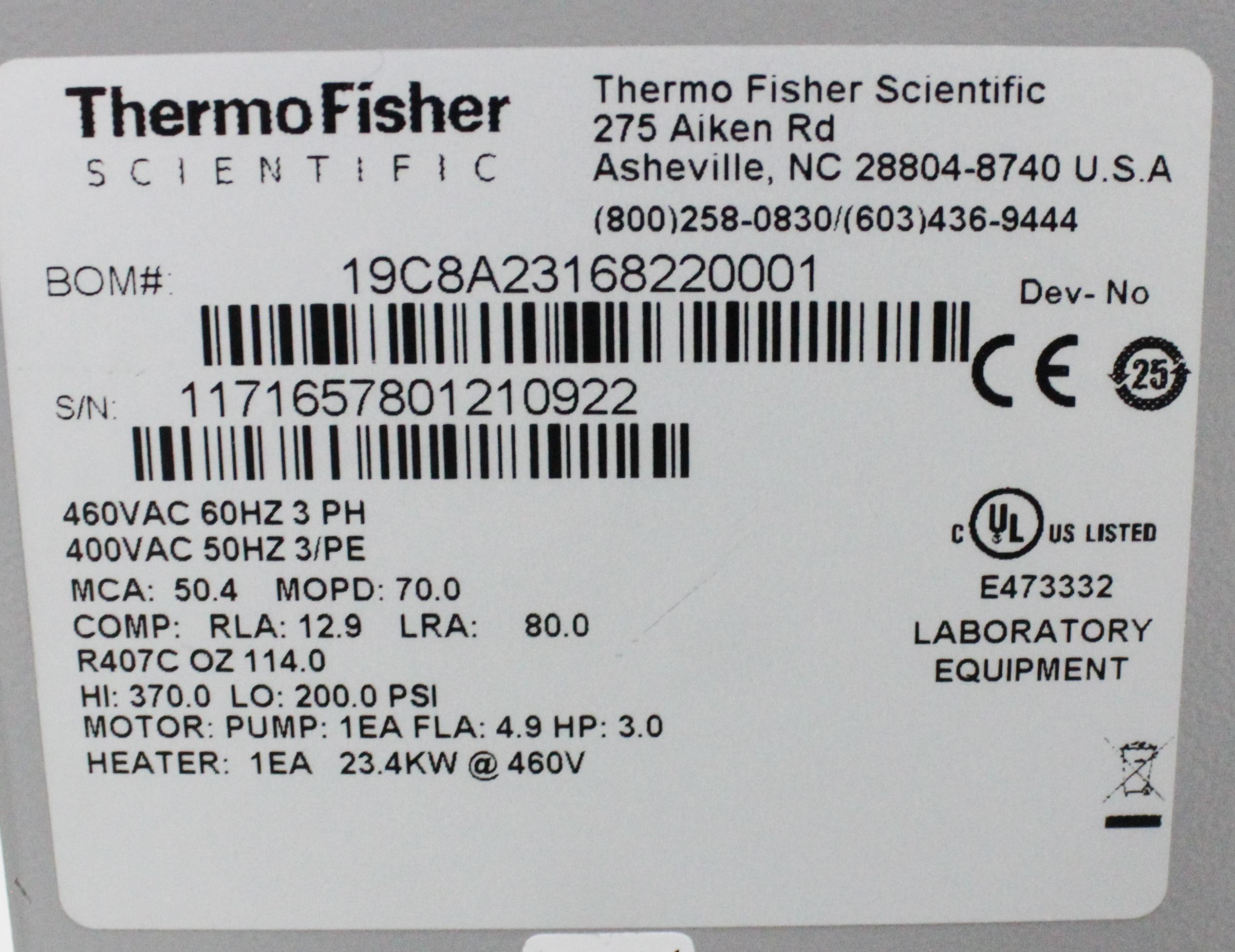

Serial1171657801210922
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz460V / 50Hz/60Hz
Description
The Thermo Neslab Thermoflex 24000 is a high-performance recirculating chiller designed for demanding industrial and scientific applications. With a cooling capacity of up to 24,000 watts (81,948 BTU/hr), it ensures reliable temperature control from -5°C to +50°C. Developed based on user feedback, the ThermoFlex series offers enhanced ease of use with an intuitive interface and the ability to change filters during operation. Offering low-noise performance below 58 dBA, these chillers are ideal for laboratories requiring a quiet and stress-free environment. The unit is in good condition and was sourced from a working environment, appearing cosmetically excellent. Although unable to be fully tested, the equipment powers on and seems to function as expected, with no known issues. Suitable for battery, aerospace, pharmaceutical, chemical, and research applications, the ThermoFlex 24000 provides flexibility with air or water-cooled condenser options and an auto-refill feature. It carries CE and CSA certifications and is recognized for its pump capacity of up to 20 gpm at 35 psig (75.7 L/min at 2.4 bar).
Technician comment
Preowned from a working environment. Unit in excellent cosmetic condition. Hardwire to power on or test 460VAC
Key Features
- Cooling capacity up to 24,000 watts
- Temperature range: -5°C to +50°C
- Low noise operation (<58 dBA)
- Air and water-cooled condenser options
- Temperature stability ±0.1°C
- Configurable design with a variety of options
Specifications
- Cooling capacity: Up to 24,000 watts (60 Hz), 21,000 watts (50 Hz)
- Temperature range: -5°C to +50°C
- Noise level: <58 dBA
- Pump capacity: Up to 20 gpm @ 35 psig (75.7 L/min @ 2.4 bar)
- Temperature stability: ±0.1°C
- Condenser type: Air or water-cooled
- Certifications: CE, CSA Semi S2
- Communications: Analog & Digital (available)
- Configuration options: Fluid filtration (included), DI support (available), Auto Refill (available)
Weight
Imperial: 660.0 Pounds
Metric: 299.37 Kilograms
Shipping Dimensions
Imperial: 44.4 lb x 56.4 lb x 60.0 lb
Metric: 112.78 cm x 143.26 cm x 152.4 cm
Harmonized Code
841869
Harmonized Code Details
841869 - Refrigerating or freezing equipment; heat pumps. This code is selected based on the equipment's function as a chiller, providing cooling and temperature regulation capabilities.
