Lauda VarioCool VC 2000 Process Thermostat -20 to 80C Temperature Control
Lauda
Details
-
CategoryChiller / Heater
-
Dimension31.0in x 18.0in x 32.0in
-

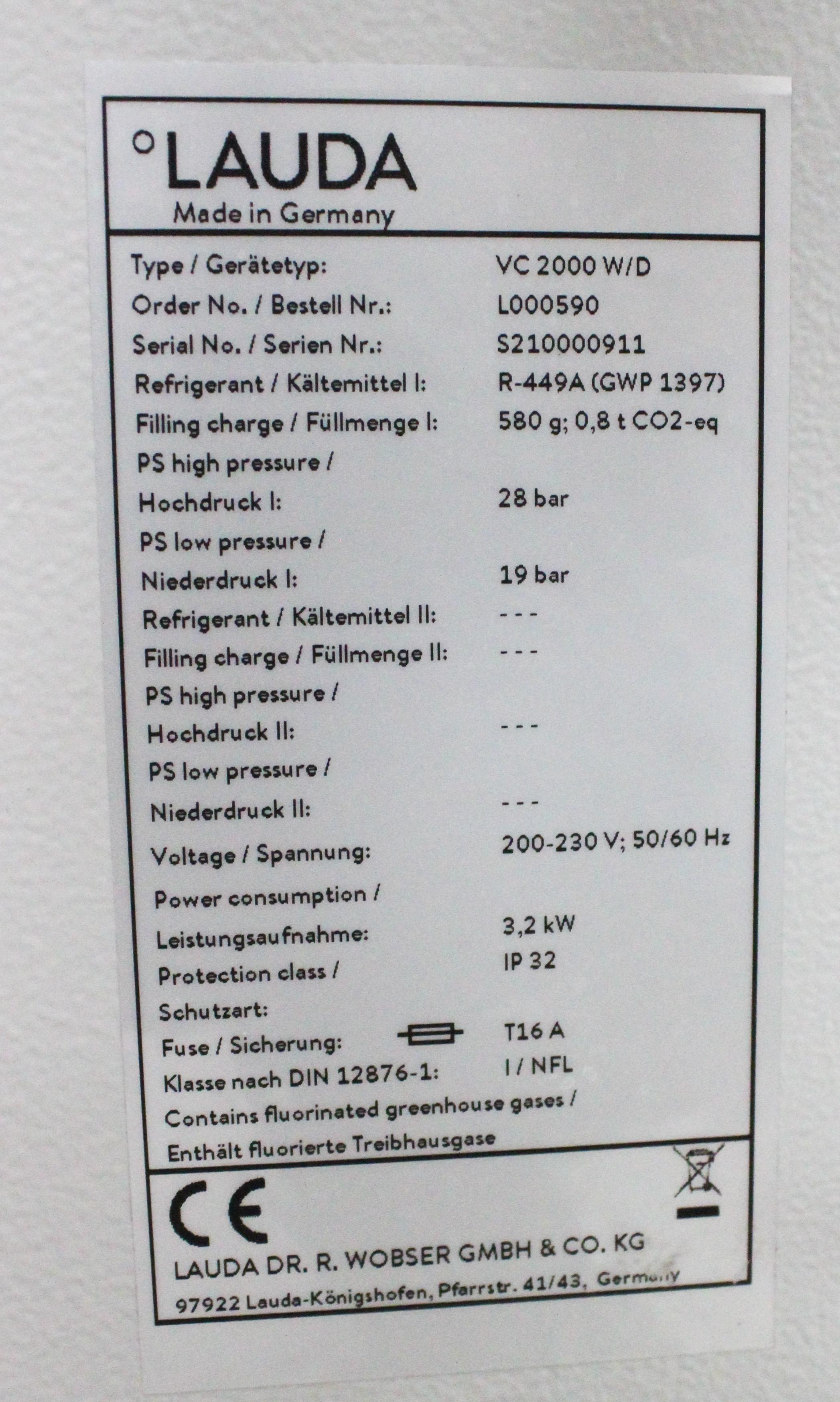

SerialS210000911
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / Hertz200-230V / 50Hz/60Hz
Description

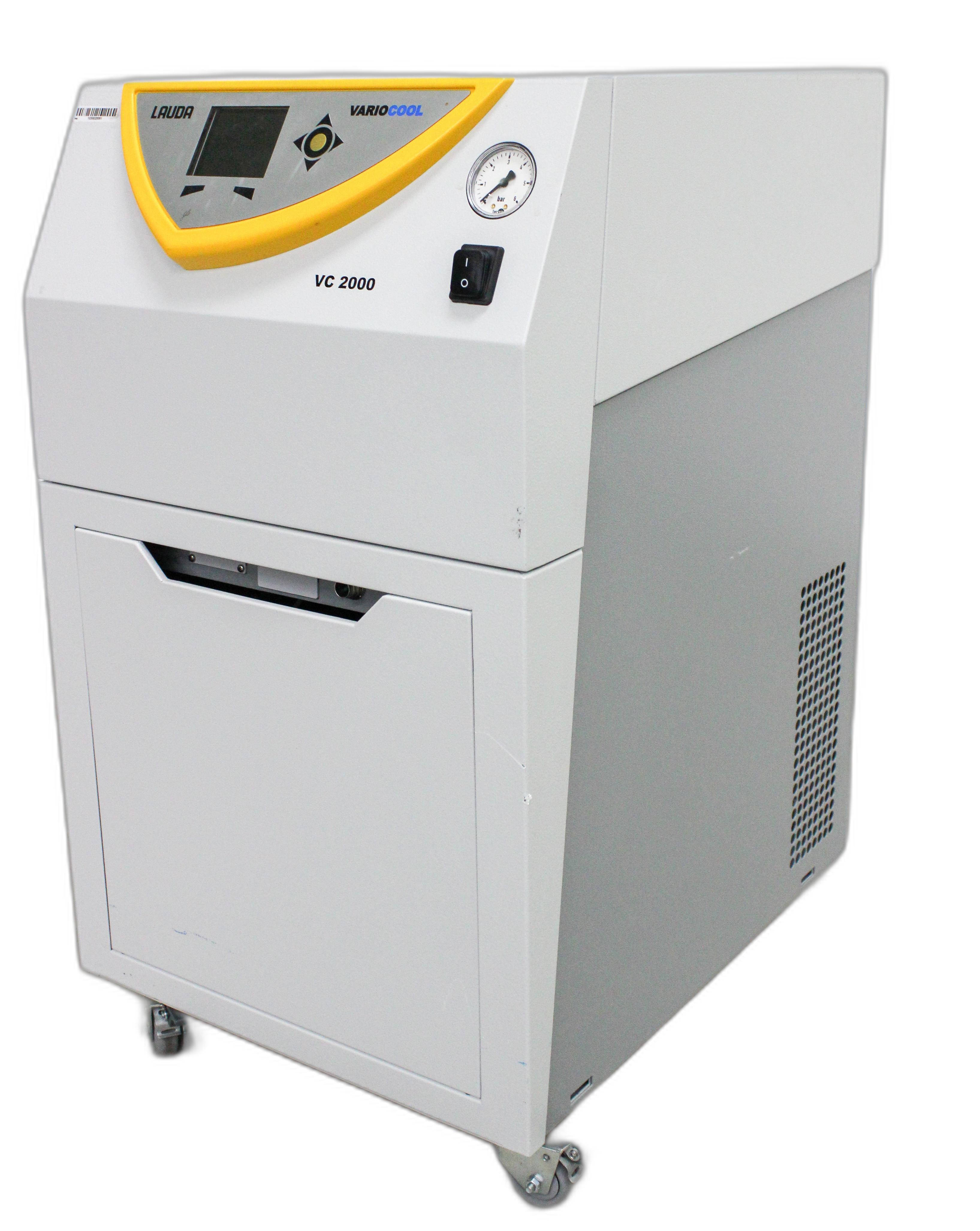

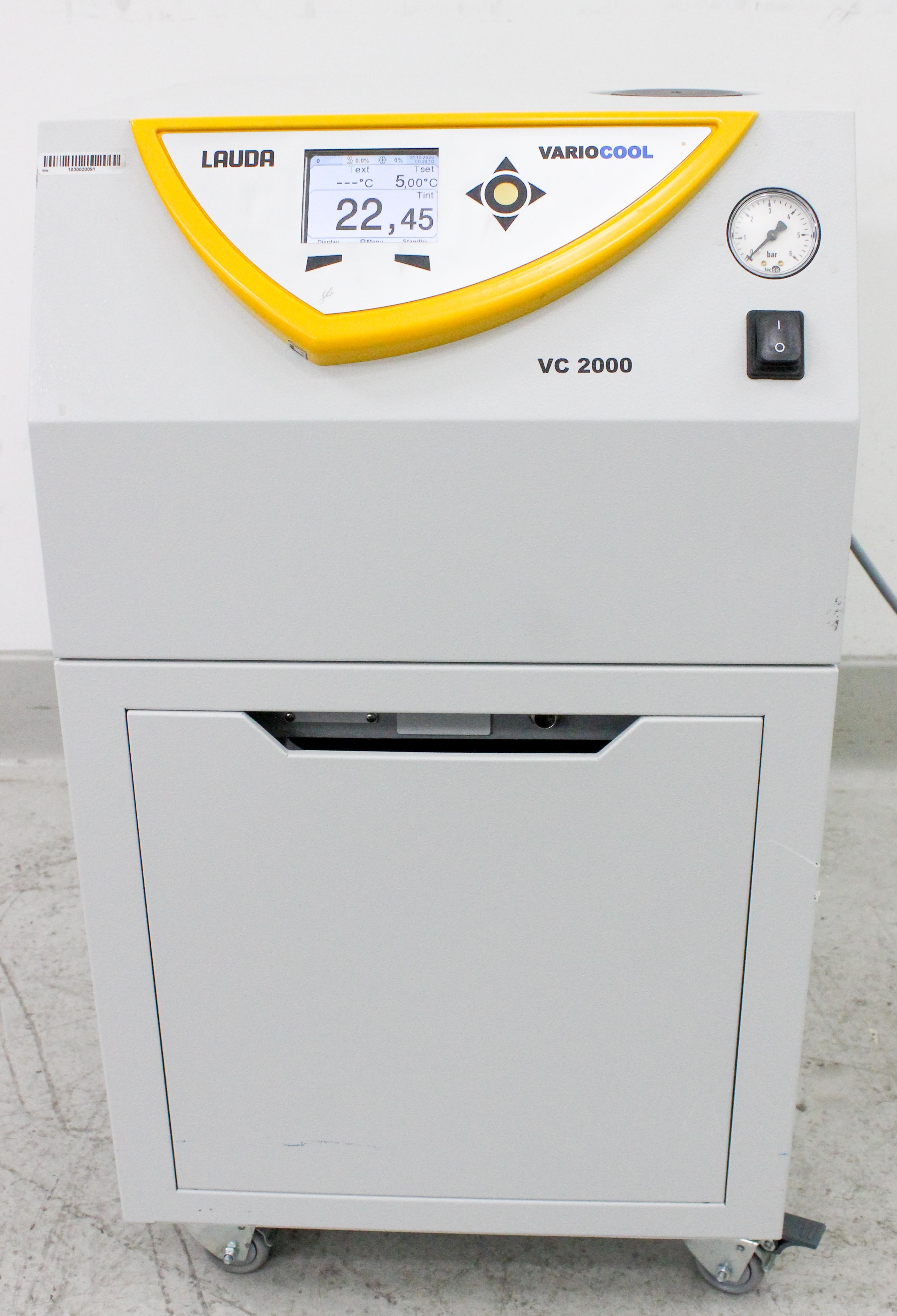

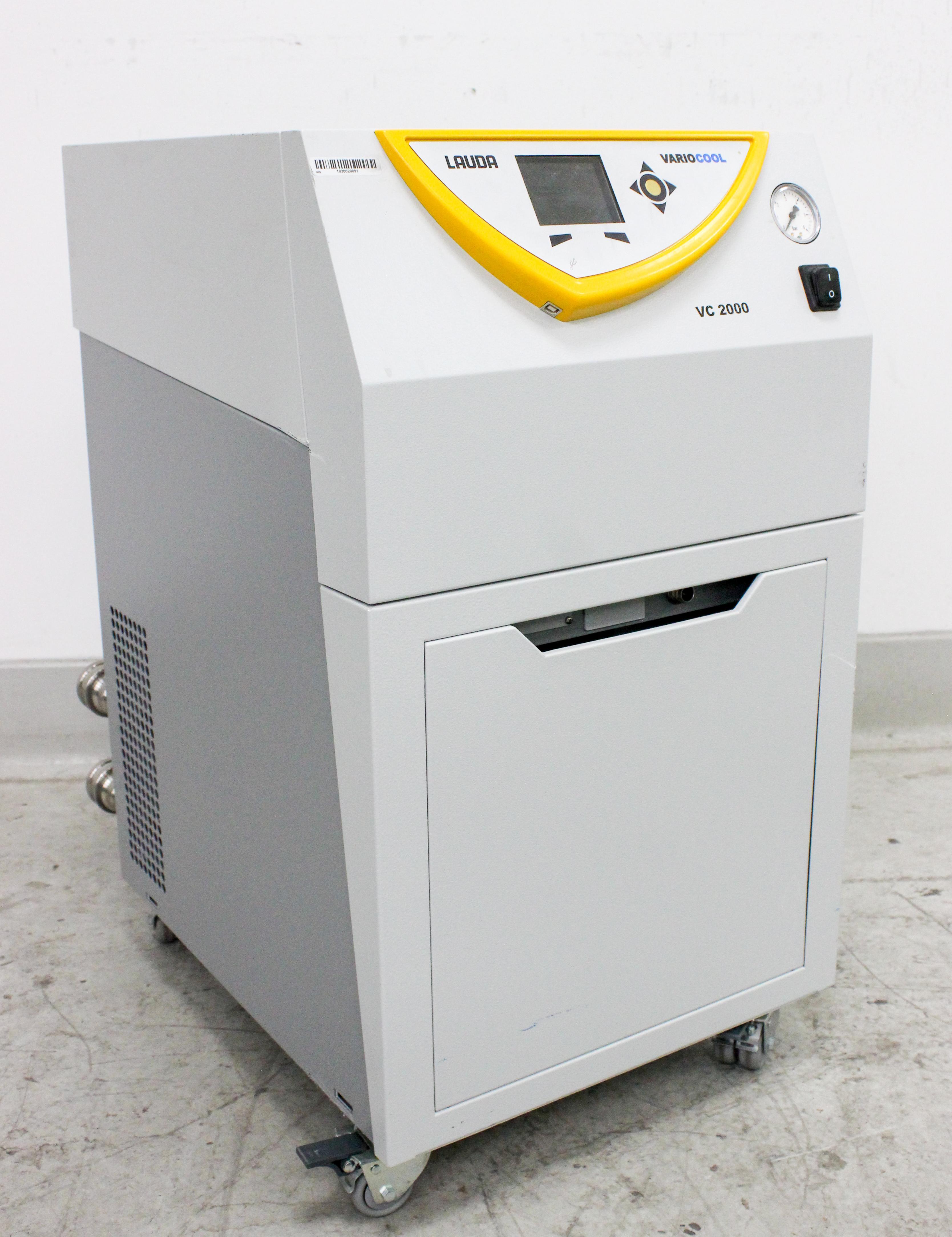

The Lauda VarioCool VC 2000 is a process thermostat designed for precise temperature control within the range of -20 to 80 °C. Manufactured by Lauda, this model is suitable for use with non-flammable heat transfer liquids and is equipped with a colored TFT display, ensuring easy monitoring and adjustment. The device features a fully electronic continuous controller with PID action and a powerful pressure pump, delivering a maximum pump pressure of 0.9 bar and flow rate of 28 L/min. This unit operates on a voltage supply of 200-230V and includes a power cord. Although we were unable to perform full testing, the thermostat powers on and passes basic operational checks with no error indications. It shows minor cosmetic wear consistent with previous use. Upgradable interface modules and remote fault indication make this model a versatile choice for laboratory and industrial processes.
Technician comment
Unit powers on and responds to basic controls. No error indicators during initial startup. Unit is preowned and was removed from a working environment, showing normal signs of use such as minor scuffs or wear.
Key Features
- Temperature range: -20 to 80 °C
- Suitable for non-flammable liquids

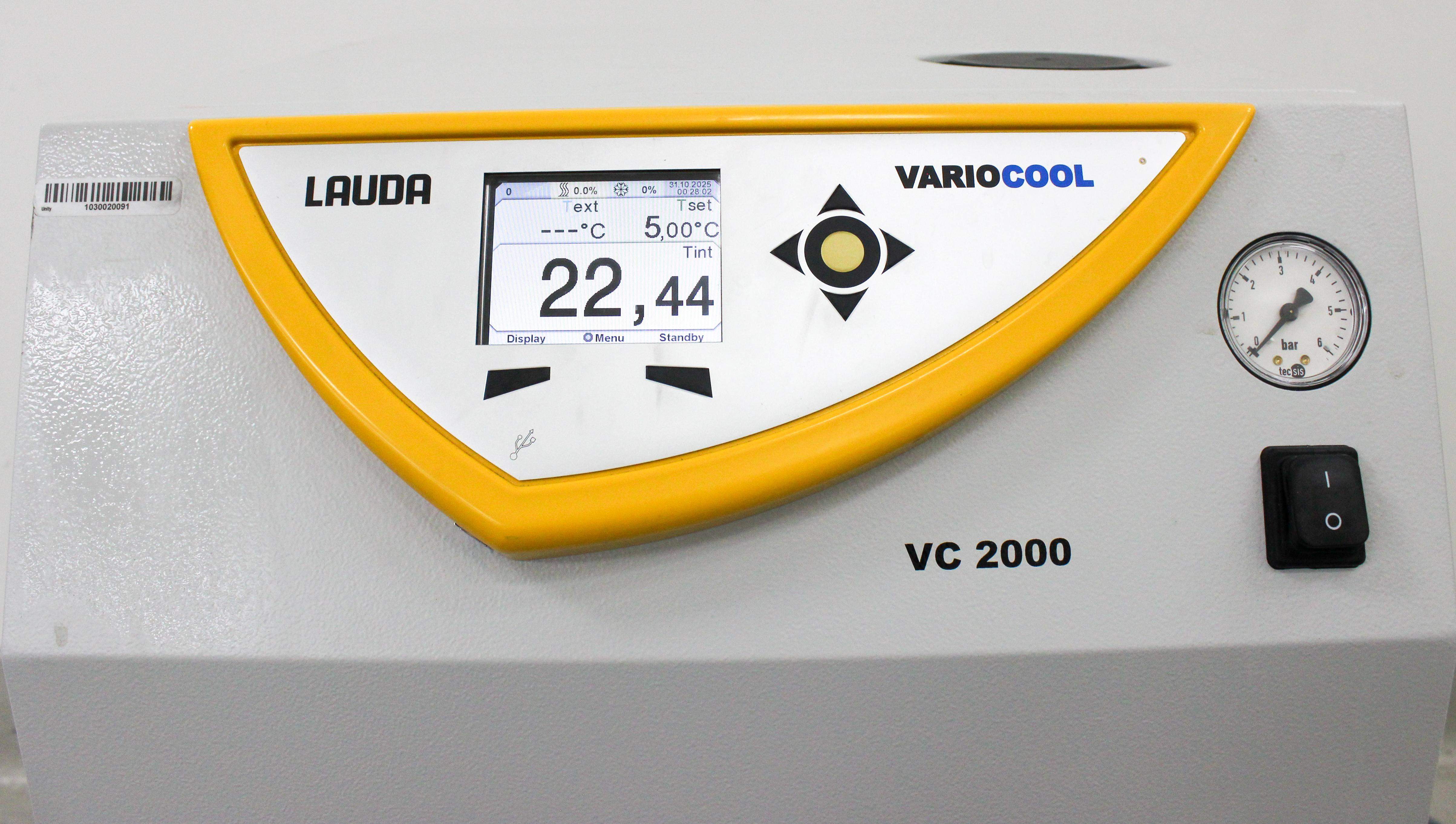

- Colored TFT display
- Electronic controller with PID action
- Powerful pressure pump
- Upgradeable interface modules
- Remote fault indication
- Energy-saving SmartCool system
Specifications
- Working temperature range: -20 ... 80 °C
- Ambient temperature range: 5 ... 40 °C
- Temperature stability: 0.05 ± K
- Heater power max.: 2.25 kW
- Power consumption max.: 3.3 kW
- Pump Pressure max.: 0.9 bar
- Pump flow rate max. (pressure): 28 L/min
- Power supply: 230 V; 50 Hz
- Overall dimensions (WxDxH): 450 x 550 x 650 mm
- Weight: 63 kg
- Filling volume max.: 15 L
- Refrigerant stage 1: R-449A
Weight
Imperial: 192.0 Pounds
Metric: 87.09 Kilograms
Shipping Dimensions
Imperial: 37.2 lb x 21.6 lb x 38.4 lb
Metric: 94.49 cm x 54.86 cm x 97.54 cm
Harmonized Code
841989
Harmonized Code Details
841989 - Machinery, plant or laboratory equipment; industrial, n.e.s. in heading no. 8419, for heating or cooling. This category applies to temperature control equipment such as process thermostats, making it the most appropriate code for the Lauda VarioCool VC 2000.
