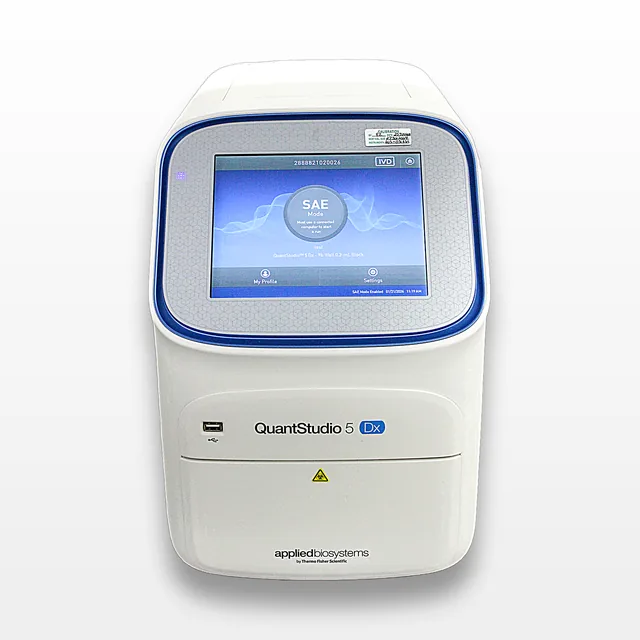

ABI QuantStudio 5 DX Real-Time PCR Instrument 96-Well 0.2mL Block
Used and in working order based on our intake inspection. It has not been through full performance testing, so please confirm it suits your application. Normal signs of prior use.
Applied Biosystems
Details
-
CategoryPCR Equipment
-
Dimension20.0in x 11.0in x 16.0in
-
Serial2888821020026
-
Shipping TypeFedEx Ground
-
Manufacturing2021-02-01
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
Applied Biosystems QuantStudio 5 DX Real-Time PCR Instrument is a benchtop real-time PCR system for molecular diagnostics and qPCR testing. This unit is configured with a 96-well 0.2 mL block and is designed for real-time PCR workflows in clinical and laboratory settings. Features described for this model include a fixed thermal block, Peltier heating and cooling, 6 VeriFlex zones, touchscreen interface, and security, audit, and e-signature functionality. Specifications provided for this unit include 10-100 uL reaction volume, 4-99.9C temperature range, 6.5C/sec maximum block ramp rate, 100-240v, and 50Hz/60Hz. This pre-owned unit is in good condition and in working order based on intake inspection, with normal signs of prior use. It includes the power cord. Computer, software, power/data cables, service records, software CDs/files, and user manuals are not included. The instrument is operating in SAE mode with Guest user access only, and administrative settings cannot be accessed without the required six-digit administrator PIN. Manufacture date: 2021-02-01. 30-Day Warranty On Part. Please contact REUZEit with any warranty questions before purchase. Listed dimensions, weight and HS code may differ from the actual item; final dimensions and HS code are confirmed before shipping.
Technician comment
The QuantStudio 5 Dx was powered on and successfully passed the Self Verification Test. The instrument is operating in SAE mode and is restricted to Guest user access. Administrative settings cannot be accessed without the required six-digit administrator PIN, preventing changes to system settings and the creation of an administrator profile. Further testing and configuration could not be completed due to these access restrictions. Administrator credential recovery is required for full access and functionality verification.
Key Features
- Benchtop real-time PCR system
- 96-well 0.2 mL block format
- Fixed thermal block
- Peltier heating and cooling
- 6 VeriFlex temperature zones
- Touchscreen interface
- Security, audit, and e-signature functionality
Specifications
- Block Format: 96-well 0.2-mL block
- Reaction Volume: 10-100 uL
- Temperature Range: 4-99.9C
- Maximum Block Ramp Rate: 6.5C/sec
- Average Sample Ramp Rate: 3.66C/sec
- Temperature Uniformity: 0.4C
- Excitation Source: Bright white LED
- Detection System: 6 decoupled filters, CMOS camera
- Excitation/Detection Range: 450-680 nm/500-730 nm
- Multiplexing: 5-plex + 1 passive reference, 6-plex with no passive reference
- Independent Temperature Zones: 6 VeriFlex zones (5C zone to zone)
- Chemistries: Fast and standard
- Run Time: <30 min
- Compatible Dyes: FAM, SYBR Green, VIC, ABY, NED, TAMRA, JUN, ROX, Mustang Purple, Cy5
- Thermal Block Style: Fixed
- Touchscreen Size: 8.5 inch
- Voltage: 100-240v
- Frequency: 50Hz/60Hz
- Manufacture Date: 2021-02-01
Weight
Imperial: 60.0 Pounds
Metric: 27.22 Kilograms
Shipping Dimensions
Imperial: 24.0 in x 13.2 in x 19.2 in
Metric: 60.96 cm x 33.53 cm x 48.77 cm
Harmonized Code
902750
Harmonized Code Details
other instruments using light: plate readers, real-time PCR systems, flow cytometers, gel and cell imagers. This item is a real-time PCR instrument with optical detection for qPCR analysis.
