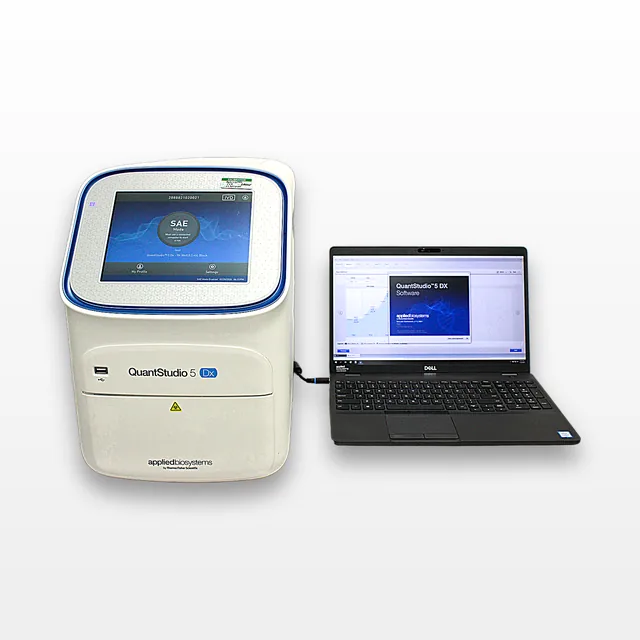

Applied Biosystems QuantStudio 5 DX PCR Instrument 96-Well Block Includes Computer
Used and in working order based on our intake inspection. It has not been through full performance testing, so please confirm it suits your application. Normal signs of prior use.
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension20.0in x 11.0in x 16.0in
-
Serial2888821020021
-
Shipping TypeFedEx Ground
-
Manufacturing2021-02-01
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
The Applied Biosystems QuantStudio 5 DX Real-Time PCR Instrument (96-Well 0.2mL Block) is a reliable tool designed for clinical and hospital labs. Manufactured in 2021, this preowned unit is in good condition, capable of powering on and completing basic self-tests. It features a medium throughput with a fixed 96-well thermal block and VeriFlex heat blocks for precision temperature control. The bundle includes a Dell laptop pre-installed with QuantStudio5Dx_v1.1.0 software, enhancing operational efficiency. Ideal for molecular diagnostics, it boasts a compact design, user-friendly touchscreen, and regulatory compliance features such as security and e-signature functionalities. Calibration is recommended for optimal performance. Note: Required power and data cables are not included.
Technician comment
QuantStudio 5 DX (96-well, 0.2 mL block, REF A47324) powers on and passes all internal self-tests. The system includes a Dell laptop with QuantStudio5Dx_v1.1.0 software installed. Calibration is due at this time. The unit is preowned and was sourced from a working laboratory environment.
Key Features
- 96-Well 0.2mL Block
- Includes Computer with Software
- VeriFlex Temperature Zones
- Multiplexing Capabilities
- Interactive Touchscreen
- Compact Design
- Compliance with 21 CFR Part 11
Specifications
- 96-well 0.2-mL block for reaction volumes of 10–100 μL
- Bright white LED as excitation source
- CMOS camera with 6 decoupled filters
- Excitation/detection range: 450–680 nm/500–730 nm
- Multiplexing: 5-plex + 1 passive reference, 6-plex without passive reference
- Maximum block ramp rate: 6.5°C/sec
- Temperature range: 4–99.9°C with 0.4°C uniformity
- Heating and cooling via Peltier with 6 independent VeriFlex zones
- Compatible with dyes like FAM, SYBR Green, VIC, etc.
- Instrument size: 40 x 27 x 50 cm, weight: 27 kg
- Attached computer required
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 13.2 lb x 19.2 lb
Metric: 60.96 cm x 33.53 cm x 48.77 cm
Harmonized Code
902750
Harmonized Code Details
902750: Instruments and apparatus for physical or chemical analysis. Selected due to the nature of the real-time PCR instrument used for molecular diagnostics and analysis.
