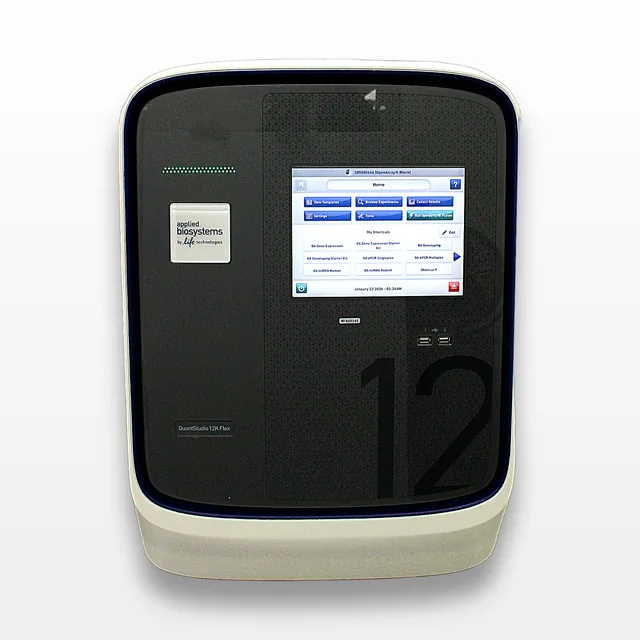

ABI QuantStudio 12K Flex Real-Time PCR System, 96-384-Well Capability
Applied Biosystems
Details
-
CategoryMolecular Biology
-
Dimension26.0in x 20.0in x 28.0in
-
Serial285880666
-
Shipping TypeFreight
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
The Applied Biosystems QuantStudio 12K Flex Real-Time PCR System (Model: QuantStudio 12K Flex Real-Time PCR System, Ref: 4470661) is a versatile and comprehensive instrument ideal for real-time PCR applications. It's designed to streamline your workflow with its interchangeable block formats, accommodating 96-well, FAST 96-well, 384-well, TaqMan array cards, and OpenArray plates for maximum throughput of up to 12,000 data points in a single run. This system features enhanced OptiFlex technology for improved fluorescence detection. It offers seamless integration with Thermo Fisher Cloud for robust data management. The device powers on and completes self-test operations without any errors but requires further validation for complete accuracy. Suitable for various applications, including gene expression, SNP genotyping, and digital PCR. Note: Computer and additional software are not included.
Technician comment
QuantStudio 12K Flex powers on and completes initialization, with the onboard self-test passing and no errors reported. Instrument interface and status indicators respond normally. System will need to be validated/calibrated to ensure accurate results. See photos for details.
Key Features
- Interchangeable block formats: 96-well, FAST 96-well, 384-well, TaqMan array cards, OpenArray plates
- Enhanced OptiFlex system for fluorescence detection
- Compatible with Thermo Fisher Cloud for data storage and analysis
- Supports a range of applications: gene expression, SNP genotyping, digital PCR
- Onboard memory for up to 100 experiments
- Remote monitoring capability
Specifications
- Block Options: 96-well (standard), 96-well (Fast), 384-well, TaqMan® Array Card, OpenArray® plate (4 plates)
- Sensitivity: Down to 1 copy
- Dynamic Range: 9 logs of linear dynamic range
- Calibrated Dyes: FAM, SYBR, VIC, ROX, NED, TAMRA
- Detection Method: SYBR, primer-probe detection
- Resolution: Detect changes as little as 1.5-fold
- Reaction Volume Range: 10–100 µL (96-well standard), 15–30 µL (96-well Fast), 5–20 µL (384-well), ~1 µL (TaqMan Array Card), 33 nL (OpenArray Plate)
- Optics: 6 excitation filters (450–670 nm), 6 emission filters (500–720 nm)
- Temperature Range: 4–99.9°C
- Run Time: 2 hr (standard mode) ~35 min (Fast mode)
- Temperature Accuracy: ±0.25°C (between 35°C and 95°C)
- Thermal Cycling System: Peltier-based
Weight
Imperial: 180.0 Pounds
Metric: 81.65 Kilograms
Shipping Dimensions
Imperial: 31.2 lb x 24.0 lb x 33.6 lb
Metric: 79.25 cm x 60.96 cm x 85.34 cm
Harmonized Code
9027.80.1020
Harmonized Code Details
9027.80.1020 - Instruments and apparatus for physical or chemical analysis, for measuring or checking viscosity, porosity, expansion, surface tension or the like. Reason for use: align with laboratory and pharmaceutical analytical equipment specific to PCR systems.
