Thermo Scientific DAD-3000RS Diode Array Detector 200 Hz HPLC/UHPLC
Thermo Scientific
Details
-
CategoryAnalytical
-
Dimension20.0in x 17.0in x 6.0in
-
Serial8099084
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description

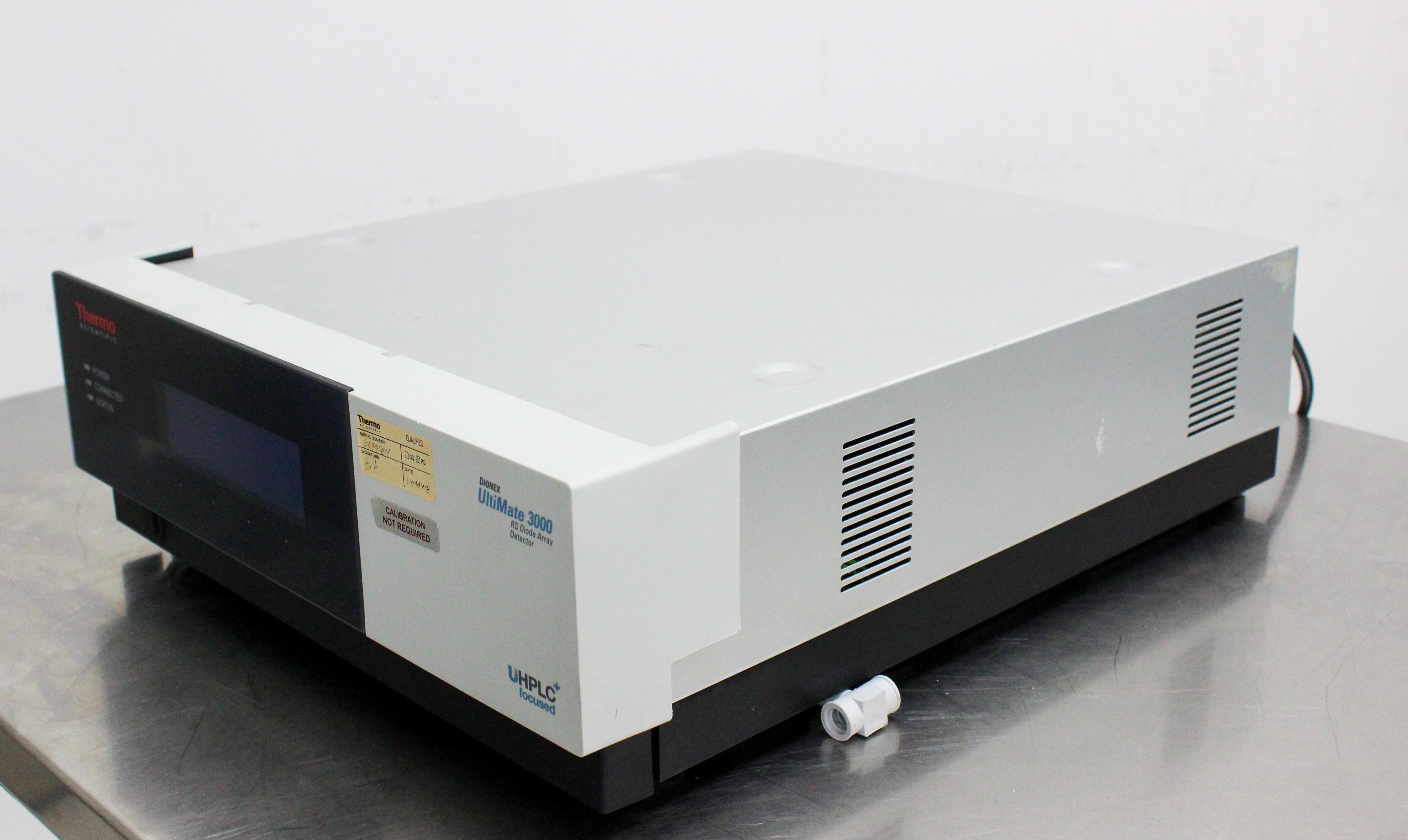

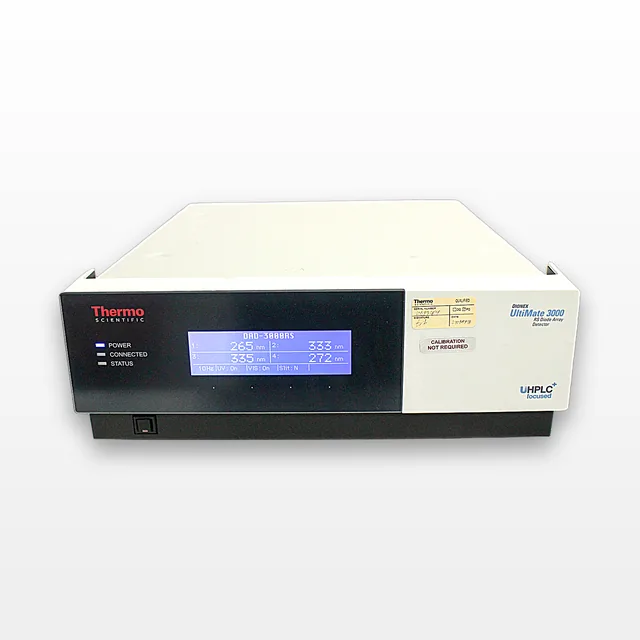

The Thermo Scientific Dionex UltiMate 3000 RS Diode Array Detector, model DAD-3000RS, is engineered for advanced liquid chromatography applications. This preowned unit from 2008 features a rapid separation diode array for full spectral acquisition, supporting both HPLC and UHPLC systems with a remarkable data rate of up to 200 Hz. Equipped with an eight-channel single-wavelength detector and 1024-element diode array, it ensures optimal noise and drift performance. The system hosts features like automatic instrument qualification, front access prealigned cells and lamps, and ID chips for lamp and cell parameters. This unit is perfect for method development labs needing spectral data from novel compounds. It is in good condition, powers on, and performs basic tests with no functionality concerns. Note: This item includes a power cord but not a computer or software for full verification.
Technician comment
Dionex UltiMate 3000 DAD-3000RS powers on and initializes without error, with UV/VIS functions responding normally. Connection to chromatography software is required for full testing and verification, which is not included. This is a preowned detector sourced from a working laboratory environment.
Key Features
- Full spectral acquisition at 200 Hz
- Supports HPLC and UHPLC applications
- 8 channels of single-wavelength detection
- 1024-element diode array
- Low noise and drift performance

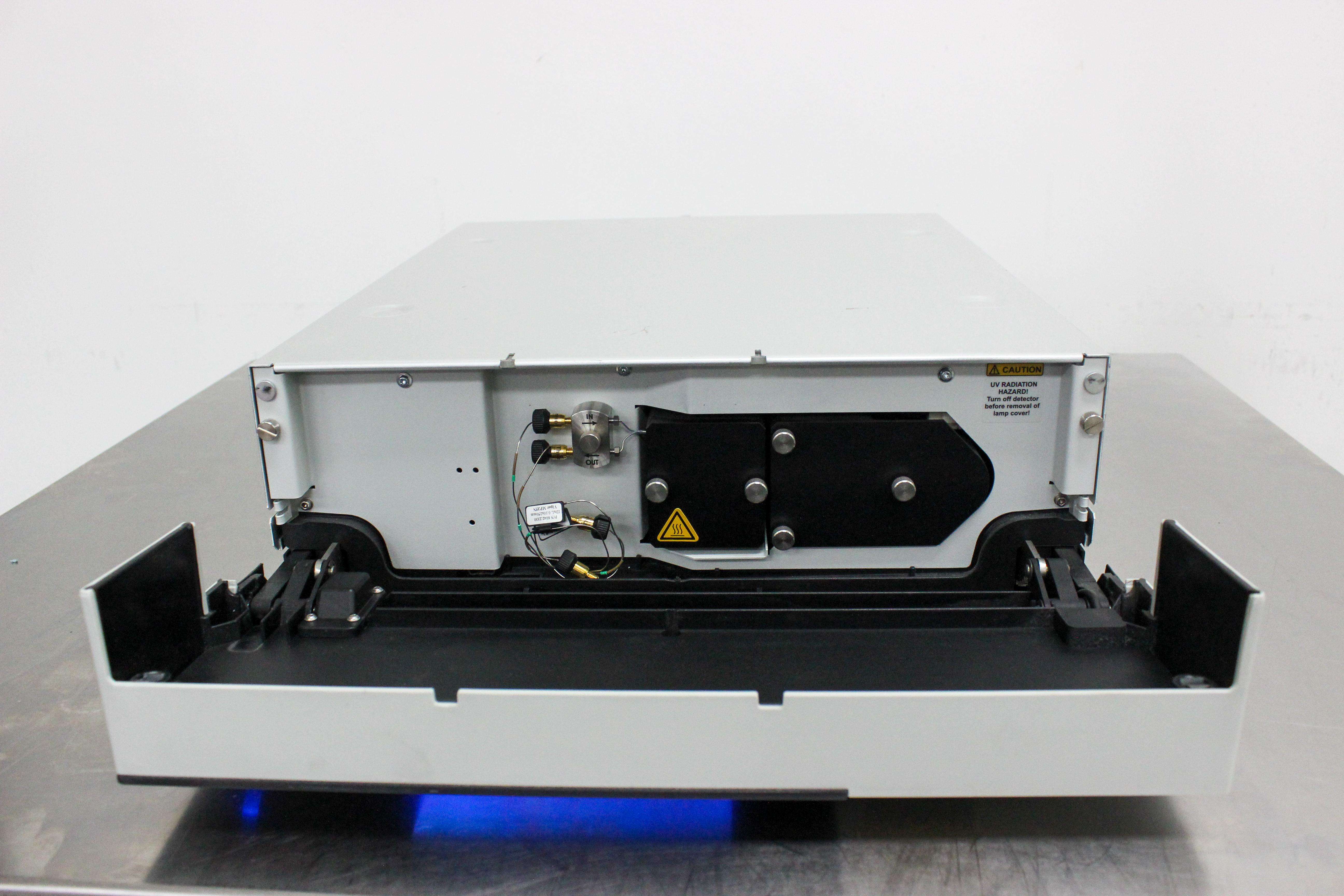

- Front access prealigned cells and lamps
- Automatic instrument qualification
Specifications
- Detection Mode: UV-vis Detection (8 Channels)
- Data Collection Rate: 200 Hz Max
- Drift: <1 mAU/hr
- Noise: <±8 μAU

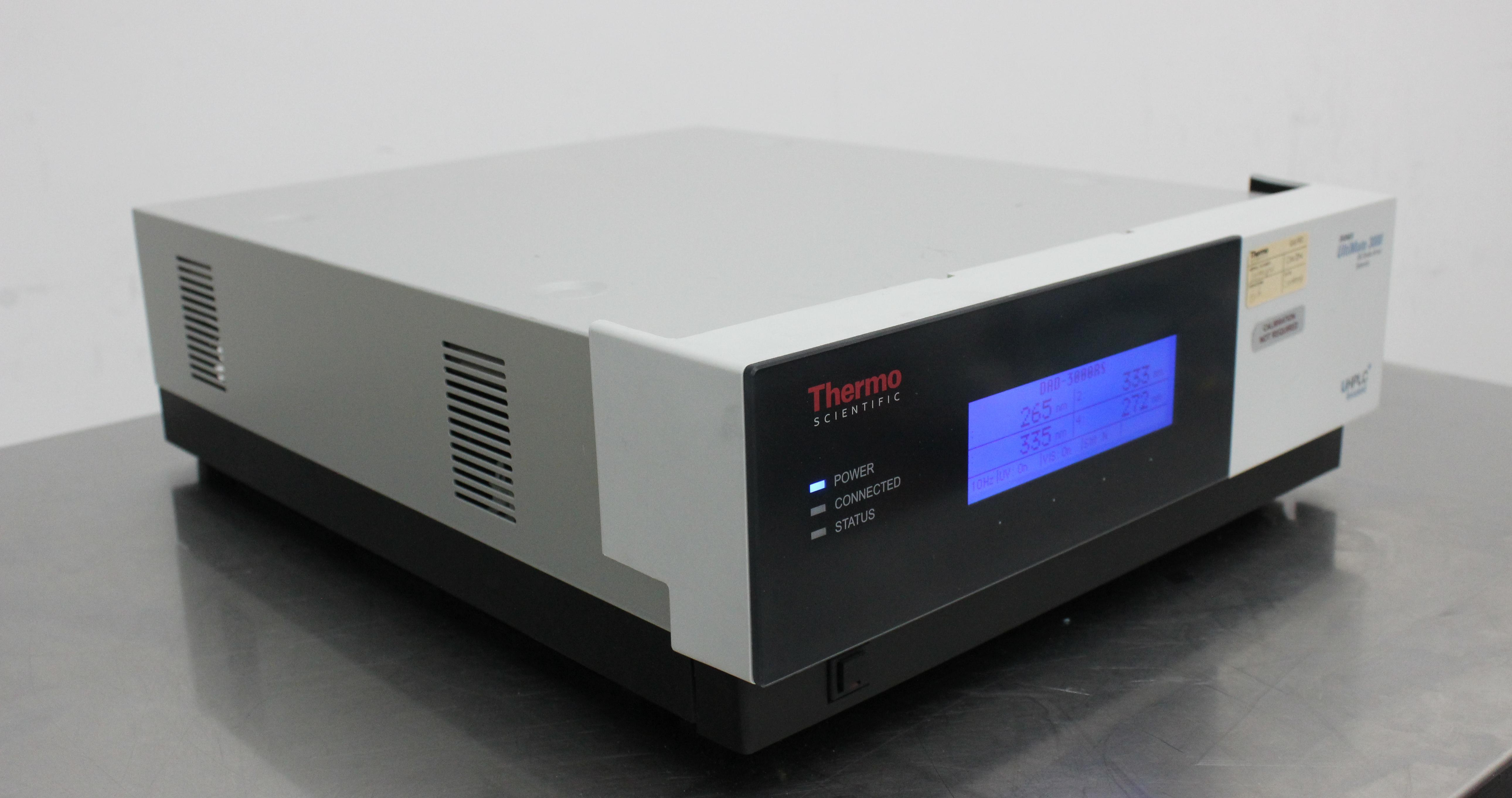

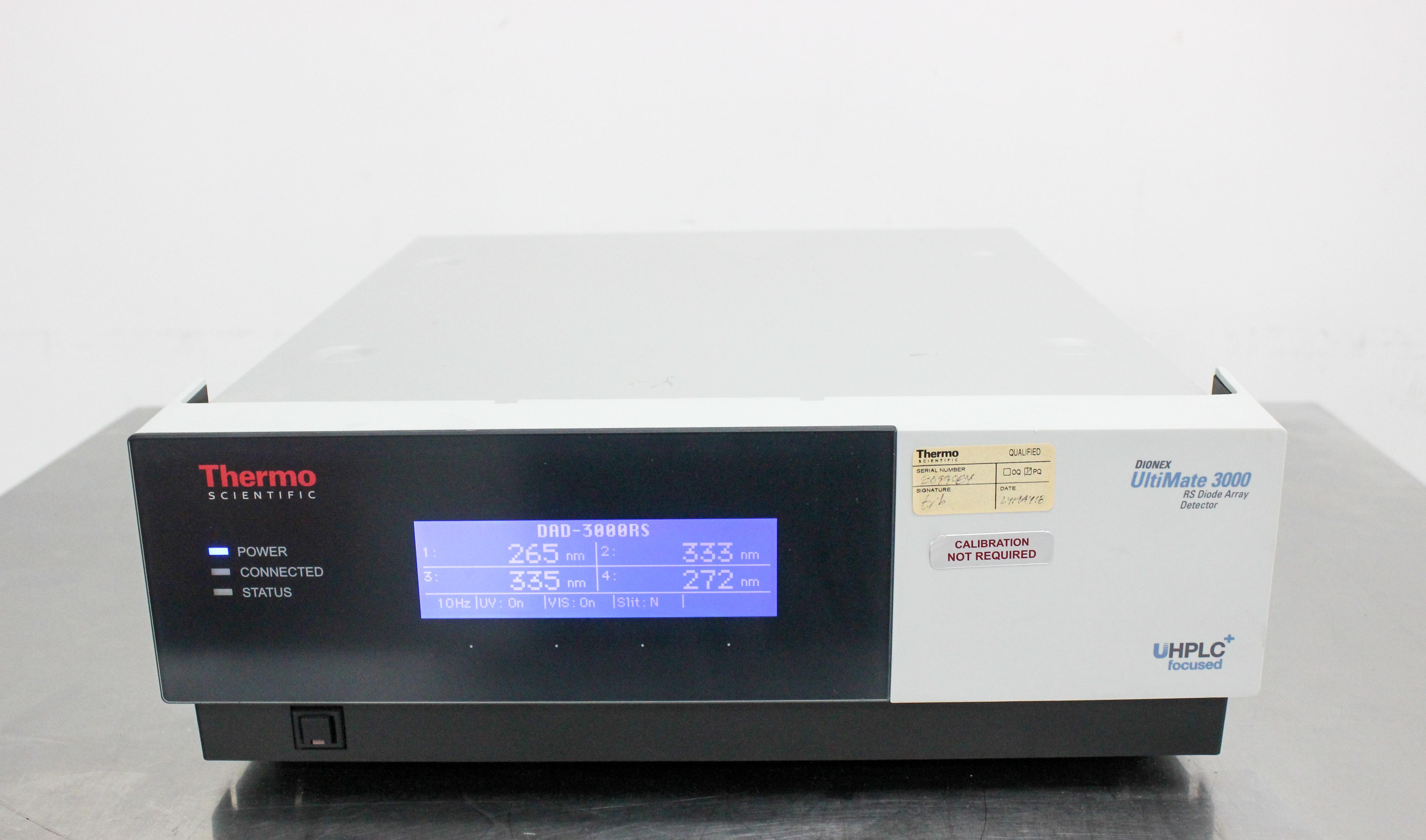

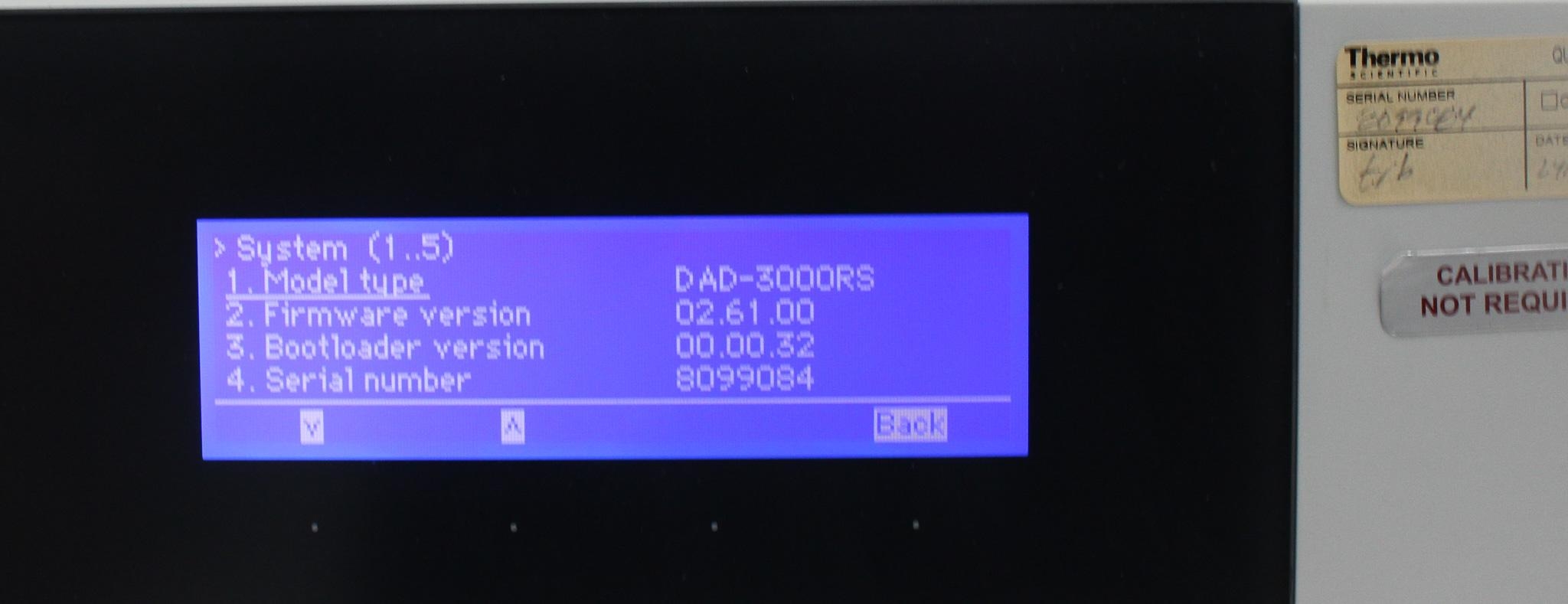

- Display: LCD Monitor

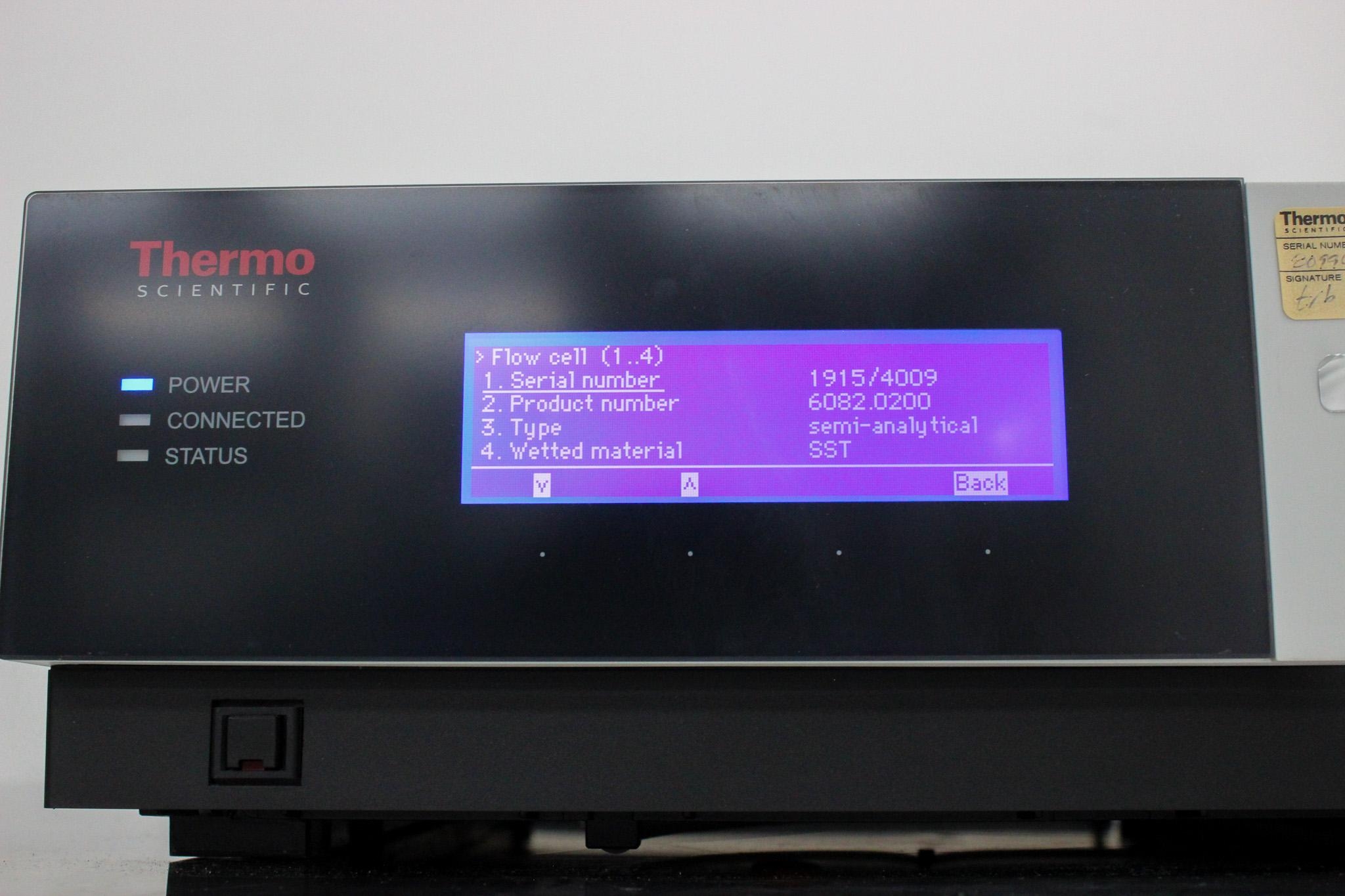

- Flow Cell: Various, order separately
- GLP Features: AutoQ, System Wellness with Chromeleon Software
- Lamp: Deuterium, Tungsten
- Linearity: <3% RSD

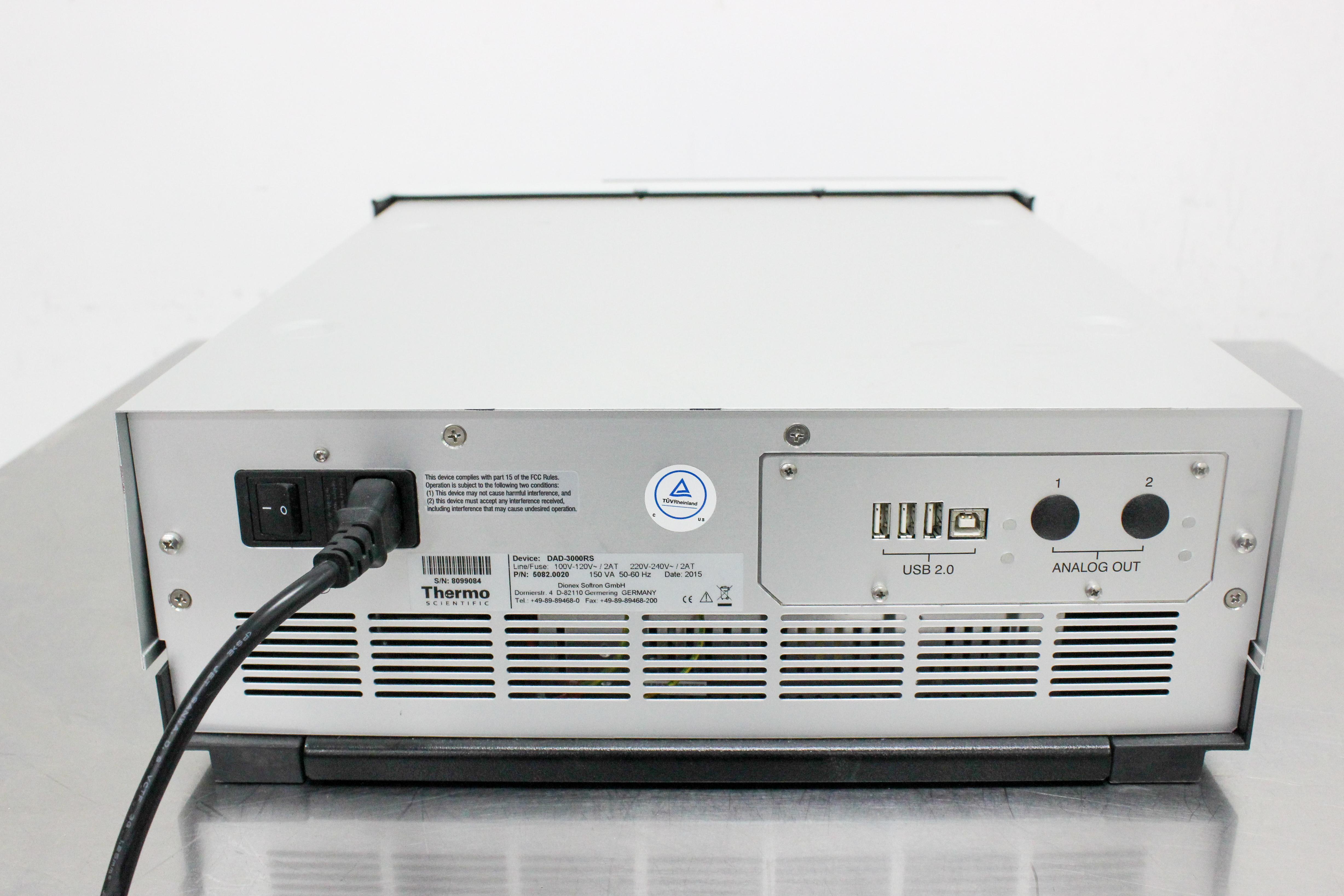

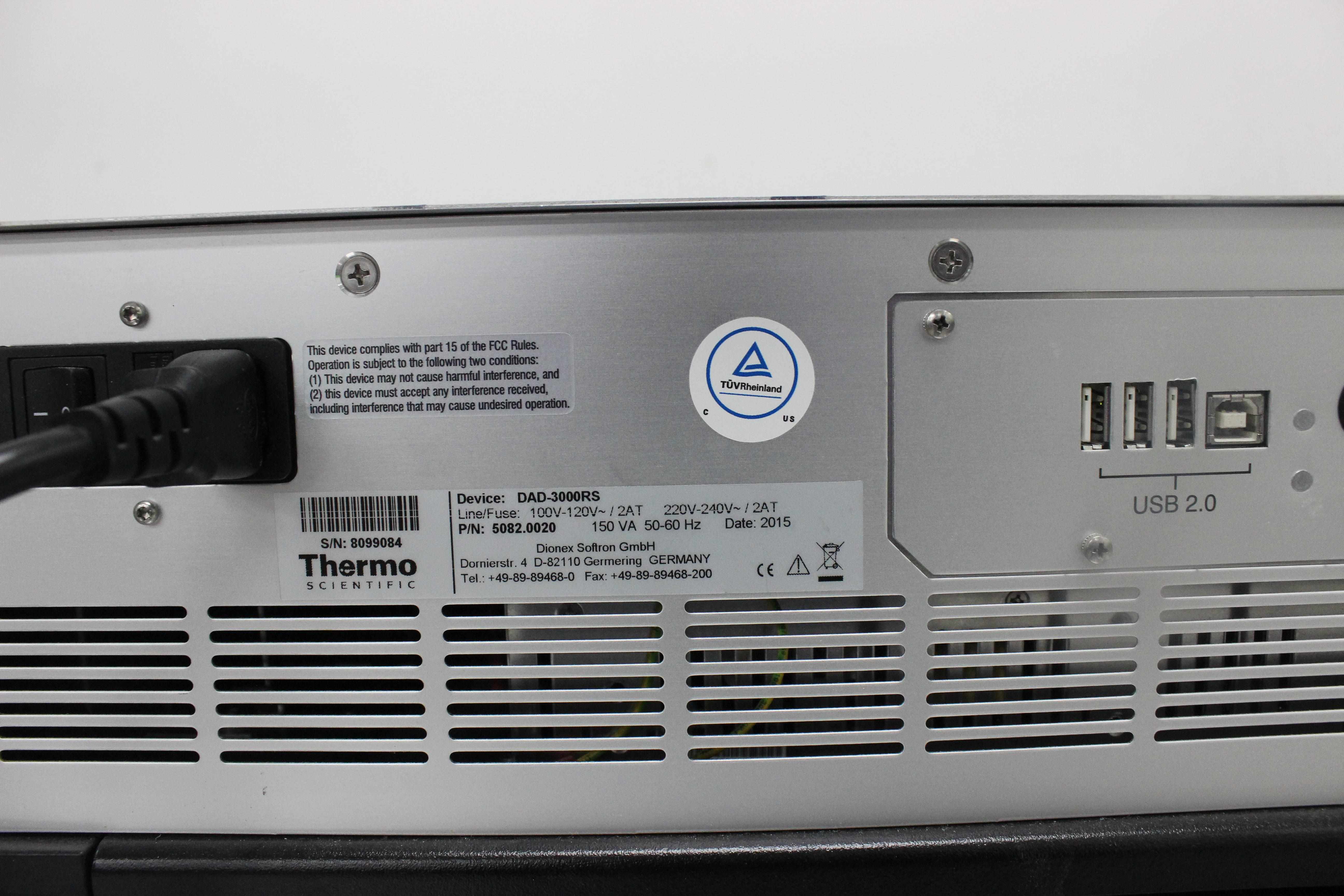

- PC Connection: USB
- Wavelength Range: 190 to 800 nm
- Voltage: 85 to 260 V
- Response: 2 Sec
- Temperature Control: Yes
Weight
Imperial: 50.4 Pounds
Metric: 22.86 Kilograms
Shipping Dimensions
Imperial: 24.0 lb x 20.4 lb x 7.2 lb
Metric: 60.96 cm x 51.82 cm x 18.29 cm
Harmonized Code
9027500000
Harmonized Code Details
9027500000 - Spectrometers, spectrophotometers, and spectrographs using optical radiations. This code is appropriate due to the detector's use of UV-vis detection for liquid chromatography.
