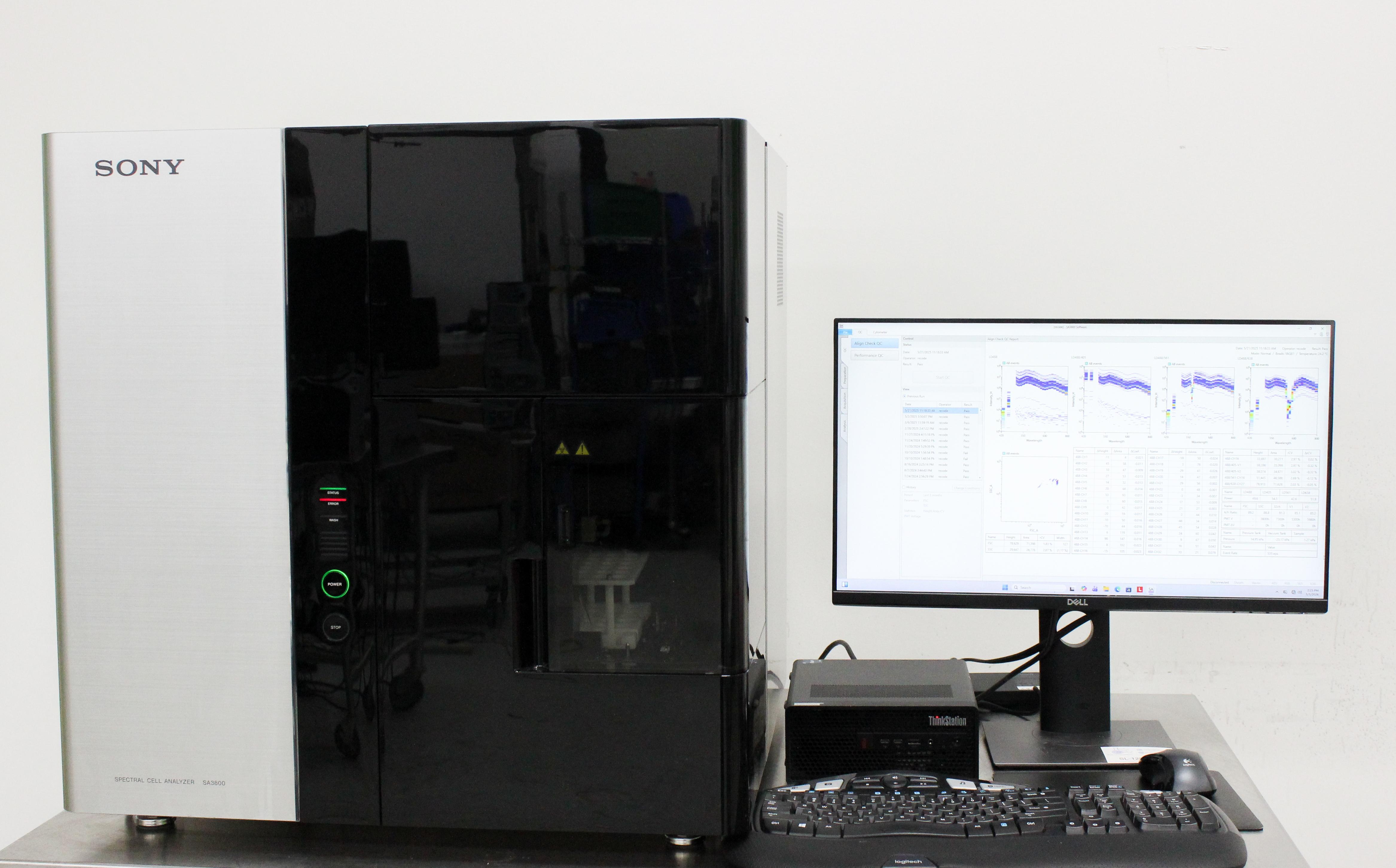

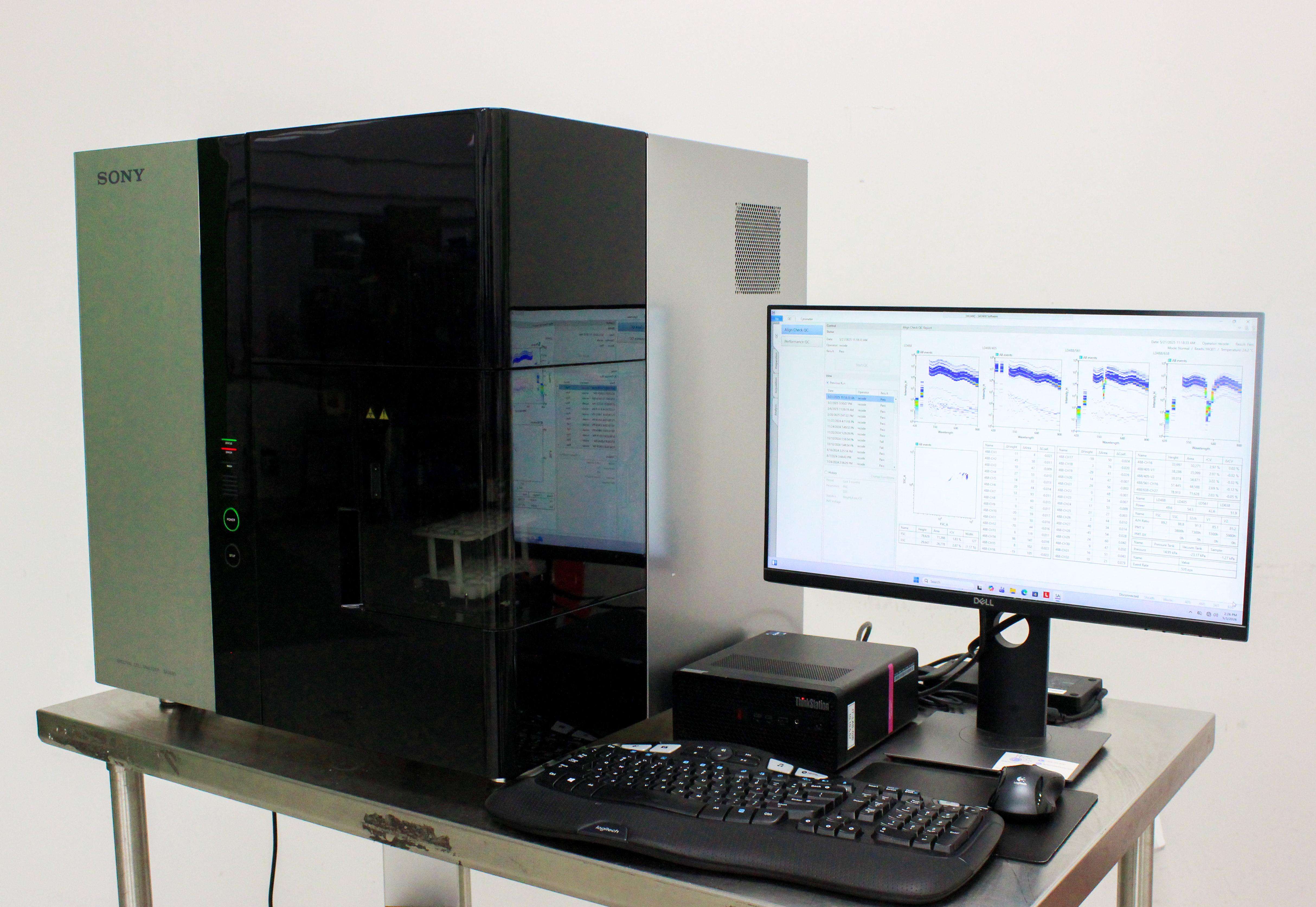

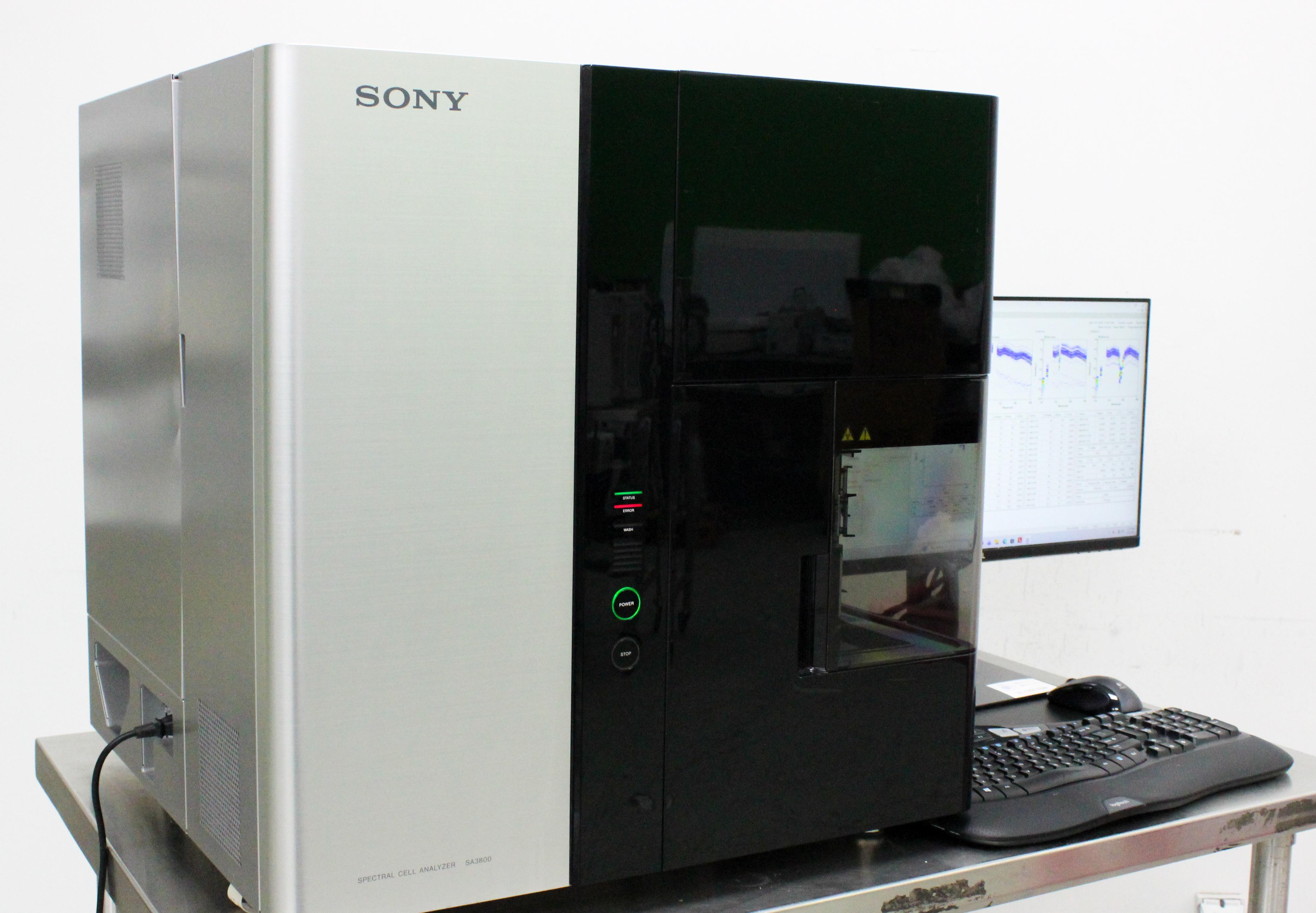

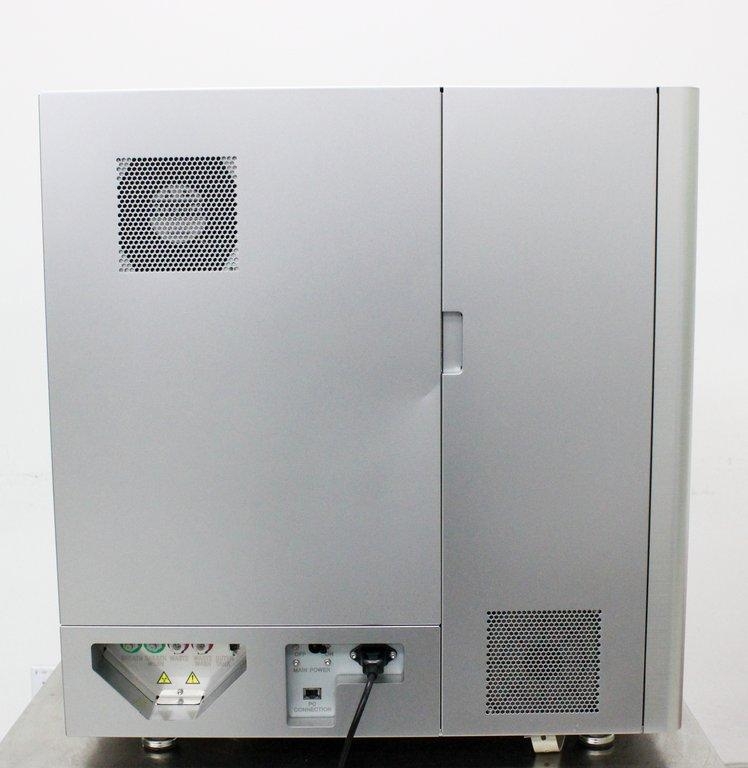

Sony LE-SA3800FA Spectral Cell Analyzer with Software Included
Sony
Details
-
CategoryCell Counting / Sorting
-
Dimension25.0in x 47.0in x 27.0in
-

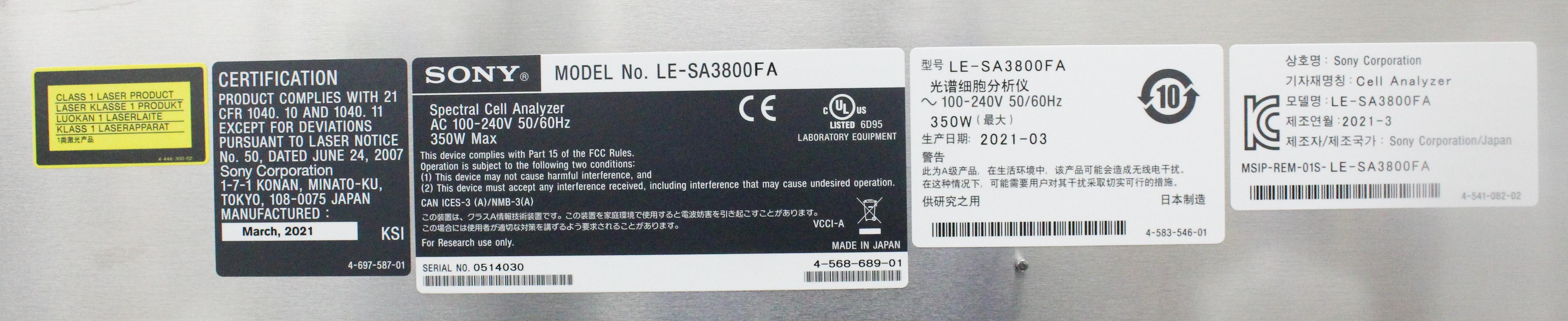

Serial0514030
-
Shipping TypeFreight
-
Manufacturing2021-03-01
-
Voltage / Hertz100-240v / 50Hz/60Hz
Description
Sony's LE-SA3800FA Spectral Cell Analyzer, manufactured in March 2021, excels in cell analysis through its advanced spectral technology. Although not fully tested, it powers on and appears operational, with minor cosmetic wear due to prior lab use. This analyzer captures a full visual spectrum (420-800 nm) using advanced optics, enhancing dim signal detection and easing multicolor panel design. Automation simplifies the entire workflow, from startup to analysis, allowing users of any experience level to conduct efficient spectral cell analysis. The unit includes a computer and software, with intuitive tools for streamlined data capture and analysis. Please note, while the functionality hasn't been fully verified, it promises reliable performance once properly calibrated.
Technician comment

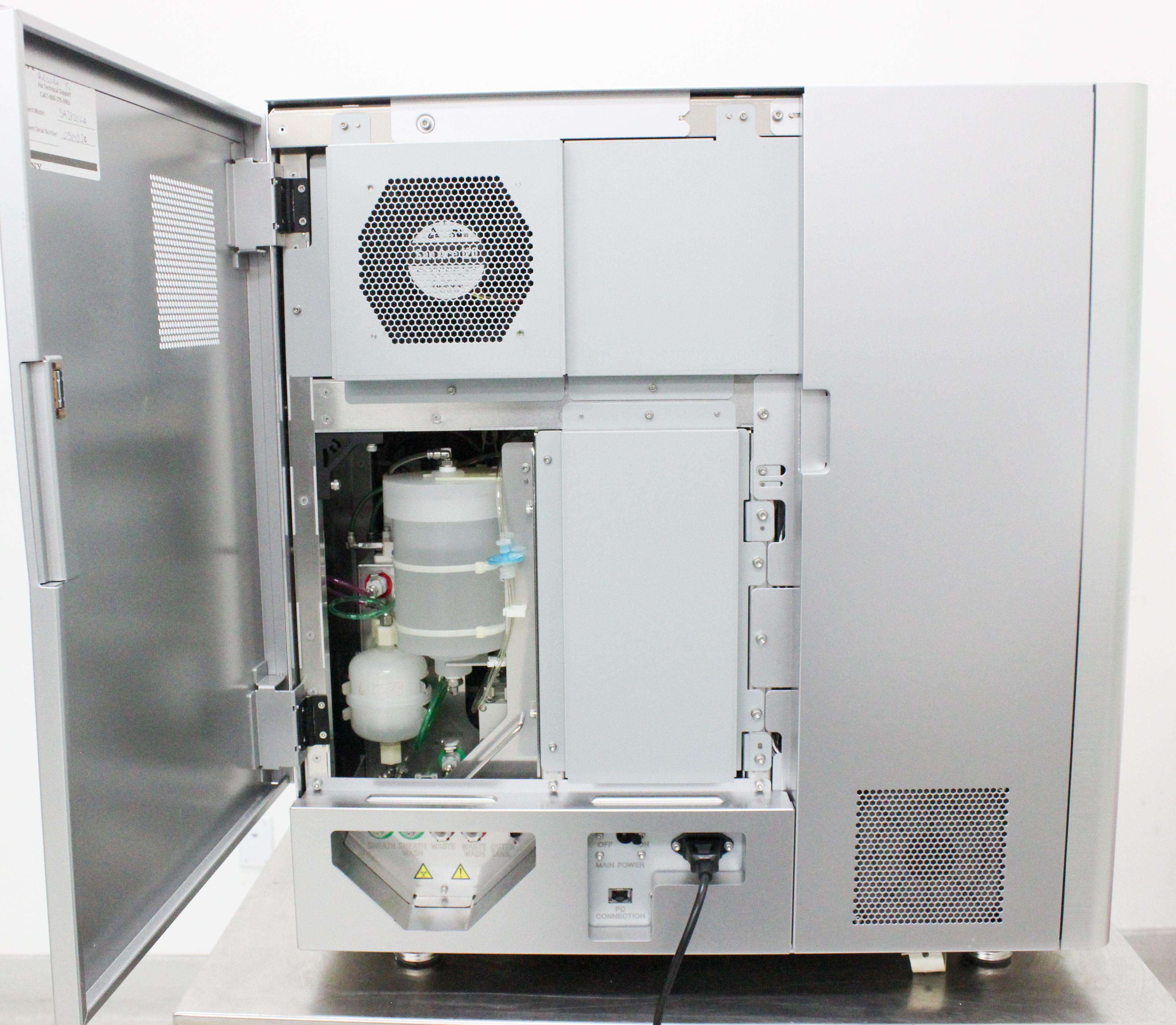

Unit powers on but does not complete the initialization sequence and displays a red error indicator. Testing was limited to power-on only; software is included, however the system was not fully connected or configured for complete operational testing. The unit was sourced from a working laboratory environment. Overall condition is good with minor cosmetic wear consistent with normal use in a lab setting. Full functionality has not been verified. The system will require proper setup, validation, and calibration prior to use. See photos for details.
Key Features
- High-sensitivity spectral analysis from 420-800 nm

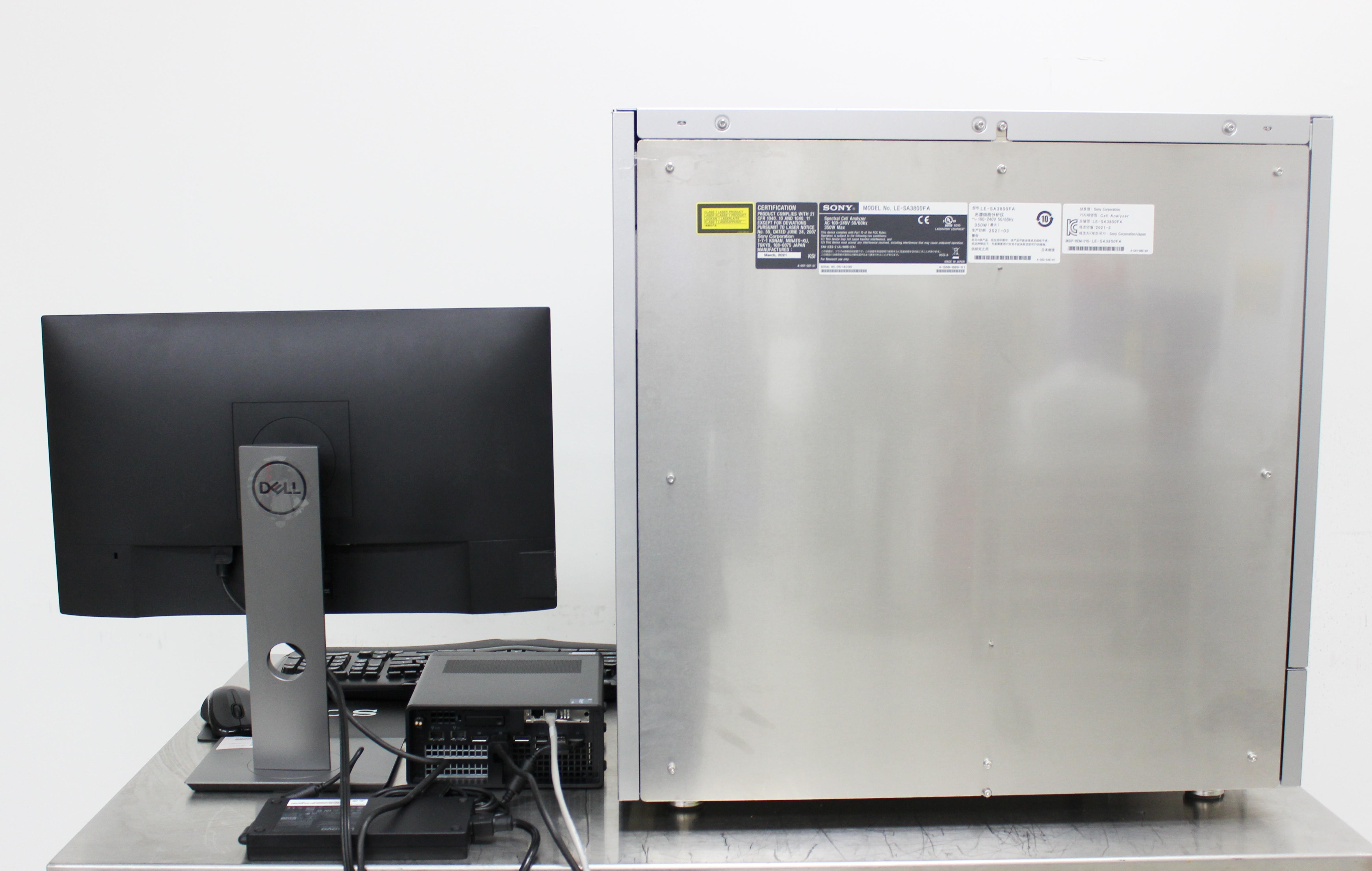

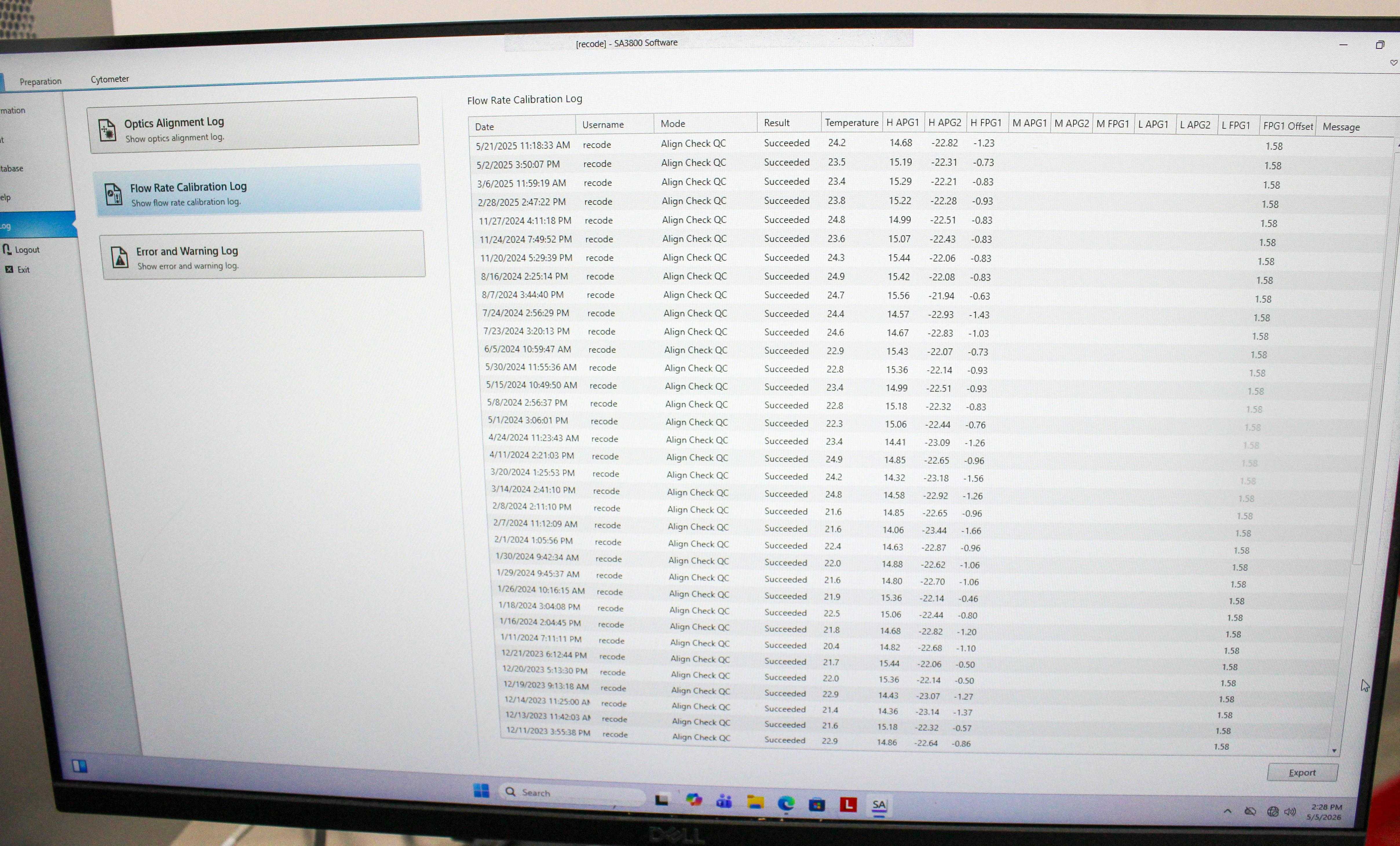

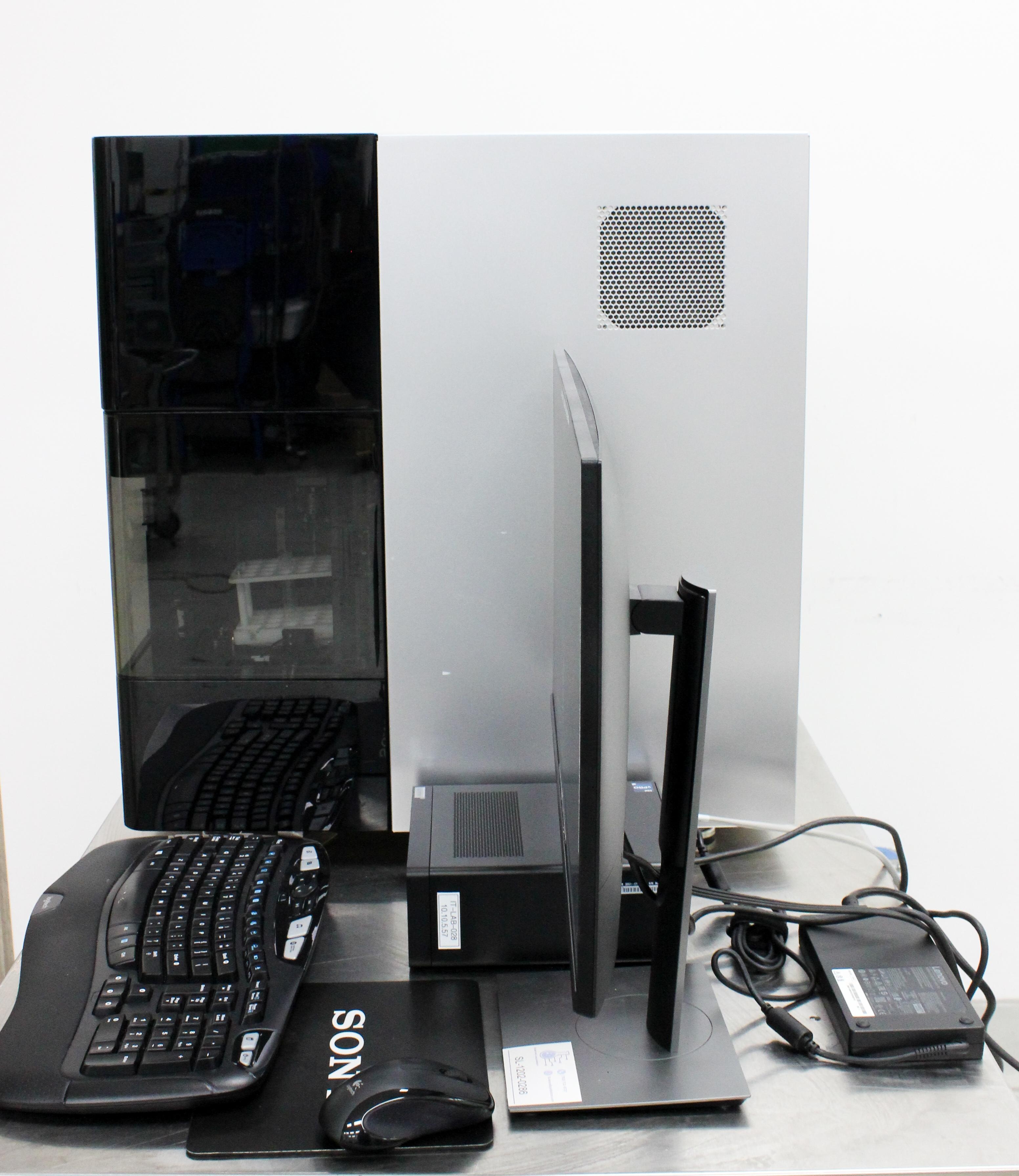

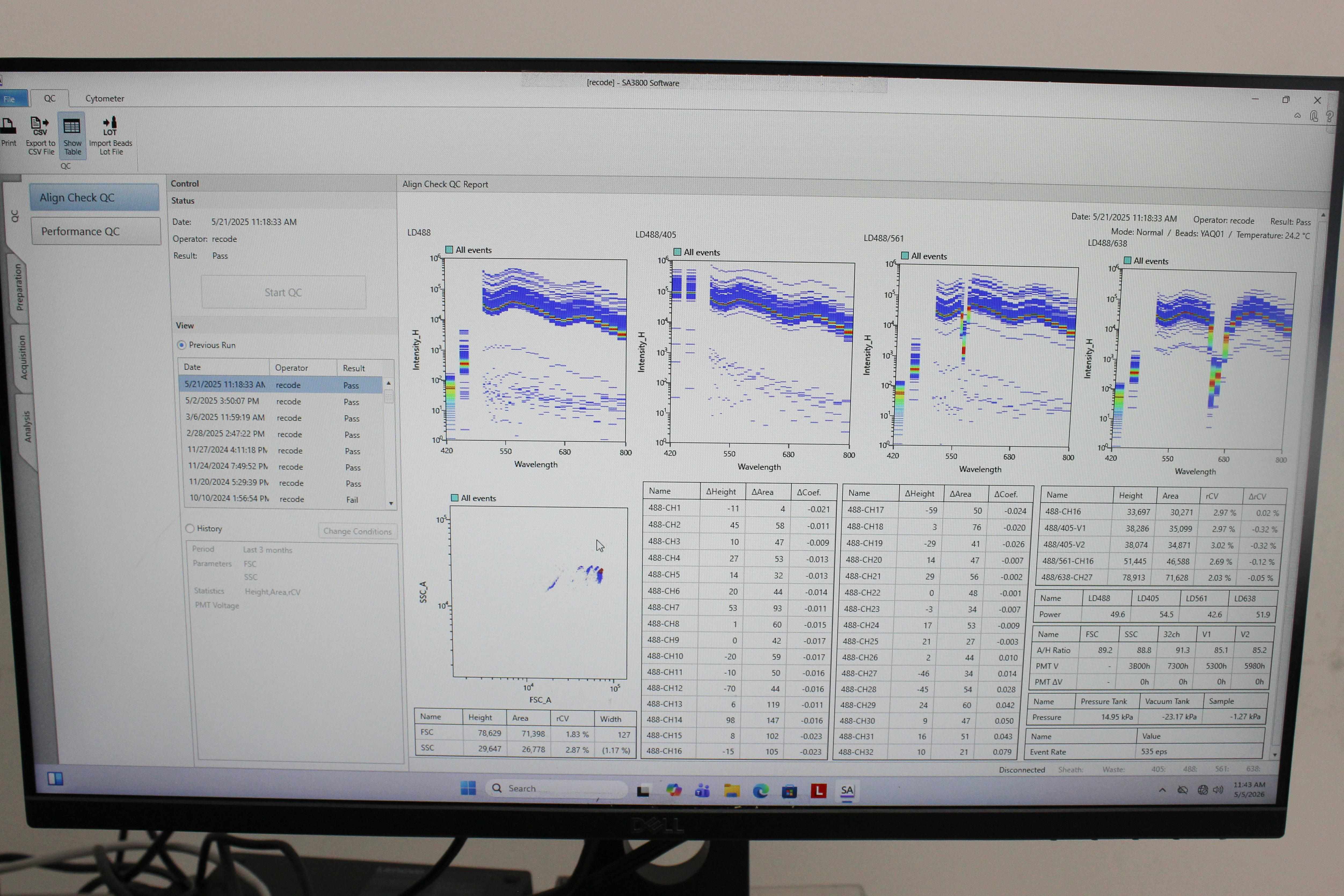

- Includes computer with software
- 32-channel PMT detection for accurate signal characterization
- 4 lasers with 488, 405, 638, and 561 nm wavelengths

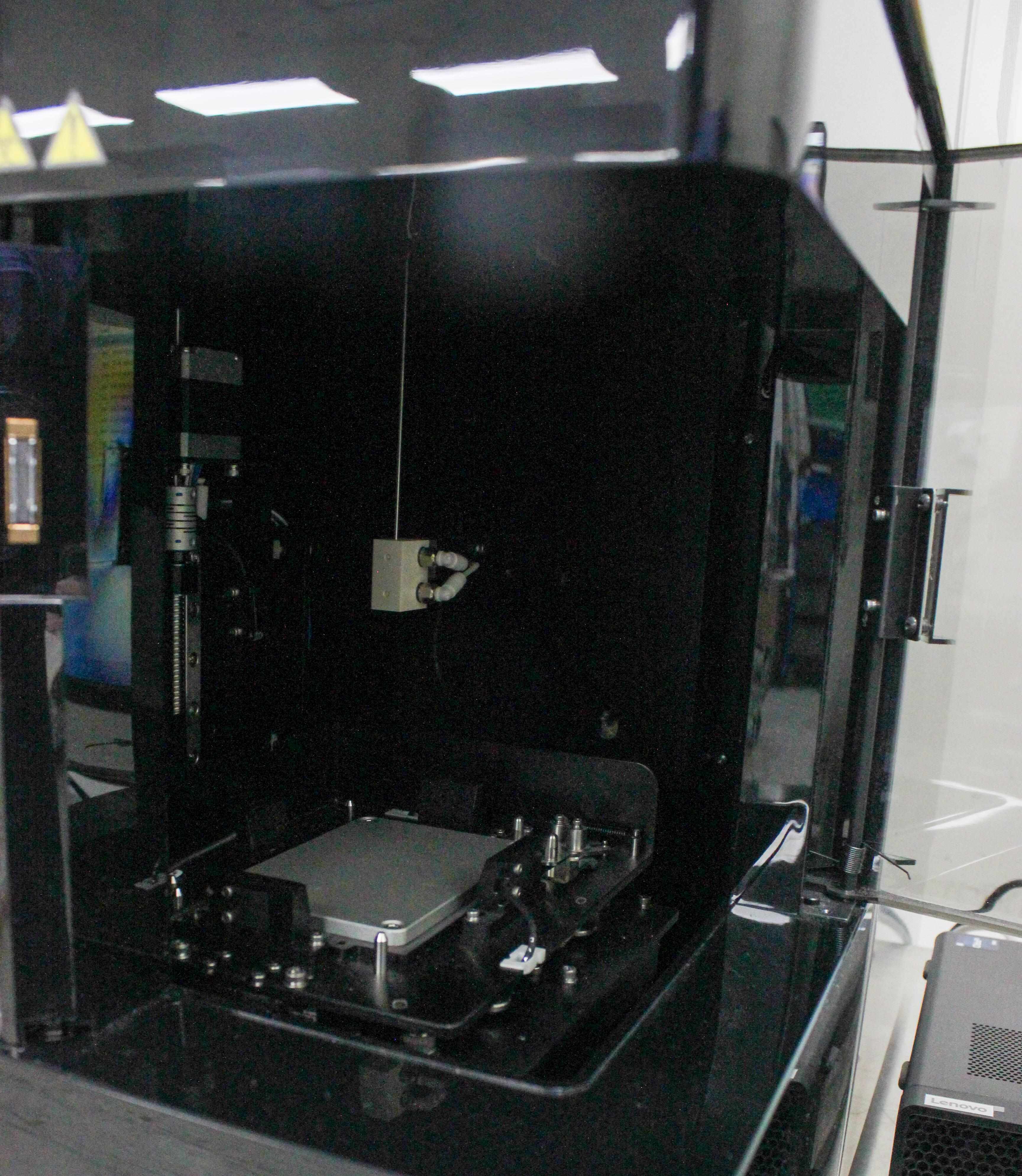

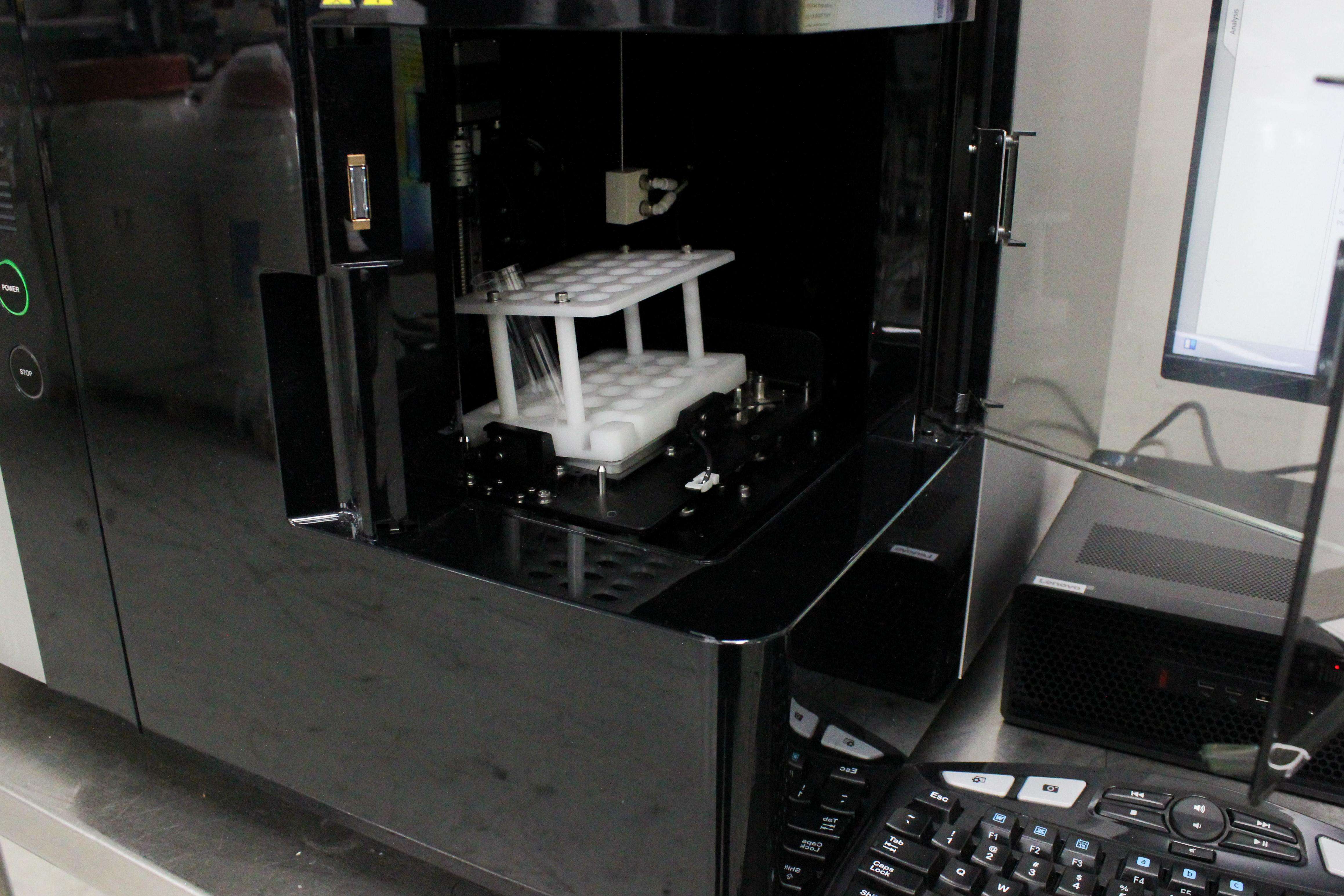

- AutoSampler for high throughput and minimal cross-contamination
- Embedded automation for streamlined workflow
- Compatible with both 96-well and 384-well plates
Specifications
- Excitation options: 405 nm, 488 nm, 561 nm, 638 nm
- Detection signals: FSC, SSC, FL 32chPMT (500-800 nm)
- Sample volume rate: 33 μL/min–240 μL/min
- Fluorescence sensitivity: FITC: 120 MESF; PE: 70 MESF
- Detectable cell size: 0.5 µm to 40 µm
- Event rate: up to 20,000 eps
- Dimensions: 66 cm W x 67.4 cm H x 63.5 cm D
- Power consumption: 350 W Max
Weight
Imperial: 276.0 Pounds
Metric: 125.19 Kilograms
Shipping Dimensions
Imperial: 30.0 lb x 56.4 lb x 32.4 lb
Metric: 76.2 cm x 143.26 cm x 82.3 cm
Harmonized Code
9027.50.00
Harmonized Code Details
9027.50.00 - Instruments and apparatus for physical or chemical analysis using optical radiations (ultraviolet, visible, infrared); justifiable by the advanced spectral and optical analysis capabilities of the analyzer.
