Description

Product Information

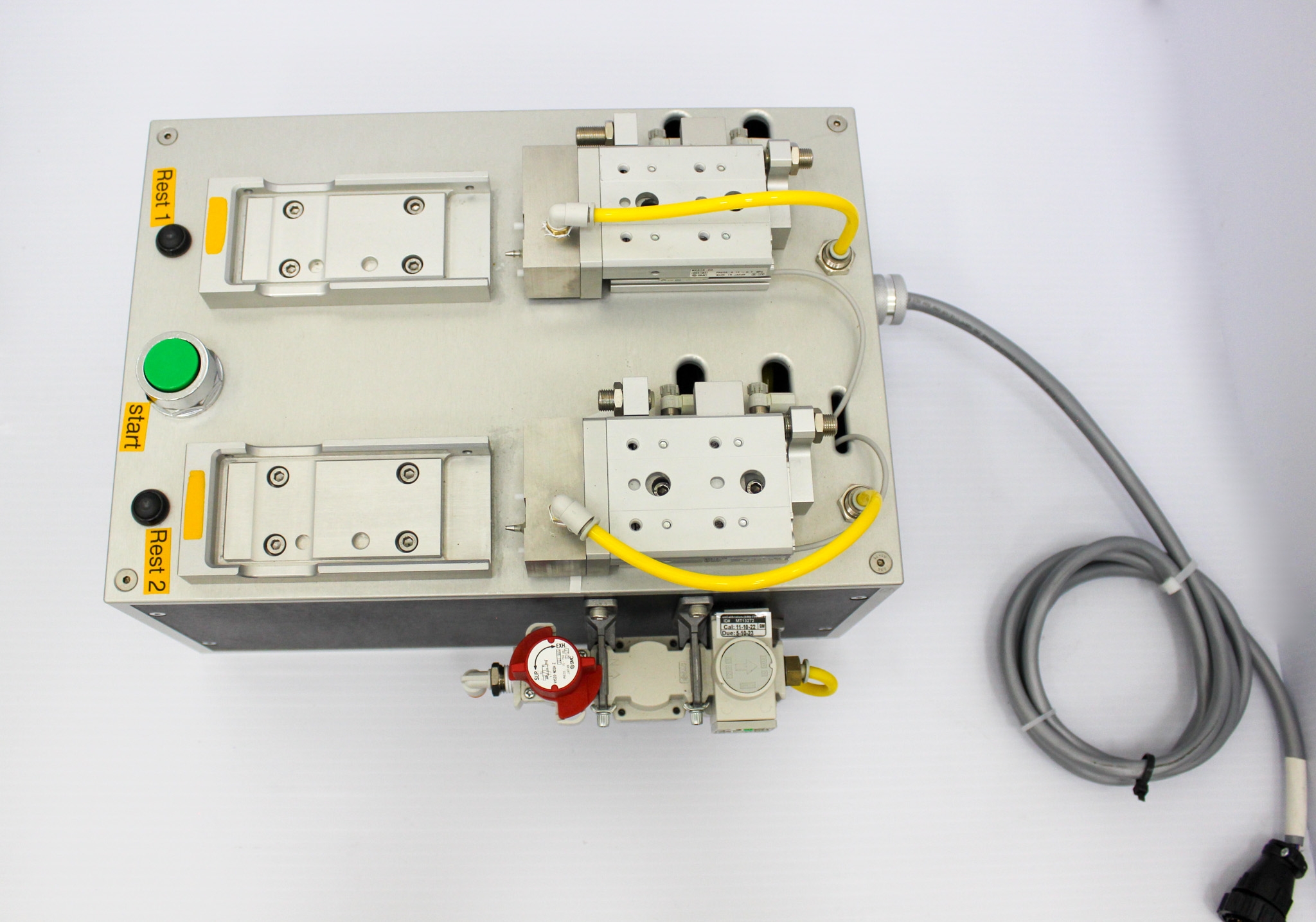

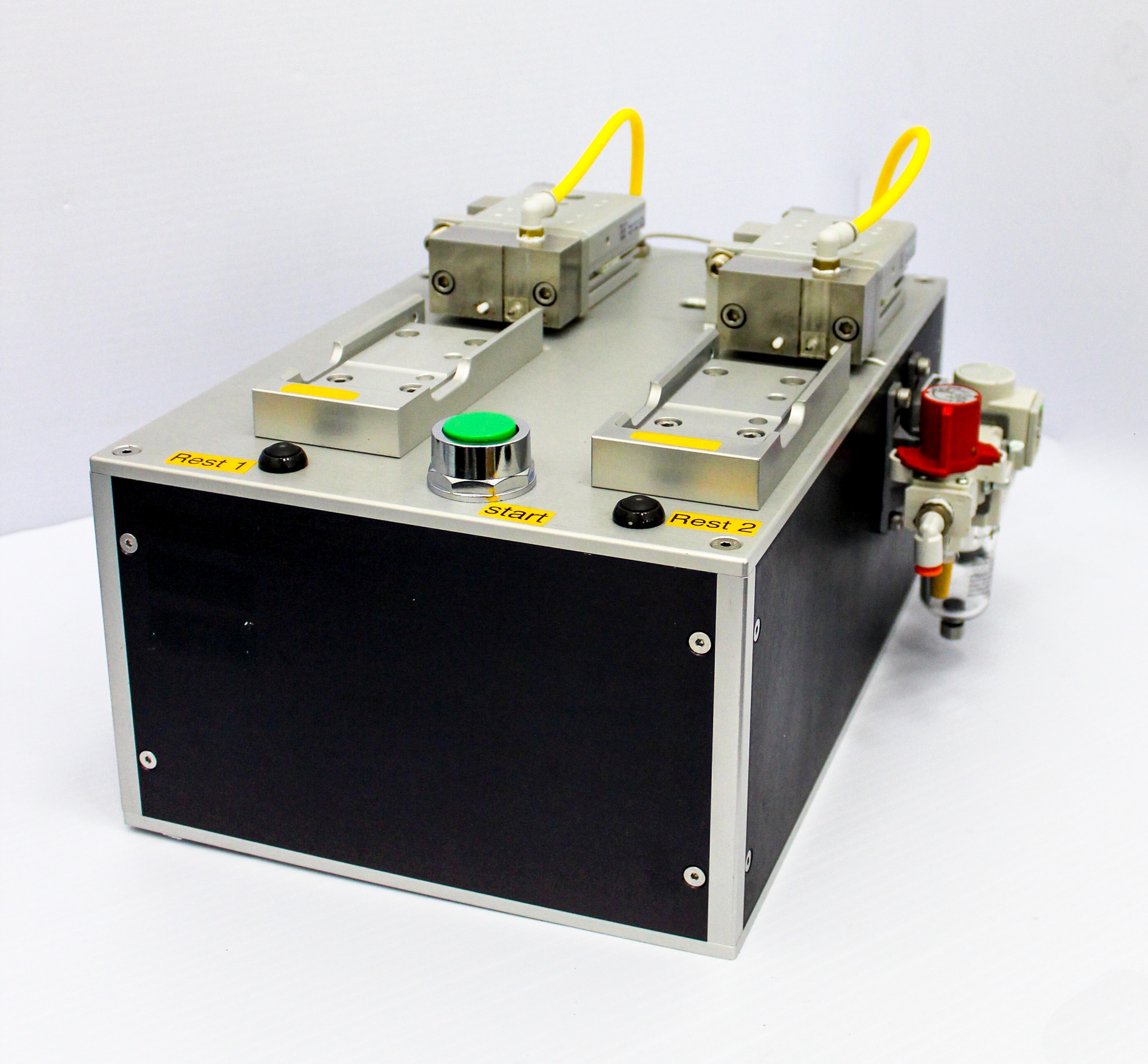

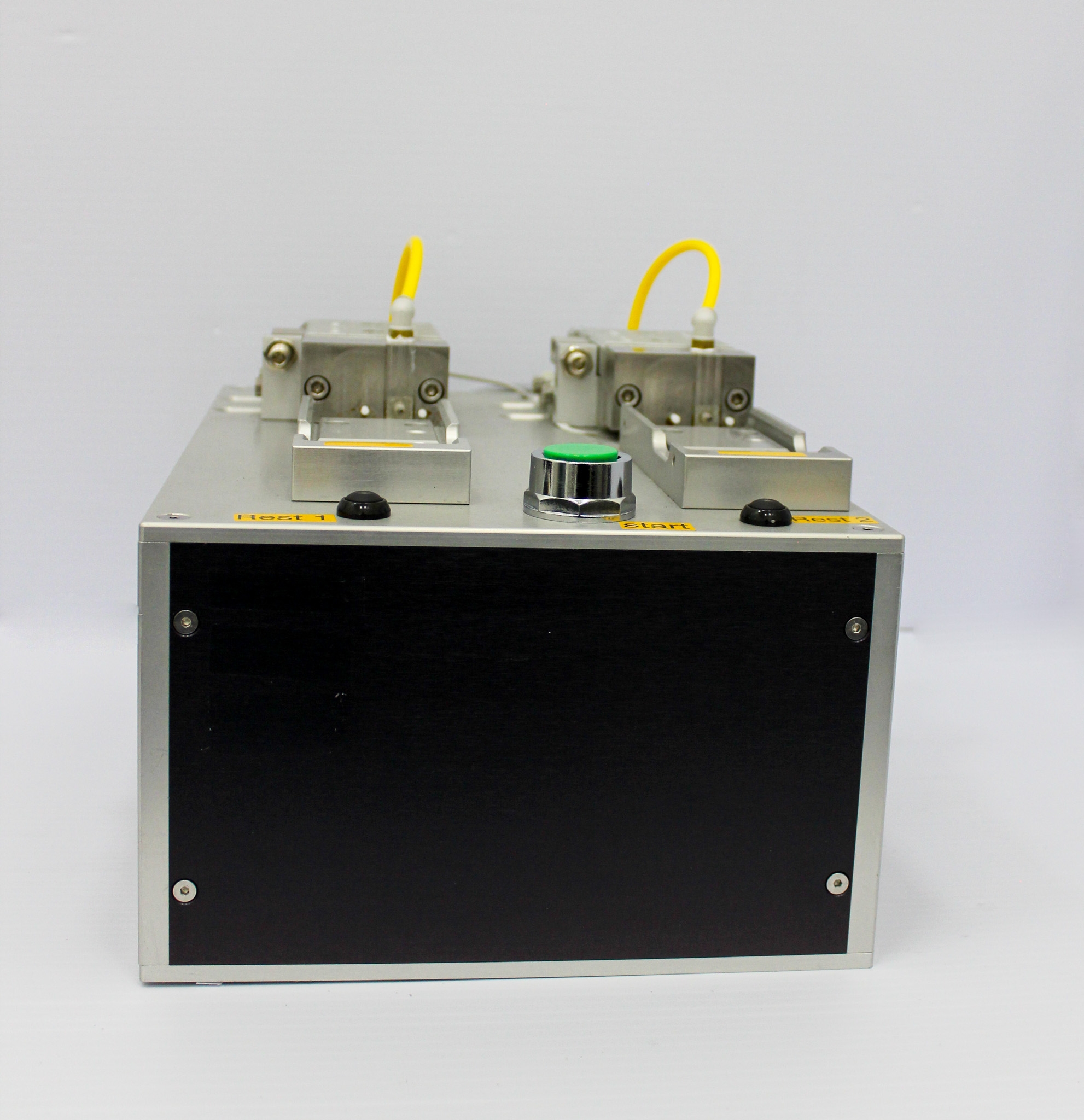

The SMC MXS 16-20 Custom Air Slide Table Base is a high-quality precision assembly tool, crafted from aluminum alloy and featuring a compactly integrated worktable and air cylinder. Manufactured in the United States, this used equipment has undergone basic functionality testing. Despite minor cosmetic wear, it demonstrates no known functionality issues. Offering a dual-rod structure, it supports a maximum load of 4 kg. Ideal for applications requiring precise mounting and repeatability, with the ability to attach an auto switch groove for enhanced safety. Suitable for vertical axis mounting, it operates efficiently on 120V and 50/60 Hz power supply. This reliable air slide table is perfect for tasks involving SMC pneumatics, fittings, or valves, with comprehensive MISUMI technical support available.


Key Features
  • Compact integrated work table and air cylinder
  • Dual-rod structure for precision assembly
  • Aluminum Alloy with hard anodize surface treatment
  • Capable of vertical axis mounting
  • Auto switch attaching groove for safety
  • 120V, 50/60Hz power requirements

Specifications
  • Internal Diameter: 16 mm
  • Stroke: 20 mm
  • Max Load Mass (Horizontal Mounting): 1~4.9 kg
  • Table Size (Length x Height): 76 mm x 40 mm
  • Rolling Guide: Cross Roller Guide Shape
  • Environment: General Purpose
  • Maximum Load: 4 kg

Weight

Imperial: 26.4 Pounds

Metric: 11.97 Kilograms


Shipping Dimensions

Imperial: 19.2 lb x 15.6 lb x 10.8 lb

Metric: 48.77 cm x 39.62 cm x 27.43 cm


Harmonized Code

847989


Harmonized Code Details

Harmonized Code 847989 covers machines and mechanical appliances having individual functions, not specified elsewhere. The SMC MXS 16-20 Air Slide Table Base fits this category due to its specific function in automation processes.
