THORlabs MB4560A/M Breadboard Custom Base with SMC Thermal Control
THORlabs
Details
-
CategoryMiscellaneous
-
Dimension24.0in x 21.0in x 12.0in
-
SerialN/A
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

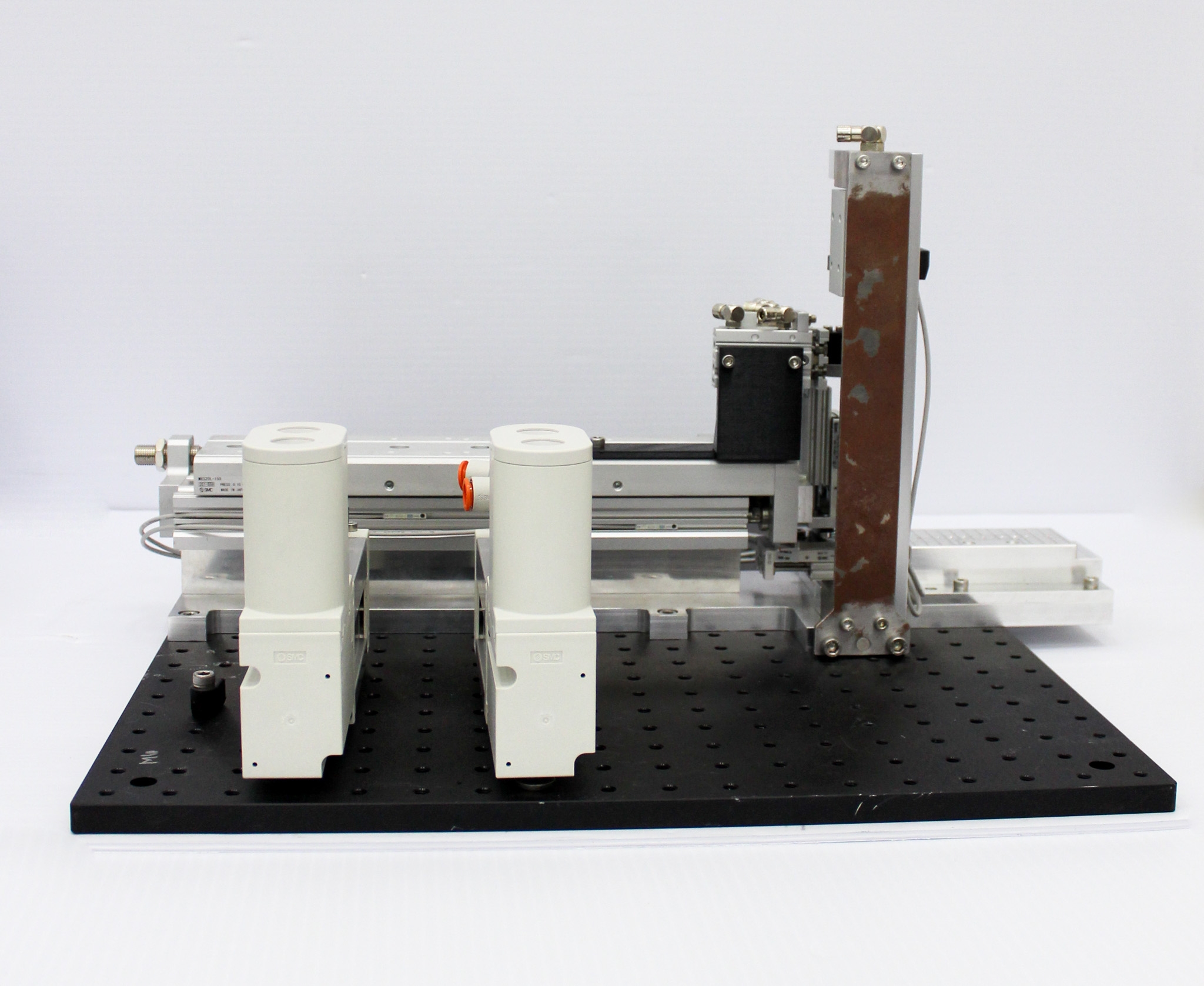

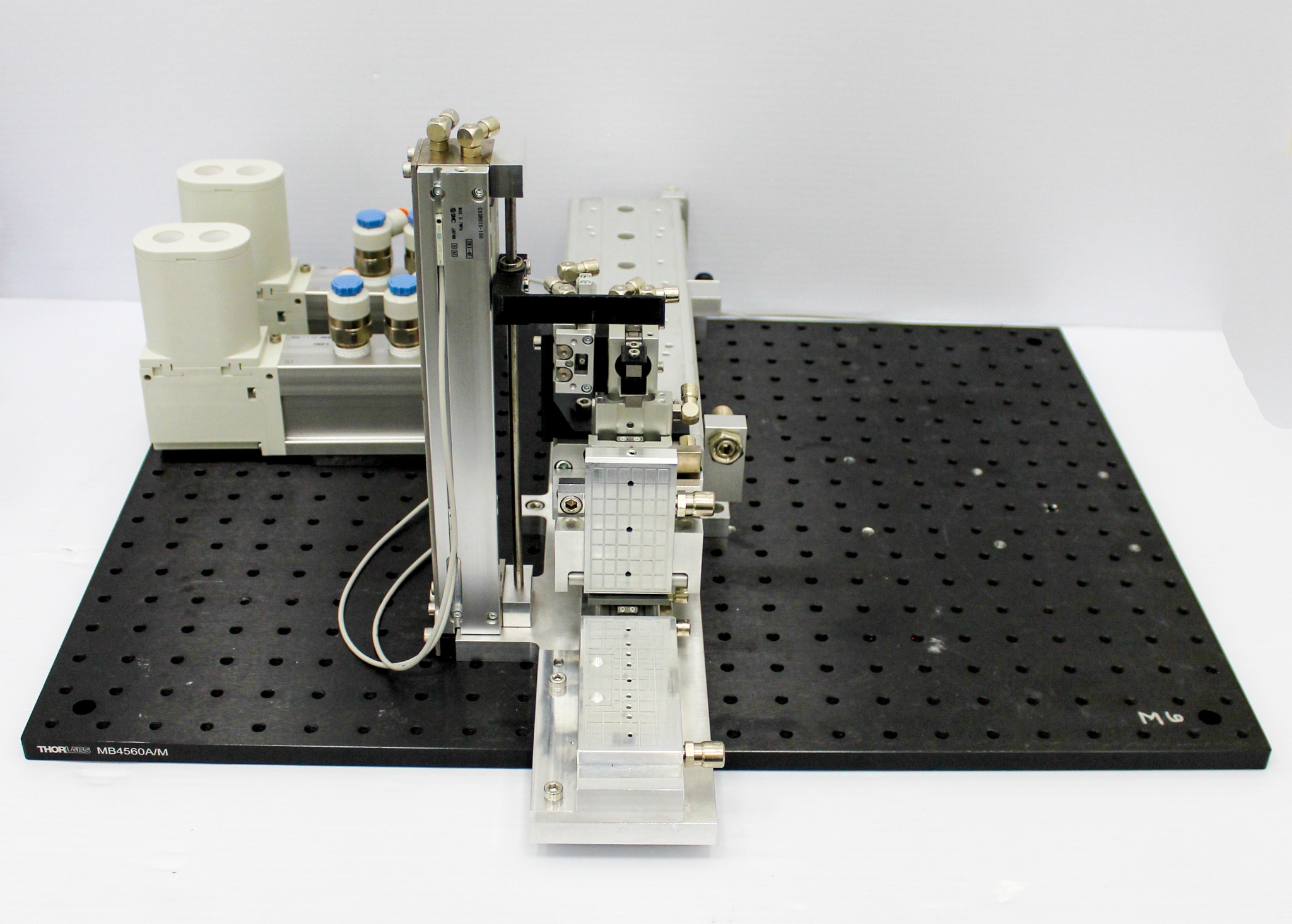

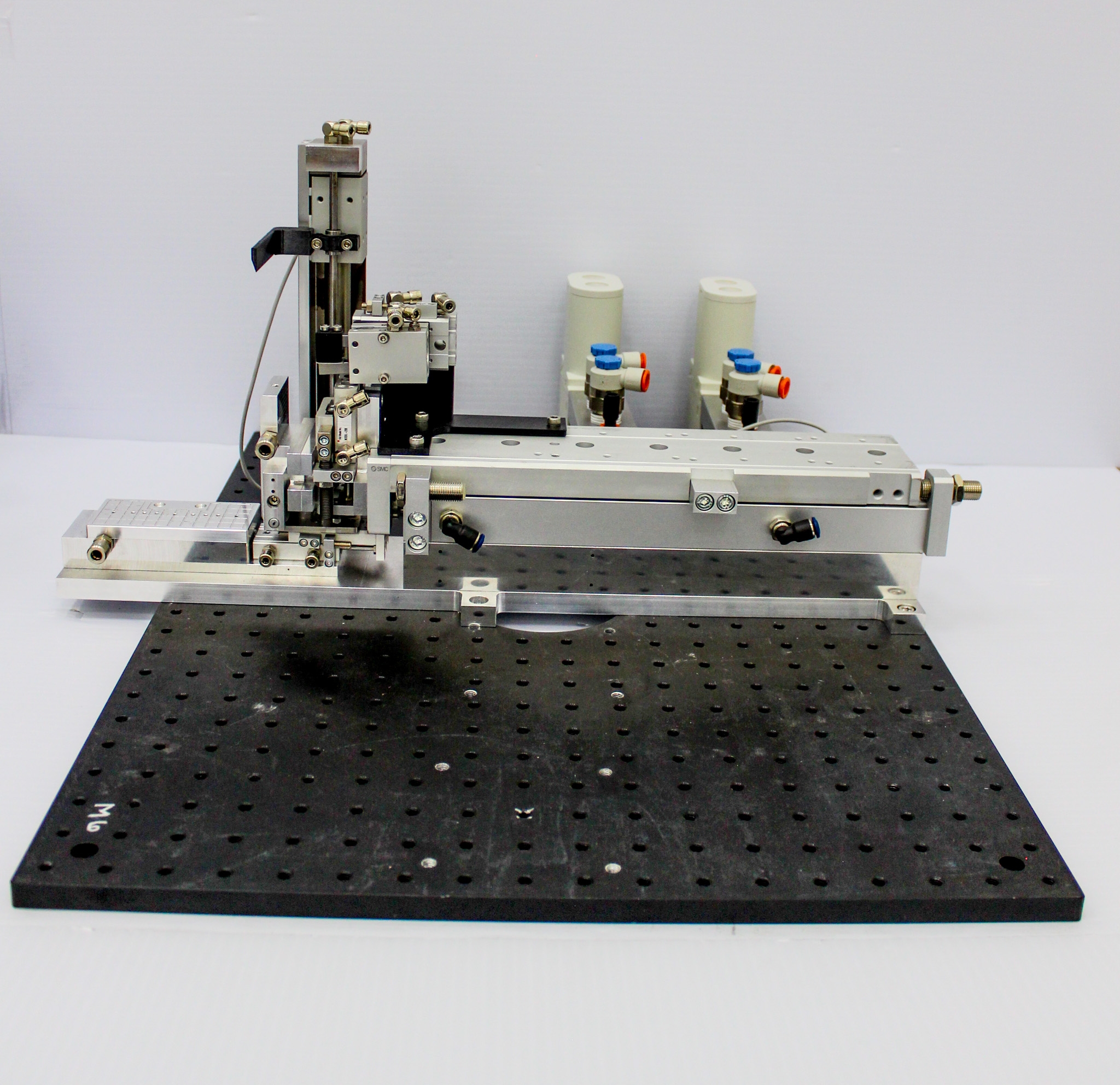

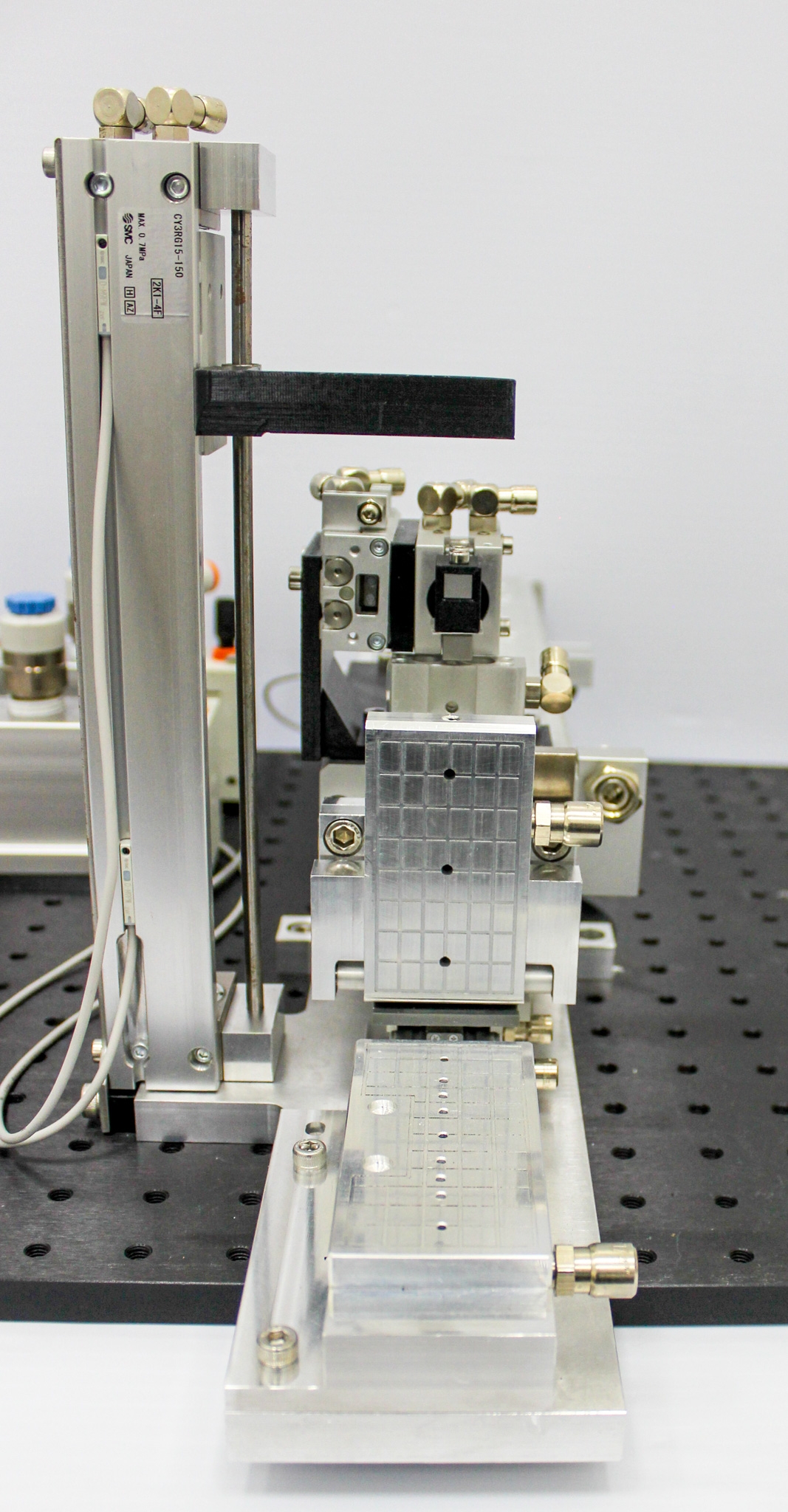

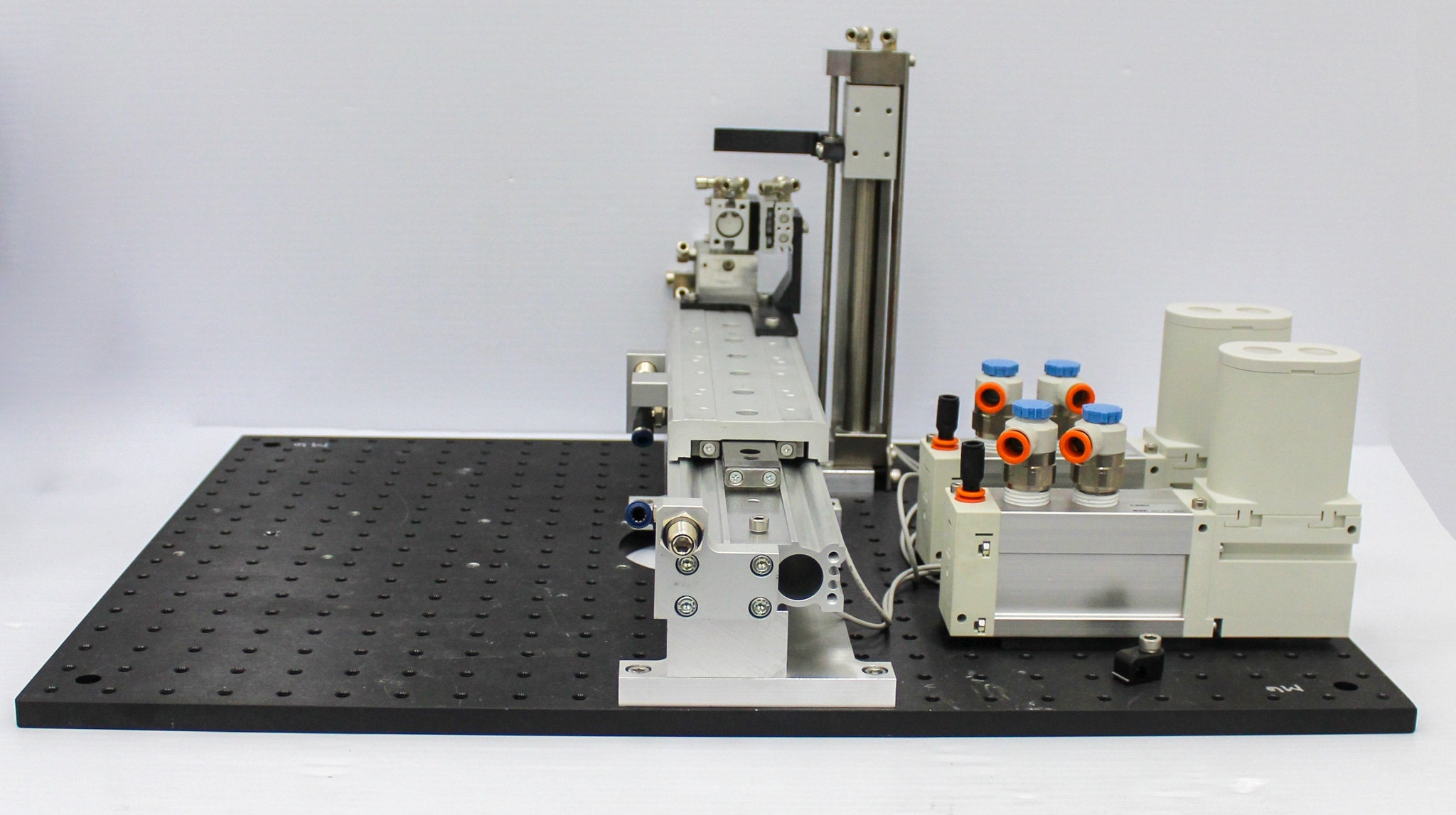

The THORlabs MB4560A/M is a versatile aluminum breadboard designed for controlling thermal expansion, featuring easy access for building and expansion. This unit includes a 450 mm x 600 mm x 12.7 mm platform equipped with M6 taps and a 100 mm access hole, suitable for precision positioning equipment. The base integrates the SMC MXS20L-150 cylinder and slide table, ideal for applications requiring precise movement ranging from 10-150mm. Note that the item is used, cosmetically worn, yet functional, though it couldn't be fully tested and comes with basic power functionality verified.
Key Features
- Thermal expansion control
- Aluminum breadboard platform
- 450 mm x 600 mm x 12.7 mm size
- 100 mm access hole
- M6 taps for secure mounting
- SMC MXS20L-150 cylinder
Specifications
- Platform dimensions: 450 mm x 600 mm x 12.7 mm
- Access hole diameter: 100 mm
- Tap size: M6
- Thermal expansion coefficient: 17.3 x 10-6 m/m°C

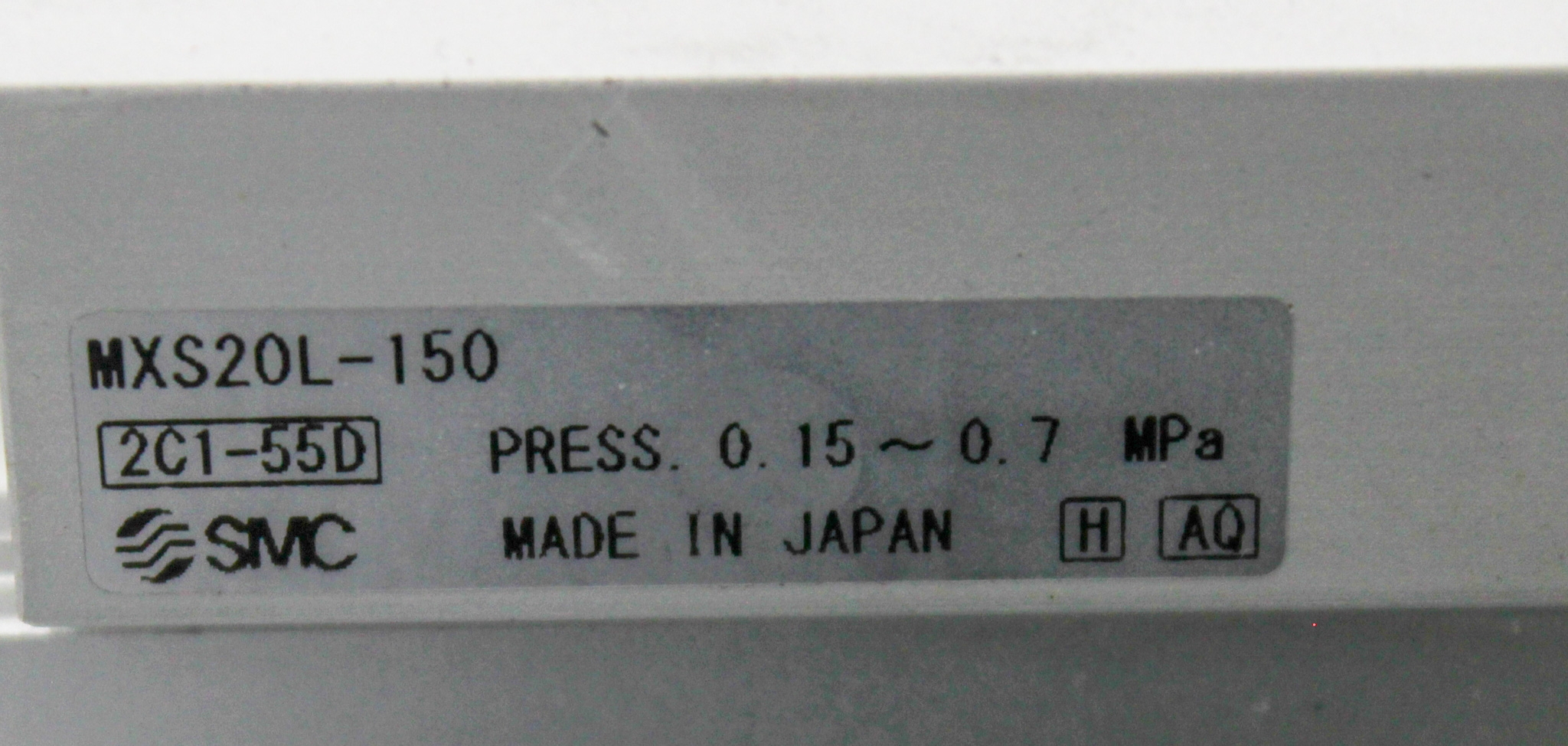

- SMC MXS20L-150 Cylinder: Precise movement 10-150mm
- Auto switch capability and stroke adjustment options
Weight
Imperial: 54.0 Pounds
Metric: 24.49 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 25.2 lb x 14.4 lb
Metric: 73.15 cm x 64.01 cm x 36.58 cm
Harmonized Code
9031.90.92
Harmonized Code Details
9031.90.92 - Parts and accessories of optical instruments; applicable as breadboards are often used as parts in scientific or optical equipment setups.
