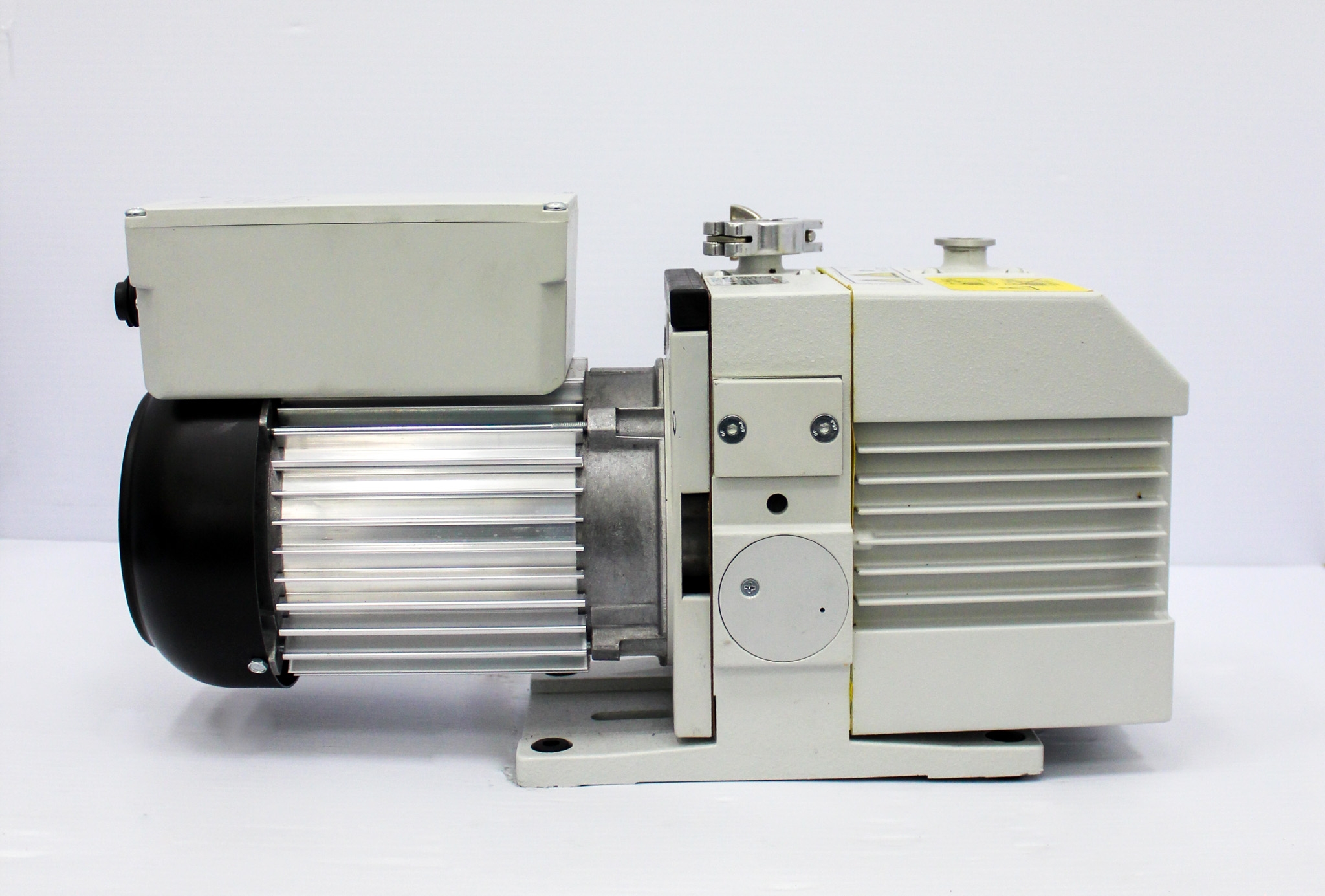

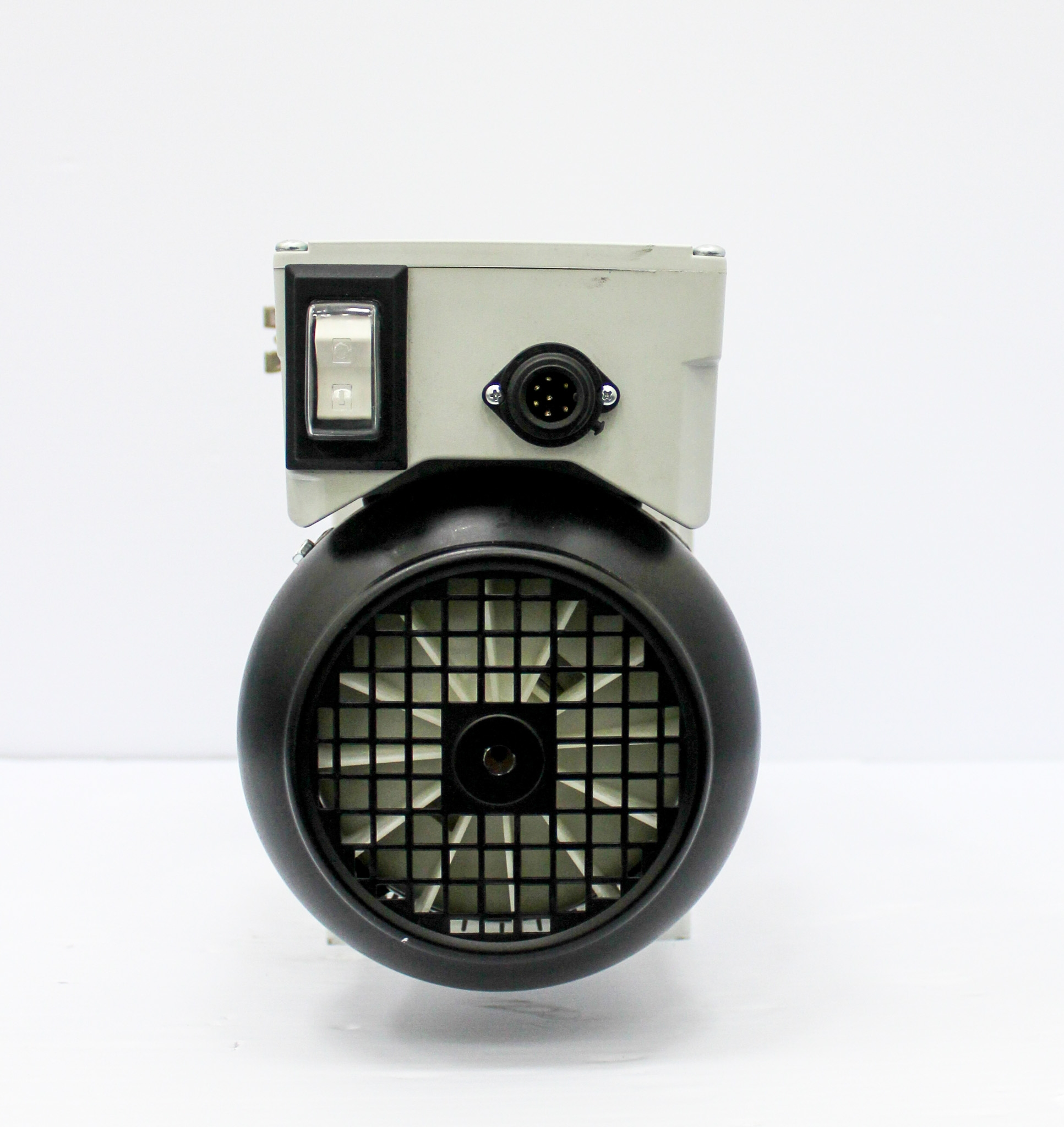

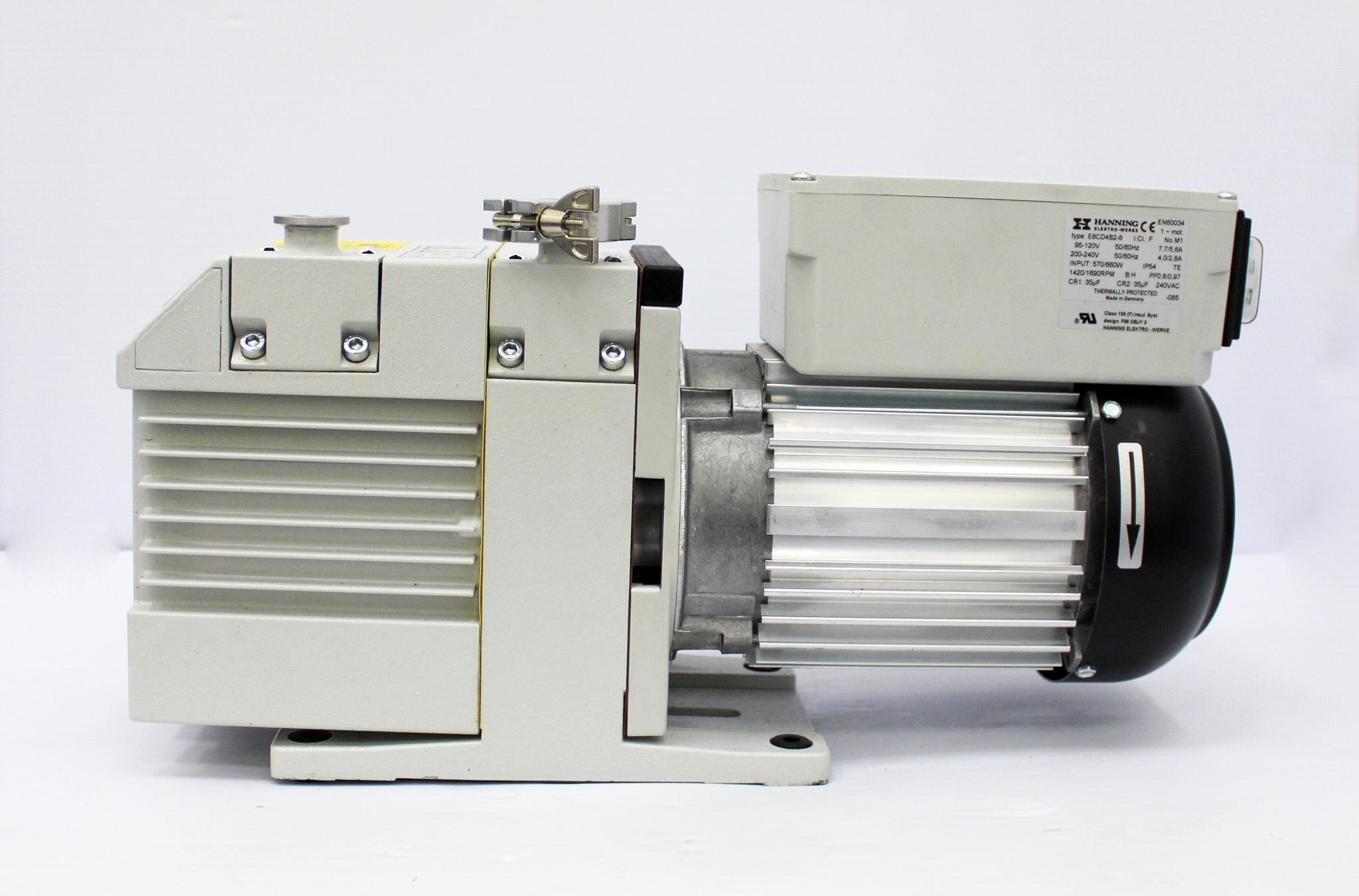

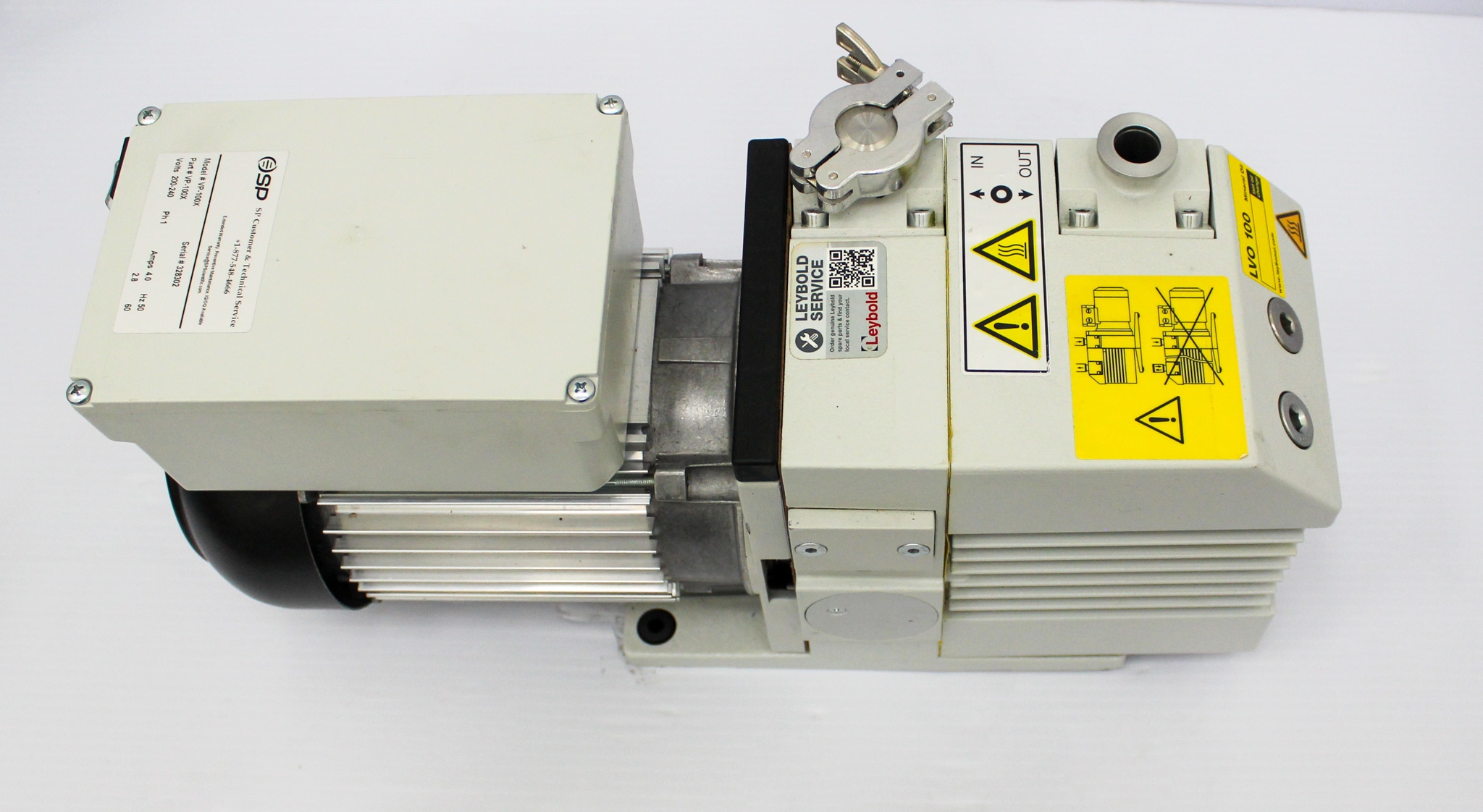

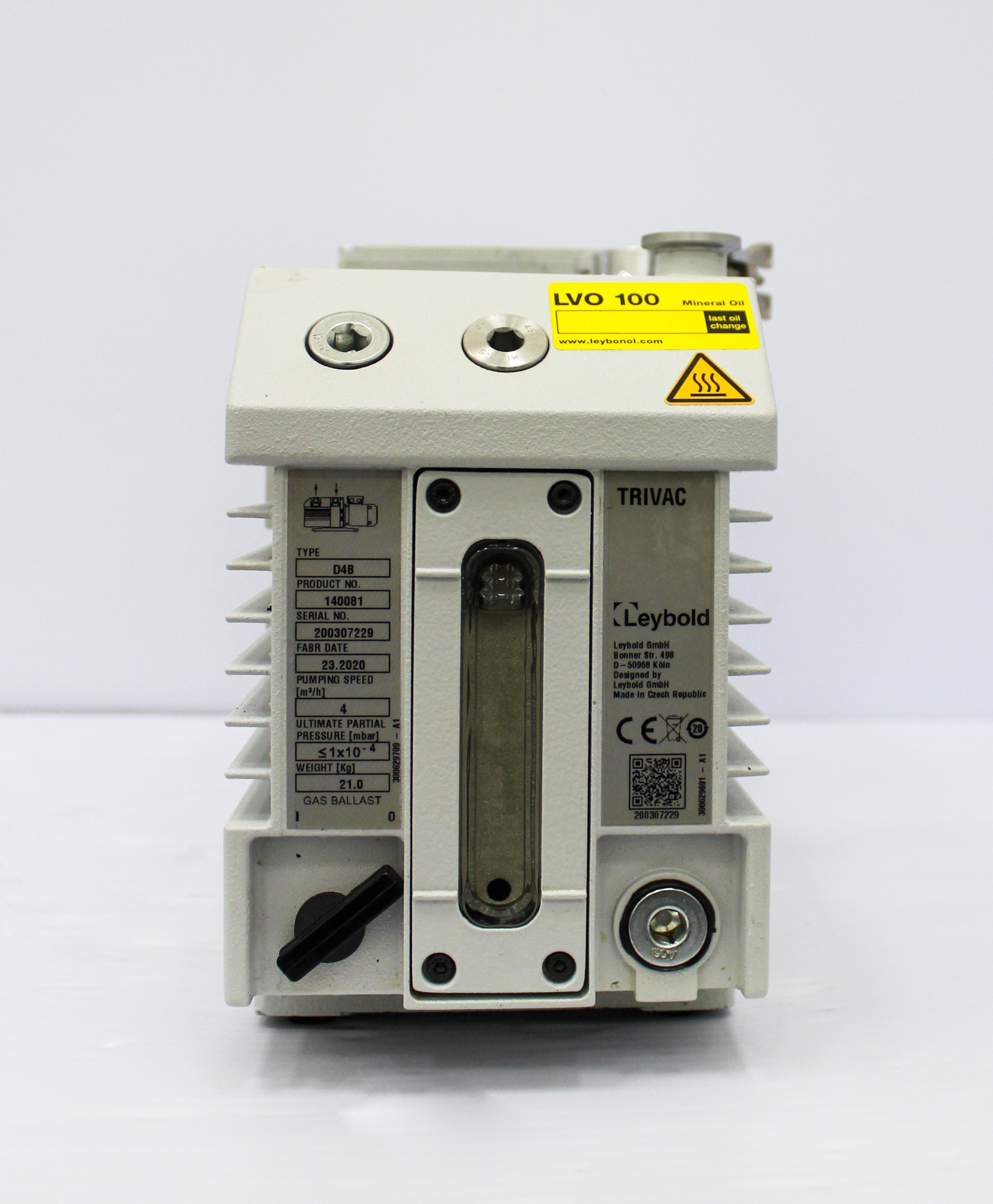

Trivac D4B Vacuum Pump Low Vibration 4.8m3h USA 120V/220V Air Cooling
Trivac
Details
-
CategoryPump
-
Dimension19.0in x 6.0in x 10.0in
-
Serial200307229
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Leybold Trivac Vacuum Pump D4B is engineered for reliable, long-lasting use, directly connected to a motor for smooth performance. This used unit, originating from the United States, excels with an oil pump for force-feed lubrication, ensuring effective operation even at 1000 mbar intake pressure. Built to withstand corrosion, its components are safeguarded by the elimination of non-ferrous metals. It operates with low noise and vibration, offering modern vacuum technology with high pumping speed. Notably, it allows continuous functioning up to 1000 mbar and features a pressure-controlled anti-suckback valve, water vapor tolerance, and elastomer FPM O-rings. Despite a missing power cord, this 51 lb., fair-condition pump maintains its robust functionality, designed for versatile applications in scientific and industrial settings.
Key Features
- Designed for reliability and long service life
- Direct motor connection for smooth operation
- Built-in oil pump for effective lubrication
- Corrosion-resistant components
- Low noise and vibration
- High pumping speed at ultimate pressure
- Pressure-controlled anti-suckback valve
- Water vapor tolerance
- Elastomer FPM O-rings
Specifications
- Nominal pumping speed: 4.8 m3/h (2.8 cfm) at 50 Hz, 5.8 m3/h (3.4 cfm) at 60 Hz
- Ultimate partial pressure w/o gas ballast: 10^-4 mbar (0.75 x 10^-4 Torr)
- Ultimate total pressure w/o gas ballast: < 2 x 10^-3 mbar (< 1.5 x 10^-3 Torr)
- Ultimate total pressure with gas ballast: < 5 x 10^-3 mbar (< 3.8 x 10^-3 Torr)
- Water vapor tolerance: 30 mbar (22.5 Torr)
- Motor rating: 370 W (HP 0.50), Speed: 1500 rpm at 50 Hz / 1800 rpm at 60 Hz
- Type of protection: IP54
- Nominal speed: 1500 rpm at 50 Hz / 1800 rpm at 60 Hz
- Connections for Intake and Exhaust: DN 16 KF
- Admissible ambient temperature: 12-40°C (54-104°F)
Weight
Imperial: 61.2 Pounds
Metric: 27.76 Kilograms
Shipping Dimensions
Imperial: 22.8 lb x 7.2 lb x 12.0 lb
Metric: 57.91 cm x 18.29 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Vacuum pumps; This code is applicable as the Trivac D4B is a vacuum pump used commonly in industrial settings.
