Chart Industries MVE lab10 CPD Storage Cryogenic Dewar 10L Tank
Chart Industries
Details
-
CategoryCold Storage
-
Dimension11.0in x 11.0in x 22.0in
-

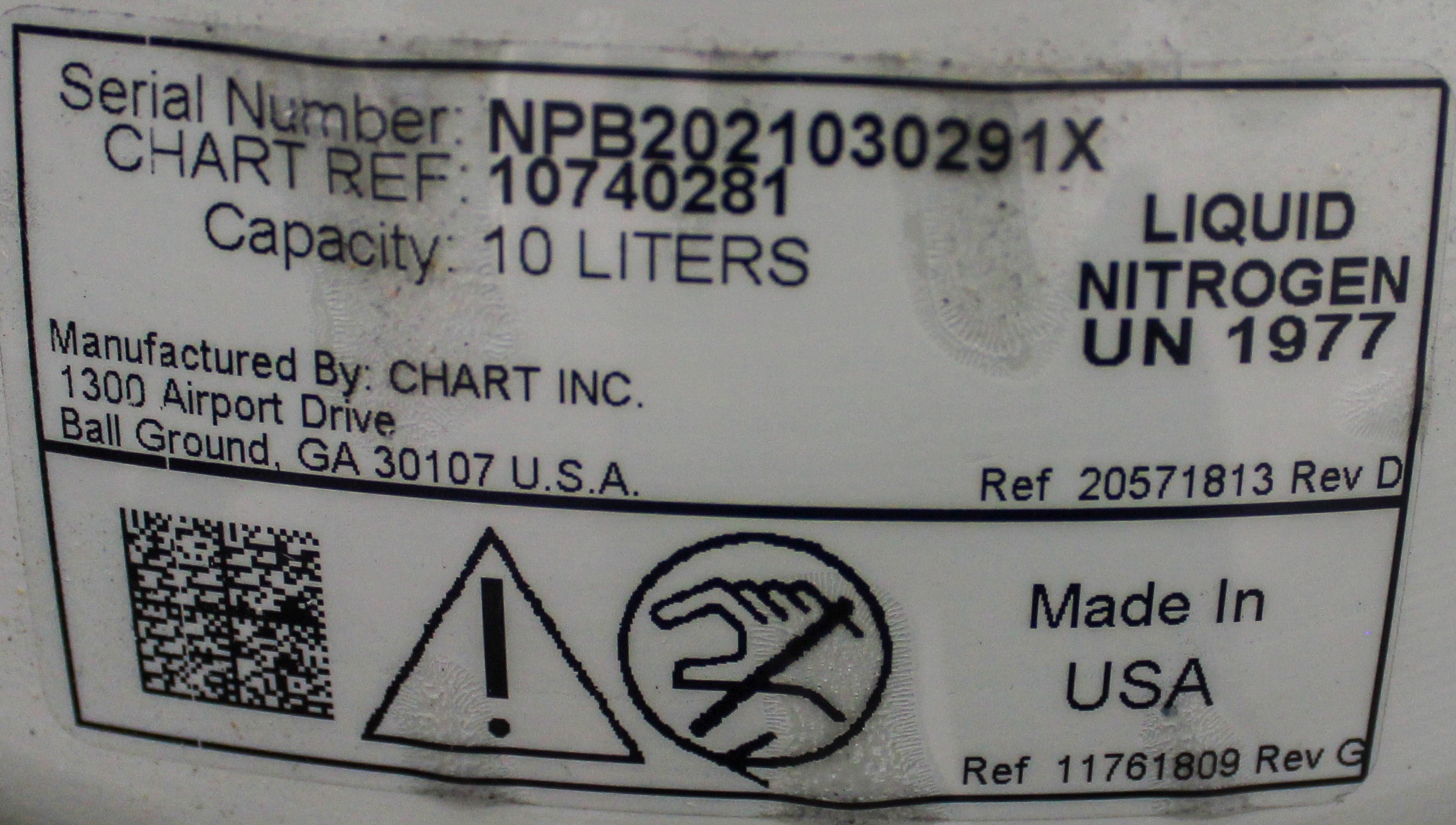

SerialNPB2021030291X
-
Shipping TypeFreight
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

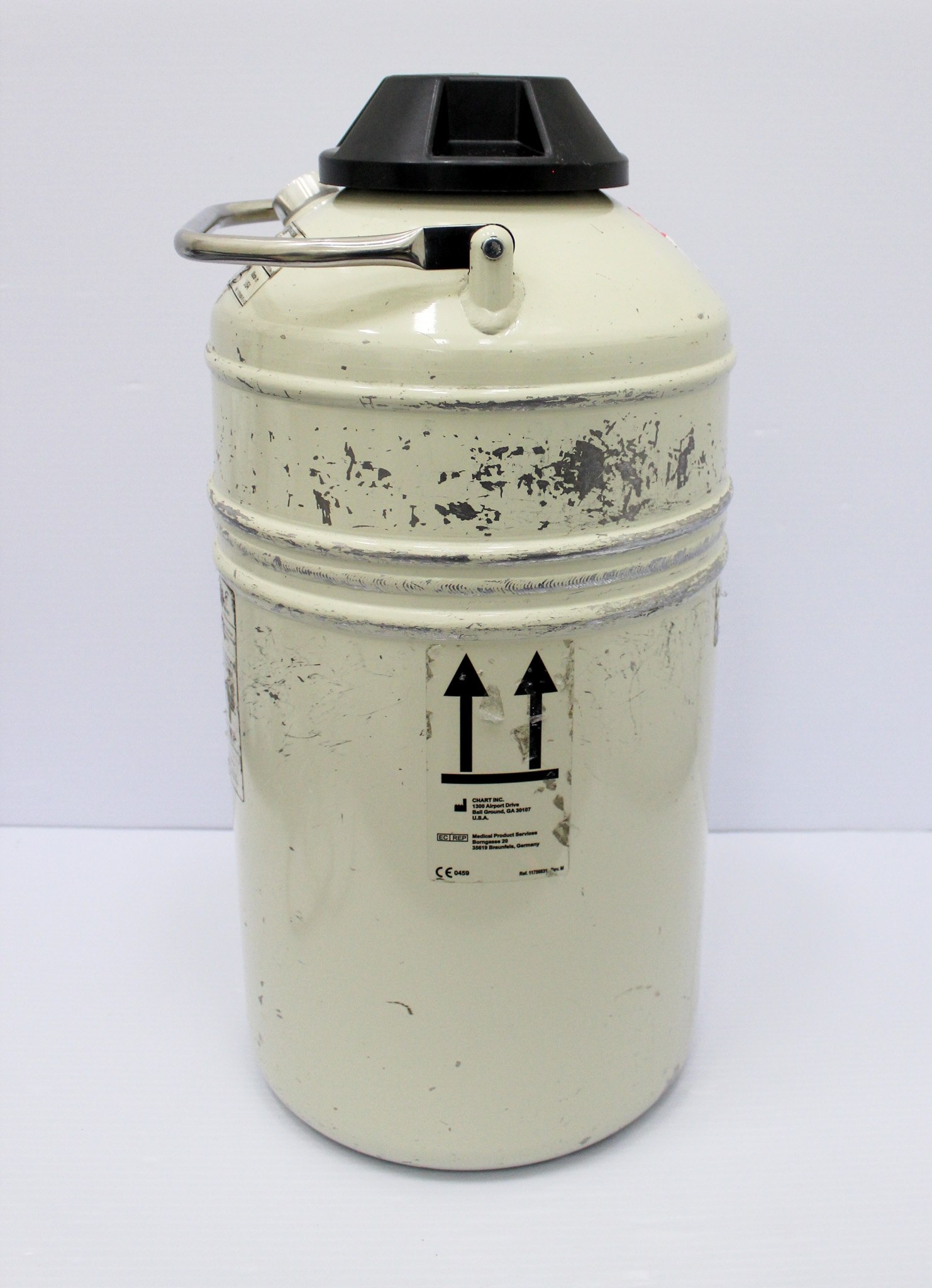

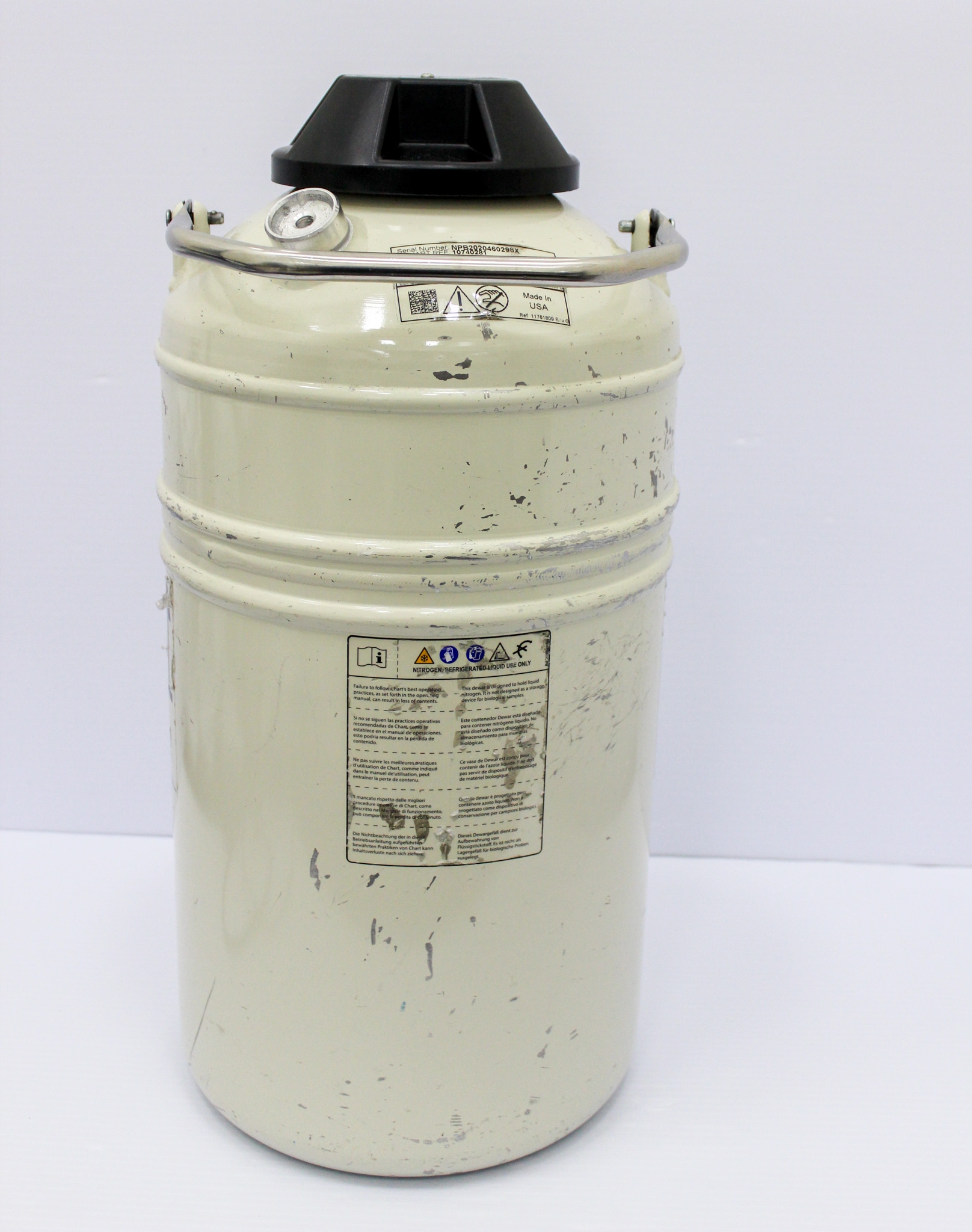

The Chart Industries MVE lab10 CPD Storage is a used cryogenic dewar designed for liquid nitrogen storage with a 10-liter capacity. This high-efficiency unit is widely used in laboratories and medical facilities worldwide and is known for its low liquid nitrogen consumption. While it exhibits cosmetic wear from normal usage, such as chipped paint, its functionality remains unaffected. The dewar features a high-strength neck tube to minimize nitrogen loss and an advanced chemical vacuum retention system. Conforming to the MDD 93/42/EEC Medical Device Directive for the EU, this dewar provides an economical method for storing and dispensing liquid nitrogen.
Key Features
- 10 liter liquid nitrogen capacity
- High-efficiency and super insulation
- Low nitrogen consumption
- Durable composite lid design

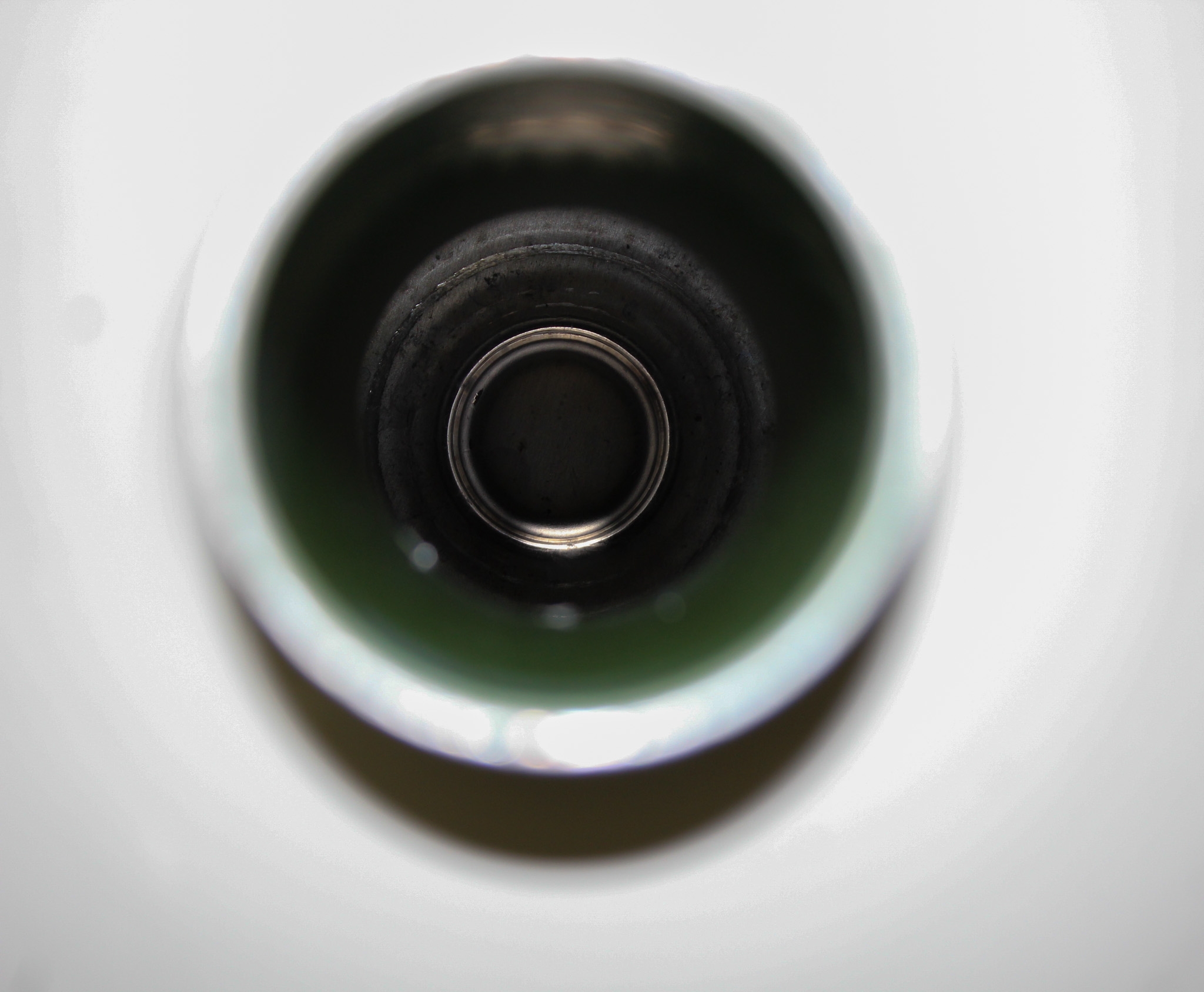

- High-strength neck tube
- Advanced vacuum retention system
- Conforms to MDD 93/42/EEC
Specifications
- LN2 Capacity: 10 liters
- Static Evaporation Rate: 0.18 L/day

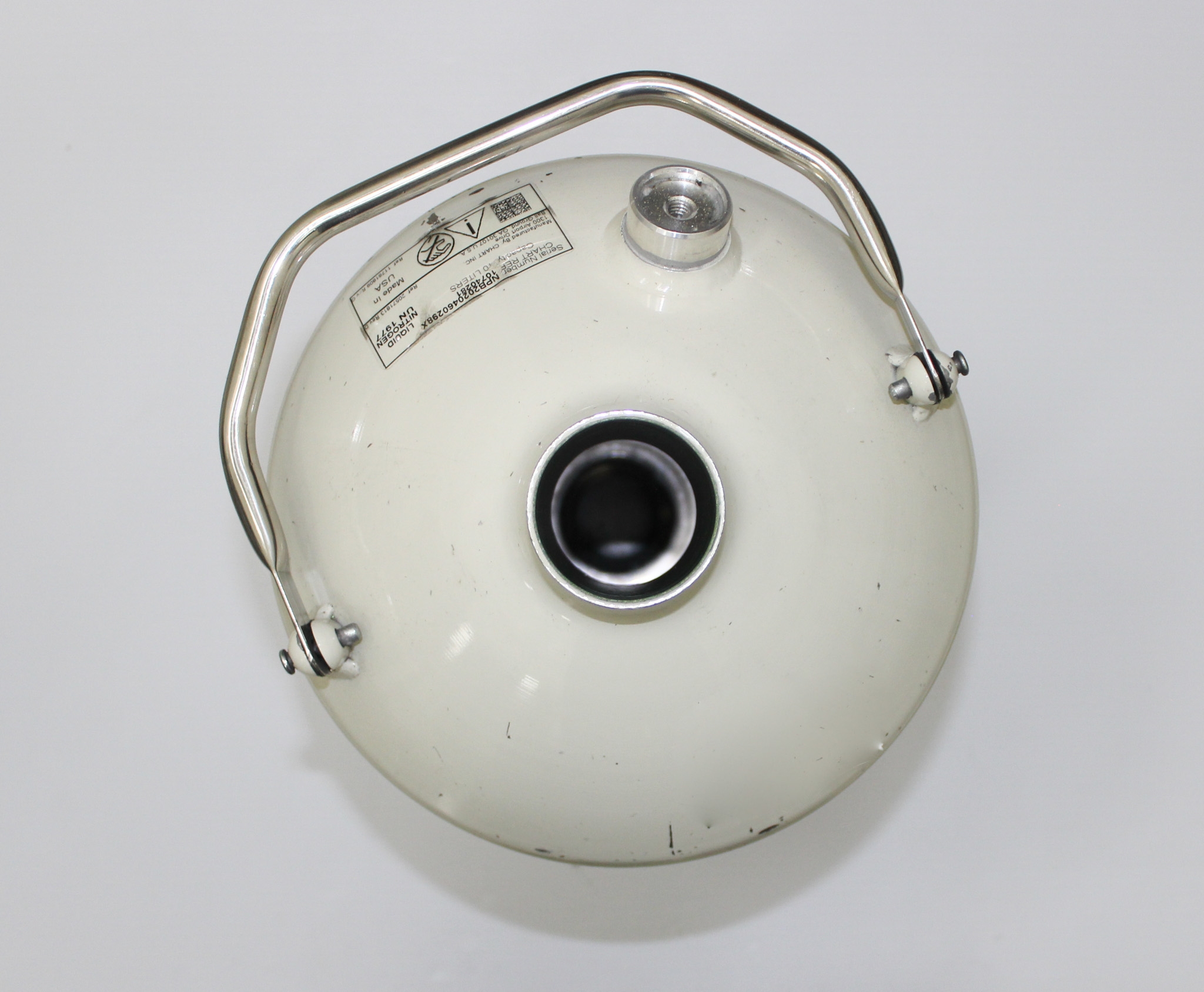

- Neck Opening: 2.18 in (55.4 mm)
- Overall Height: 21.5 in (546 mm)
- Useable Height: 13.5 in (343 mm)
- Outer Diameter: 10.3 in (260 mm)
- Internal Diameter: 8.3 in (210 mm)
- Weight Empty: 12 lbs (5.4 kg)
- Weight Full: 31 lbs (14 kg)
Weight
Imperial: 14.4 Pounds
Metric: 6.53 Kilograms
Shipping Dimensions
Imperial: 13.2 lb x 13.2 lb x 26.4 lb
Metric: 33.53 cm x 33.53 cm x 67.06 cm
Harmonized Code
76130000
Harmonized Code Details
76130000 - Aluminum containers for compressed or liquefied gas. This item is a liquid nitrogen container, making it highly applicable to this code.
