Thermo Custom Vision System Camera UV In-Sight 5MP PoE Ethernet Robots
Thermo Fisher Scientific
Details
-
CategoryMicroscope / Imager
-
Dimension24.0in x 24.0in x 25.0in
-
SerialMT13156
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

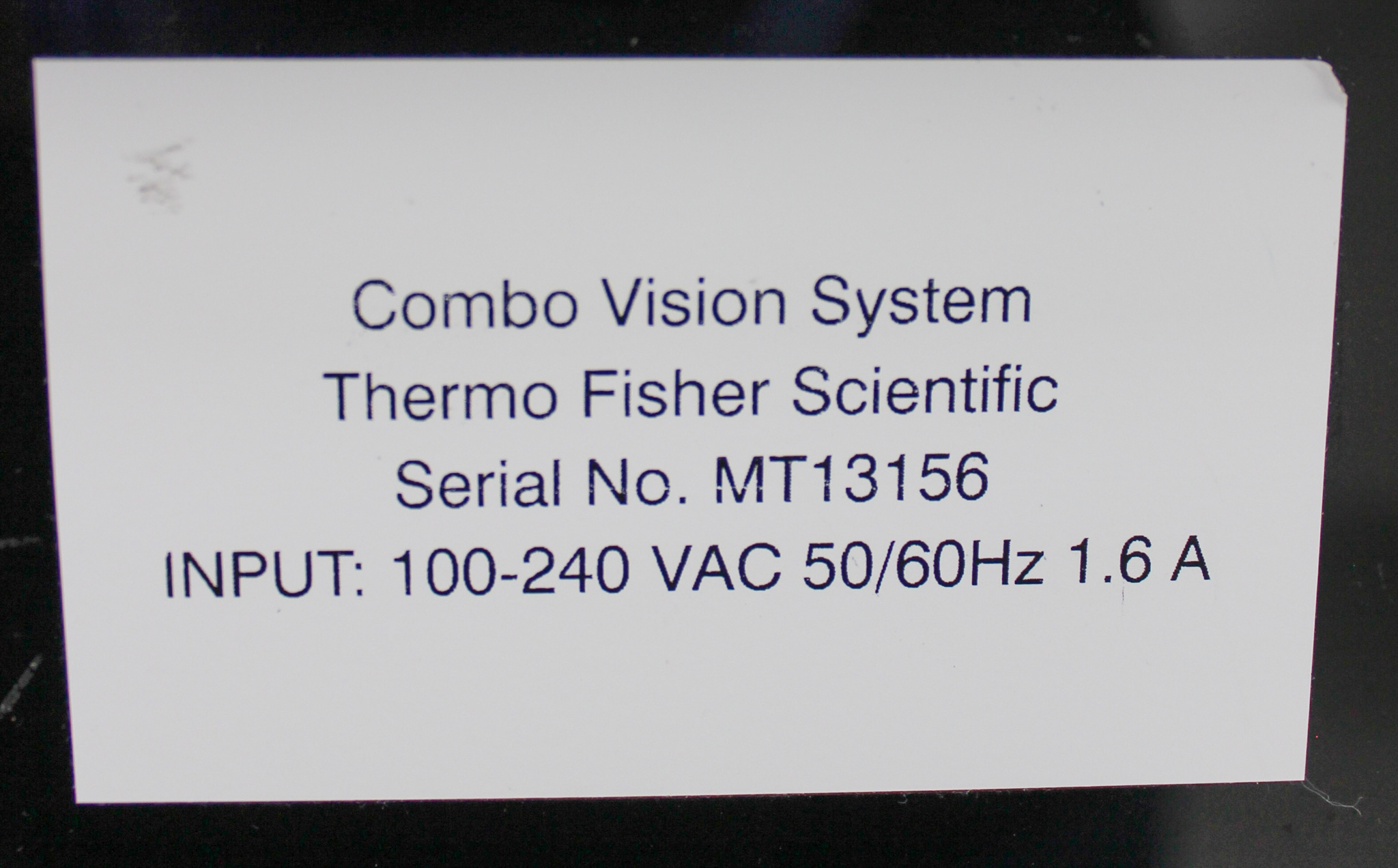

Voltage / Hertz120V / 50Hz/60Hz
Description

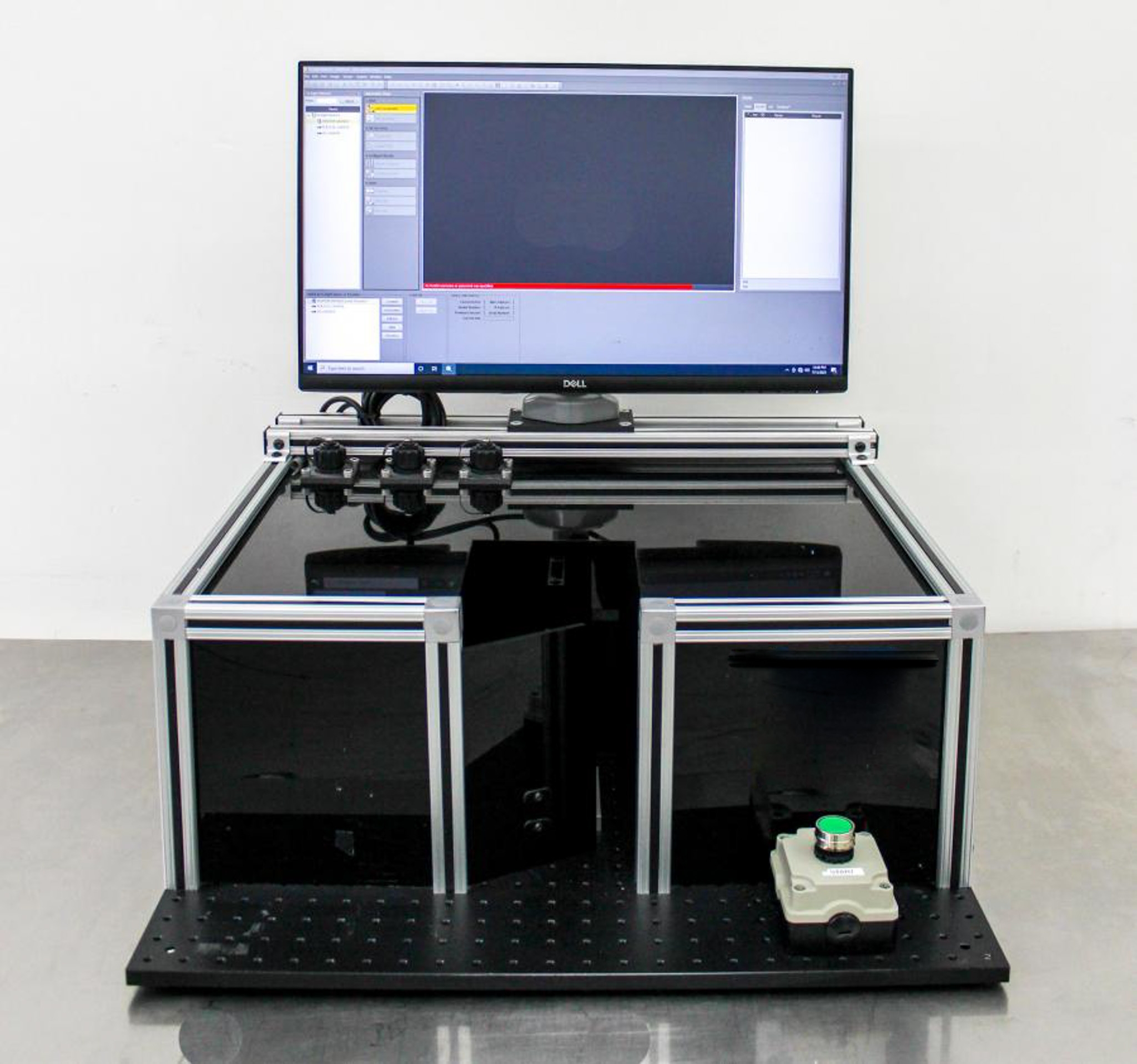

This Thermo Custom Combo Vision System, Model CPD Storage Room# 102, MT13156 (Serial Number MT13156), is a multi-functional intelligent camera system designed for rigorous vision tool applications. Made in the United States, this used unit is in good condition, exhibiting minor cosmetic wear typical of regular usage. Its compact build is suited for integration within tight automated processes. Equipped with a UV-Camera and a PCB Flex Camera, it offers high-speed VGA and up to 5MP resolution. With technical protocols like OPC UA and advanced vision tools such as PatMax RedLine and IDMax, it ensures superior inspection precision. Power over Ethernet (PoE) minimizes cabling, enhancing mobility and setup ease on production lines. For various industries including analytical and manufacturing, it meets high-speed acquisition needs within a space-efficient form factor.
Key Features

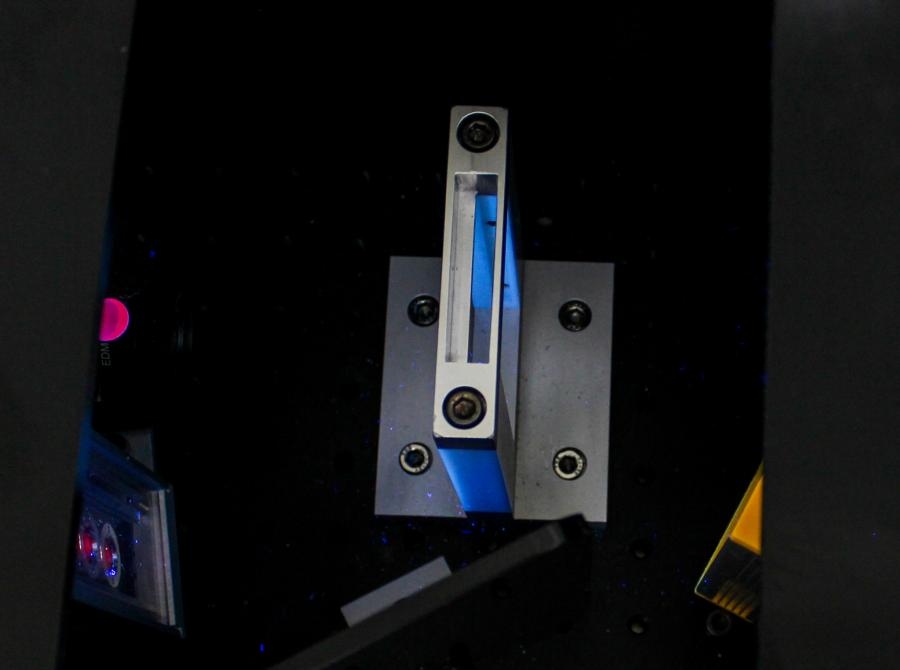

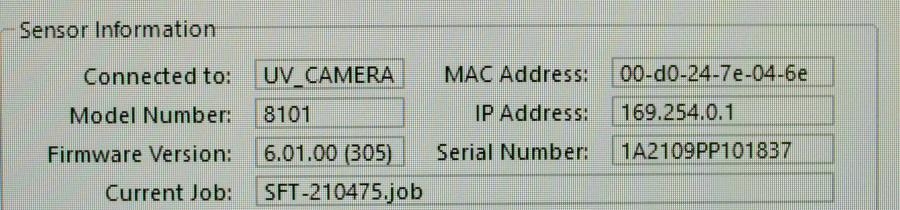

- Custom-built vision system with UV-Camera

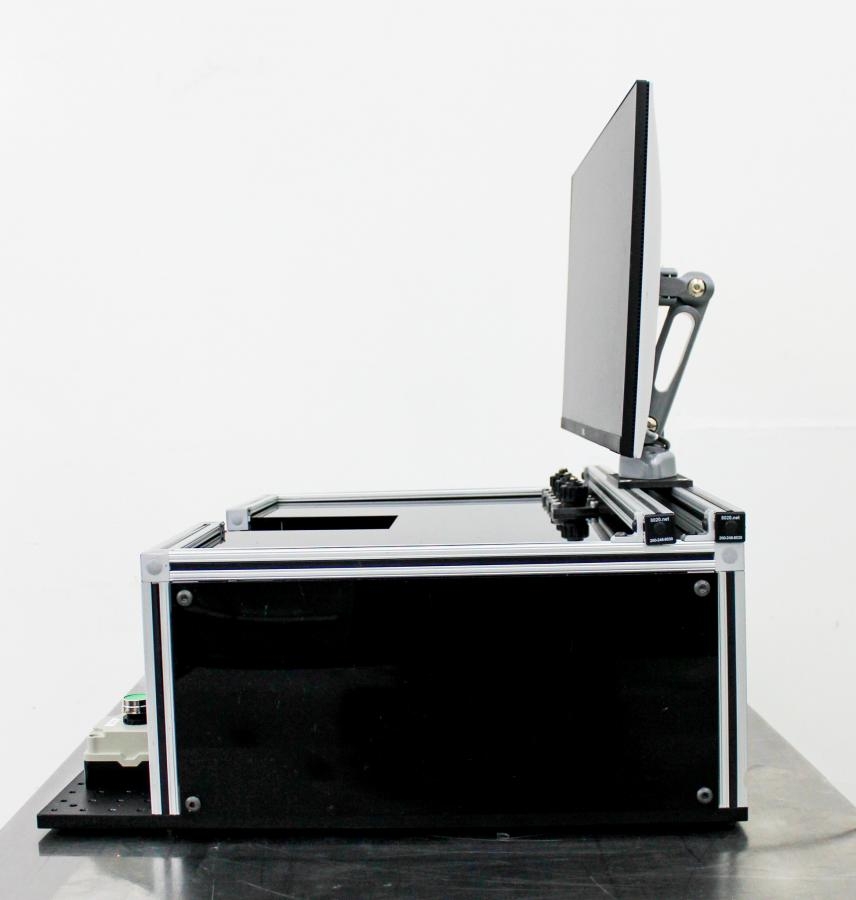

- Compact dimensions; fits tight spaces
- High-speed VGA to 5MP resolution
- Equipped with Ethernet IP, PROFINET protocols
- Power over Ethernet for simplicity
- Utilizes PatMax RedLine, OCRMax for precision
Specifications

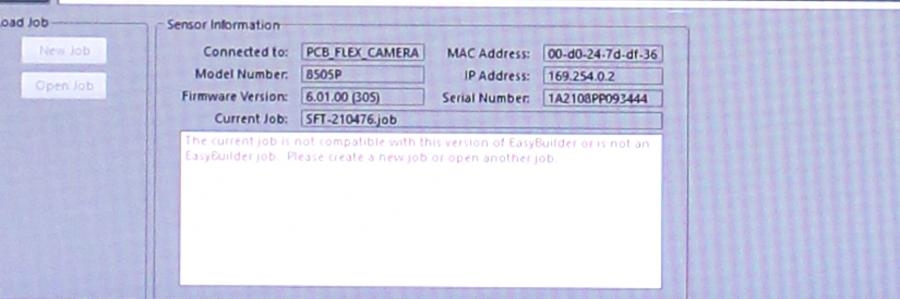

- Performance Factor: In-Sight 8505P: 4.6X
- Image Type: Monochrome and Color
- Sensor Type: CMOS, global shutter
- Resolution: 2448 x 2048 pixels
- Acquisition Rate: Monochrome: 32 fps, Color: 17 fps
- Lens Type: C-mount
- Built-in I/O: 1 trigger input, 2 high-speed outputs
- Power: Class 3 Power over Ethernet (PoE)
- Industrial Connectors: M12 and M8
- Industrial Protocols: OPC UA, Ethernet/IP with AOP, PROFINET Class B, iQSS
- Connector Speed: 10/1000/1000 Mbps (Gigabit)
- Memory: 14.8 GB Job/Program Memory, 512 MB Image Processing Memory
Weight
Imperial: 90.0 Pounds
Metric: 40.82 Kilograms
Shipping Dimensions
Imperial: 28.8 lb x 28.8 lb x 30.0 lb
Metric: 73.15 cm x 73.15 cm x 76.2 cm
Harmonized Code
9031.49.90
Harmonized Code Details
Harmonized Code 9031.49.90 pertains to measuring, checking instruments, appliances, and microprocessors. This code is fitting due to the product's vision system capabilities and application in robotic automation and production line settings.
