Broadley-James Corp D540-B120-PT-D9 Oxygen Sensor Kit with Membrane
Broadley-James Corp
Details
-
CategoryMeter
-
Dimension12.0in x 8.0in x 6.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

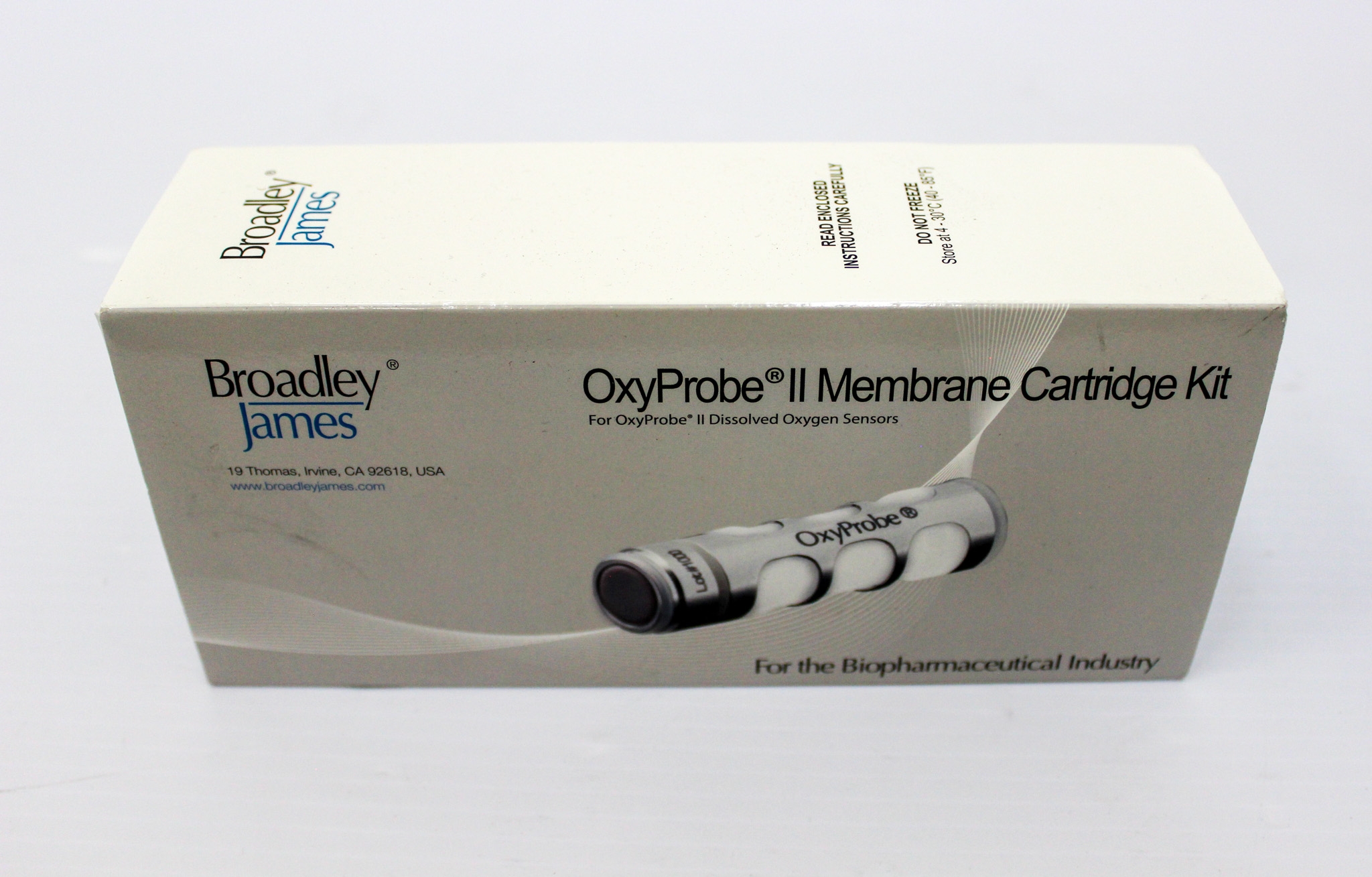

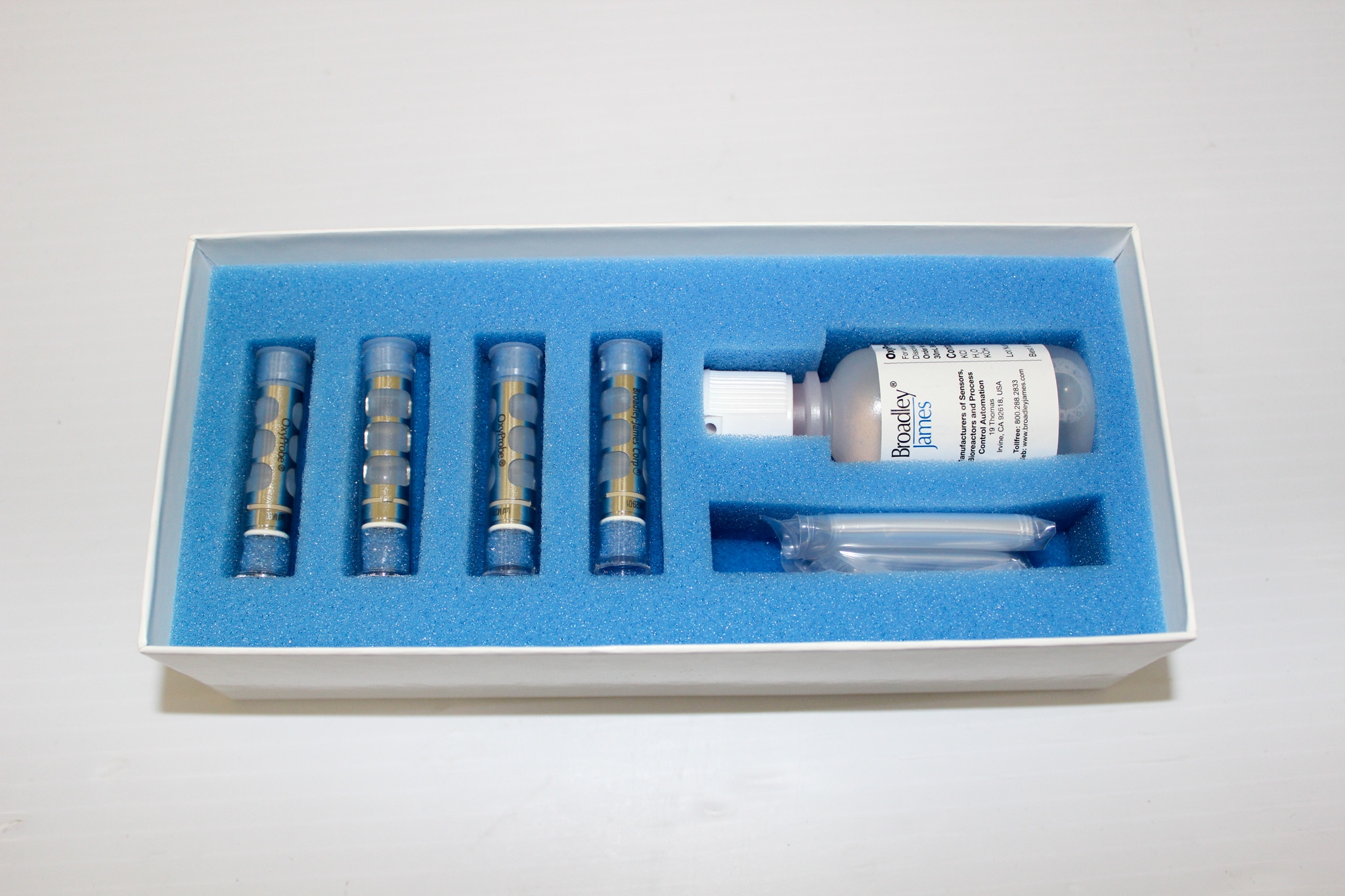

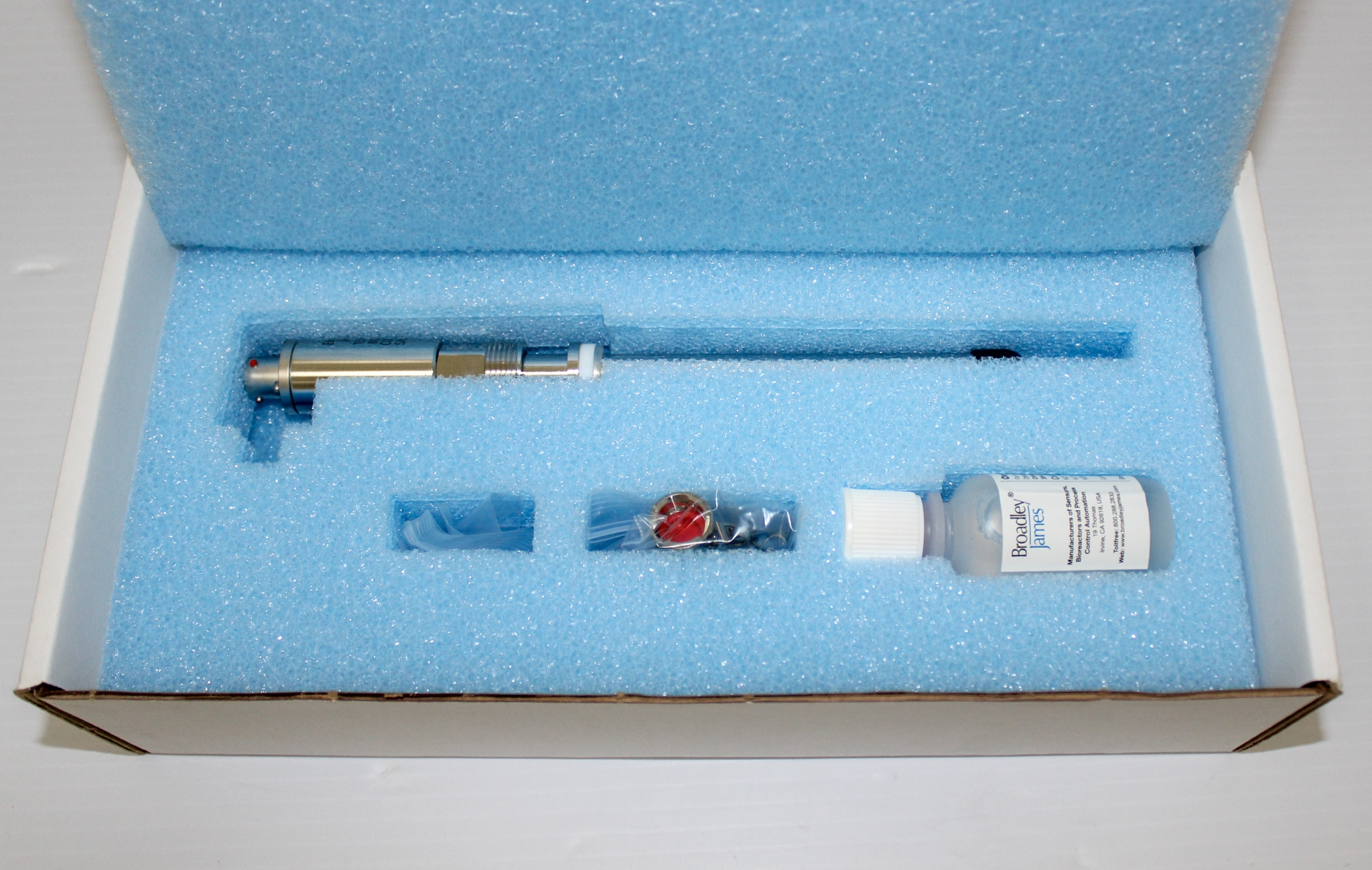

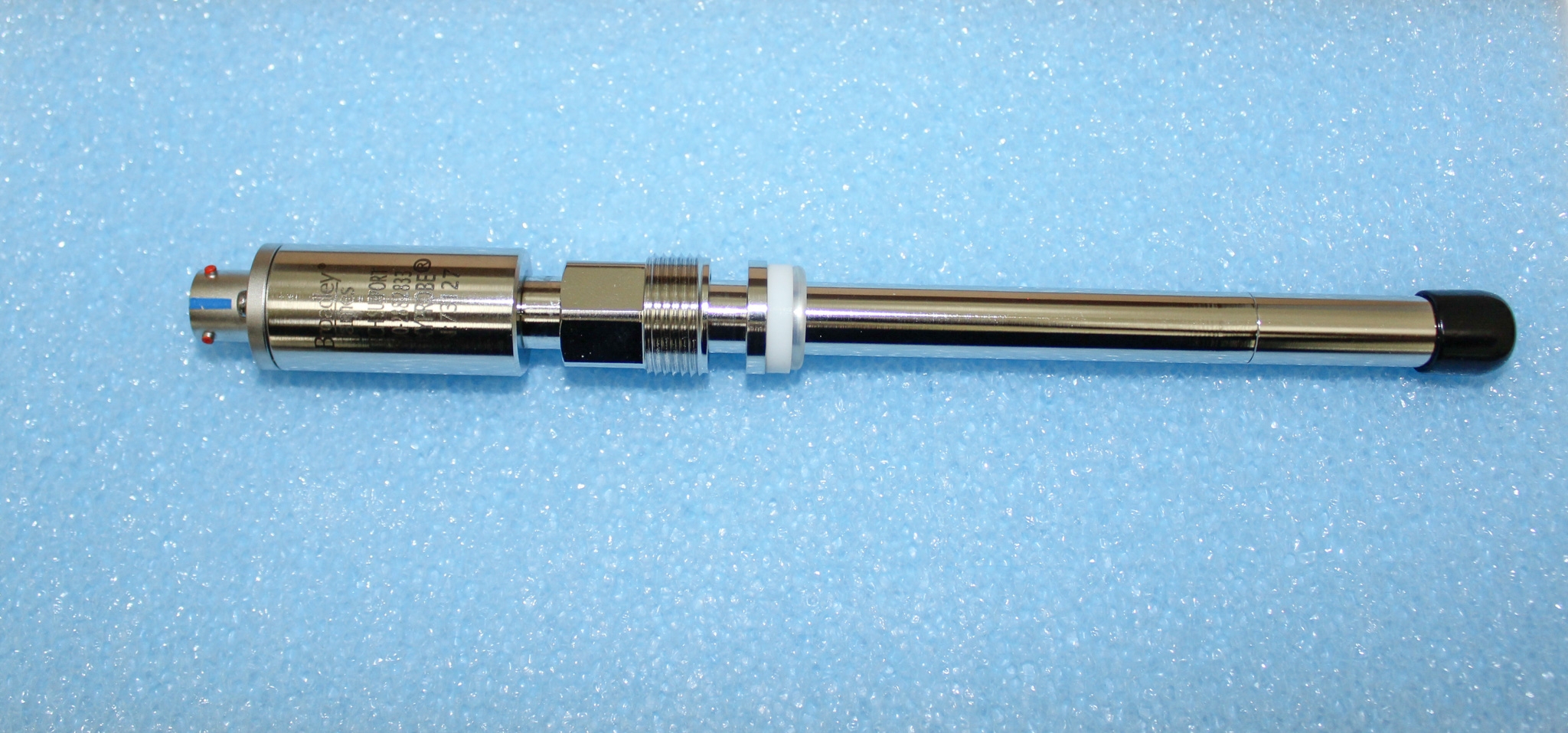

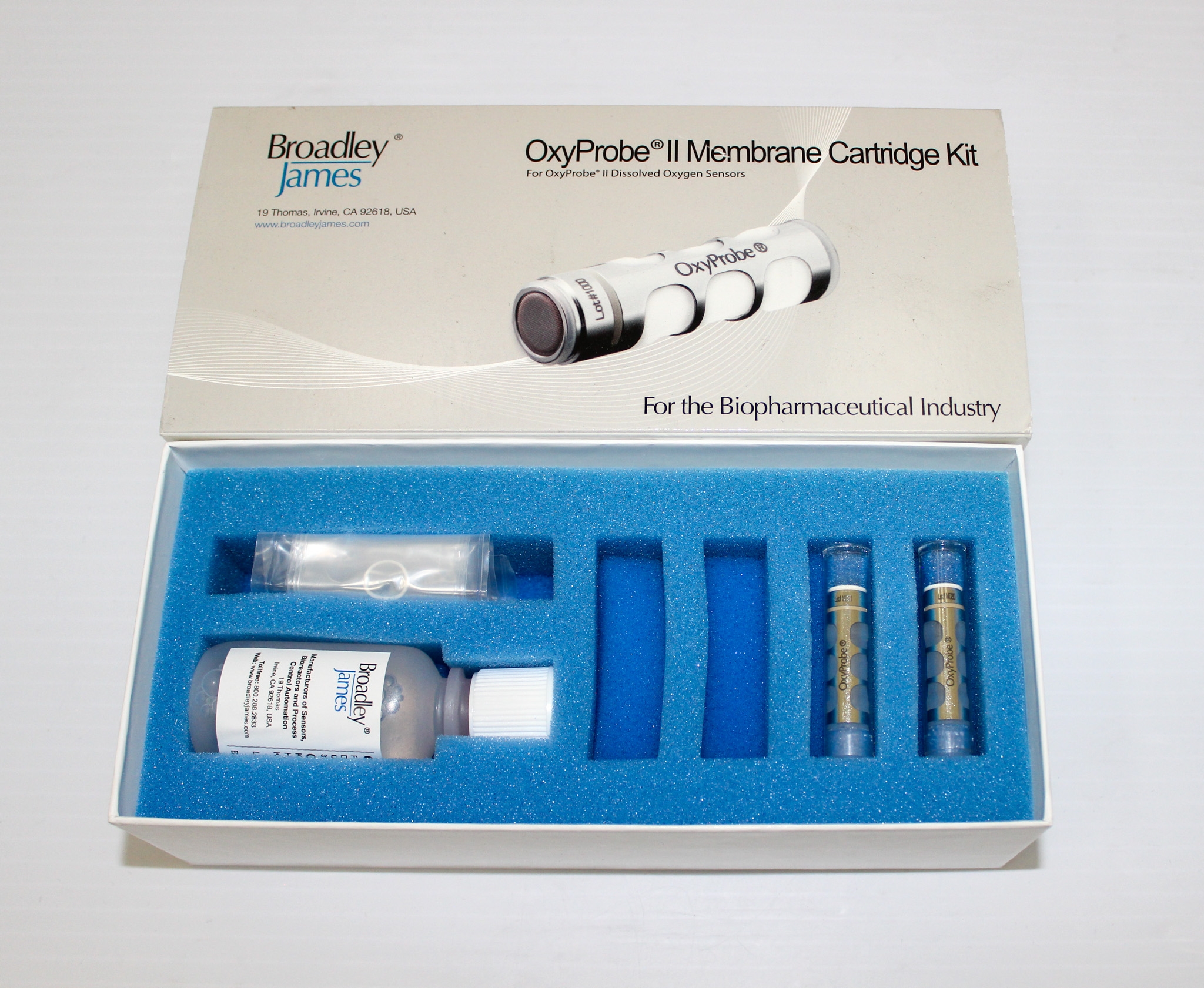

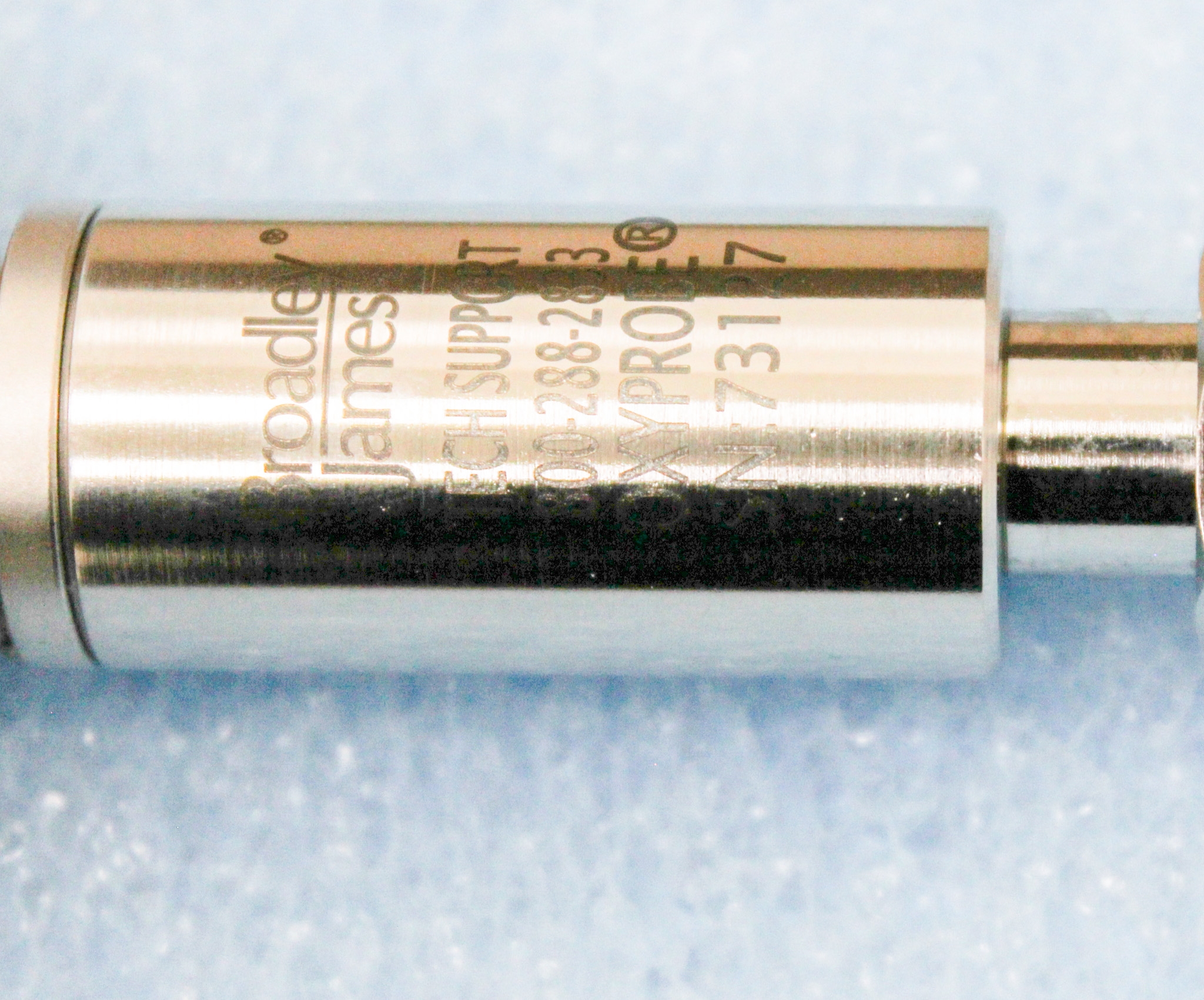

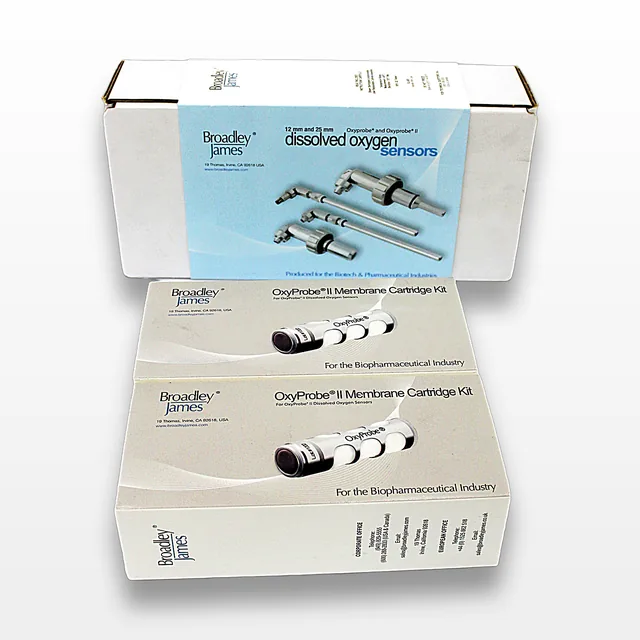

The Broadley-James Corp D540-B120-PT-D9, also known as the OxyProbe II, is an advanced dissolved oxygen sensor and membrane cartridge kit designed for accurate and consistent oxygen measurement. Made in the United States, this system is fully functional and ready for use, having been refurbished to ensure maximum reliability. The kit includes a 25 ml bottle of electrolyte, four membrane cartridges, and four sets of internal O-rings, all in original packaging. Key features of the OxyProbe II sensor include a straight VarioPin connector, a new membrane design with an expandable silicone bladder within a 316L stainless steel cage, and automatic temperature compensation with a built-in thermistor. Designed for high-pressure environments up to 58 psig and temperatures up to 80°C, the sensor provides reliable readings, with a response time of 98% in 60 seconds at 25°C. The sensor body is made from cPVC with PTFE/Silicone reinforced membranes, ensuring long-lasting performance.
Key Features
- Turnkey ready and fully functional
- Expandable silicone bladder membrane design
- High-pressure tolerance: 58 psig, 4 bar
- Max temperature: 80°C
- Automatic temperature compensation
- Stainless steel reinforced membranes
- VarioPin connector
Specifications
- Temperature Range: 0°C to 80°C
- Maximum Pressure: 58 psig (4 bar)
- Response Time: 98% in 60 seconds at 25°C
- Sensor Body: cPVC
- Membrane: PTFE/Silicone reinforced with stainless steel mesh
- Flow Dependence: Readings differ by 3-5% in stirred vs. unstirred solutions
- Temperature Compensation: Automatic with built-in thermistor, 22K Ohms at 25°C
- Wetted Materials: cPVC, 316L stainless steel, Silicone
Weight
Imperial: 2.4 Pounds
Metric: 1.09 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 9.6 lb x 7.2 lb
Metric: 36.58 cm x 24.38 cm x 18.29 cm
Harmonized Code
902710
Harmonized Code Details
902710 - Instruments and apparatus for physical or chemical analysis: Used due to the sensor's analytical function for dissolved oxygen measurement.
