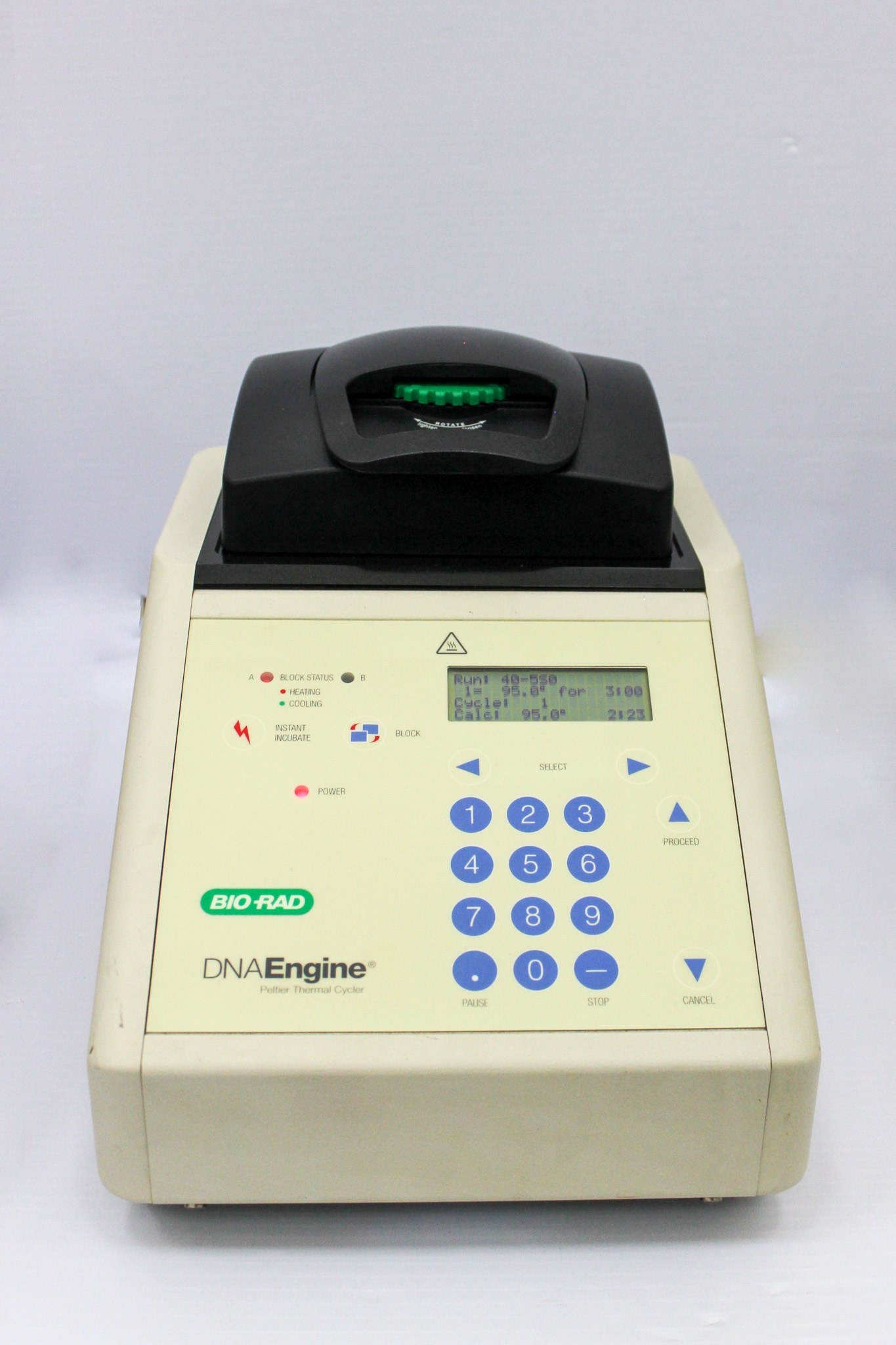

Bio Rad ALS1296G Thermal Cycler 96 Well DNA Engine with Gradient Control
Bio Rad
Details
-
CategoryMolecular Biology
-
Dimension14.0in x 10.0in x 11.0in
-

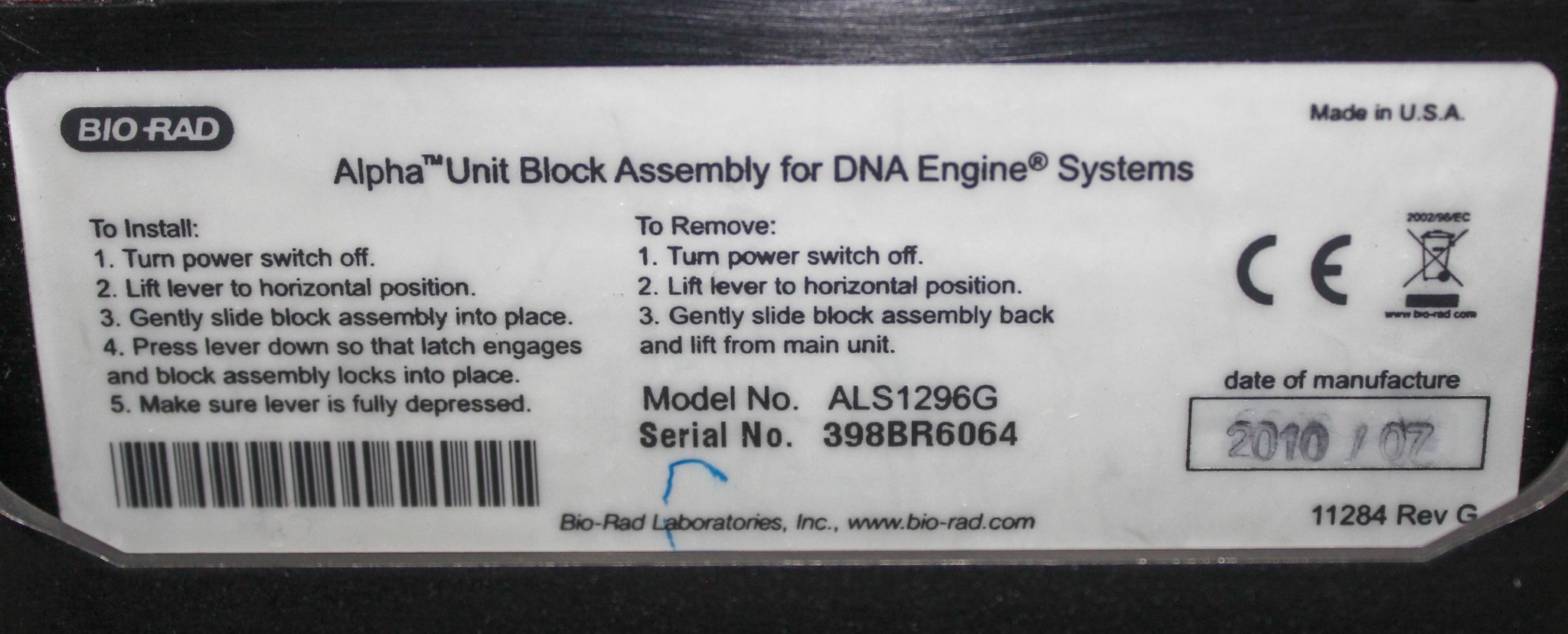

SerialALS1296G / EN037107
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Bio-Rad Gradient 96 Well DNA Engine Thermal Cycler ALS1296G /PTC0200 offers precise temperature control and interchangeable sample blocks, supporting up to 96 x 0.2 ml tubes or a single 96-well microplate. Tested for functionality, it features slight cosmetic blemishes from previous use. With a full temperature range of 0 to 100°C, it uses Peltier effect heat pumps for efficiency and delivers ramp rates up to 3°C/sec, ensuring temperature uniformity within ±0.4°C. This used thermal cycler includes a power cord and operates at 120V/220V, providing reliable performance for your laboratory needs.
Key Features

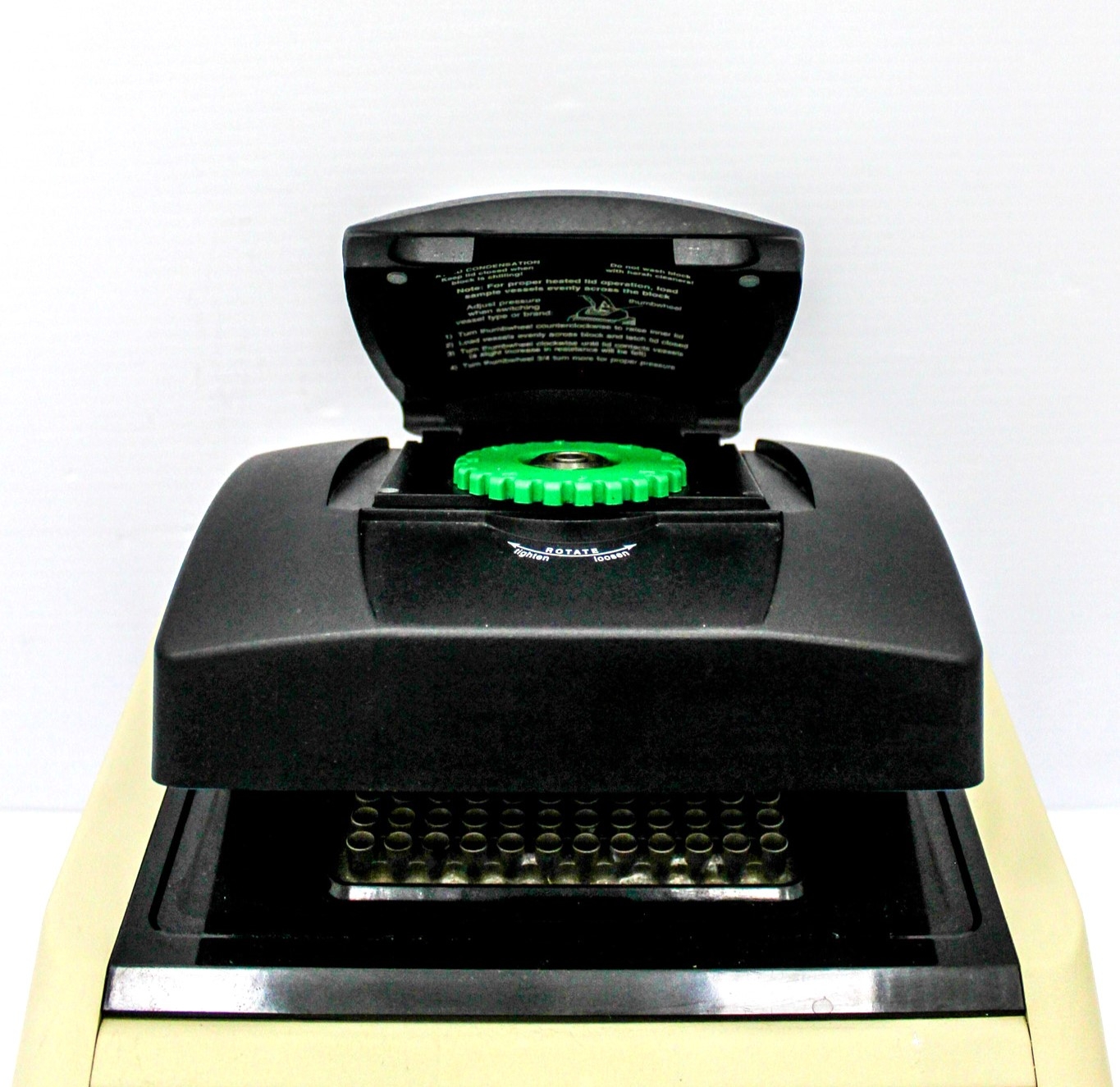

- Interchangeable sample blocks for flexible use

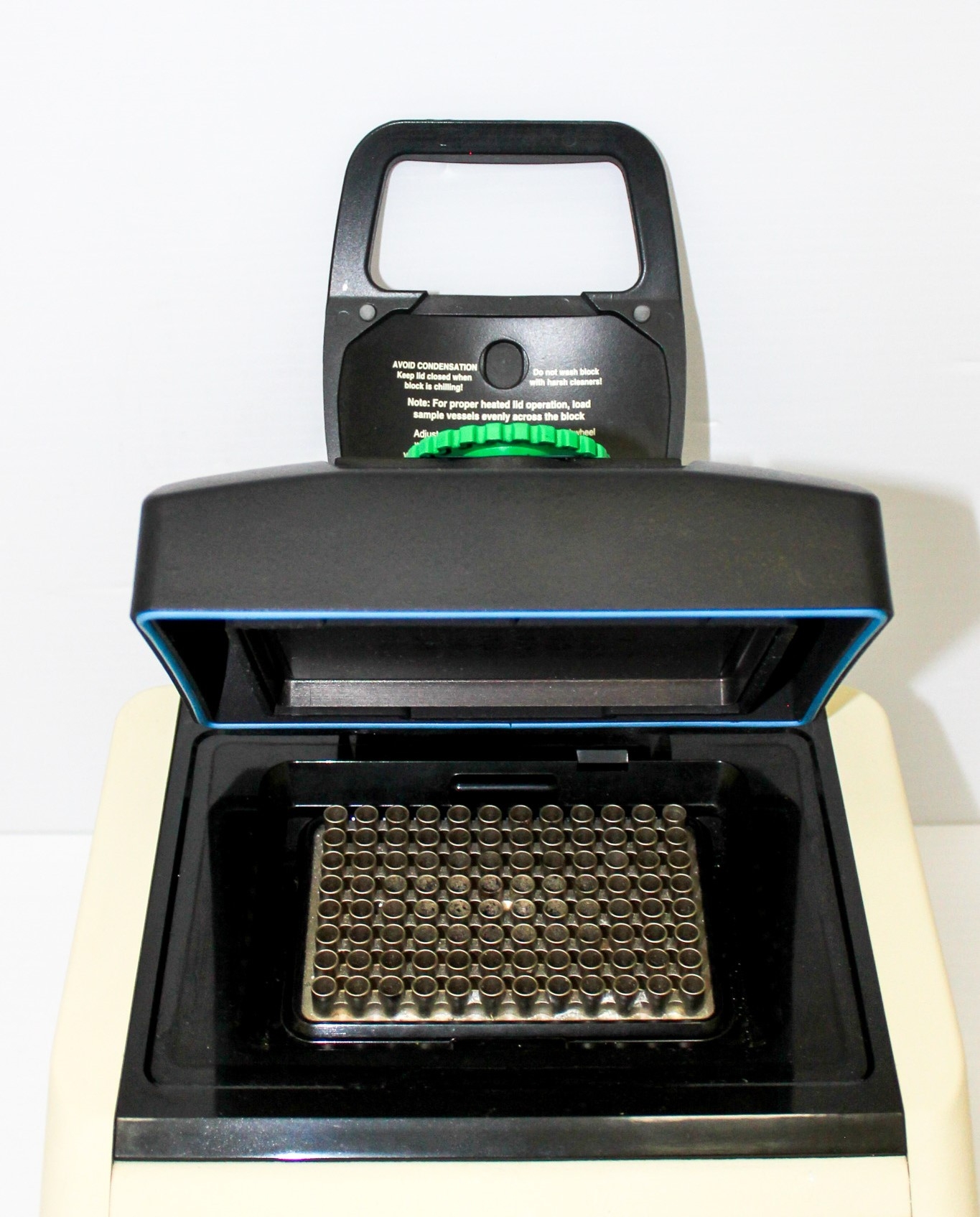

- Holds 96 x 0.2 ml tubes or one 96-well microplate
- Temperature range: 0 to 100°C with Peltier effect heat pumps
- Precision gradient control for uniform heating
- Fast ramping rates up to 3°C/sec
- NIST-traceable accuracy with ±0.3°C thermal accuracy
- Robust software allowing control over thermal parameters
Specifications
- Thermal range: 5 to 105°C, but ≤30°C below ambient
- Thermal accuracy: ±0.3°C at 90°C, NIST-traceable
- Uniformity: ±0.4°C well-to-well within 30 seconds at 90°C
- Ramping speed: up to 3°C/sec for single and dual-block units

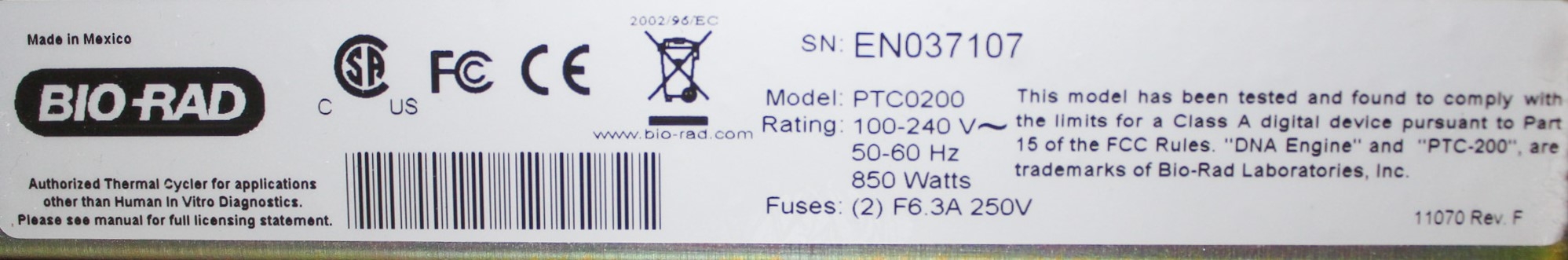

- Voltage: 100-240VAC (no adjustment required)
- Frequency: 50-60Hz single-phase
- Power: 850W maximum

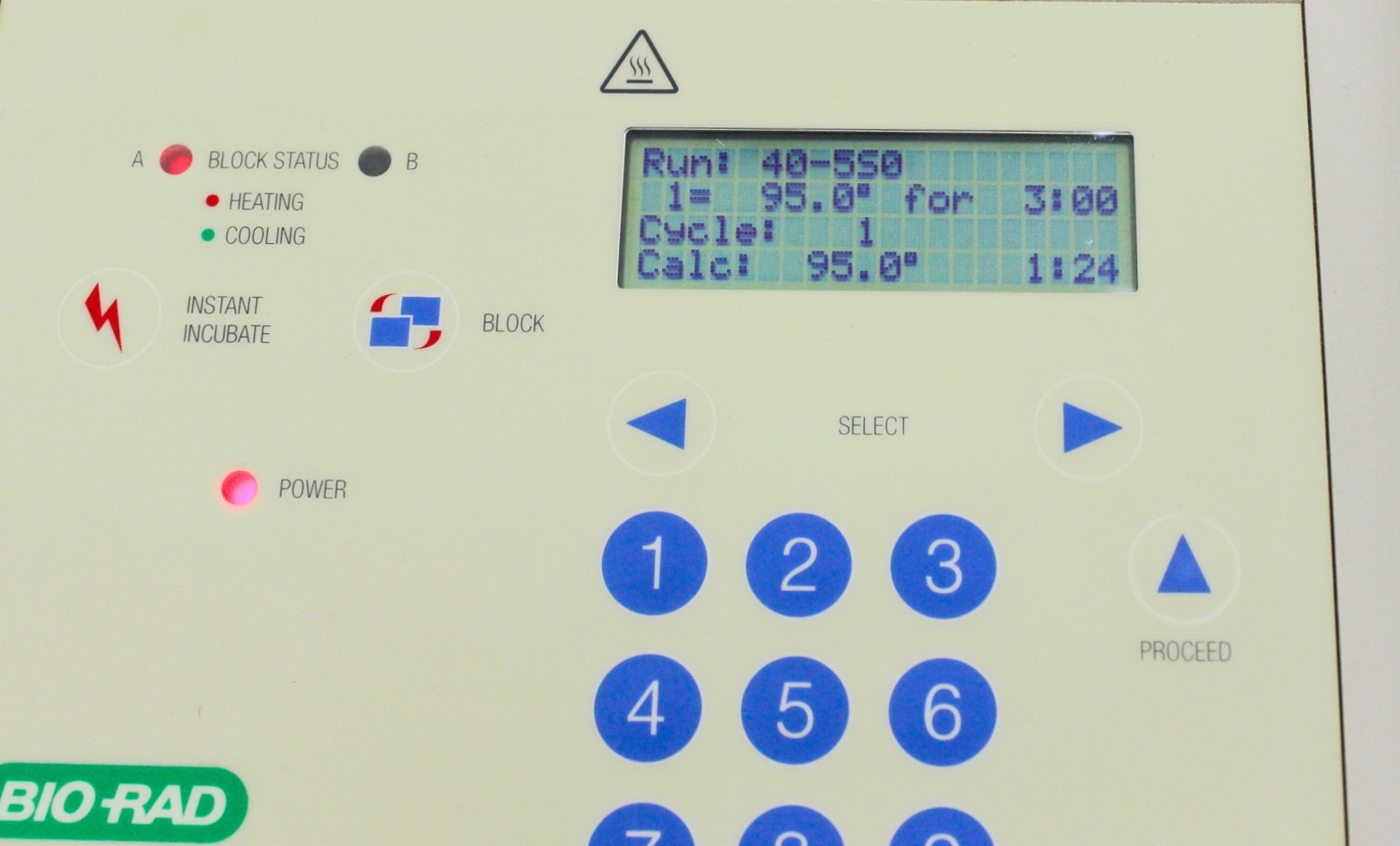

- Display: 20 x 4 LCD alphanumeric

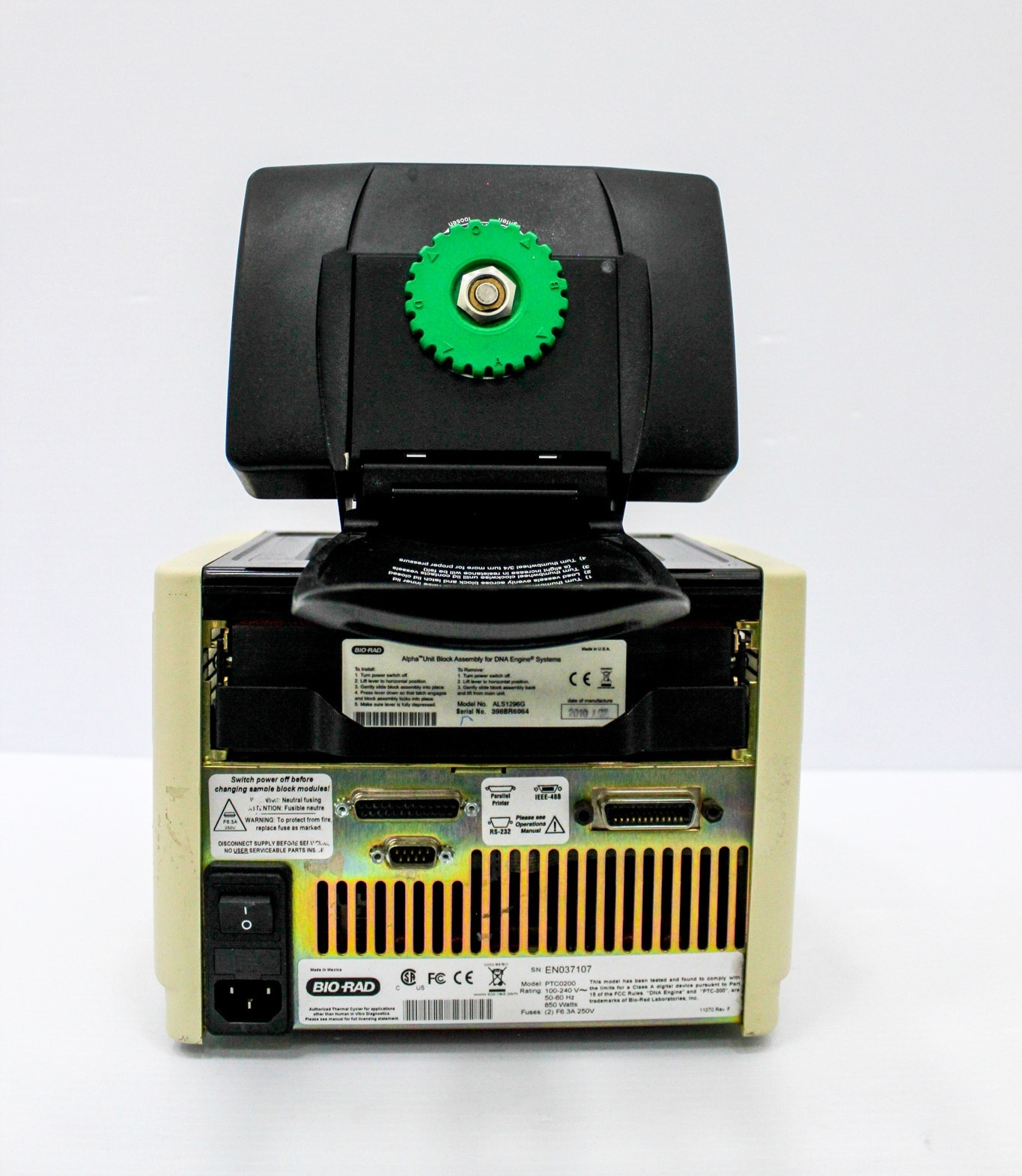

- Serial and printer ports available
Weight
Imperial: 21.6 Pounds
Metric: 9.8 Kilograms
Shipping Dimensions
Imperial: 16.8 lb x 12.0 lb x 13.2 lb
Metric: 42.67 cm x 30.48 cm x 33.53 cm
Harmonized Code
9027.50.4090
Harmonized Code Details
9027.50.4090 - Instruments and apparatus for physical or chemical analysis. Suitable for laboratory use including DNA sequencing and thermal cycling applications.
