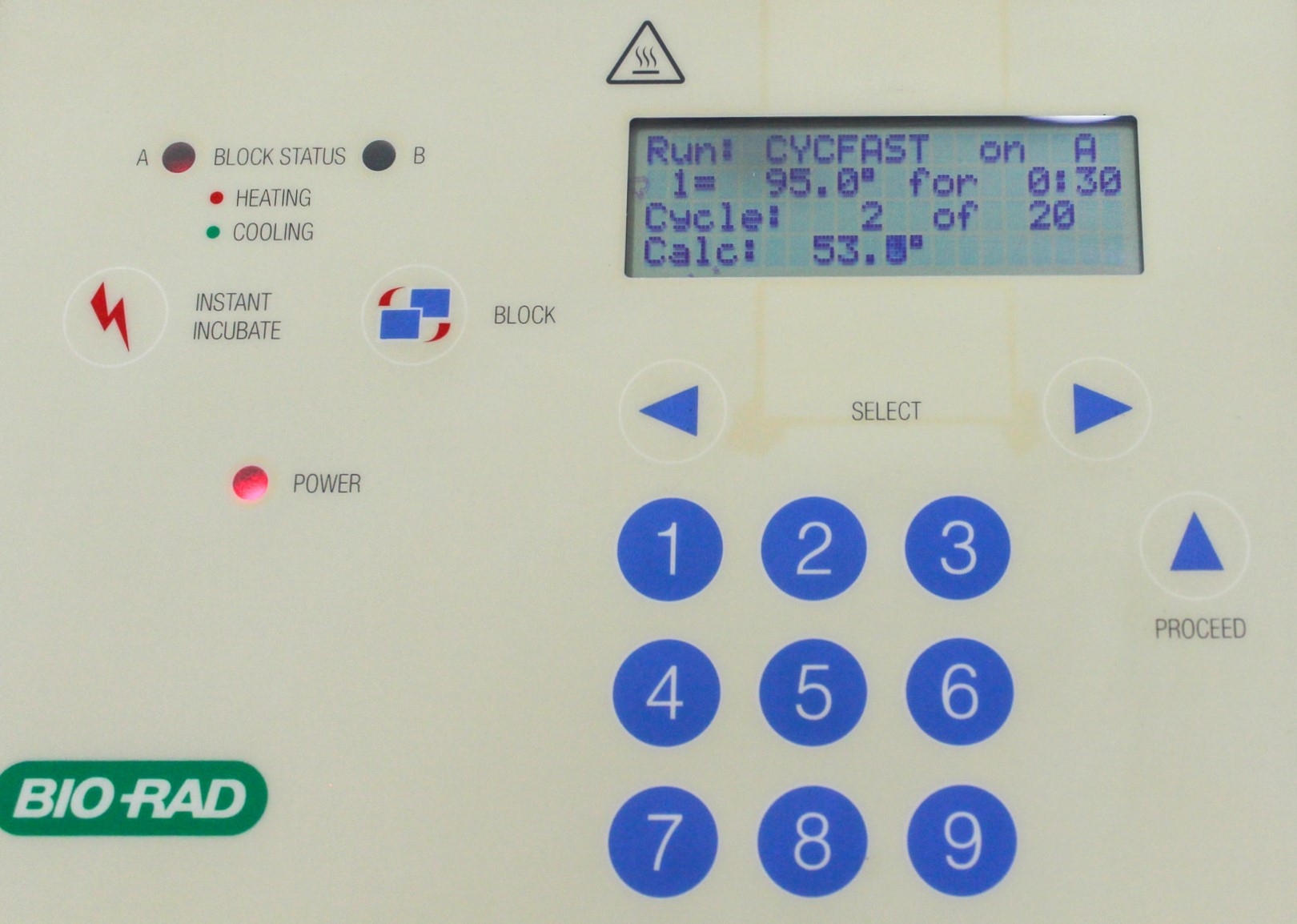

Bio Rad ALD1244 DNA Engine Thermocycler Dual 48 Well With Peltier Effect 105C
Bio Rad
Details
-
CategoryMolecular Biology
-
Dimension15.0in x 10.0in x 12.0in
-
SerialEN032910
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Bio Rad Dual Block Well DNA Engine Thermal Cycler ALD1244 and PTC0200 is a reliable and versatile instrument designed for DNA amplification and analysis. Manufactured in the United States by Bio Rad, this used unit is in very good condition with some minor cosmetic blemishes. The cycler features interchangeable sample blocks and heat pump assemblies, enabling easy format change between runs while ensuring NIST-traceable accuracy. The dual 48 well block design allows for two independent programs to run simultaneously. It covers a thermal range of 5 to 105C, with precision engineered Peltier-effect heat pumps promoting a uniform temperature across the samples. Offering up to 3.0C/sec ramping speed for 0.2 ml tube models, it ensures efficient thermal cycling. The compact design supports a large memory capacity with flexible programming options, making it an essential tool for molecular biology applications.
Key Features

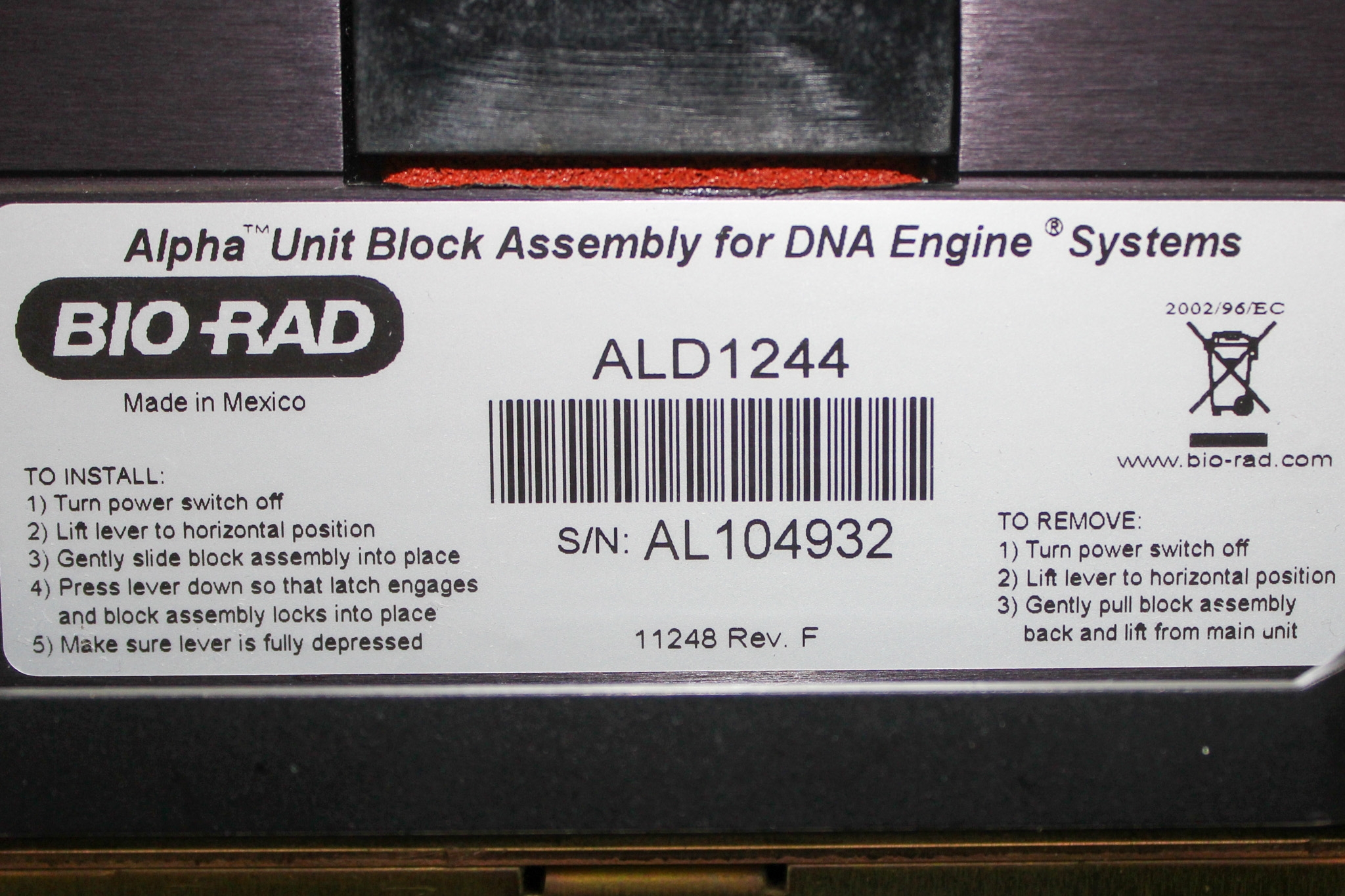

- Interchangeable sample blocks
- NIST-traceable accuracy

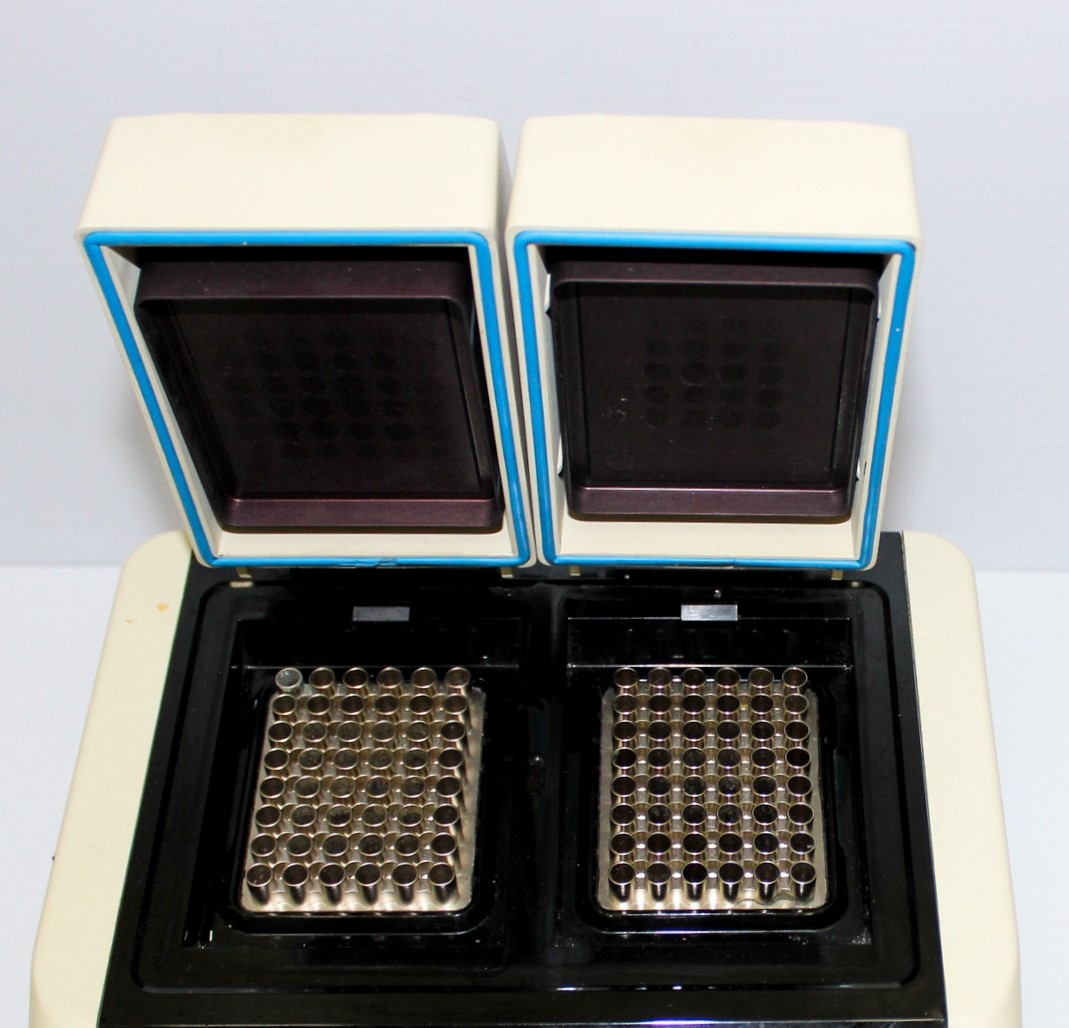

- Dual 48 well blocks for simultaneous programs
- Peltier-effect heat pumps
- Thermal range of 5 to 105C
- Ramping speed up to 3.0C/sec
- Compact design
- Large memory with flexible programming
- Ideal for molecular biology applications
Specifications
- Thermal range: 5 to 105C, up to 30C below ambient
- Thermal accuracy: 0.3C of programmed target at 90C
- Thermal uniformity: 0.4C well-to-well within 30 seconds of arrival
- Ramping speed: Up to 3C/sec for dual-block Alpha units

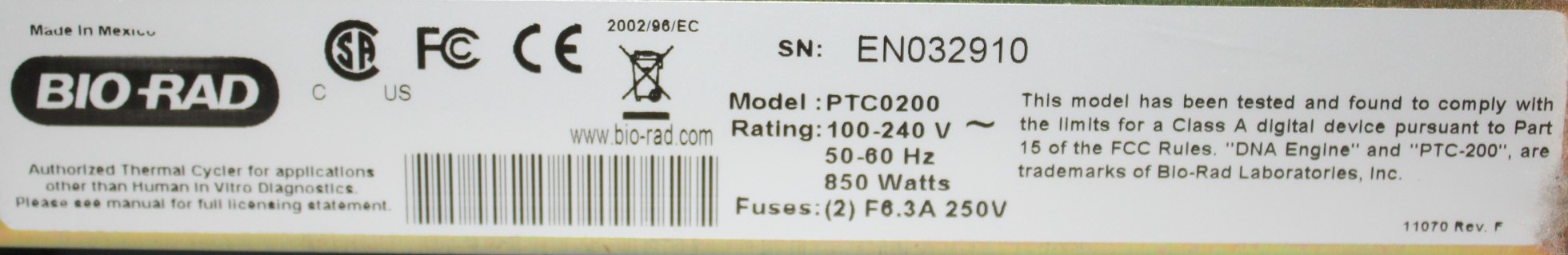

- Line voltage: 100-240 VAC rms, frequency: 50-60 Hz
- Power: 850 W maximum, Fuses: Two 6.3 A, 250 V, 5 x 20 mm

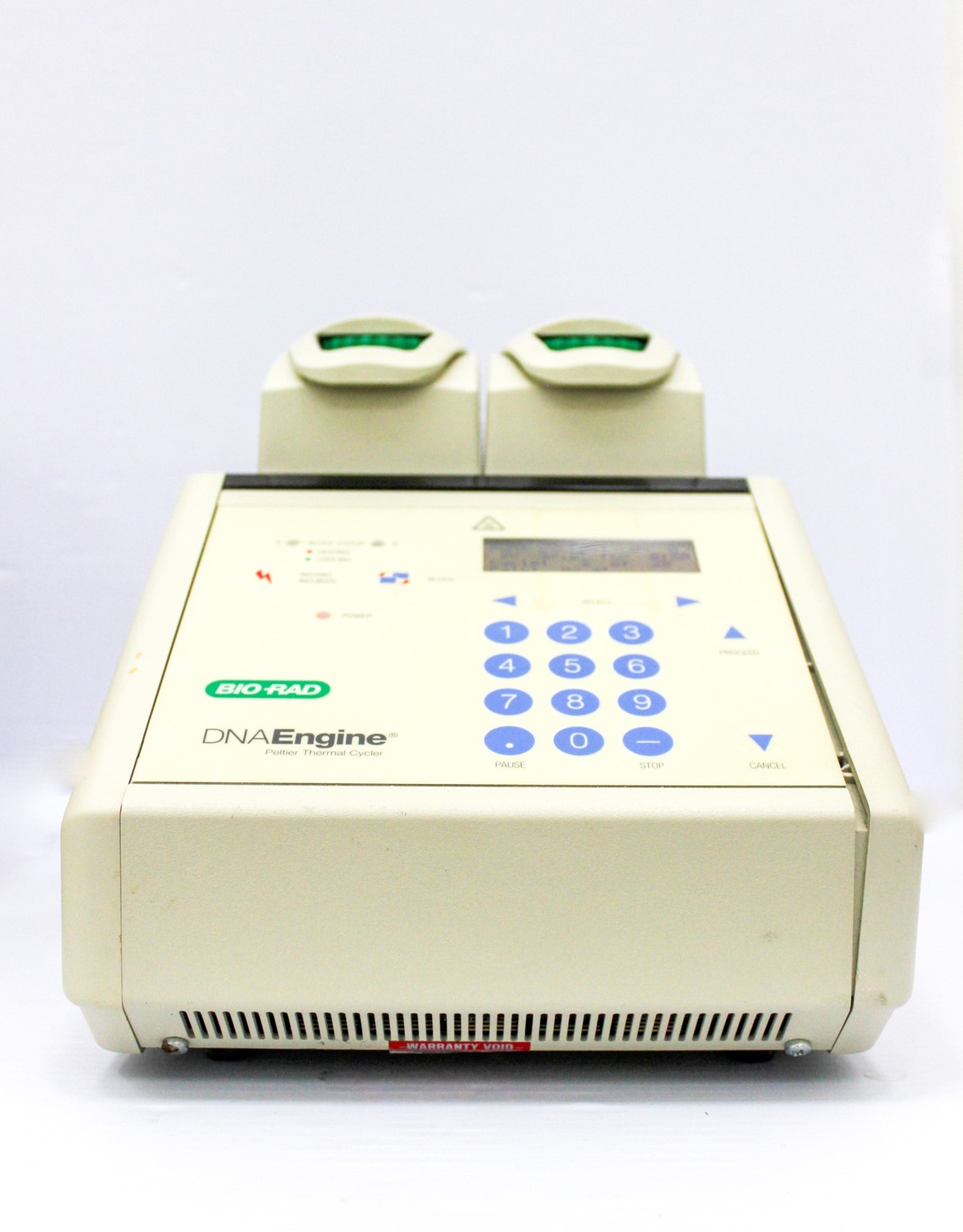

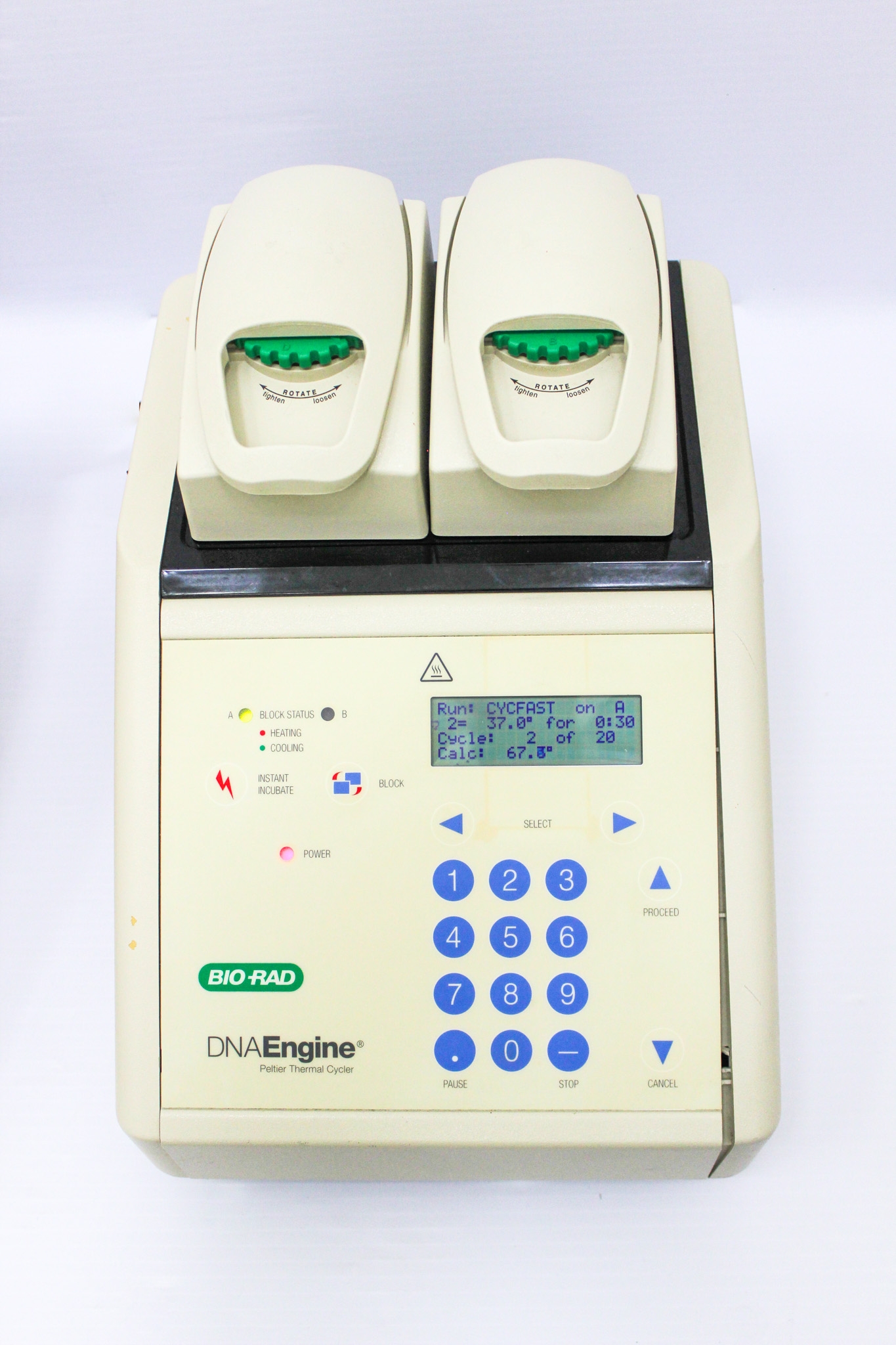

- Display: 20 x 4 LCD alphanumeric display

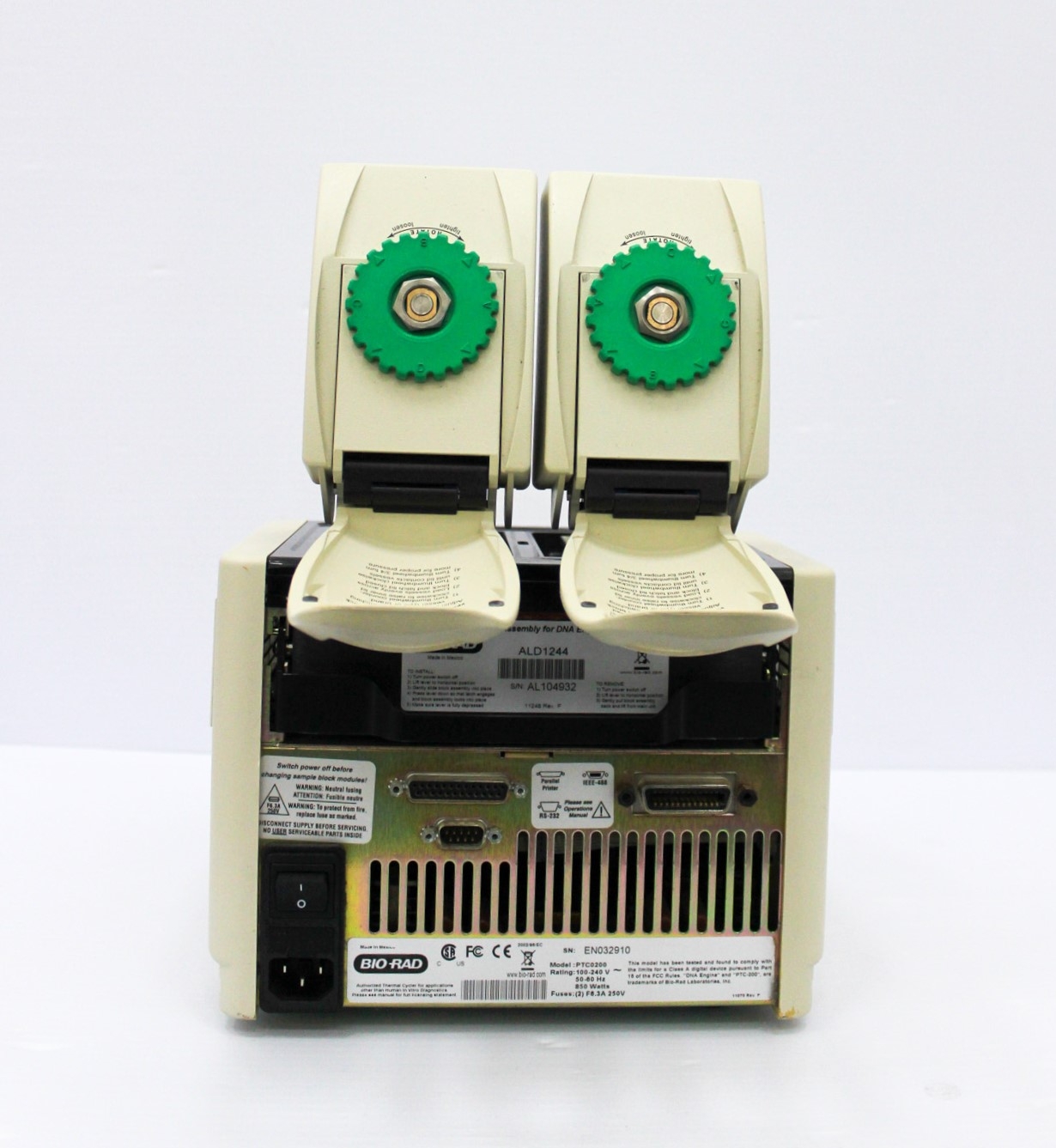

- Ports: Parallel printer port, 9-pin RS-232 serial port, IEEE-488 interface bus
- Memory: Stores up to 400 programs in 12 folders
Weight
Imperial: 22.8 Pounds
Metric: 10.34 Kilograms
Shipping Dimensions
Imperial: 18.0 lb x 12.0 lb x 14.4 lb
Metric: 45.72 cm x 30.48 cm x 36.58 cm
Harmonized Code
901890
Harmonized Code Details
901890 - Instruments and appliances used in medical, surgical, dental, or veterinary sciences, n.e.s. This code suits the DNA thermal cycler as it is a specialized scientific instrument used within laboratory settings.
