Tracor LFG-1300S Signal Source Function Generator 0.02Hz-2MHz Used
Tracor
Details
-
CategoryTesting Equipment
-
Dimension12.0in x 10.0in x 6.0in
-

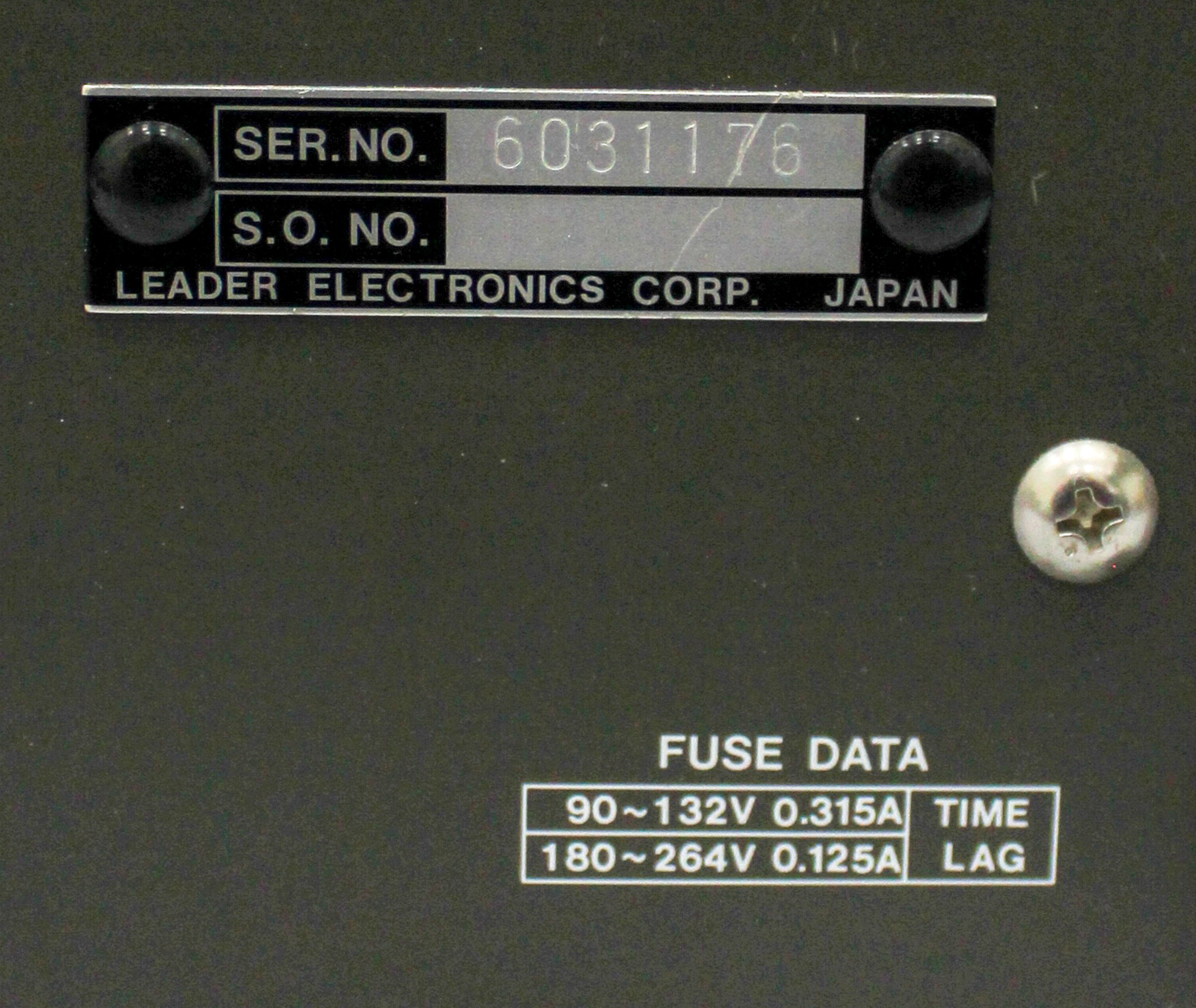

Serial6031176
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz120V / 50Hz/60Hz
Description
Optimize your research and design projects with the Tracor Leader LFG-1300S Function Generator. Designed for a range of applications, this used piece of equipment is in very good condition with tested specifications. Despite some minor cosmetic blemishes and two missing buttons, it functions correctly and provides a reliable signal source. With coverage from 0.02Hz to 2MHz and uncalibrated extension down to 0.002Hz, it offers versatile sine, square, triangle, ramp, and pulse output signals. Unlike other instruments, its pulse symmetry can be adjusted over a 9:1 range without significantly affecting the output frequency. Additionally, it features both linear and logarithmic sweep frequency outputs with widths up to 1000:1, controlled by a calibrated 70 dB attenuator. Adjustments for frequency or amplitude modulation from an external signal are also possible, along with the option for suppressed carrier outputs.
Key Features
- Frequency range: 0.02Hz to 2MHz (uncalibrated to 0.002Hz)
- Output signals: sine, square, triangle, ramp, and pulse
- Variable pulse symmetry across a 9:1 range
- Linear/logarithmic sweep frequencies with widths up to 1000:1
- Calibrated 70 dB attenuator for precise output control
- External signal frequency/amplitude modulation capability
Specifications
- Power Type and voltage: AC / 110; 220 Volt
- Accuracy: (0.02Hz to 200kHz) ±3% rdg, ±3% fs; (200kHz to 2MHz) ±5% rdg, ±5% fs
- Sine Wave Voltage: 20 V p-p (7 Vrms) open circuit
- Linear/logarithmic sweep: 20 ms to 5s, 10:1 to 1000:1
- Waveforms: Sine, Triangle, Square, Pulse, Sawtooth, DC, TTL
- Output level controlled by a 70 dB attenuator (10 dB/step)
Weight
Imperial: 10.8 Pounds
Metric: 4.9 Kilograms
Shipping Dimensions
Imperial: 14.4 lb x 12.0 lb x 7.2 lb
Metric: 36.58 cm x 30.48 cm x 18.29 cm
Harmonized Code
9030.33
Harmonized Code Details
The harmonized code 9030.33 refers to 'Signal generators' used for telecommunication devices. This is appropriate for the Tracor LFG-1300S Function Generator as it is a signal-generating device used in various research and design applications.
