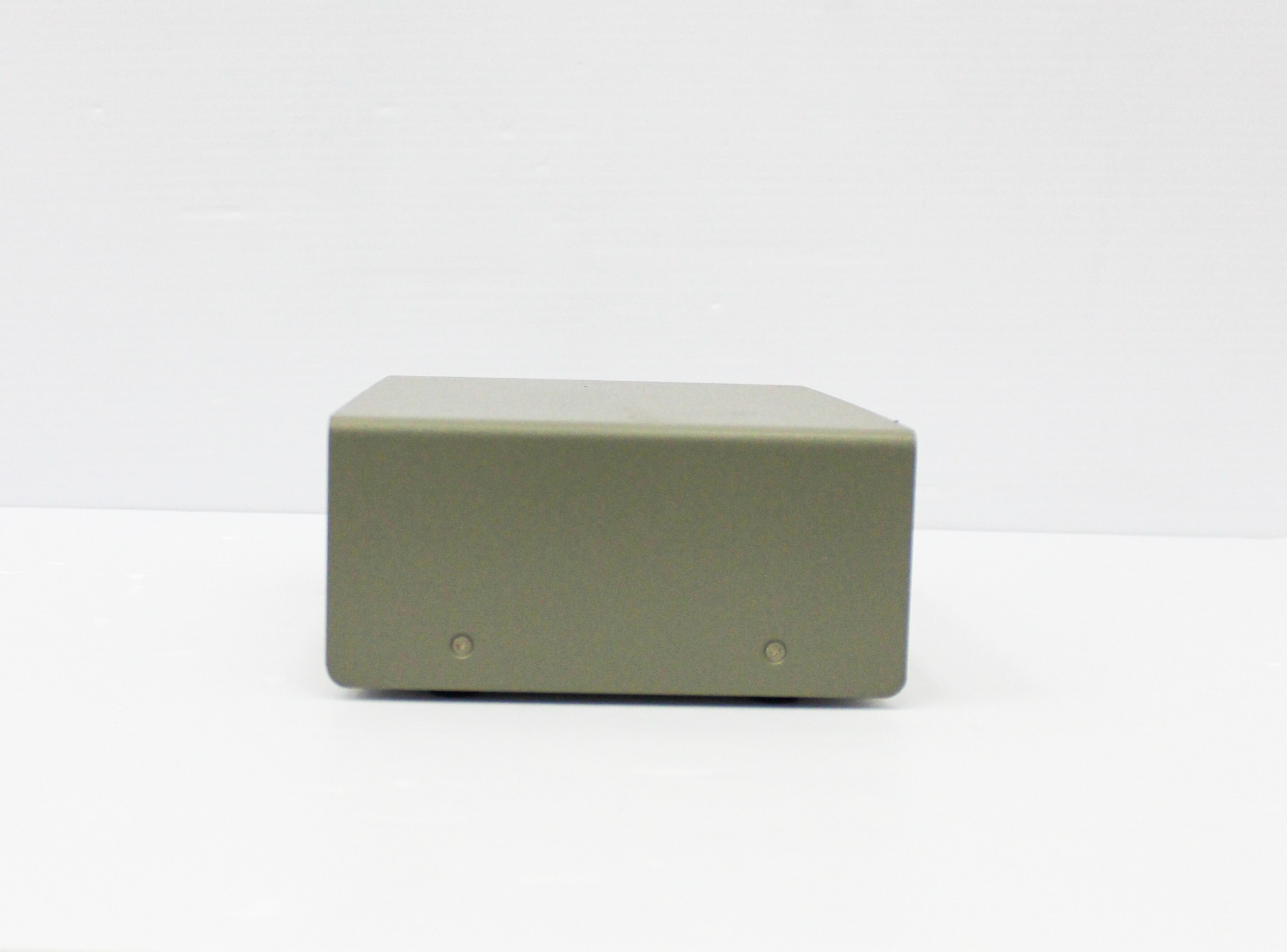

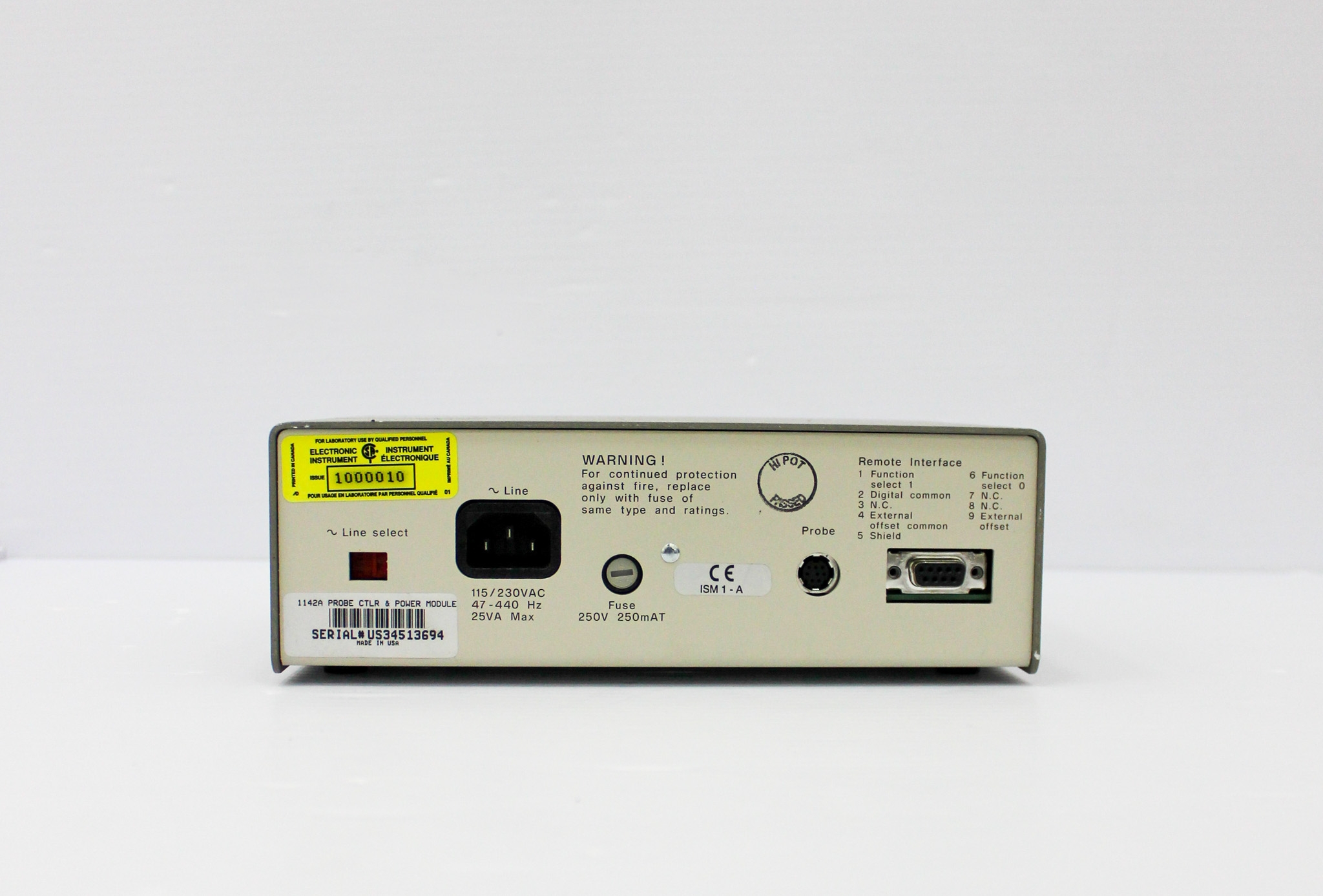

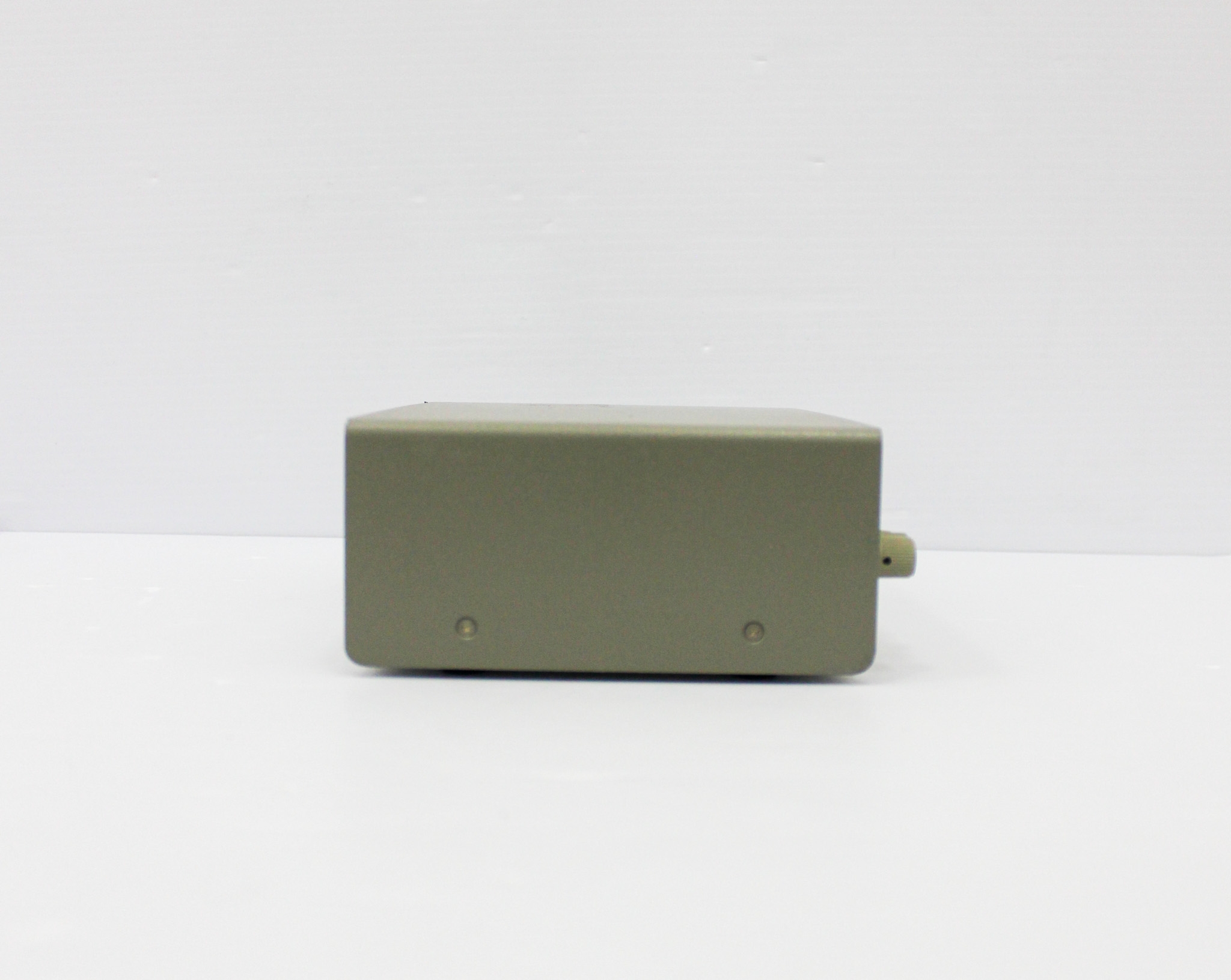

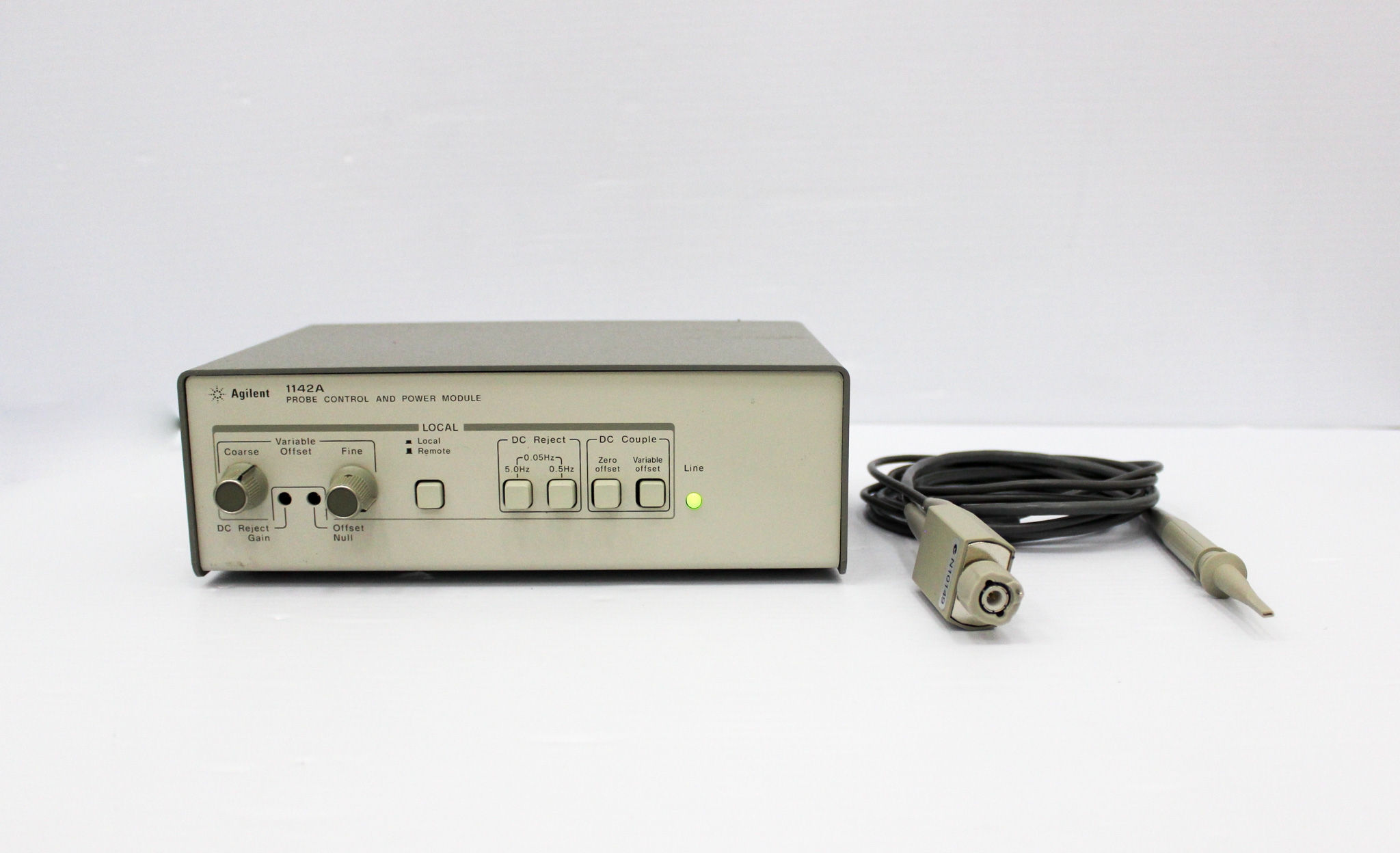

Agilent 1142A Probe Control & Power Module with 800MHz Active Probe
Agilent
Details
-
CategoryComputer / IT
-
Dimension9.0in x 7.0in x 3.0in
-
SerialUS34513694
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

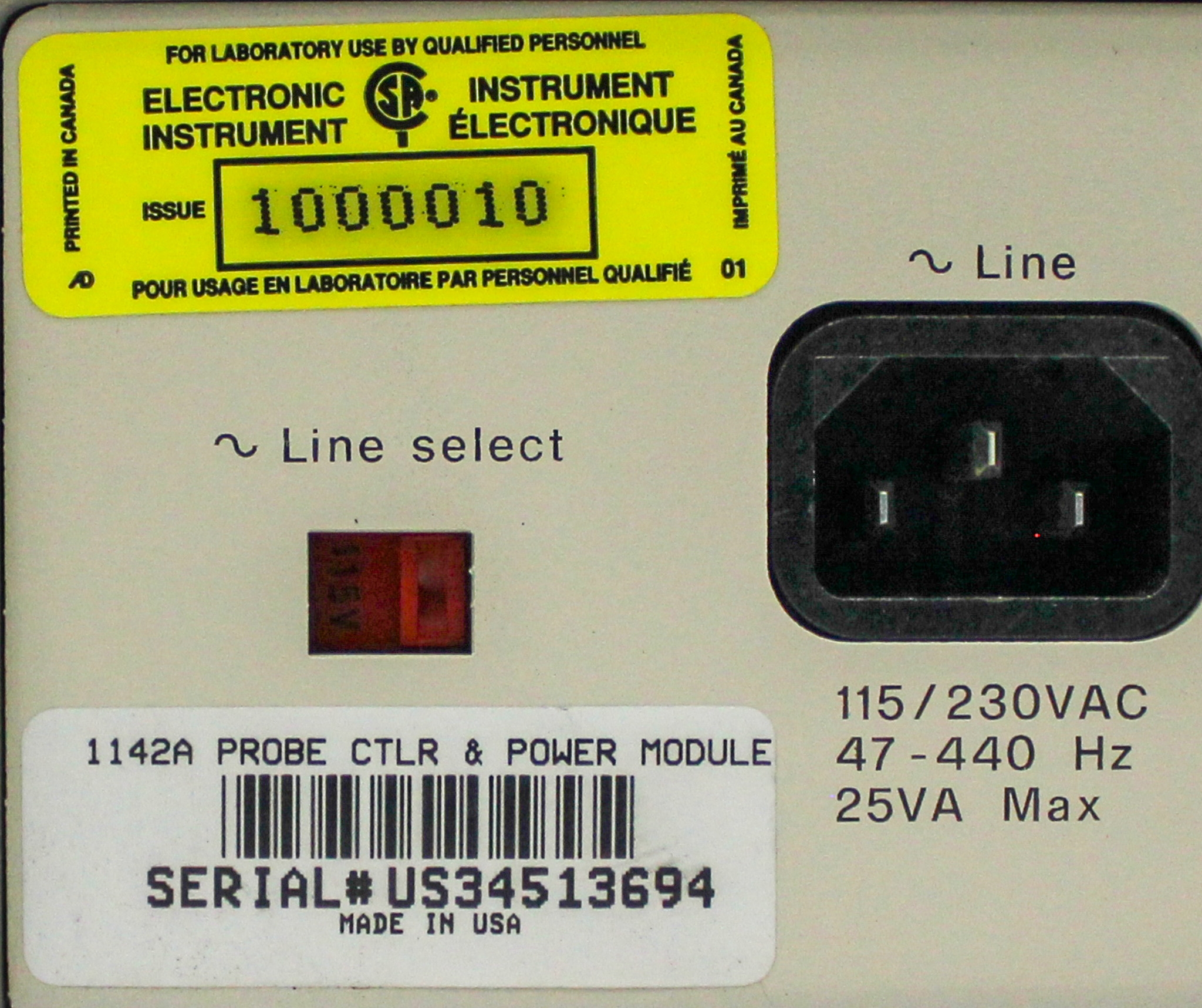

Voltage / Hertz120V/220V / 50Hz/60Hz
Description

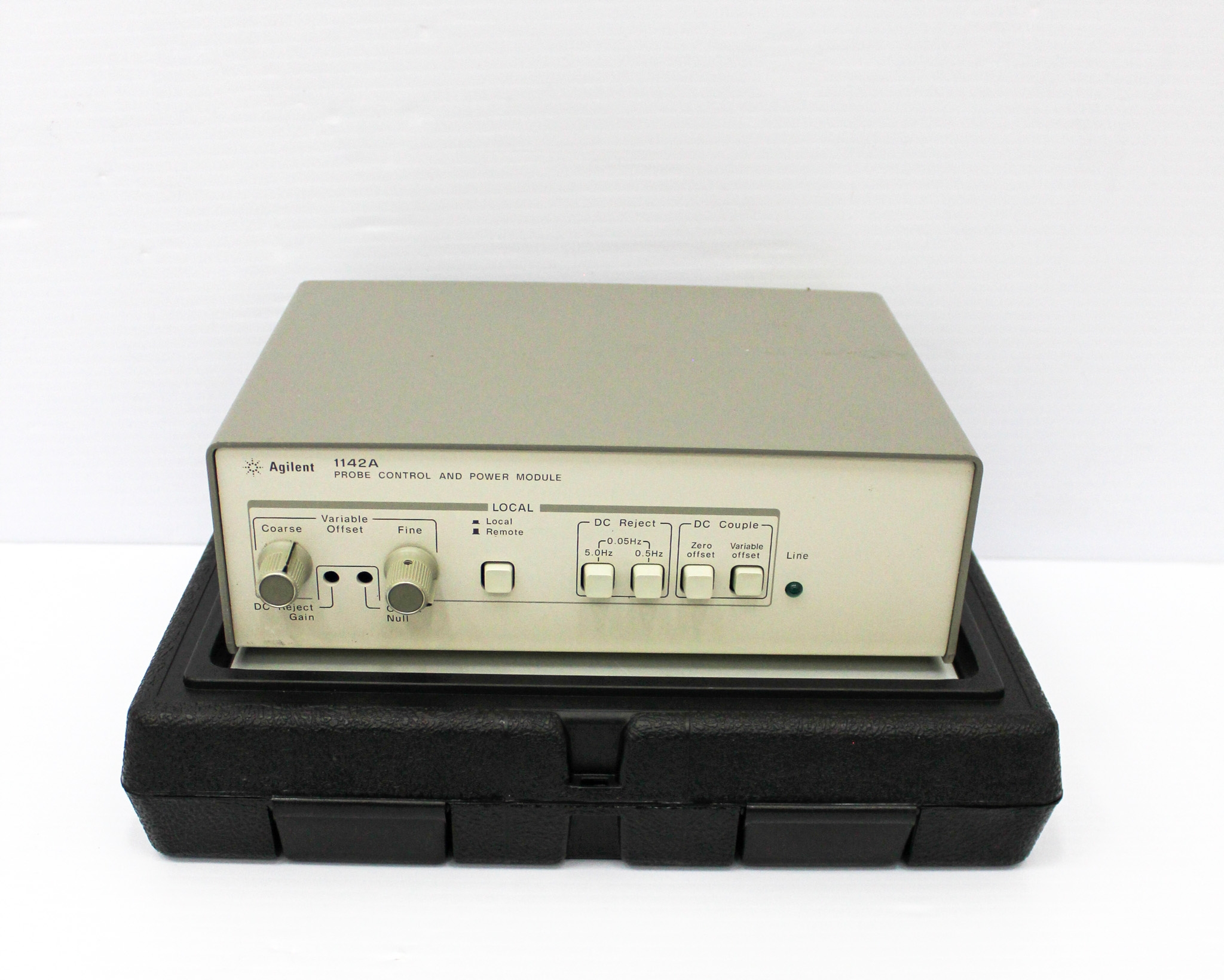

The Agilent 1142A Probe Control and Power Module, manufactured in the United States, is an essential tool for powering and controlling the Agilent 1141A, 1144A, and 1145A active probes. With a tested functionality, this used unit shows slight cosmetic blemishes from normal use but performs optimally, following a basic pass of tests. It features support for various input coupling modes, including DC and DC reject, and includes two attenuators (10x and 100x) to expand the linear differential input range to 30V. The unit supports 50 ohm input oscilloscopes like the 54640-Series, allowing seamless integration in high bandwidth applications up to 800 MHz. Accessories such as dual lead adapters and mini-pincher tips facilitate easy connections to surface mount devices, providing enhanced usability. The device operates on a voltage of 120V/220V and a frequency of 50Hz/60Hz.
Key Features
- Powers and controls Agilent 1141A, 1144A, 1145A probes
- Supports DC, DC with variable offset and DC reject modes
- Features 10x and 100x attenuators
- Compatible with 50 ohm input oscilloscopes

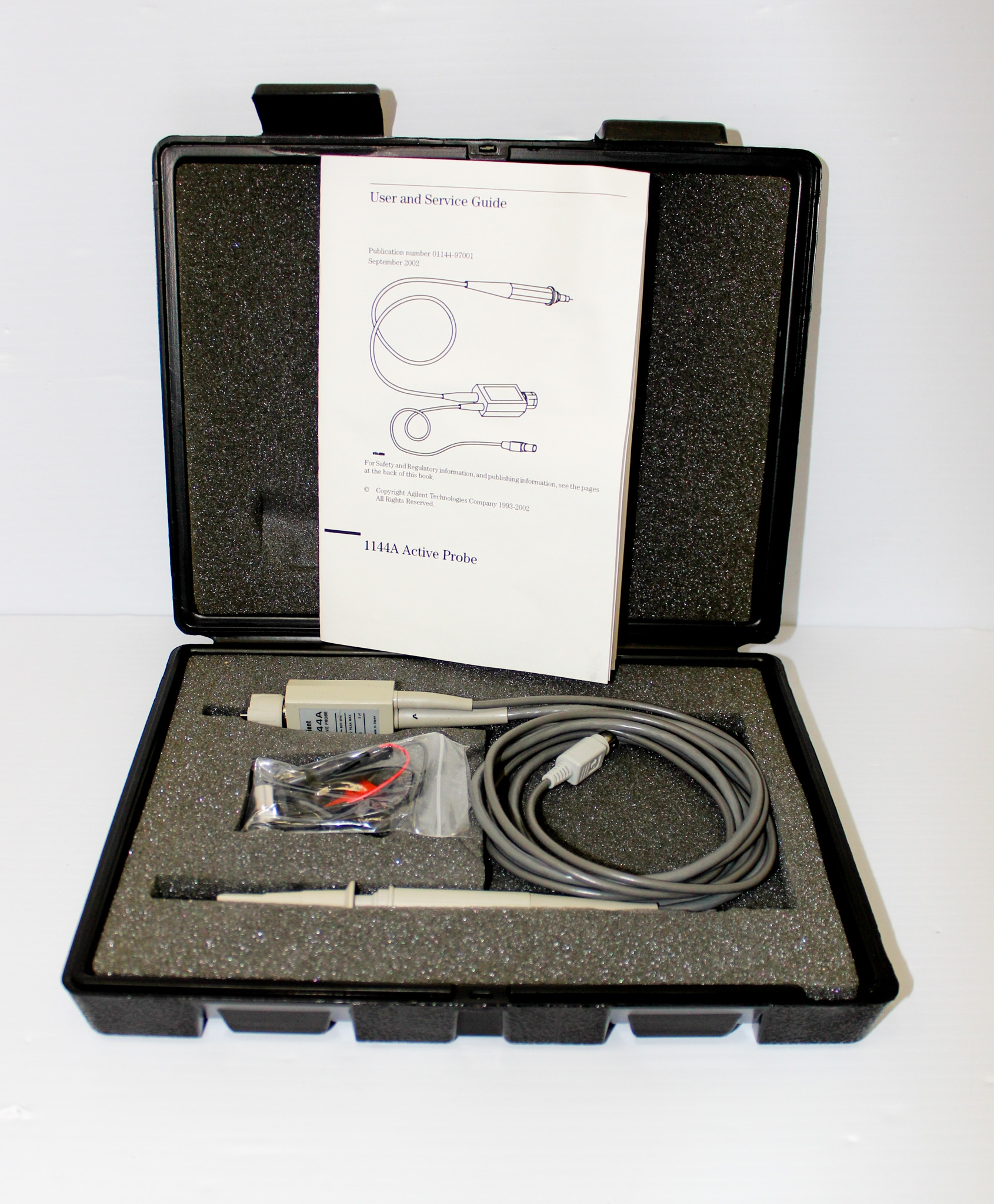

- Includes an 800 MHz bandwidth active probe
Specifications
- Brand/Manufacturer: Agilent
- Model: 1142A
- Condition: Used, Tested
- Voltage: 120V/220V
- Frequency: 50Hz/60Hz
- Probe Bandwidth: 800 MHz
- Attenuation Ratio: 10:1 and 100:1
- Input Impedance: 1 M Ohm, 7 pF
- Max Input Voltage (probe alone): 200 Vdc + peak ac
- Max Input Voltage (with attenuator): 500 Vdc + peak ac
Weight
Imperial: 4.8 Pounds
Metric: 2.18 Kilograms
Shipping Dimensions
Imperial: 10.8 lb x 8.4 lb x 3.6 lb
Metric: 27.43 cm x 21.34 cm x 9.14 cm
Harmonized Code
9030.84
Harmonized Code Details
9030.84 - Instruments and apparatus for measuring or checking electrical quantities, with electrical parts. This code applies due to the equipment's nature as a probe control and power module for electronic testing.
