Agilent 1144A-FG Active Probe Accessory 800 MHz Bandwidth Low Input Capacitance
Agilent
Details
-
CategoryMeter
-
Dimension13.0in x 10.0in x 3.0in
-
SerialN/A
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / HertzDoes Not Apply / Does Not Apply
Description

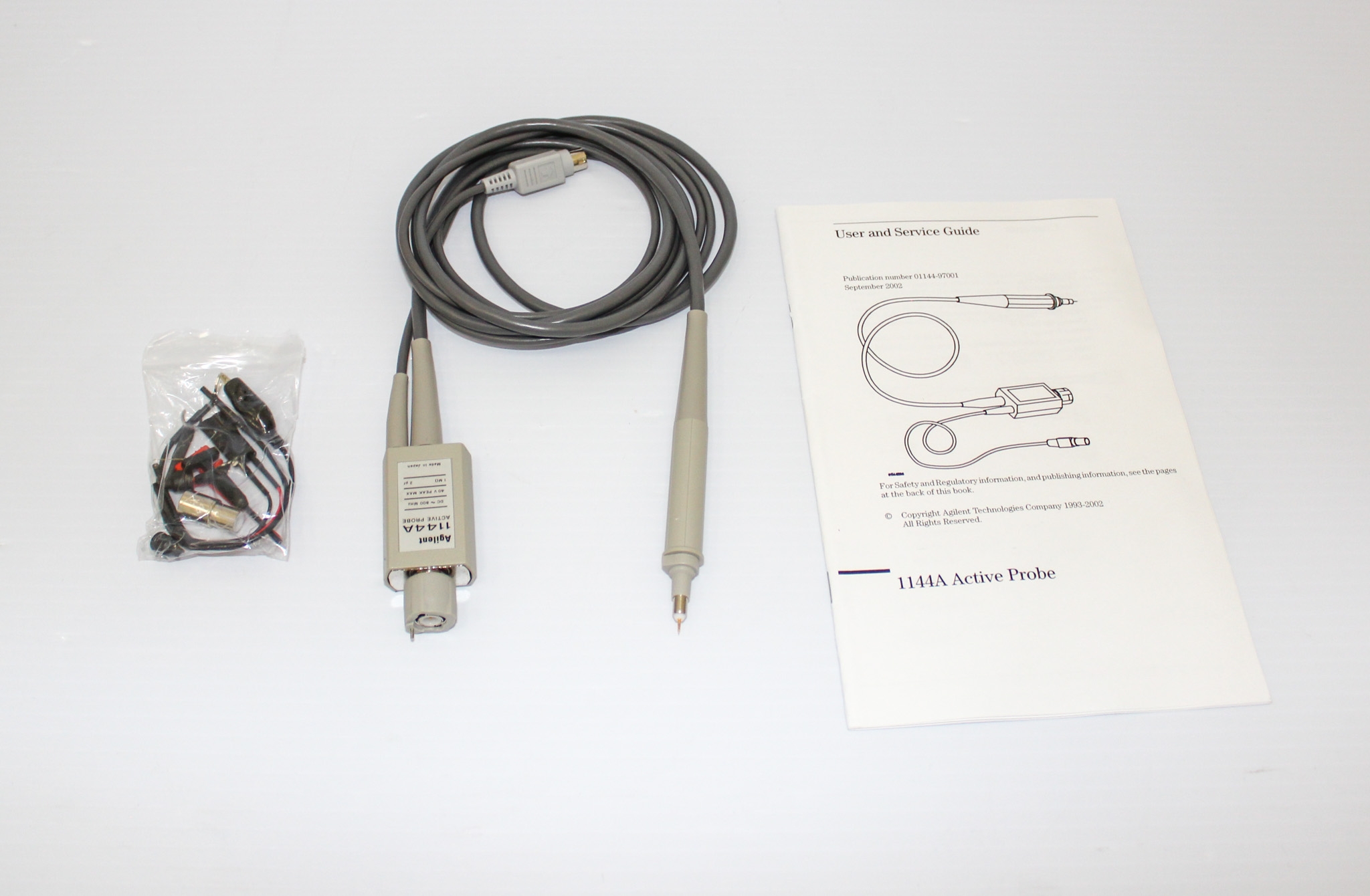

The Agilent Technologies 1144A-FG Active Probe, in excellent condition, is a high-performance solution for minimizing circuit loading across a wide frequency range. Boasting an 800 MHz bandwidth, 1 MΩ input resistance, and 2 pF input capacitance, it excels in accurately capturing waveforms that passive probes may distort. Ideal for use with oscilloscopes, it supports seamless connectivity to instruments with 50 Ohm inputs and accommodates the Agilent 01144-61604 adapter for active probing across two channels. Versatile accessories ensure stable connections for SMT components with various pitches. Despite its used status, cosmetic wear is minimal, and it remains fully functional.
Key Features
- 800 MHz bandwidth
- 1 M Ohm input resistance
- 2 pF input capacitance
- Compatible with 50 Ohm inputs
- Used with Agilent 6000 Series oscilloscopes
- Minimal circuit loading at high and low frequencies
- Includes versatile probing accessories
Specifications
- Bandwidth: 800 MHz
- Input Resistance: 1 MΩ
- Input Capacitance: 2 pF
- Attenuation Ratio: 10:1
- Compatibility: 6000 Series 300 MHz to 1 GHz, 54641A/D, 54642A/D oscilloscopes
- Maximum Input Voltage: 40 Vdc + peak AC
- Accessories: Ground bayonet, dual lead adapter, mini-pincher tips
Weight
Imperial: 3.6 Pounds
Metric: 1.63 Kilograms
Shipping Dimensions
Imperial: 15.6 lb x 12.0 lb x 3.6 lb
Metric: 39.62 cm x 30.48 cm x 9.14 cm
Harmonized Code
9030.31.00
Harmonized Code Details
9030.31.00 - Oscilloscopes and oscillographs. This code is appropriate as the Agilent 1144A-FG is an active probe accessory for oscilloscopes, essential for precise measurement functions in laboratory settings.
