Edwards RV8 Rotary Vane Vacuum Pump High Vacuum Scientific 60Hz/50Hz
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-

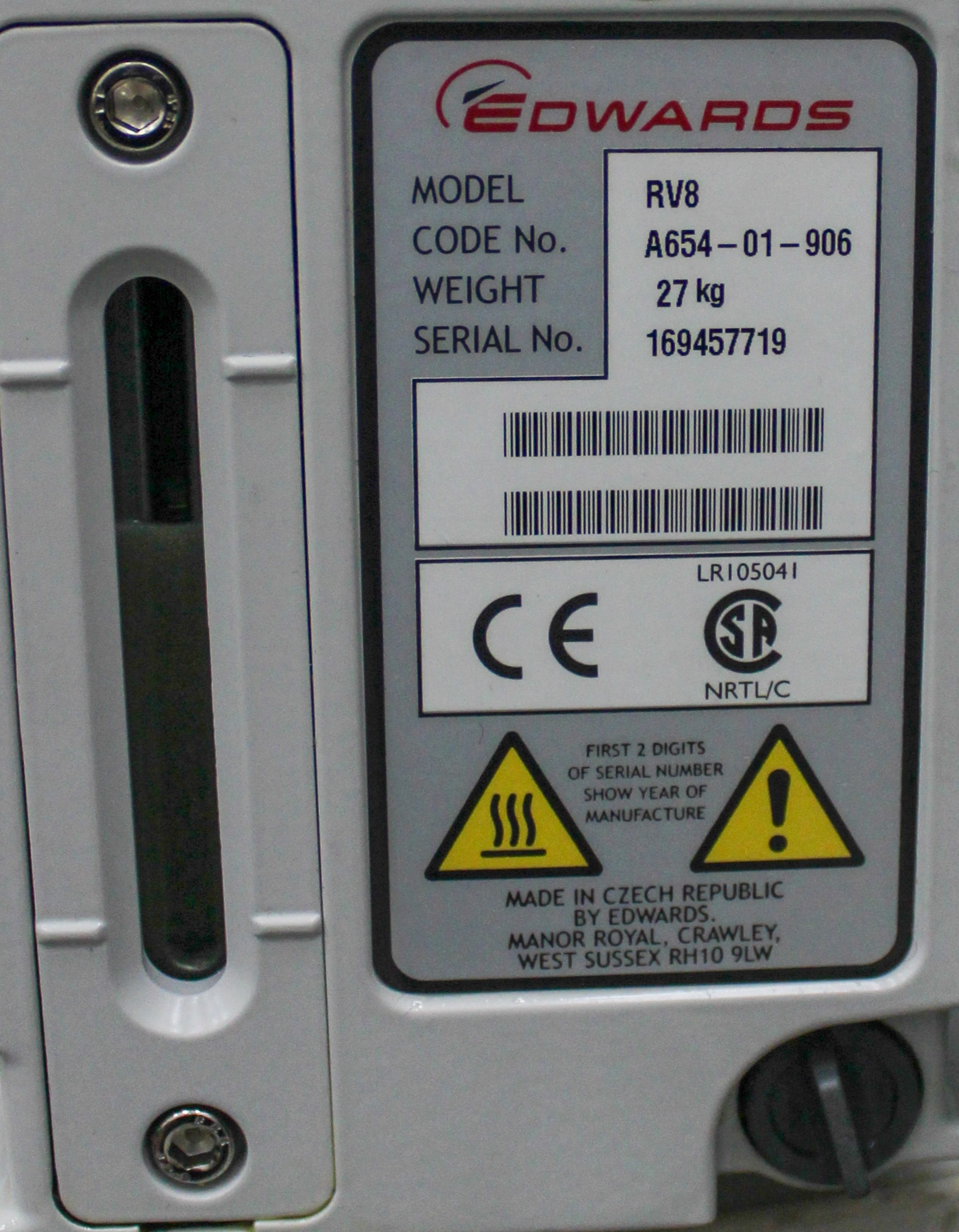

Serial169457719
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

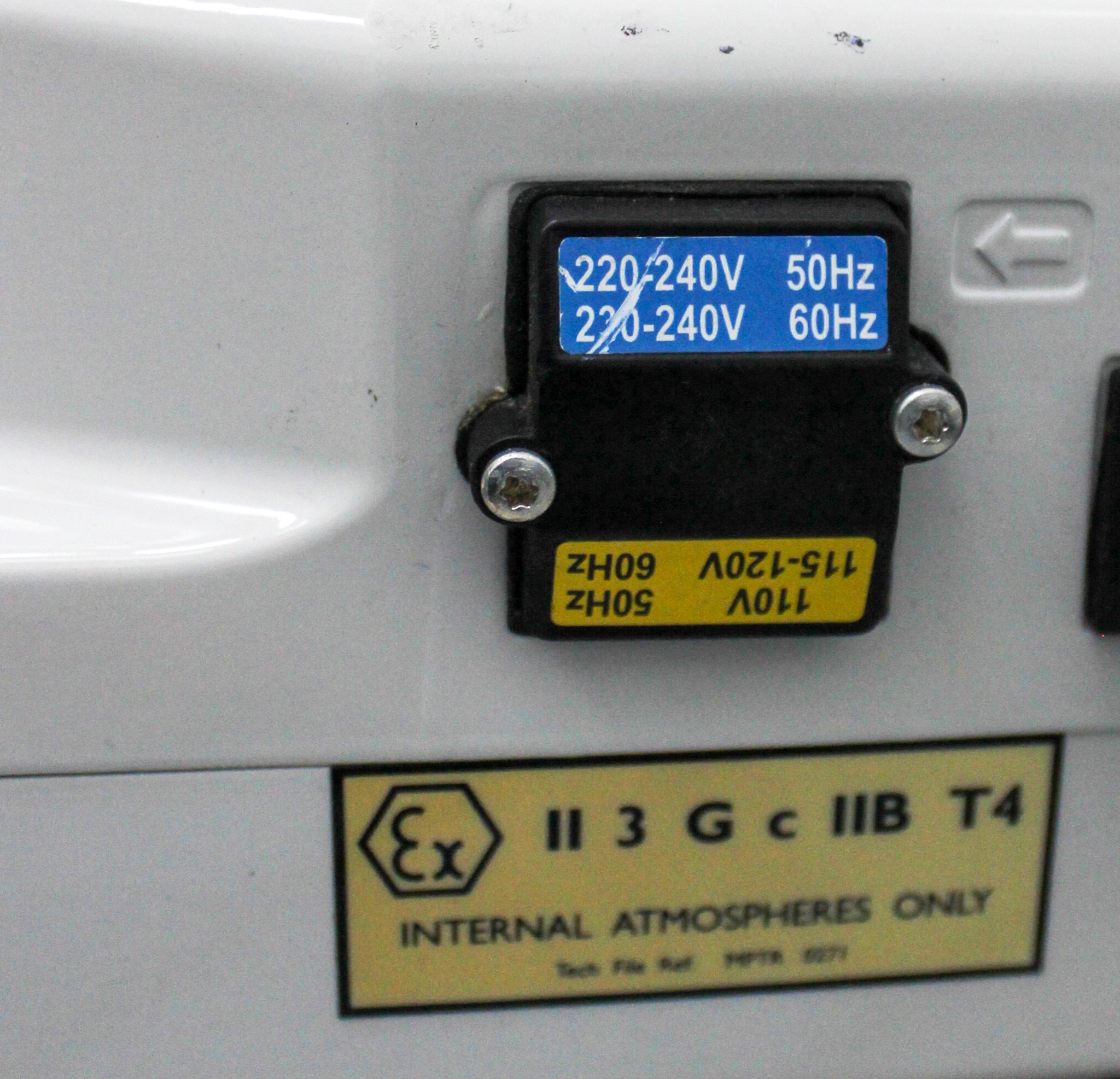

Voltage / Hertz120V/220V / 50Hz/60Hz
Description
The Edwards RV8 is a highly efficient rotary vane vacuum pump that is reputed for its exceptional performance and reliability in scientific and research applications. This used unit, in very good condition, functions flawlessly with minor cosmetic blemishes indicative of normal usage. Designed for robust performance, it delivers an ultimate vacuum pressure with high pumping speeds and superior vapour handling capabilities, featuring a quiet operation and strong compliance with UL and CSA standards. Its universal motor supports both 120V and 220V, making it versatile for various voltage and frequency settings. The RV8 is equipped with a controlled opening mechanism that prevents pressure surges on startup, and its components, including rotor and stator parts, are fully interchangeable, enhancing maintainability. Its vacuum metrics, including 2 microns ultimate pressure, highlight its capability in producing a stabilized vacuum environment essential for research and development activities.
Key Features
- Ultimate vacuum pressure 2 x 10-3 mbar / 1.5 x 10-3 Torr
- High pumping speeds: 9.7 m³/h at 50Hz, 11.7 m³/h at 60Hz
- Quiet operation at 48 dB(A) @ 50Hz
- Universal voltage motor (120V/220V) with frequency adaptability (50Hz/60Hz)
- Controlled valve opening preventing pressure surges
- UL and CSA standards compliance
Specifications

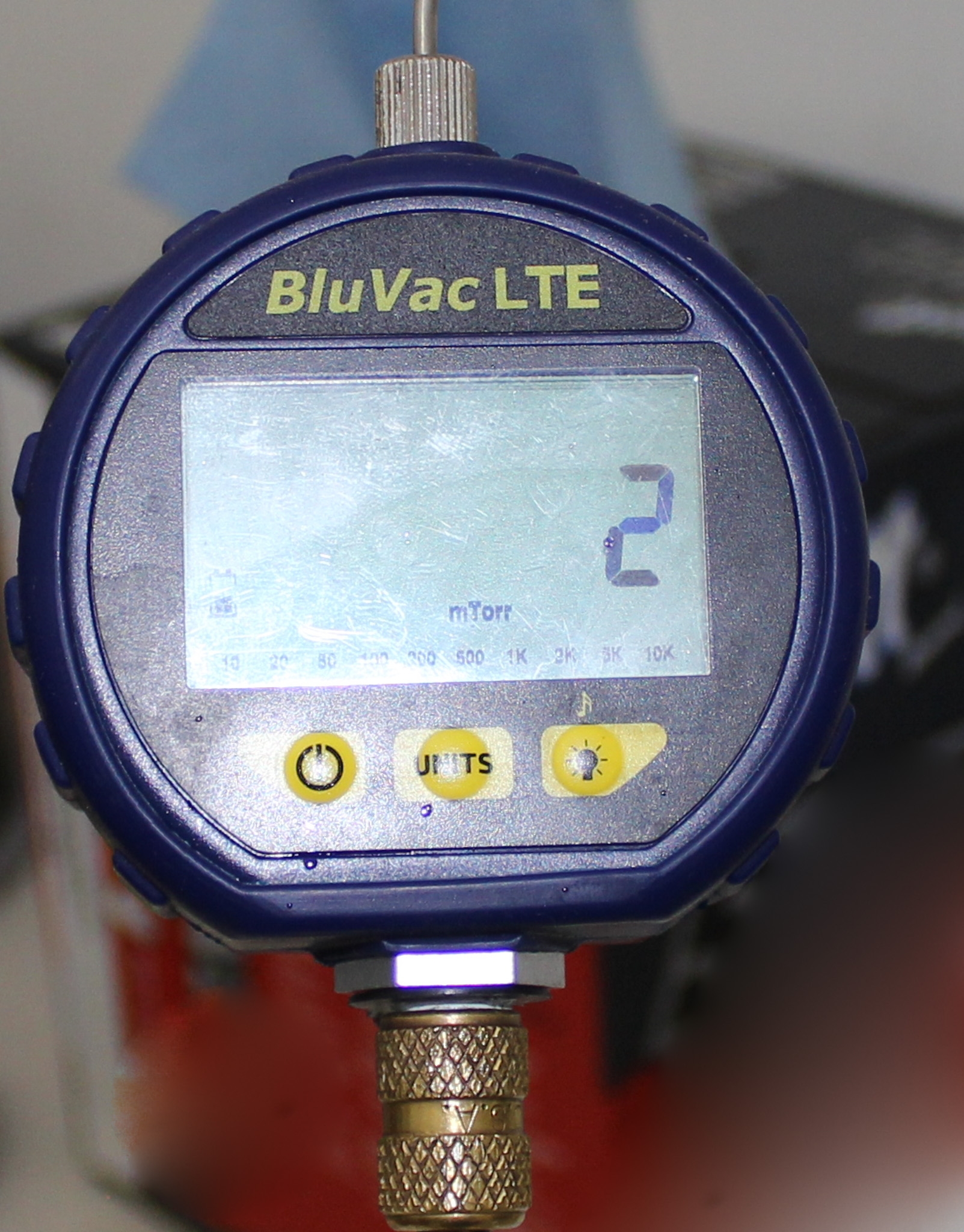

- Vacuum pressure at 2 microns; tested to specifications
- Voltage: 120V/220V, Hertz: 50Hz/60Hz
- Operating Temperature: 12°C to 40°C
- Motor Power: 450W/550W (50/60Hz)

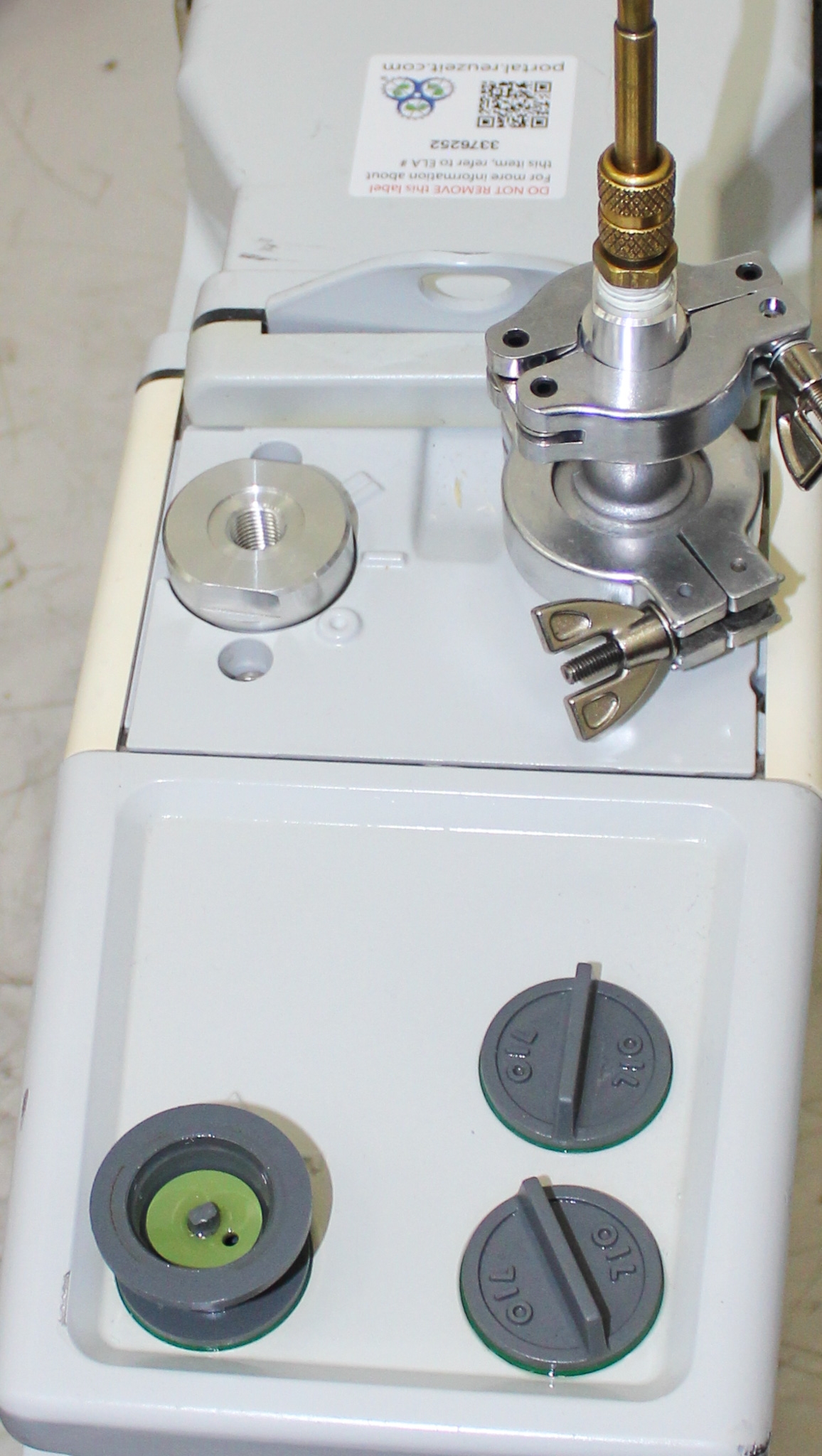

- Inlet and Exhaust Flange: NW25
- Noise Level: 48 dB(A) @ 50Hz
- Oil Capacity: 0.45 / 0.75 liters
- IEC EN60320 C13 Power Connector
Weight
Imperial: 68.4 Pounds
Metric: 31.03 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 - Air or vacuum pumps, air or other gas compressors. This code is suitable as the RV8 is a type of vacuum pump used in scientific applications.
