Edwards RV8 Vacuum Pump 1.5x10-3 Torr Suitable R&D 11.7 m3/h 60Hz
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-

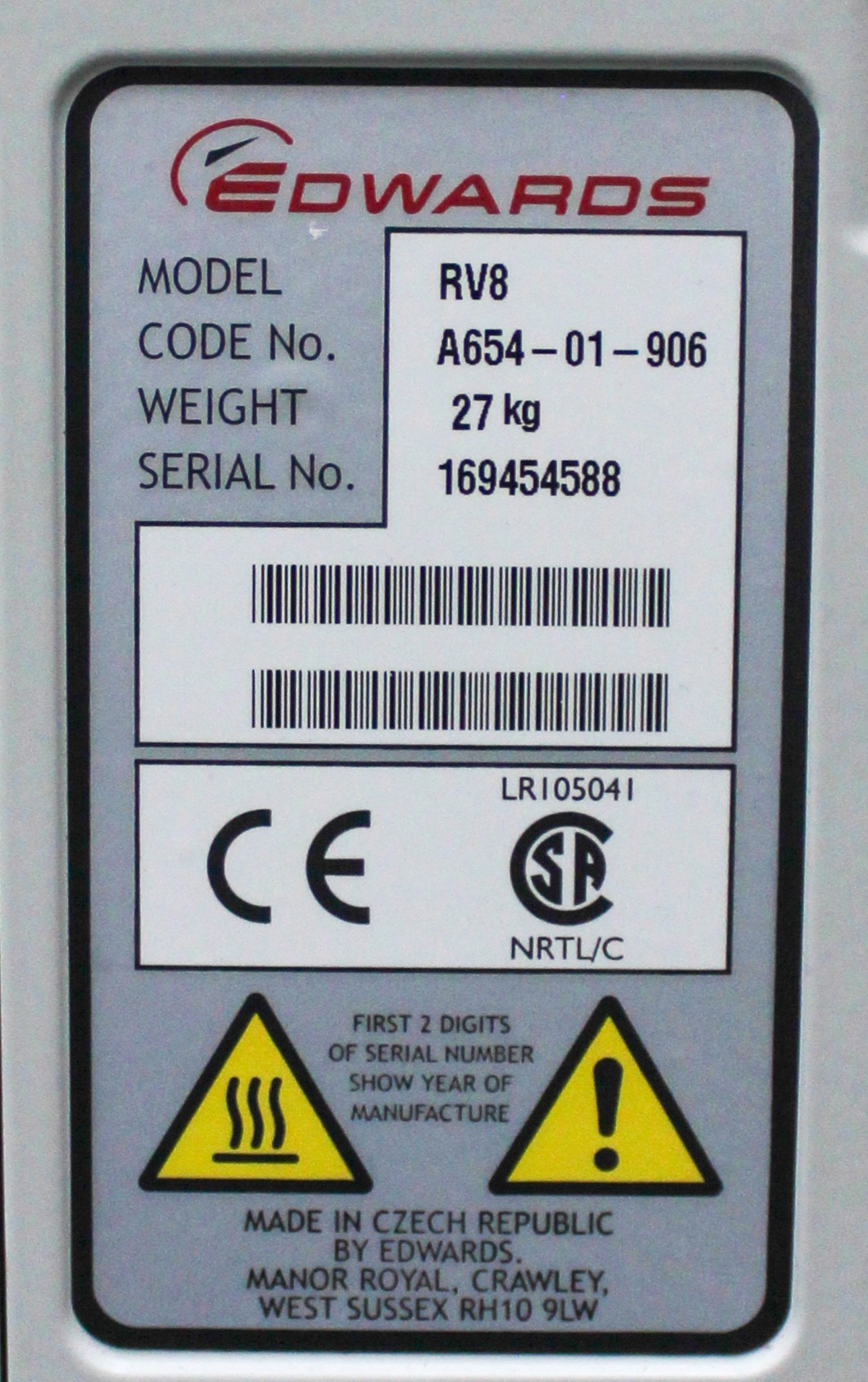

Serial169454588
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-

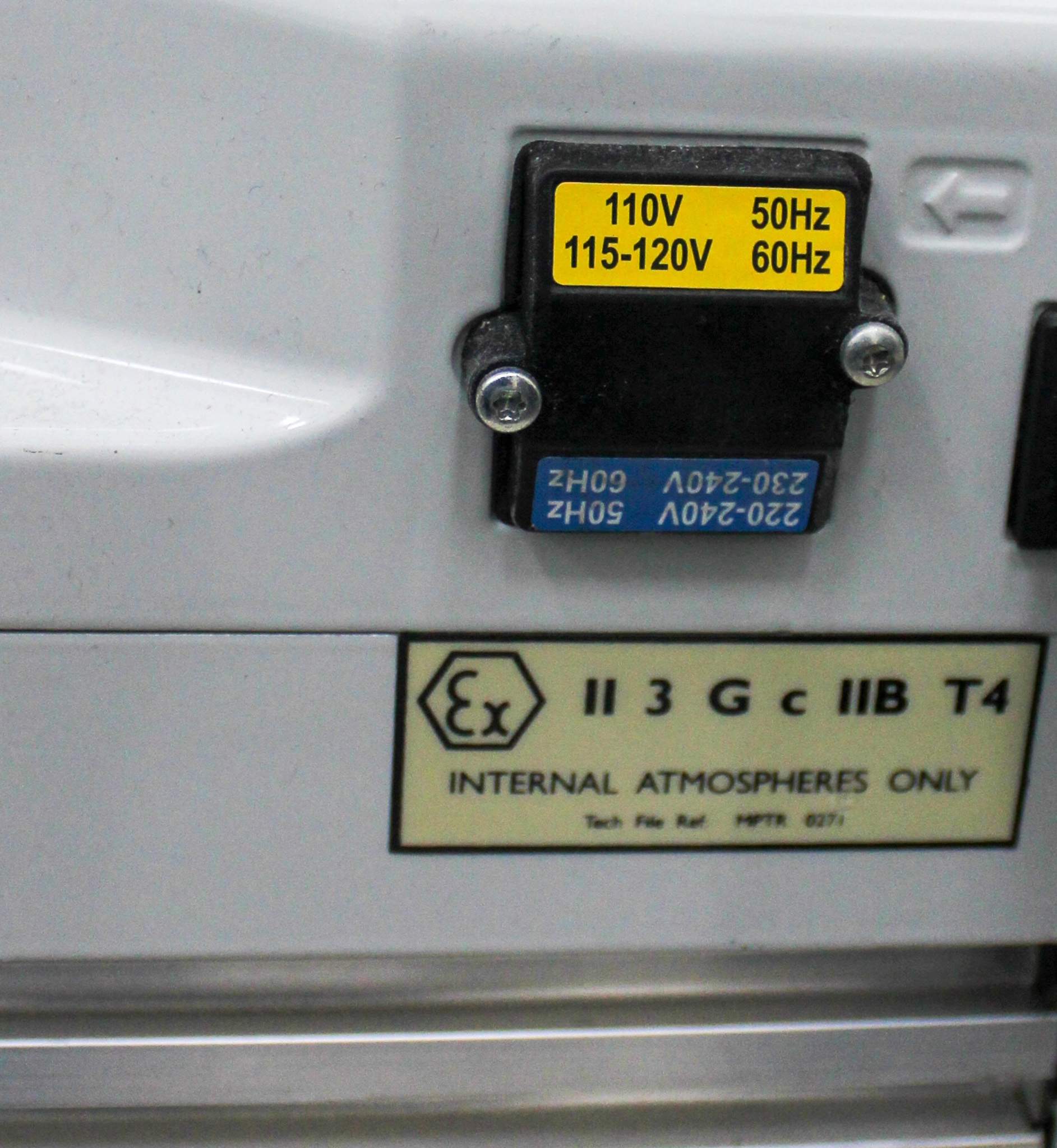

Voltage / Hertz120V / 50Hz/60Hz
Description

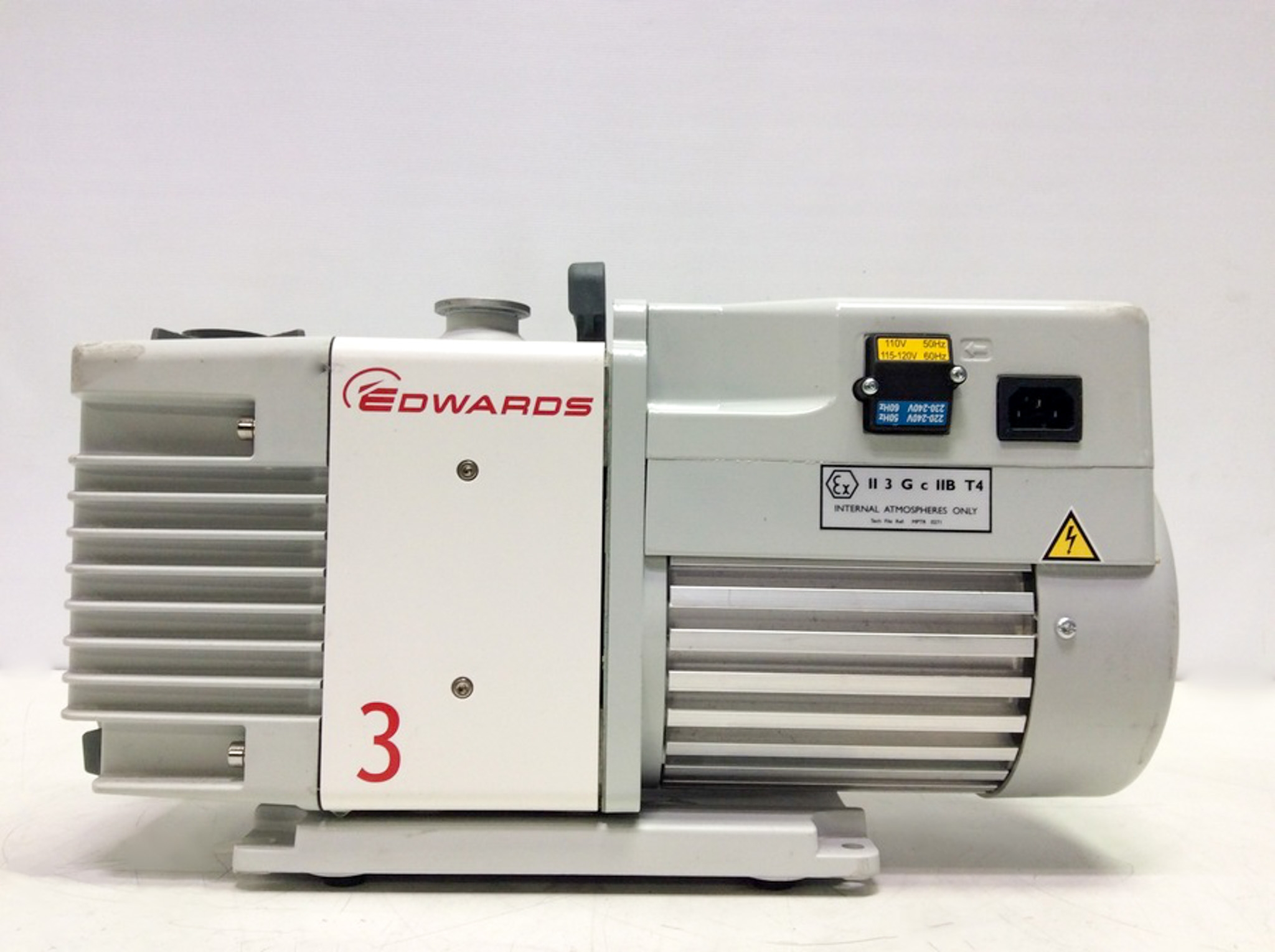

The Edwards RV8 Rotary Vane Vacuum Pump is a reliable and compact unit built for efficiency in R&D and scientific applications. With a vacuum pressure reaching as low as 1.5 x 10-3 Torr, this used pump delivers high pumping speeds up to 11.7 m3/h (60Hz) and superior vapor handling capabilities. The RV8 is powered by a robust universal motor that supports a wide range of voltages and frequencies, making it versatile for various setups. The 'controlled' valve opening system prevents pressure surges during startup. Despite slight cosmetic wear, it has been tested to function within specifications, meeting the industry's stringent standards. Its quiet operation and low noise level of 48 dB make it ideal for laboratory environments.
Key Features

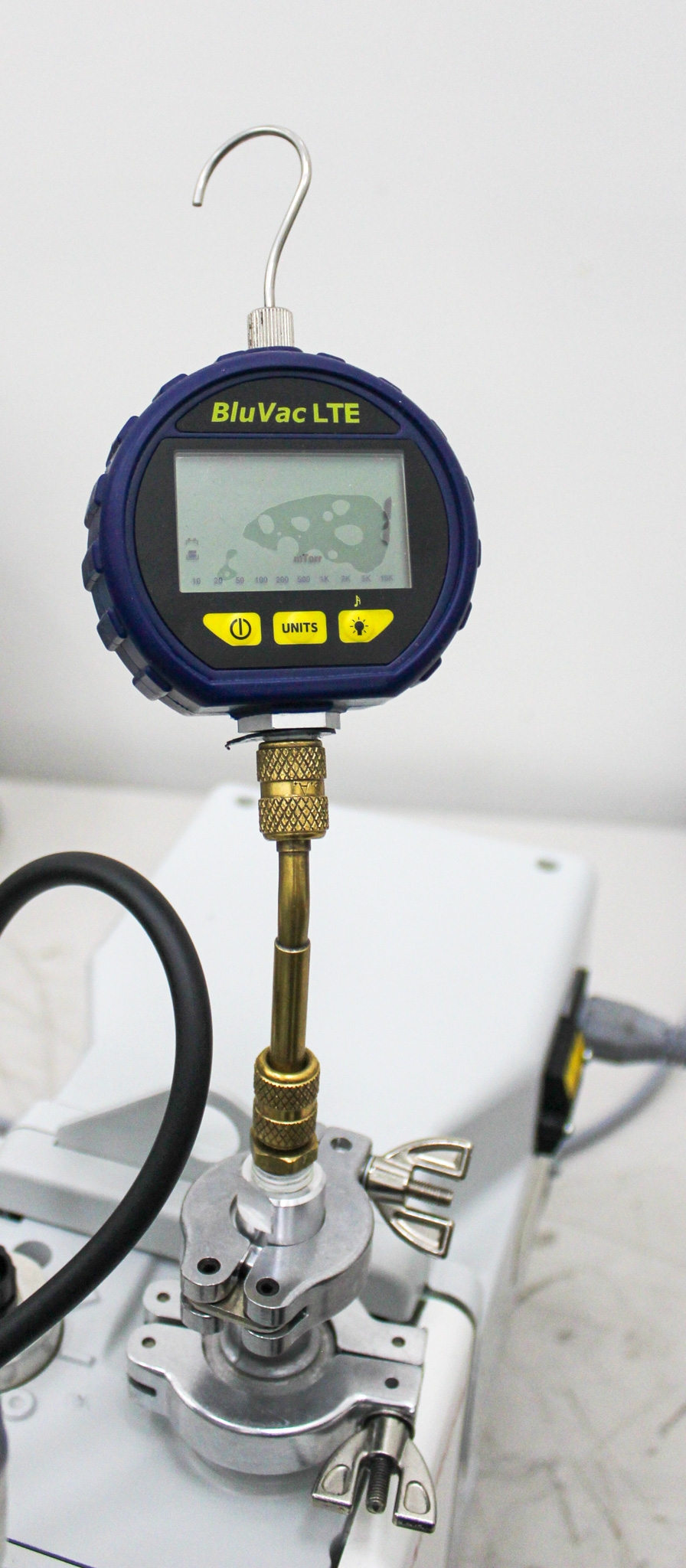

- Tested vacuum pressure reaching 1.5 x 10-3 Torr
- Pumping speed up to 11.7 m3/h at 60Hz
- Universal motor for wide voltage/frequency range
- Controlled valve opening to prevent pressure surge
- Low noise level of 48 dB for quiet operation
- Compact design requiring minimal maintenance
Specifications
- Operating Voltage: 120V
- Frequency Compatibility: 50/60Hz
- Ultimate Pressure: 1.5 x 10-3 Torr
- Max Inlet Pressure for Water Vapour: 38 mbar
- Motor Power: 450/550W
- Oil Capacity: 0.45 to 0.75 liters
- Inlet/Exhaust Flange: NW25
- Noise Level: 48 dB(A)
Weight
Imperial: 72.0 Pounds
Metric: 32.66 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
84141000 is for vacuum pumps. Given the Edwards RV8 is a vacuum pump used for scientific applications, this code is appropriate.
