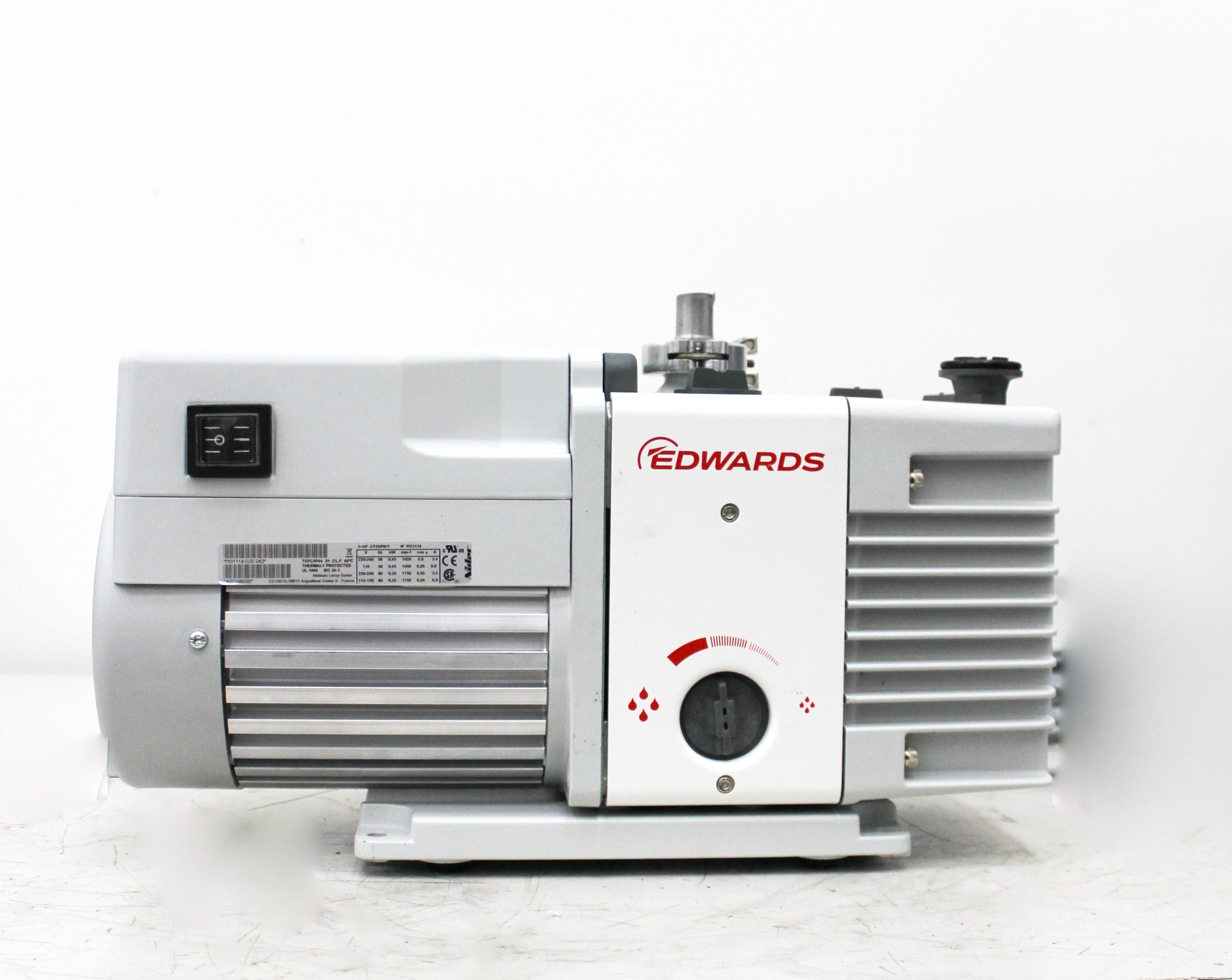

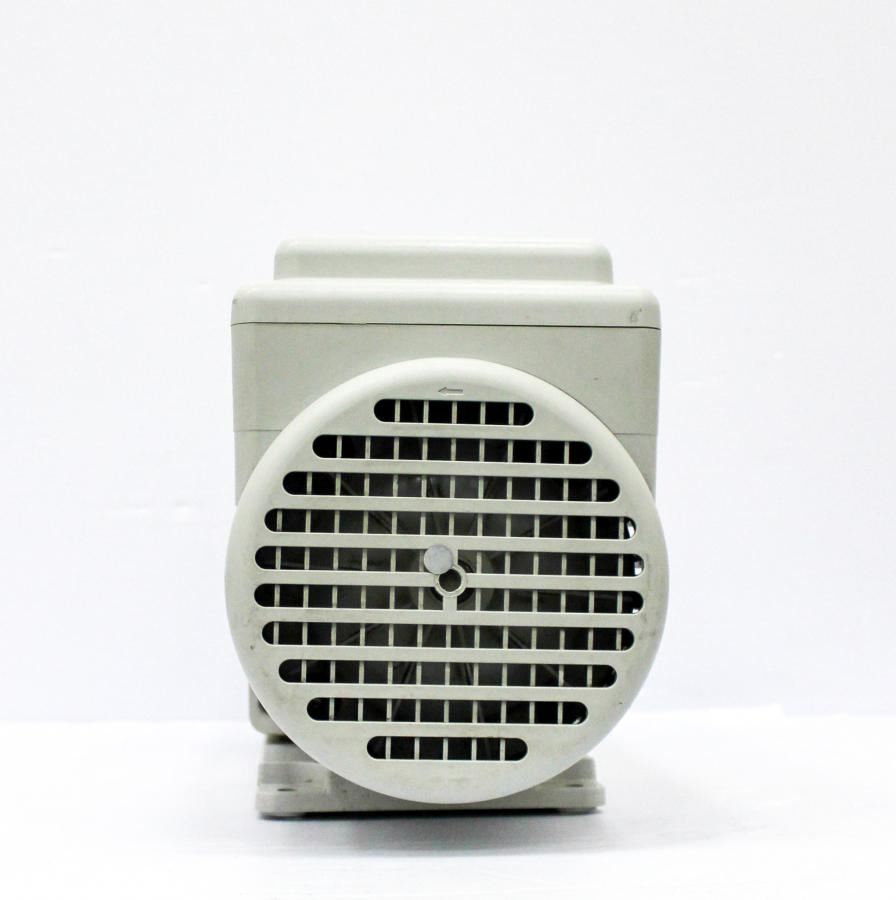

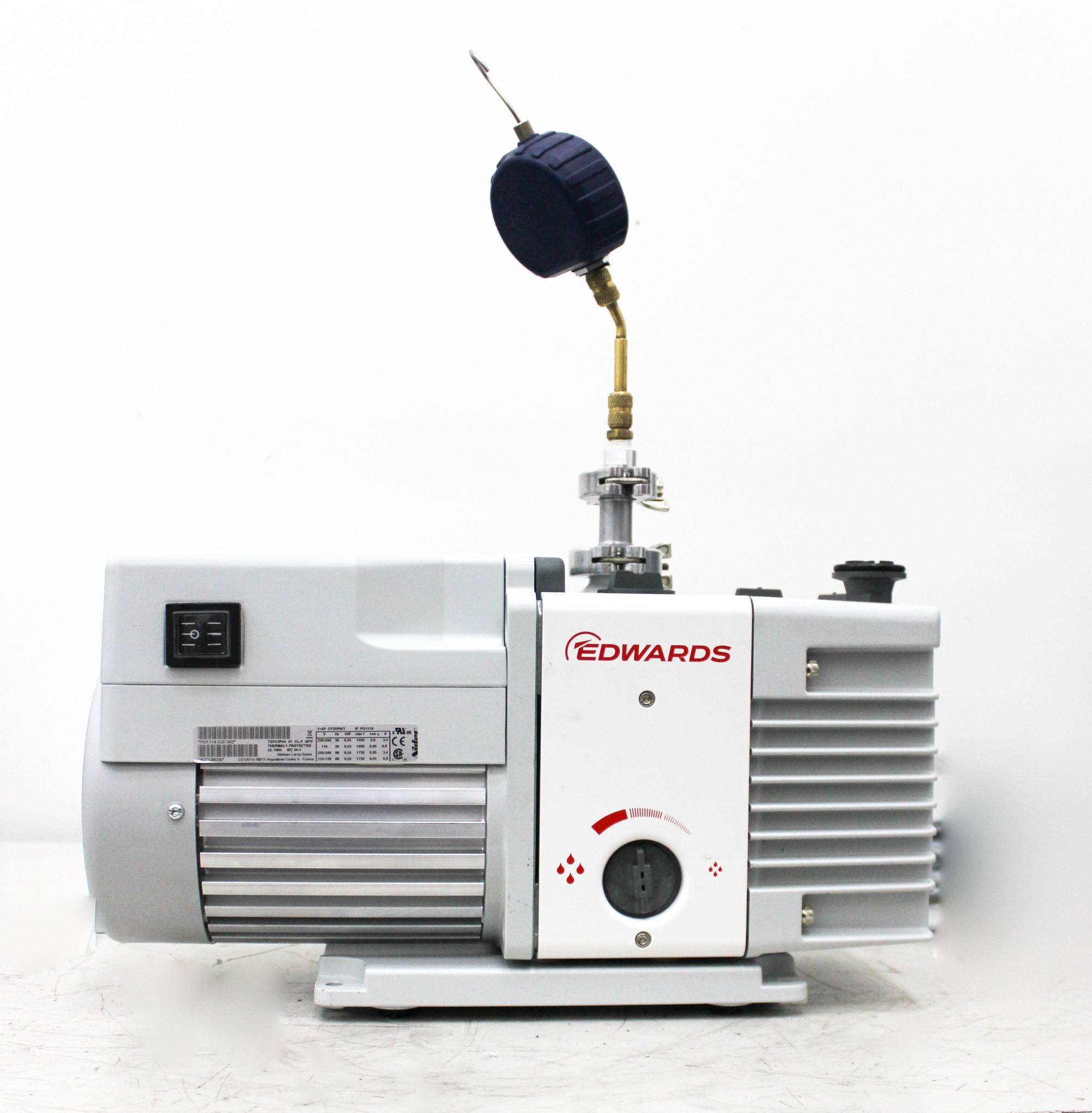

Edwards RV8 Vacuum Pump High Speed 11.7 m3/h 48dB Oil Sealed 230V 50/60Hz
Edwards
Details
-
CategoryPump
-
Dimension17.0in x 7.0in x 10.0in
-

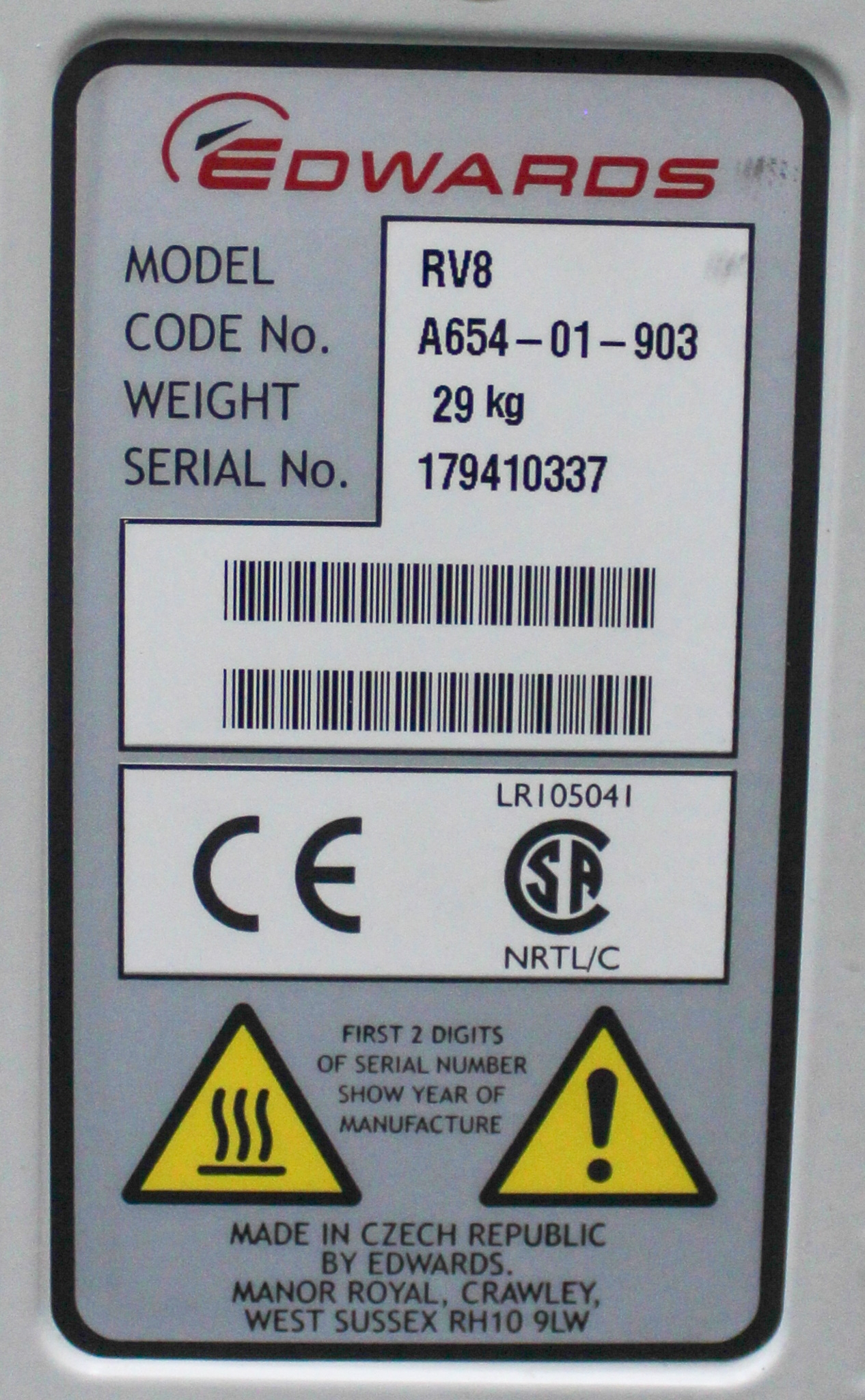

Serial179410337
-
Shipping TypeFedEx Ground
-
ManufacturingDoes Not Apply
-
Voltage / Hertz230V / 50Hz/60Hz
Description
The Edwards RV8 Rotary Vane Vacuum Pump is a reliable unit, designed for robust research and development, and scientific pumping applications. Manufactured in the United States, this small oil-sealed rotary vane pump has proven performance with over 300,000 units produced. It operates quietly and delivers excellent ultimate vacuum pressure with high pumping speeds of up to 11.7 m3/h and sophisticated vapour handling capabilities. The RV8 is equipped with a unique mode selector switch suitable for both high vacuum or high throughput applications. It features a controlled opening upon startup to prevent pressure surges. With its high-quality universal motor, this model covers a wide voltage and frequency range. The Edwards RV8 pump has been graded as 'Very Good' with full functionality, despite some minor cosmetic wear from prior use. This unit includes a power cord, operates at 230V, and is in full working order. Ideal for diverse laboratory and industrial settings, its specifications are highly adaptable to various vacuum needs.
Key Features
- High pumping speeds up to 11.7 m3/h
- Quiet operation at 48 dB(A)
- Oil-sealed rotary vane pump

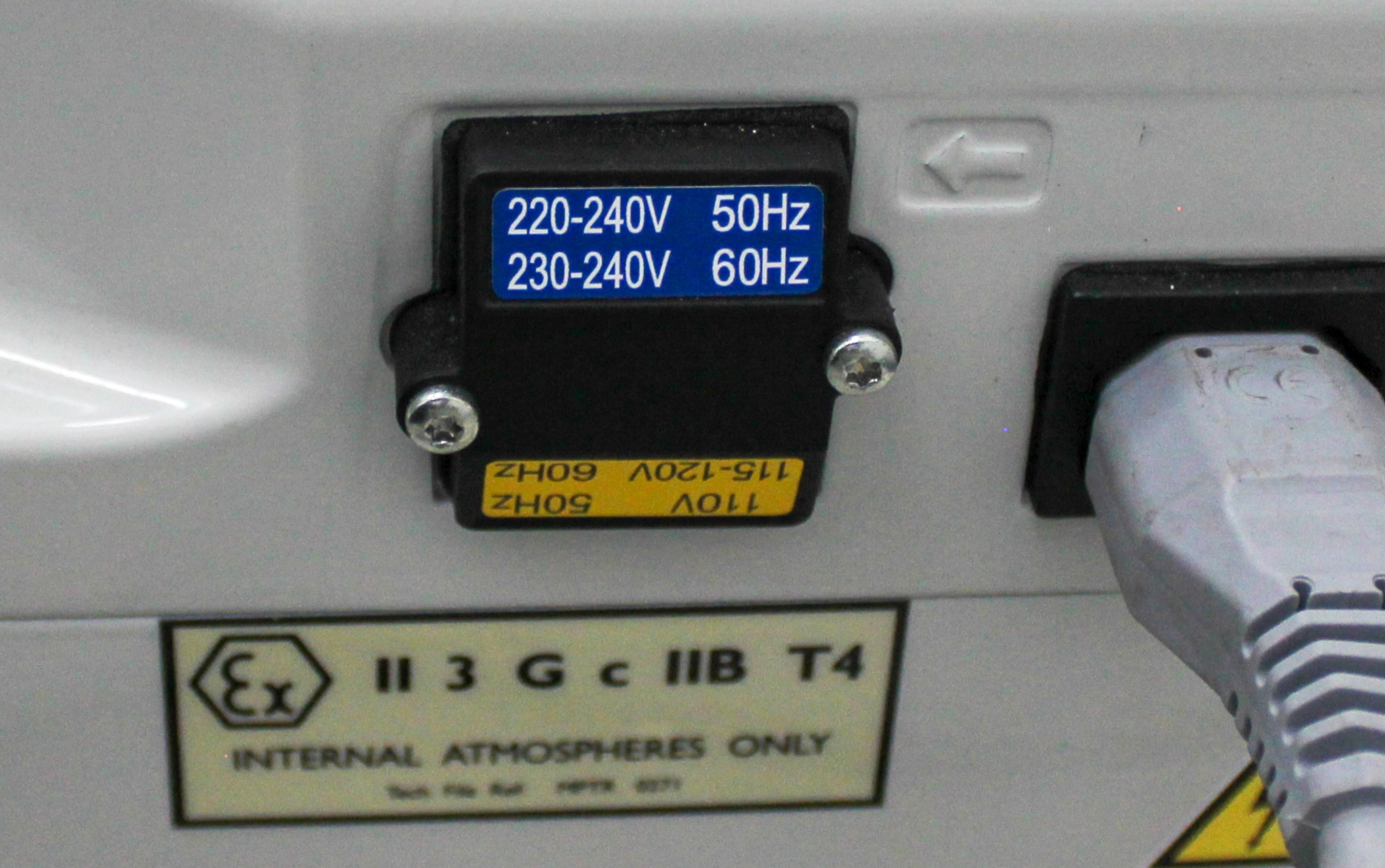

- Voltage: 230V, 50/60Hz
- Universal motor for wide voltage range
- Controlled opening to prevent pressure surges
- UL and CSA standards approved
Specifications
- Pumping Speed: 9.7 m3/h at 50Hz, 11.7 m3/h at 60Hz

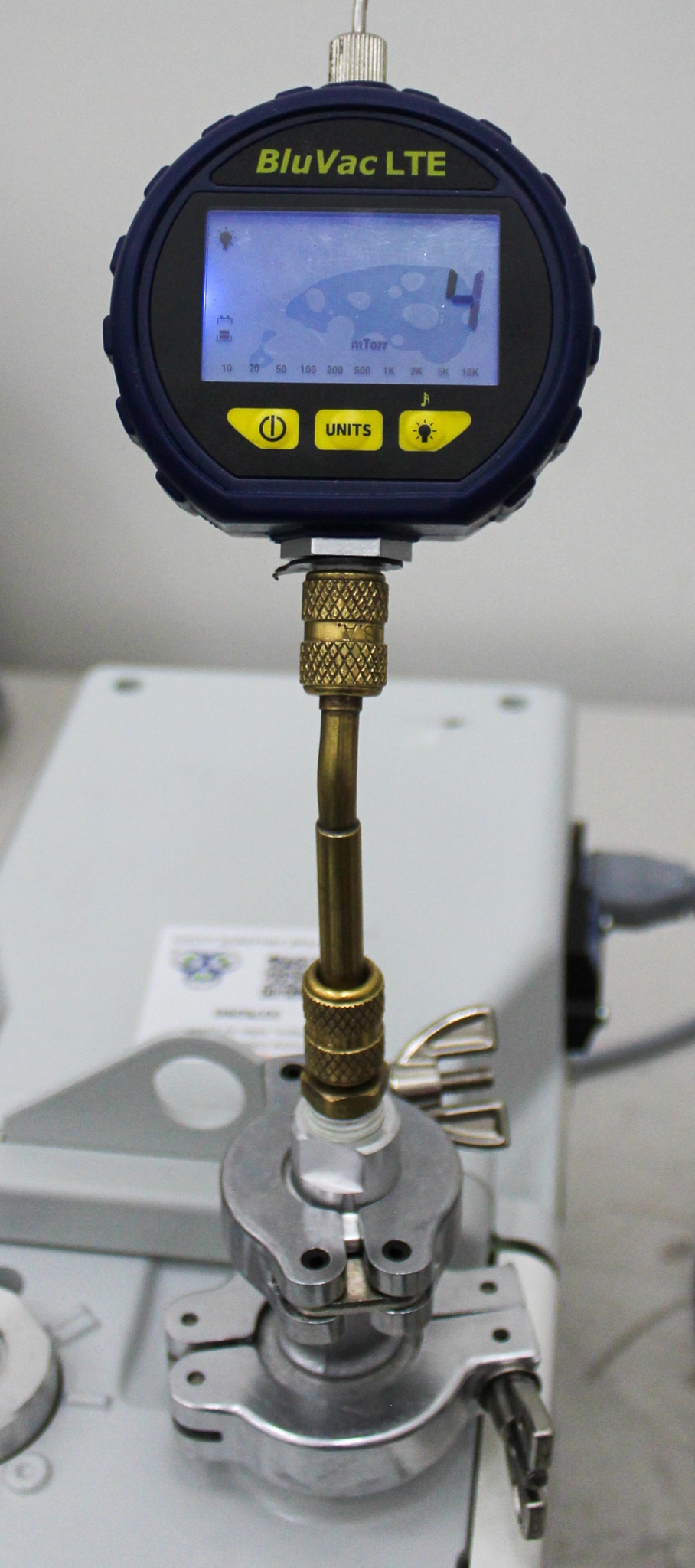

- Ultimate Pressure: 2 x 10-3 mbar
- Motor Power: 450/550W
- Noise Level: 48 dB(A) @ 50 Hz
- Oil Capacity: 0.45 - 0.75 liters
- Inlet/Exhaust Flange: NW25
- Operating Temperature: 12 - 40°C
- Dimensions: 17" x 7" x 10" (approx.)
Weight
Imperial: 74.4 Pounds
Metric: 33.75 Kilograms
Shipping Dimensions
Imperial: 20.4 lb x 8.4 lb x 12.0 lb
Metric: 51.82 cm x 21.34 cm x 30.48 cm
Harmonized Code
84141000
Harmonized Code Details
Harmonized Code 84141000 is applicable to vacuum pumps because this classification covers air or vacuum pumps, indicating suitability for the Edwards RV8 model.
